Cessna C172 / C206 Products

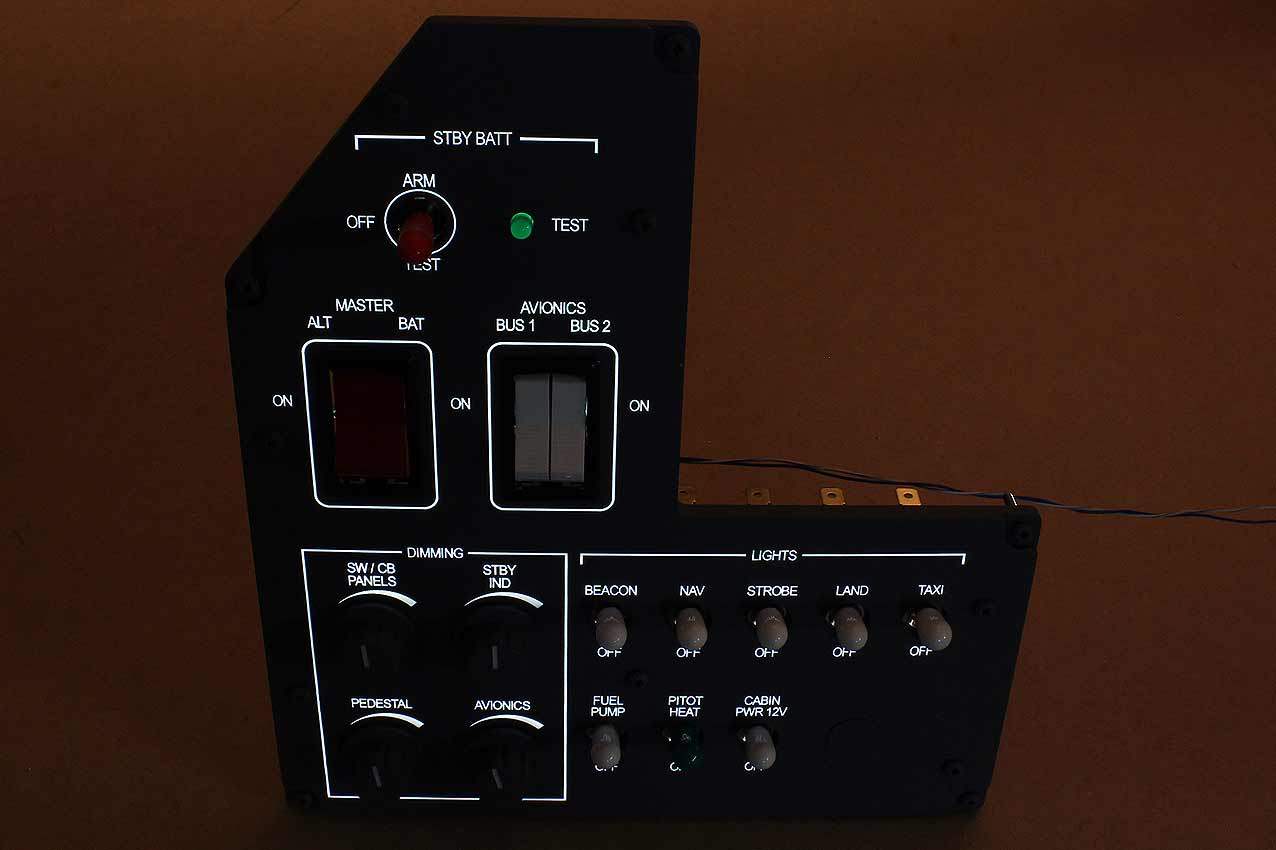

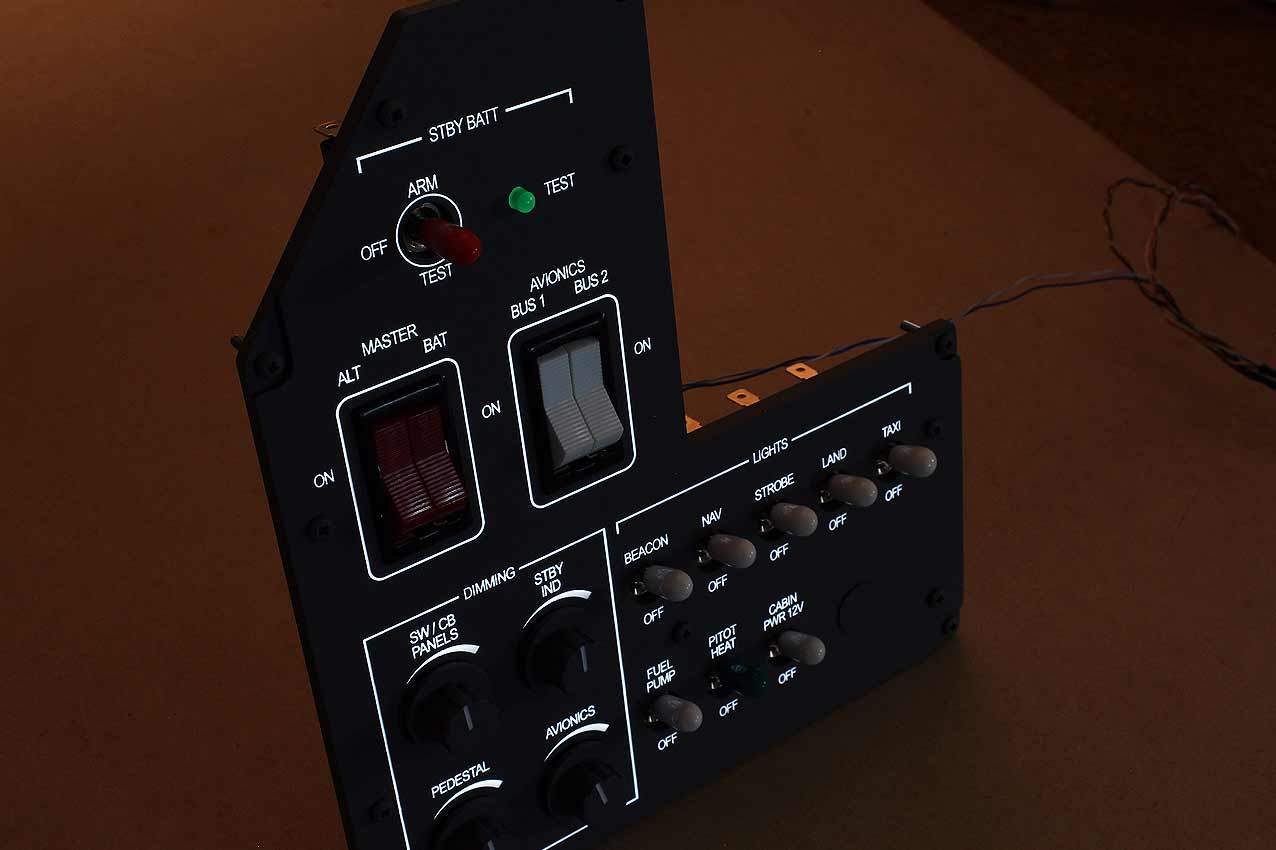

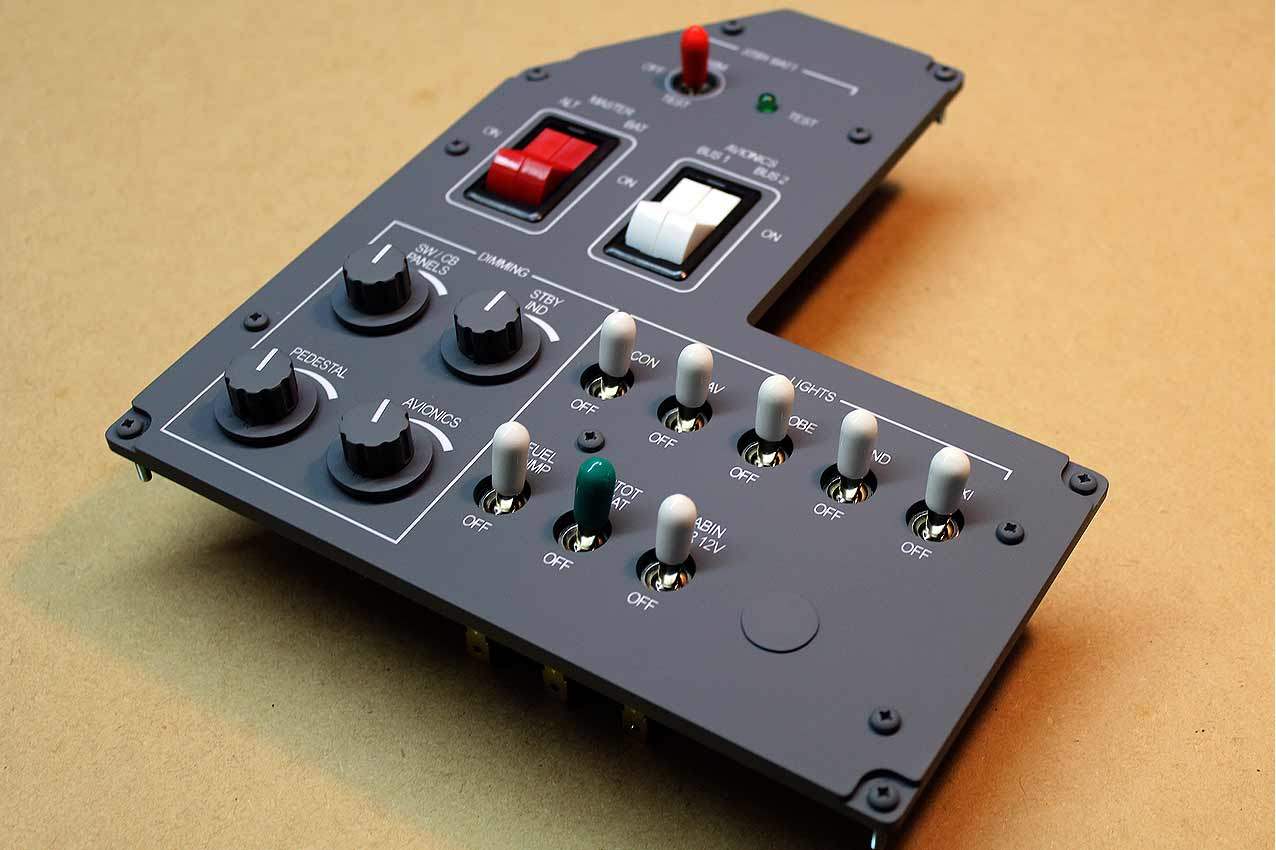

Cessna C206 Main Switch Panel

Dimensions: 197.9mm (wide) x 224.9mm (high)

Backlit Panel complete with parts as shown - US$730-00

This panel will be shipped as a fully-assembled unit. Please note that there is no controller included with this panel. This is not a plug and play item; no wiring or interface is supplied.



This fully-assembled, fully-backlit panel will include all of the switches, the vinyl caps, the engraved knobs, the potentiometers, the two split-switches, an indicator LED, a wire connector for the 12V backlighting, and all of the mounting screws.

To download the files for the panel shape cutout and dimensions, click here.

Cessna C206 Circuit Breaker Panel

Dimensions: 464.22mm (wide) x 108.04mm (high)

Backlit Panel complete with parts as shown - US$396-00

This panel will be shipped as a fully-assembled unit. Please note that there is no controller included with this panel. This is not a plug and play item; no wiring or interface is supplied. The circuit breakers are dummy items only – they are not functional.



This fully-assembled, fully-backlit panel will include the magneto switch (with spring-return), a metal key, a full set of dummy circuit breakers with vinyl amperage labels, a wire connector for the 12V backlighting, and all of the mounting screws.

To download the files for the panel shape cutout and dimensions, click here.

Cessna C206 Cabin Air Panel

Dimensions: 367.62mm (wide) x 108.04mm (high)

Backlit Panel complete with parts as shown - US$215-00

Please note that there is no controller included with this panel. This is not a plug and play item; no wiring or interface is supplied. The push/pull switches are not fitted directly to the panel – they should be mounted to your MIP structure.



This fully-backlit panel will include the three high-quality push/pull switches with dummy knobs (as separate items – not fitted to the panel), a wire connector for the 12V backlighting, and all of the mounting screws.

To download the files for the panel shape cutout and dimensions, click here.

Cessna C206 Fuel Selector Panel

Dimensions: 149.3mm (wide) x 140mm (high)

Backlit Panel complete with parts as shown - US$240-00

This panel will be shipped as a fully-assembled unit. Please note that there is no controller included with this panel. This is not a plug and play item; no wiring or interface is supplied.



This fully-assembled, fully-backlit panel will include the rotary switch, the Fuel Selector knob, a wire connector for the 12V backlighting, and all of the mounting screws.

To download the files for the panel shape cutout and dimensions, click here.
