Cessna Citation Products

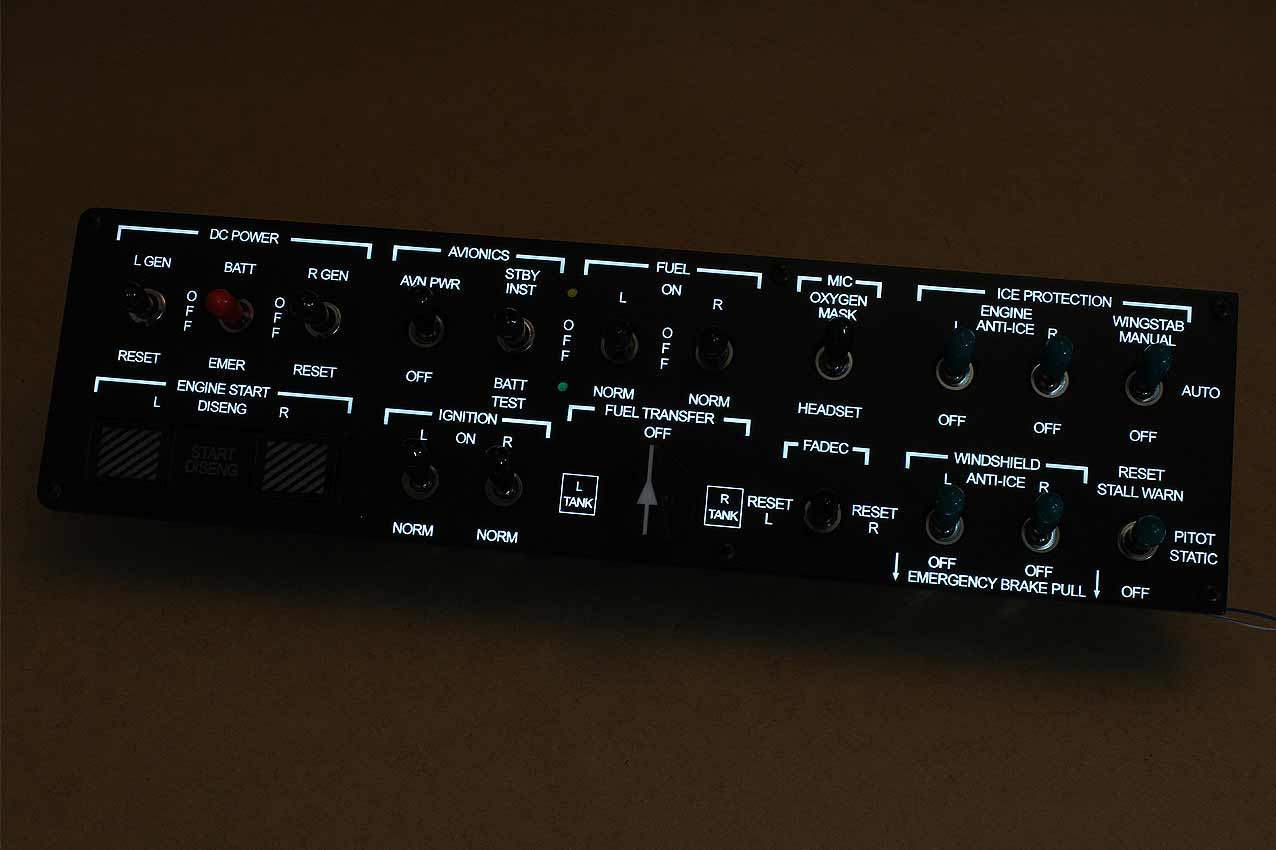

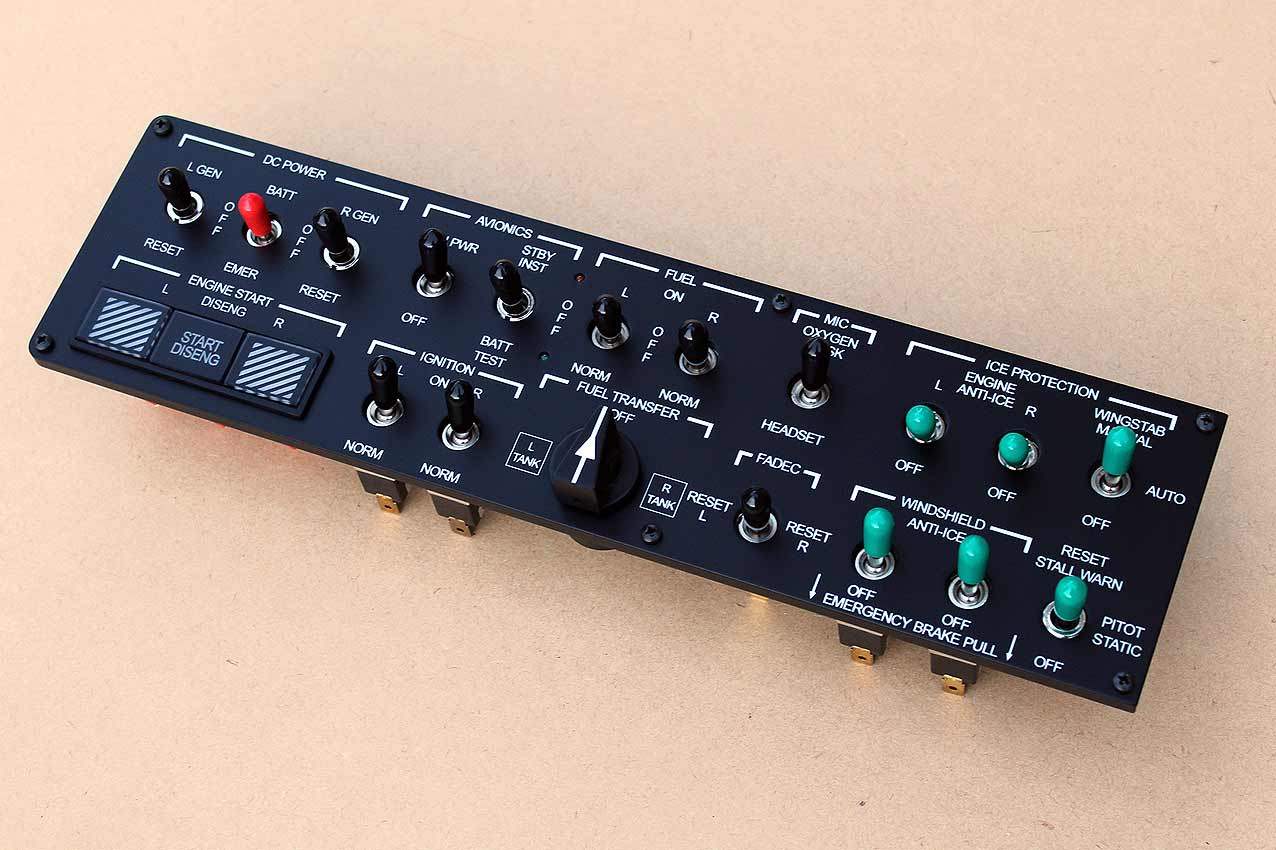

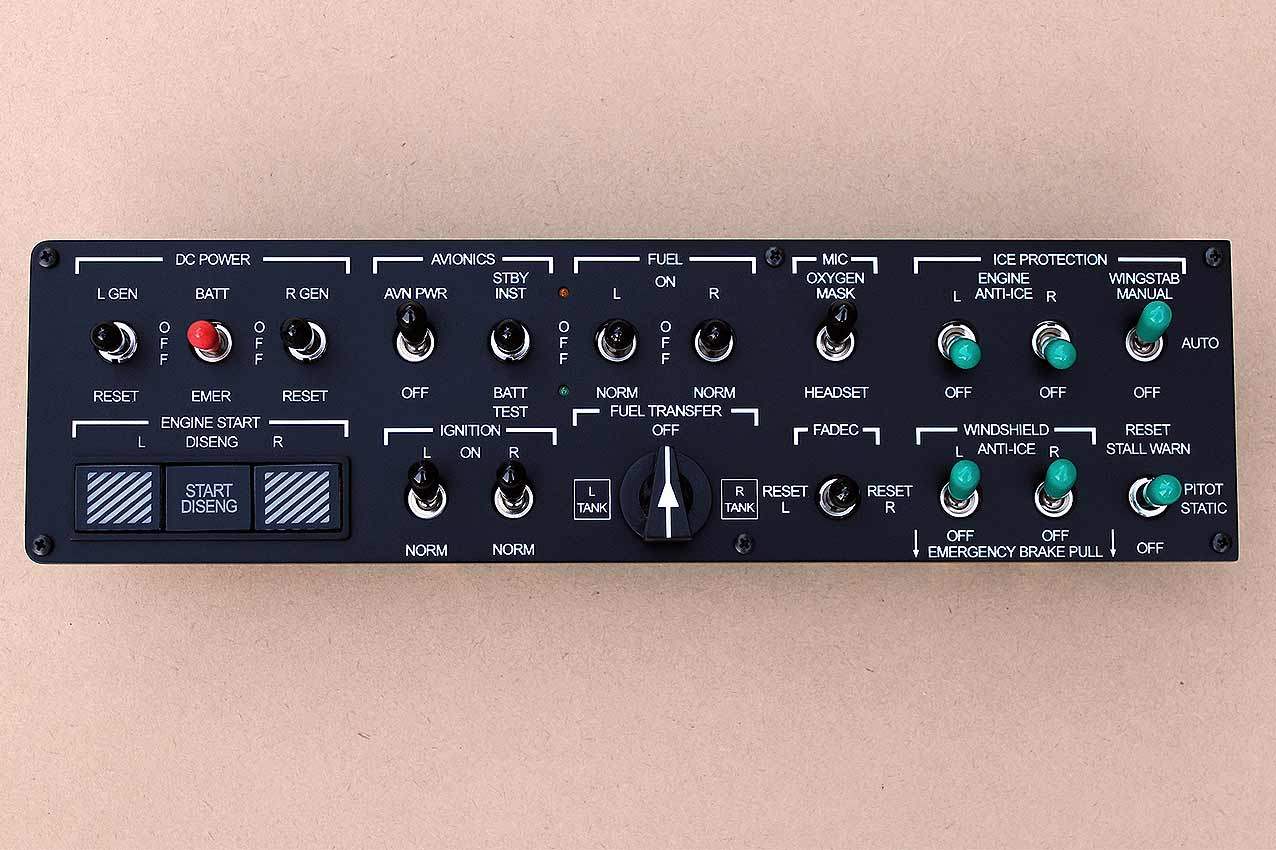

Left Switch Panel

Dimensions: 335mm (wide) x 90mm (high)

Backlit Panel with parts - US$389-00

When supplied as a fully-assembled unit, this fully-backlit panel will include the engraved TXFR knob, the 90 degree rotary switch, two indicator LEDs, all of the toggle switches, the vinyl switch caps, the illuminated Engine Start pushbuttons, and all of the black mounting screws.

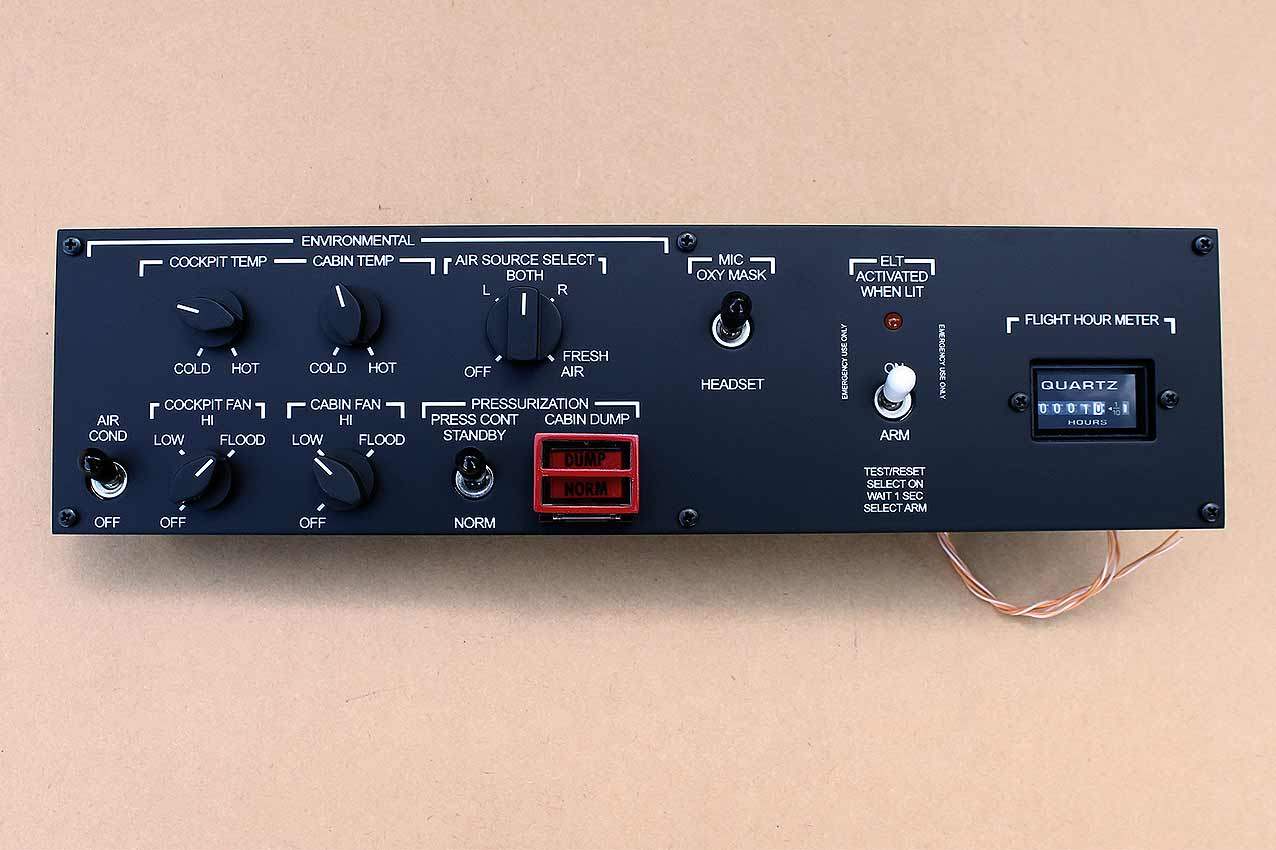

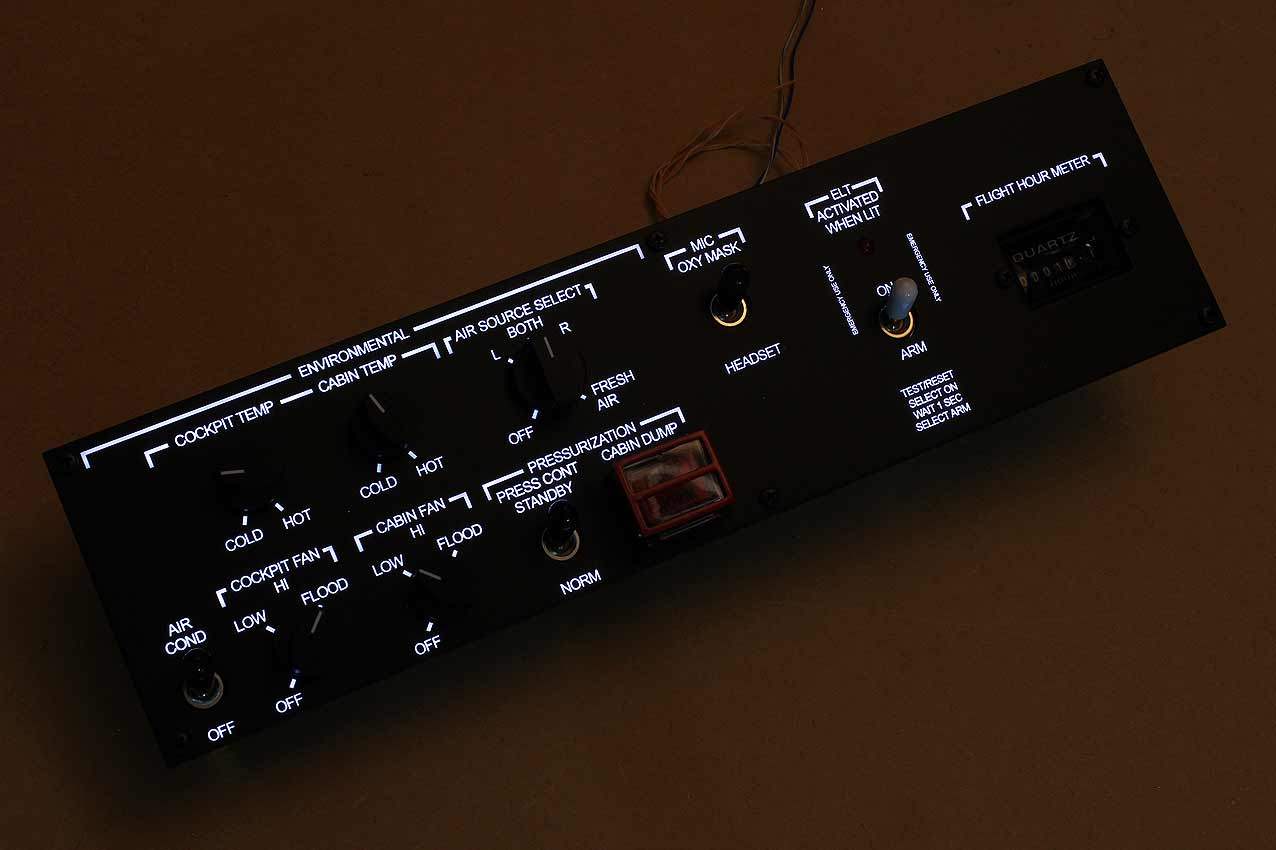

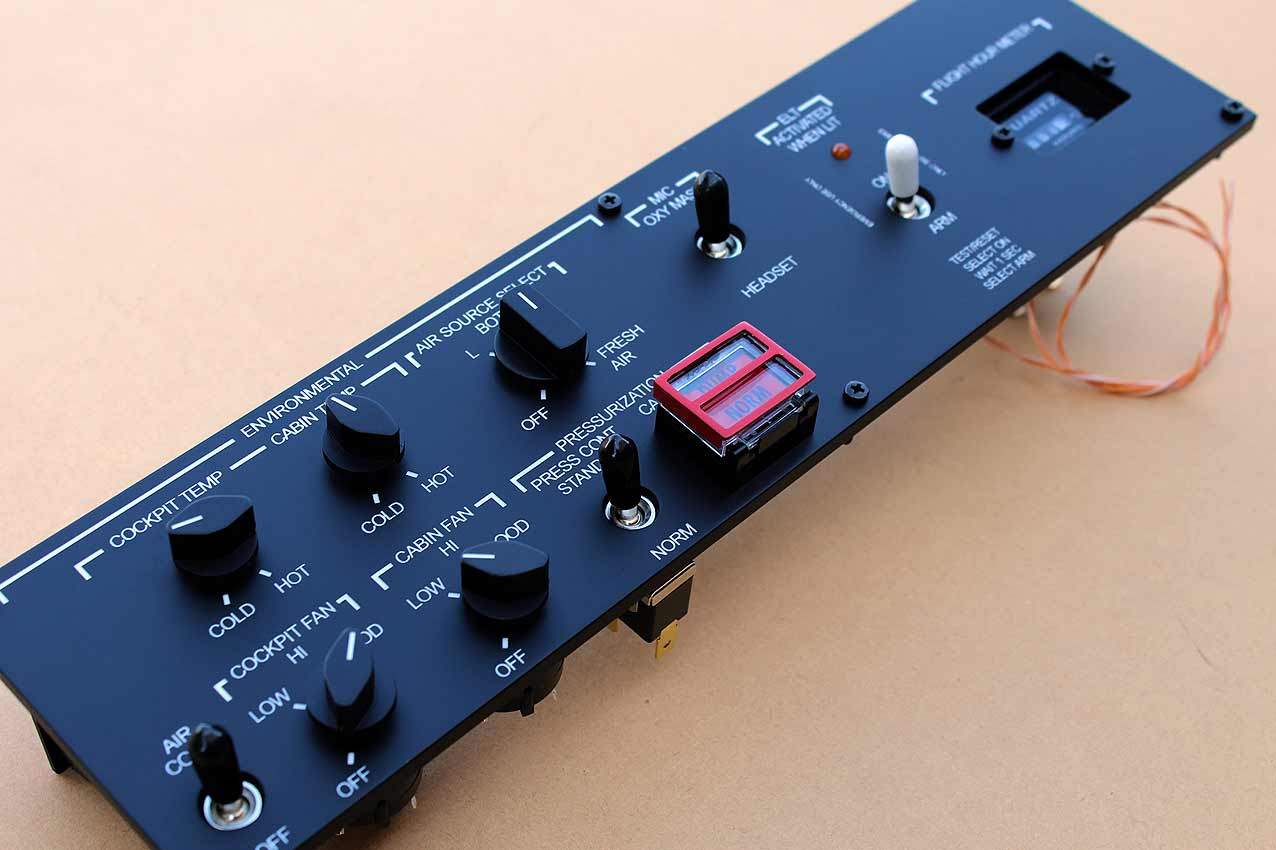

Right Switch Panel

Dimensions: 335mm (wide) x 90mm (high)

Backlit Panel with parts - US$286-00

When supplied as a fully-assembled unit, this fully-backlit panel will include the engraved knobs, the rotary switches, the toggle switches, a functional Hour Meter, an indicator LED, a white vinyl switch cap, the illuminated Dump pushbutton, and all of the black mounting screws.

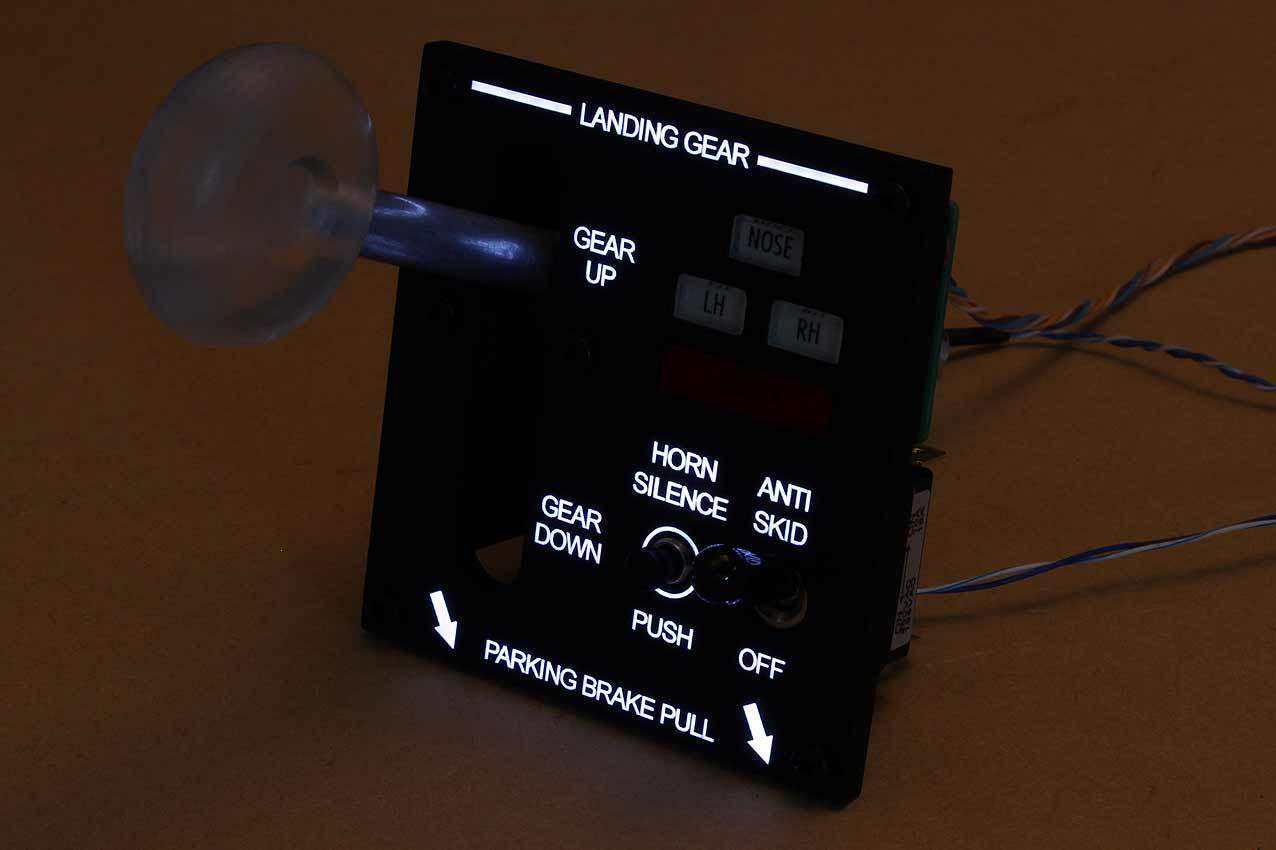

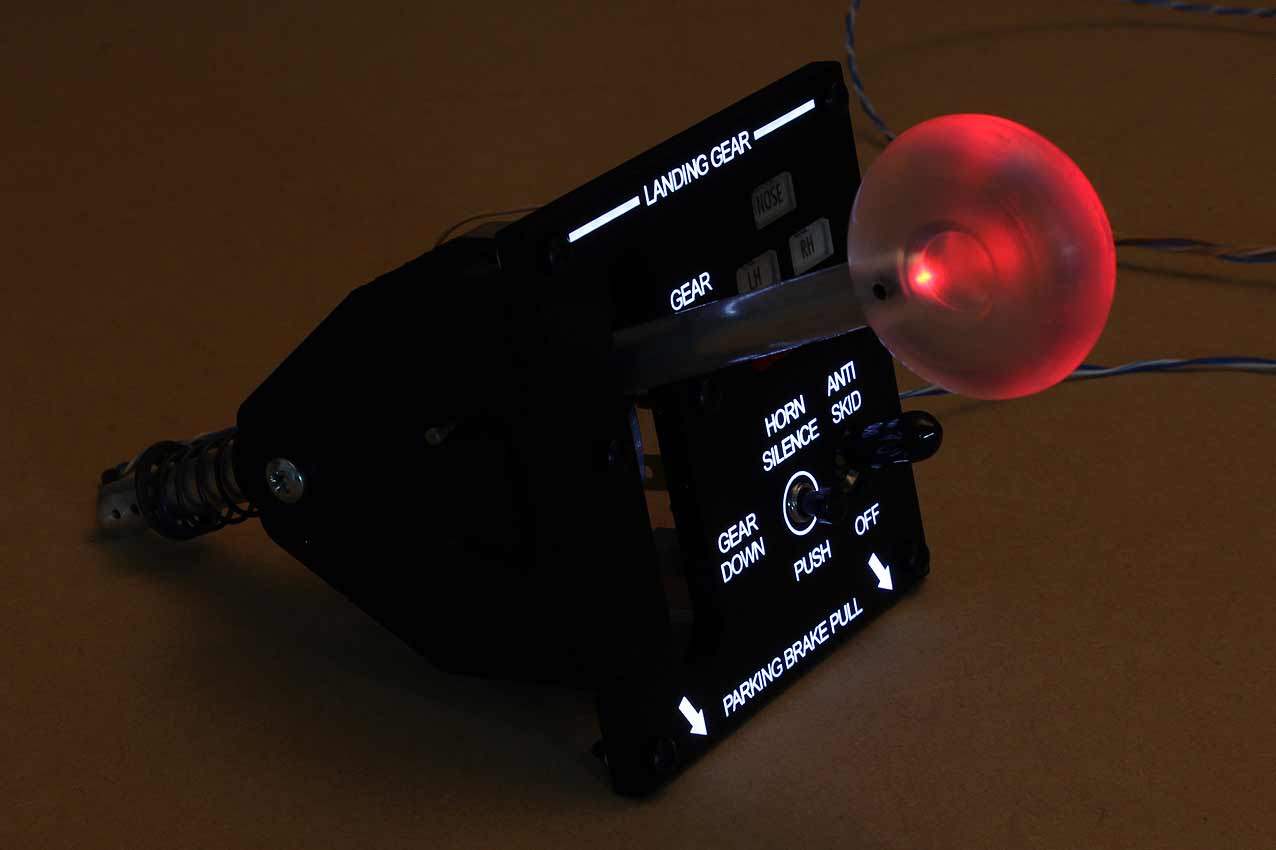

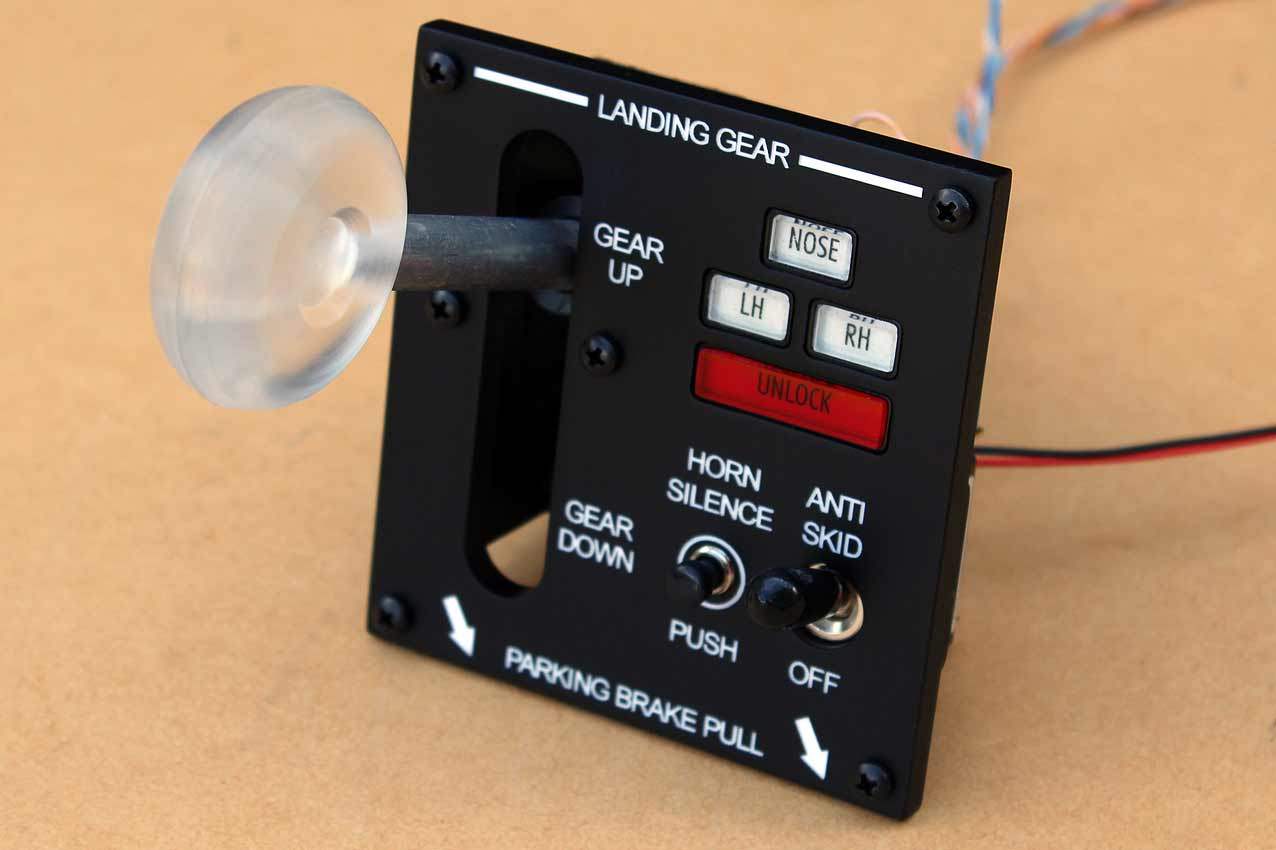

Landing Gear Panel

Dimensions: 86mm (wide) x 90mm (high)

Backlit Panel with parts - US$381-00

When supplied as a fully-assembled unit, this fully-backlit panel will include the toggle switch, the pushbutton, the illuminated Gear indicators (with LEDs and PCB fitted) and all of the black mounting screws.The gear lever is spring loaded and you must pull the knob out before it can be moved from its current position; when it gets to the new position, it springs back into place. A red LED is embedded in theĀ  gear knob to allow for illumination during gear transit, and a pair of connection wires are also included.

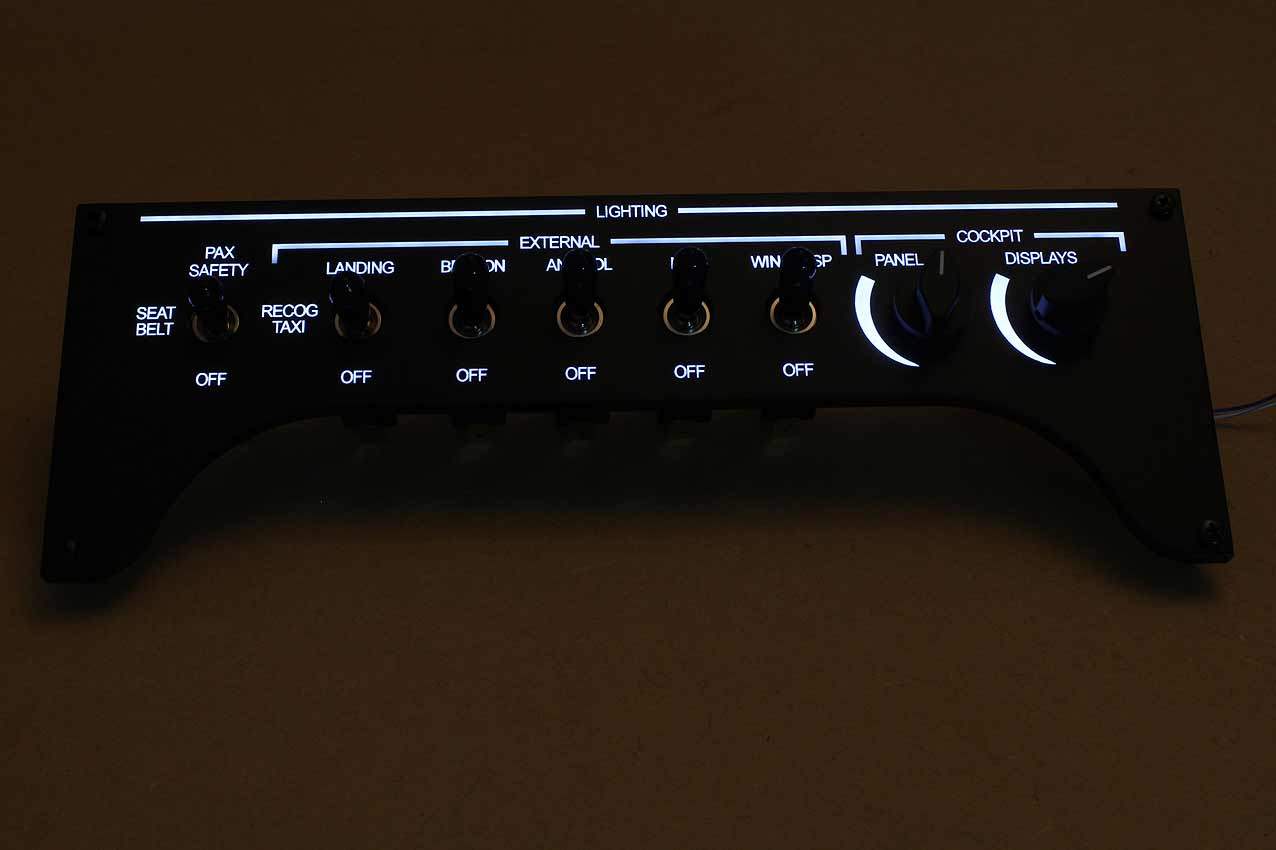

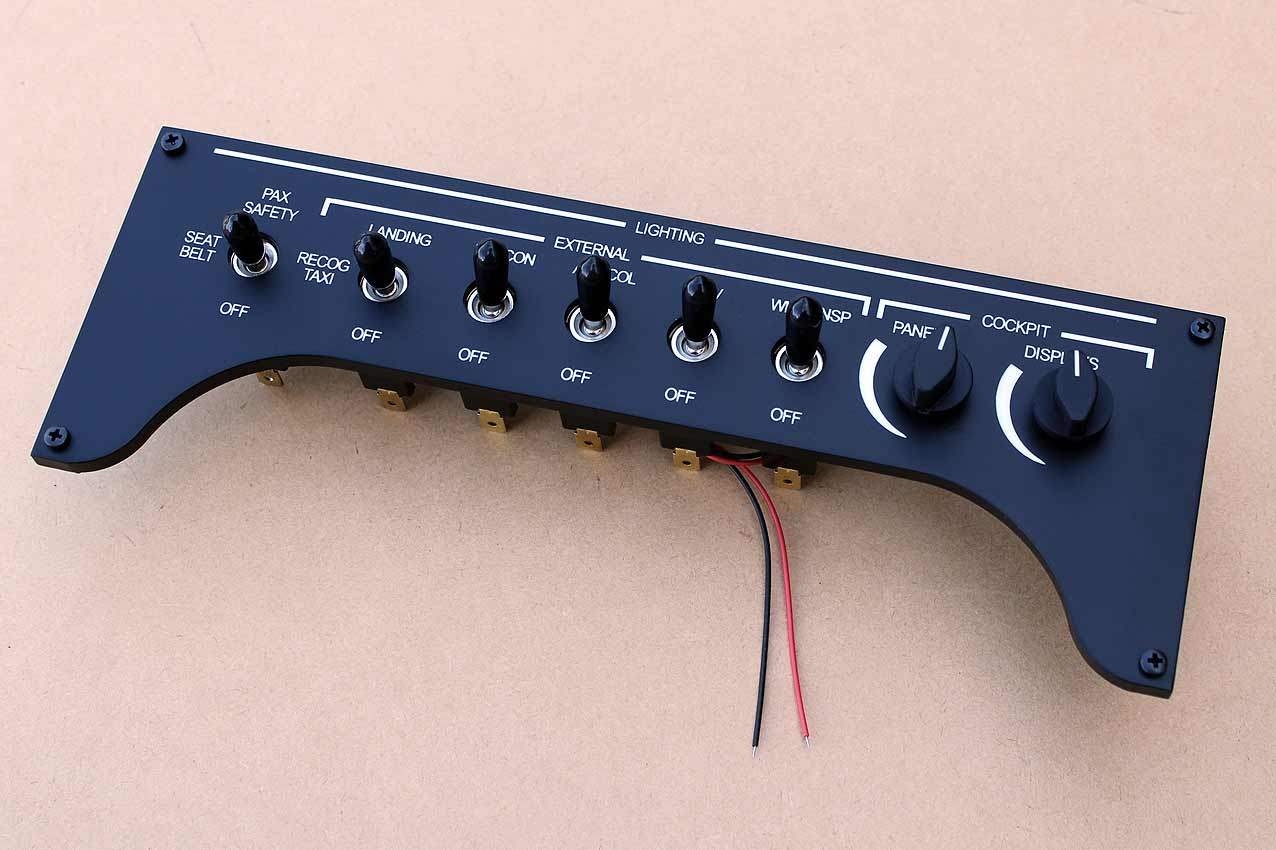

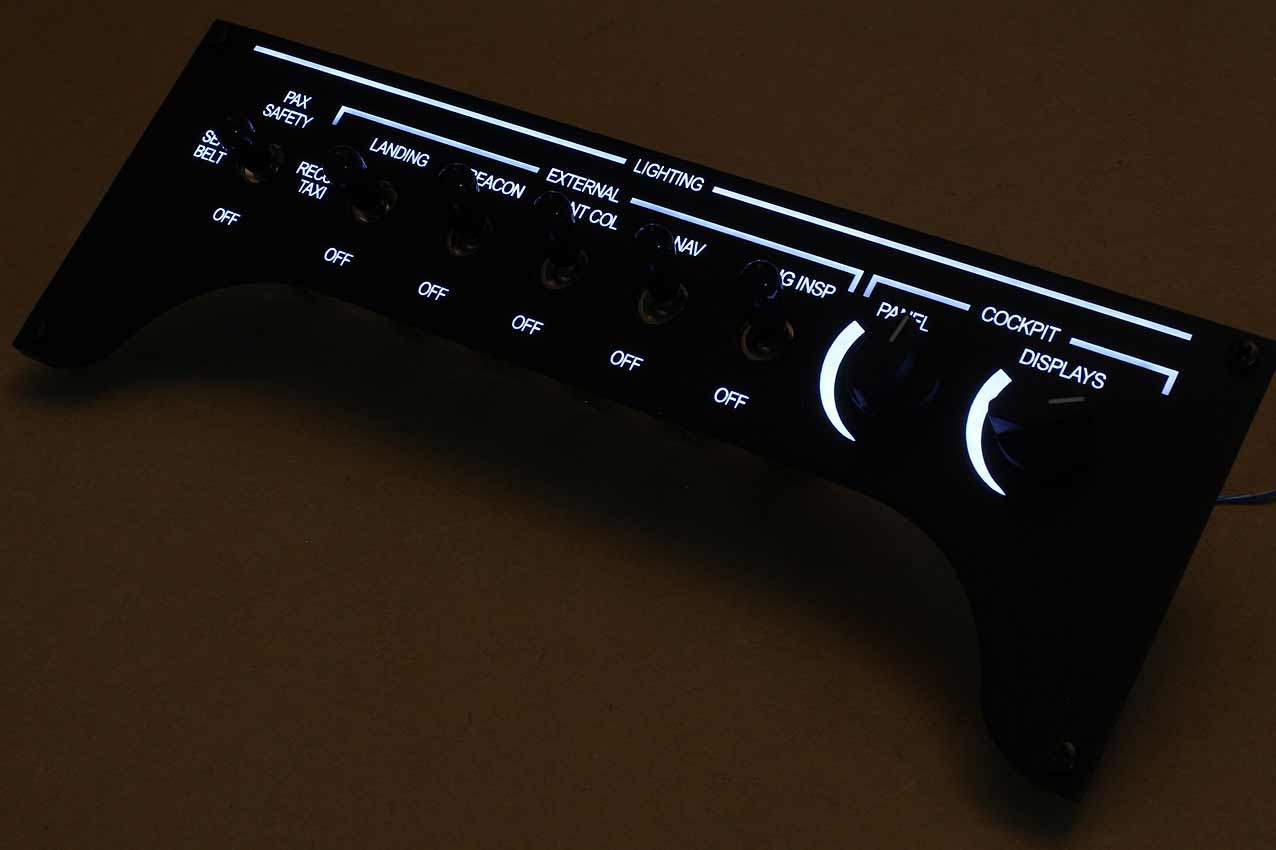

Lighting Panel

Dimensions: 256mm (wide) x 90mm (high)

Backlit Panel with parts - US$146-00

When supplied as a fully-assembled unit, this fully-backlit panel will include the engraved knobs, the toggle switches, the vinyl switch caps, and all of the black mounting screws.

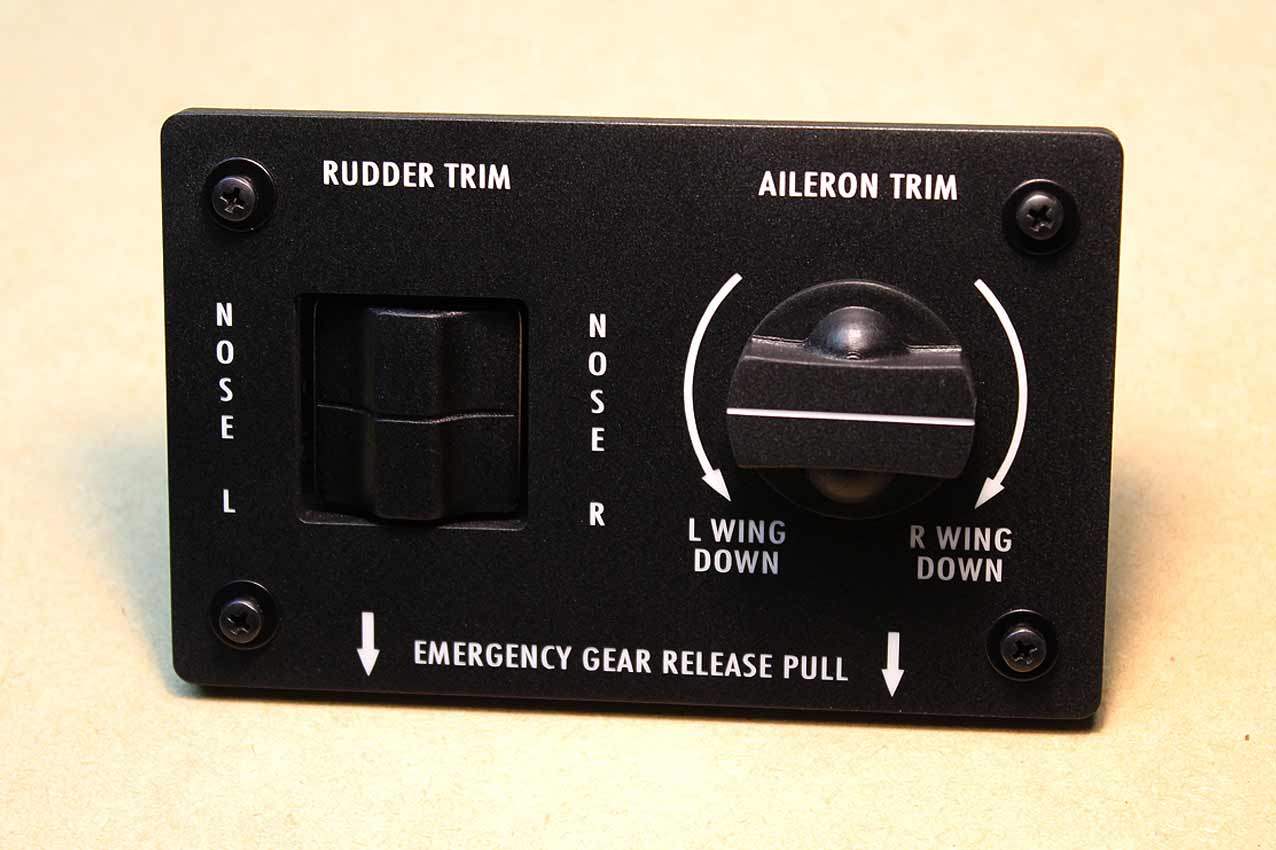

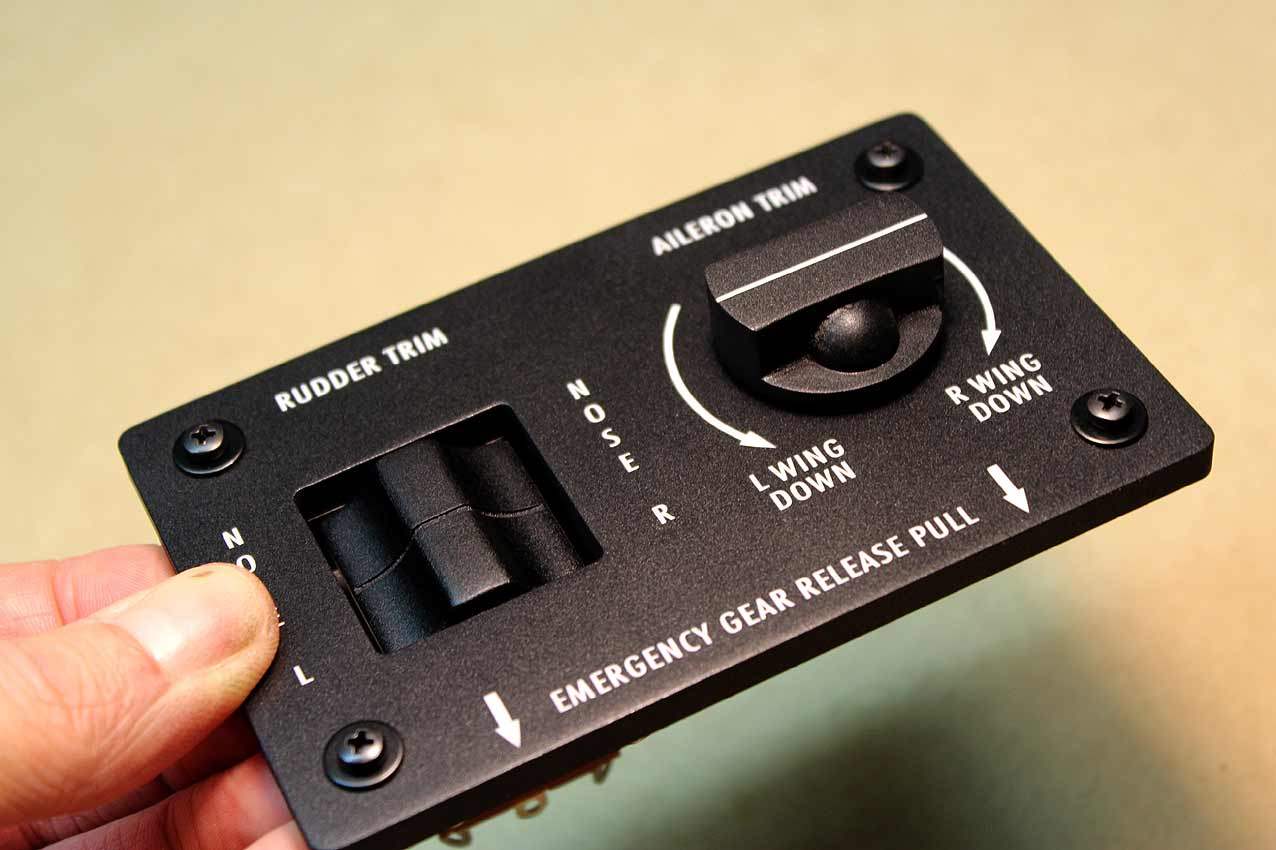

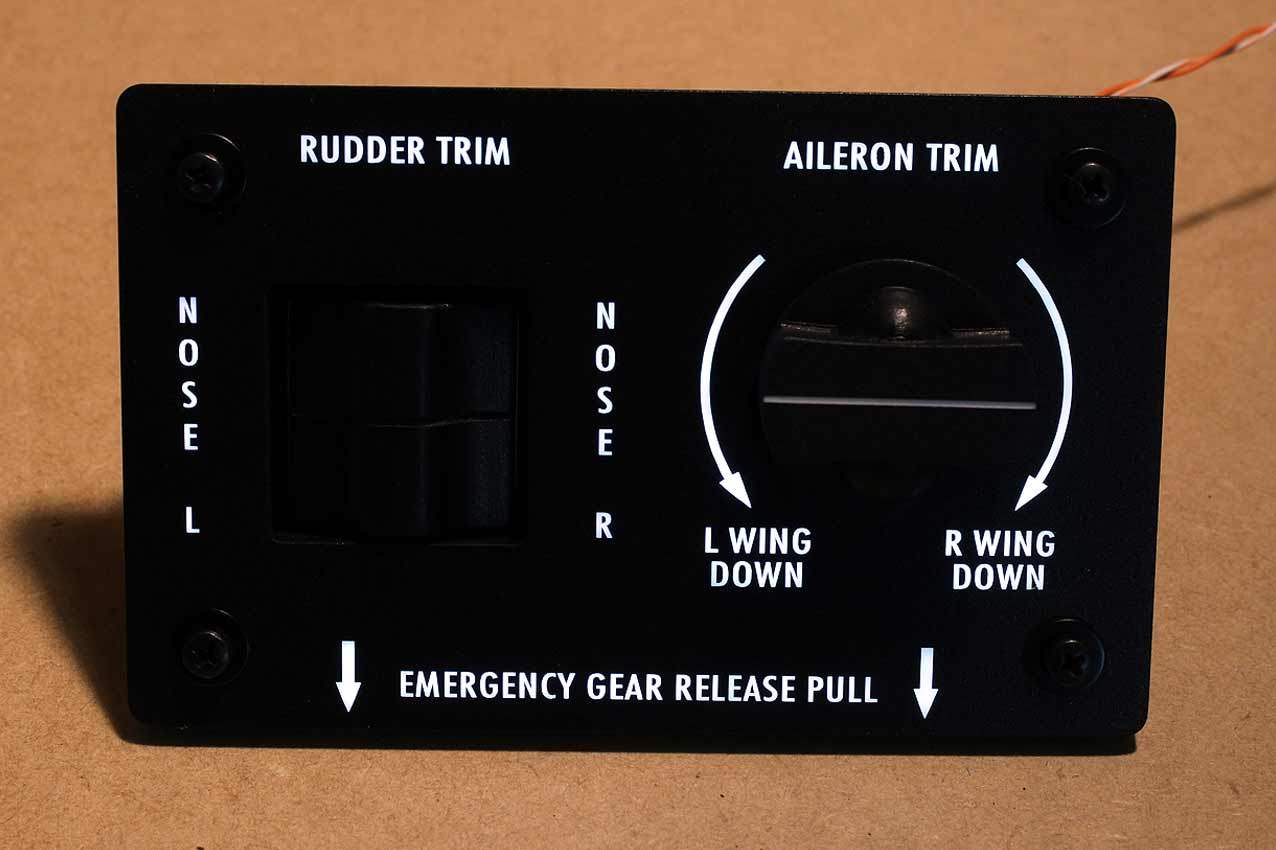

Trim & Gear Release Panel

Dimensions: 120mm (wide) x 75mm (high)

Backlit Panel with parts - US$196-00

When supplied as a fully-assembled unit, this fully-backlit panel will include the spring-loaded Aileron Trim mechanism and knob, the centre-biased Rudder Trim mechanism, and all of the black mounting screws.

To download the files for the panel shape cutout and dimensions, click here.

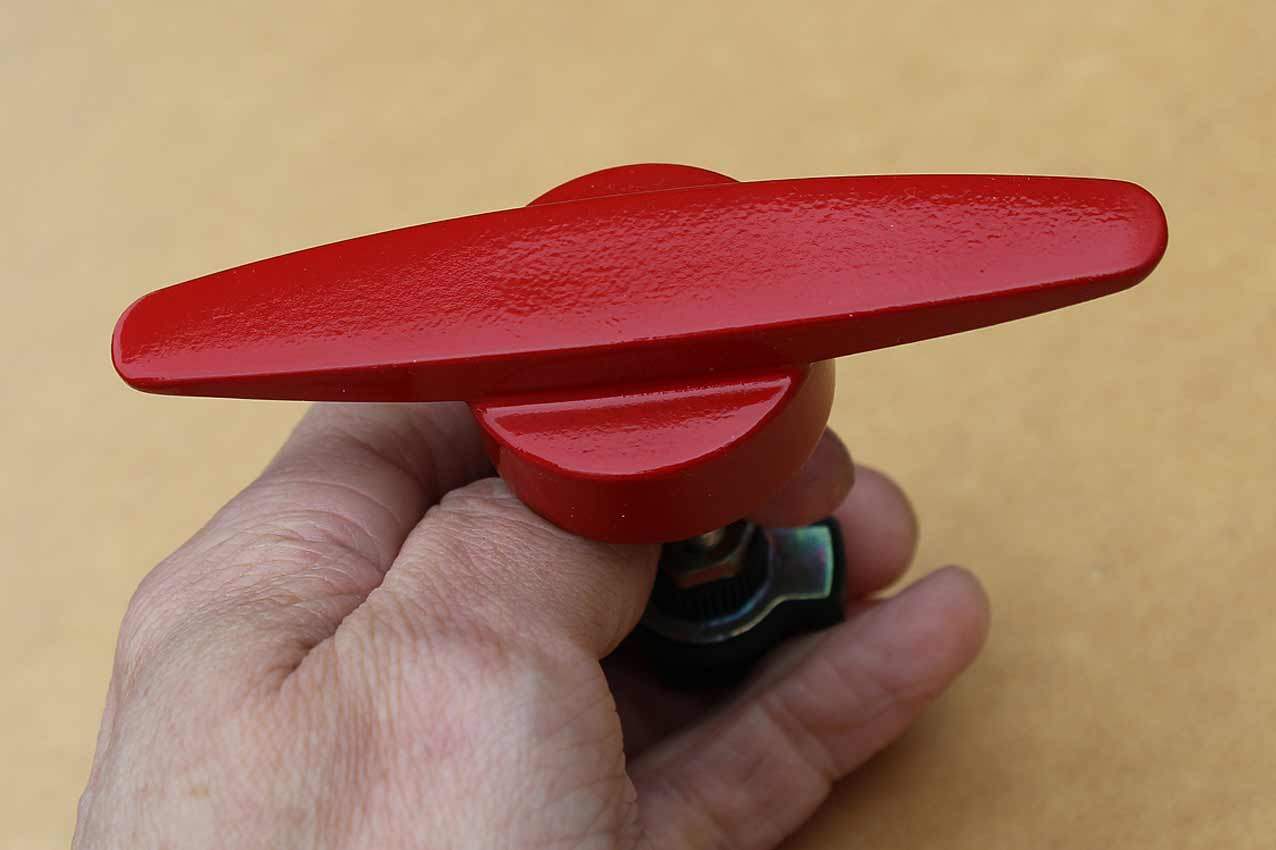

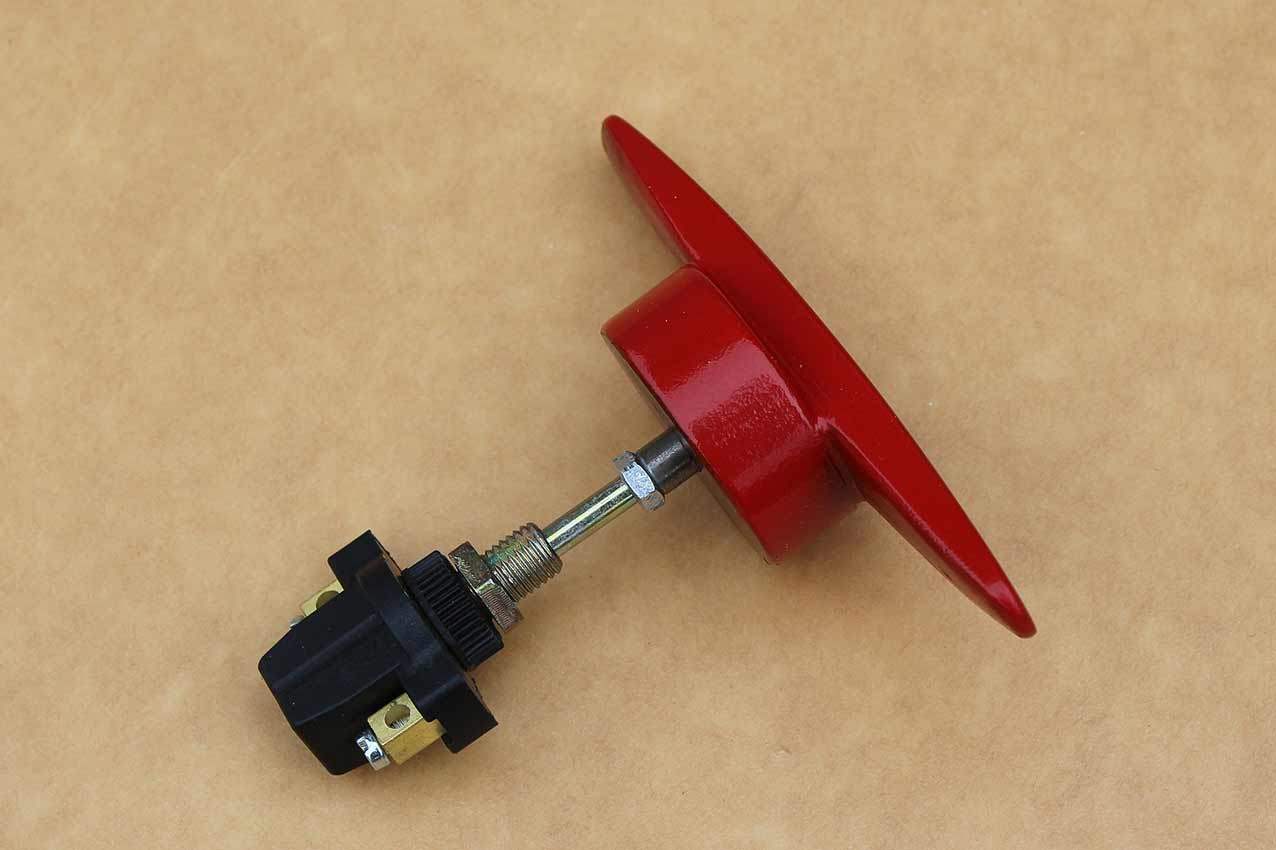

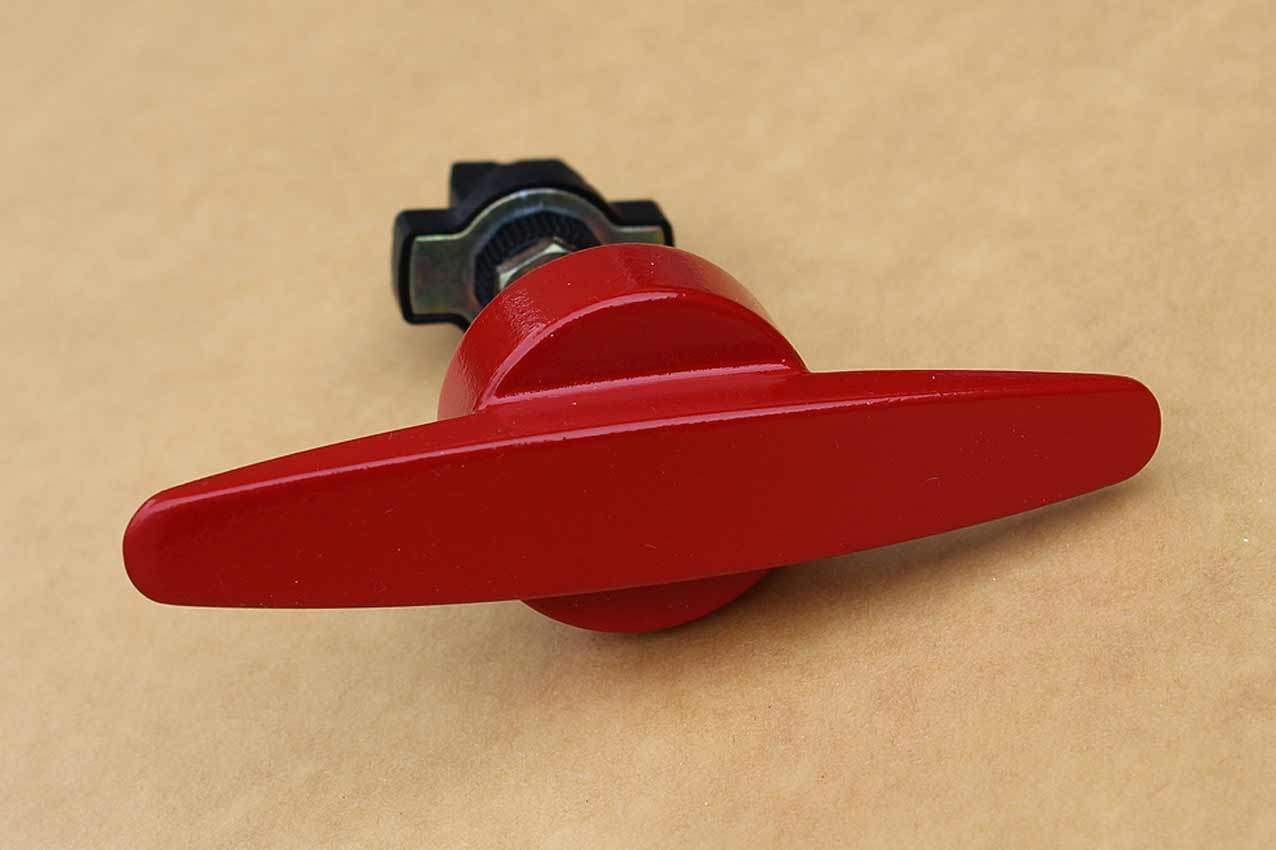

Gear Release Lever

Dimensions: 100mm (wide) x 36mm (high)

Handle with pull on/push off switch - US$35-00

This lever is fitted to a high-quality, heavy-duty pull on/push off switch.

To download the files for the panel shape cutout and dimensions, click here.

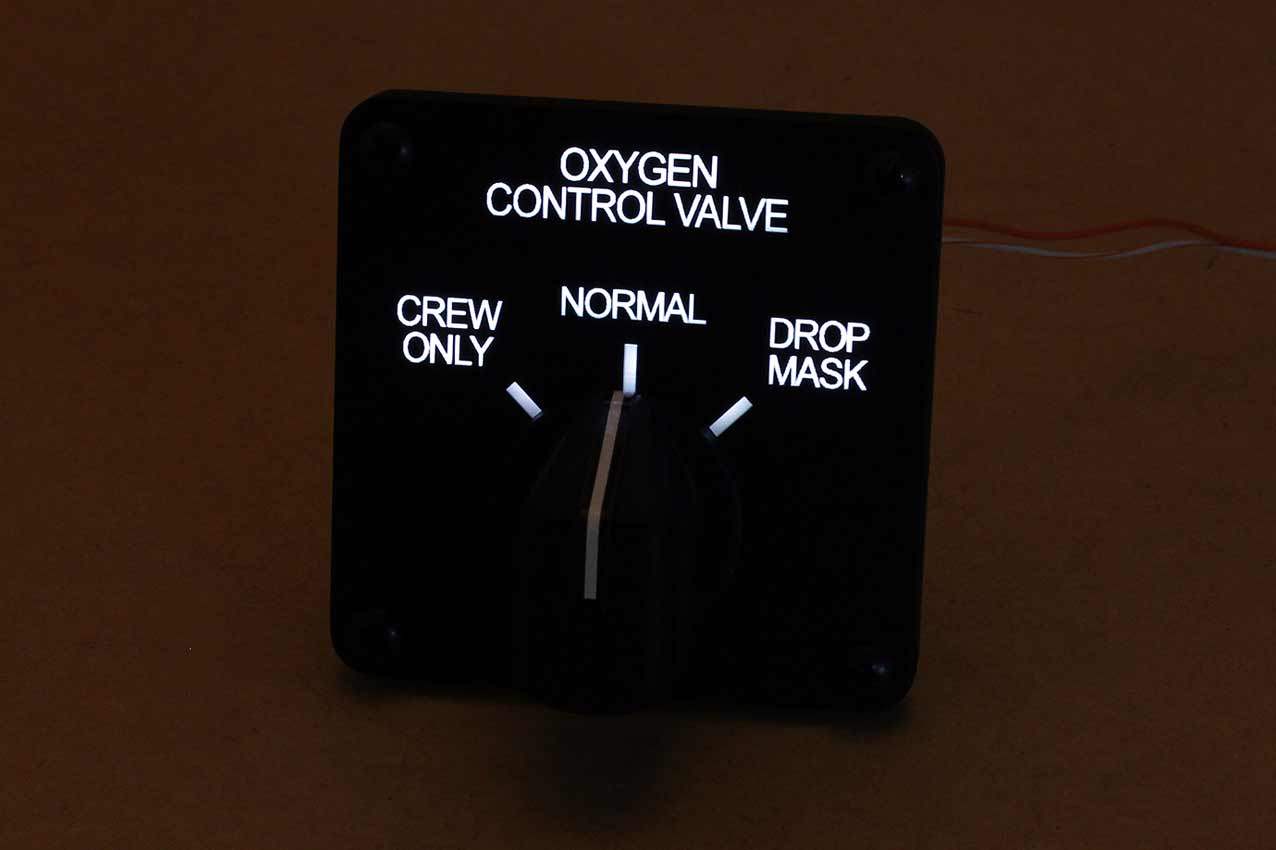

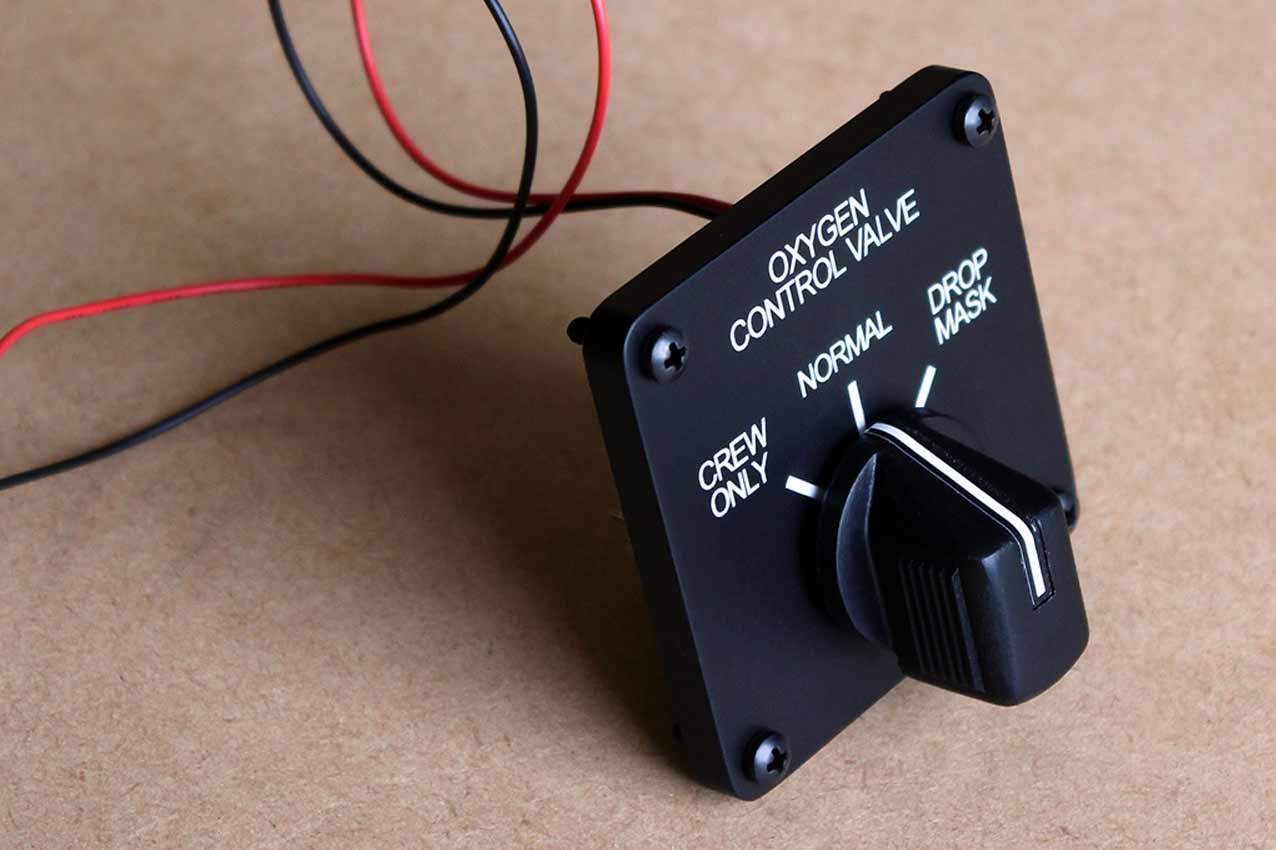

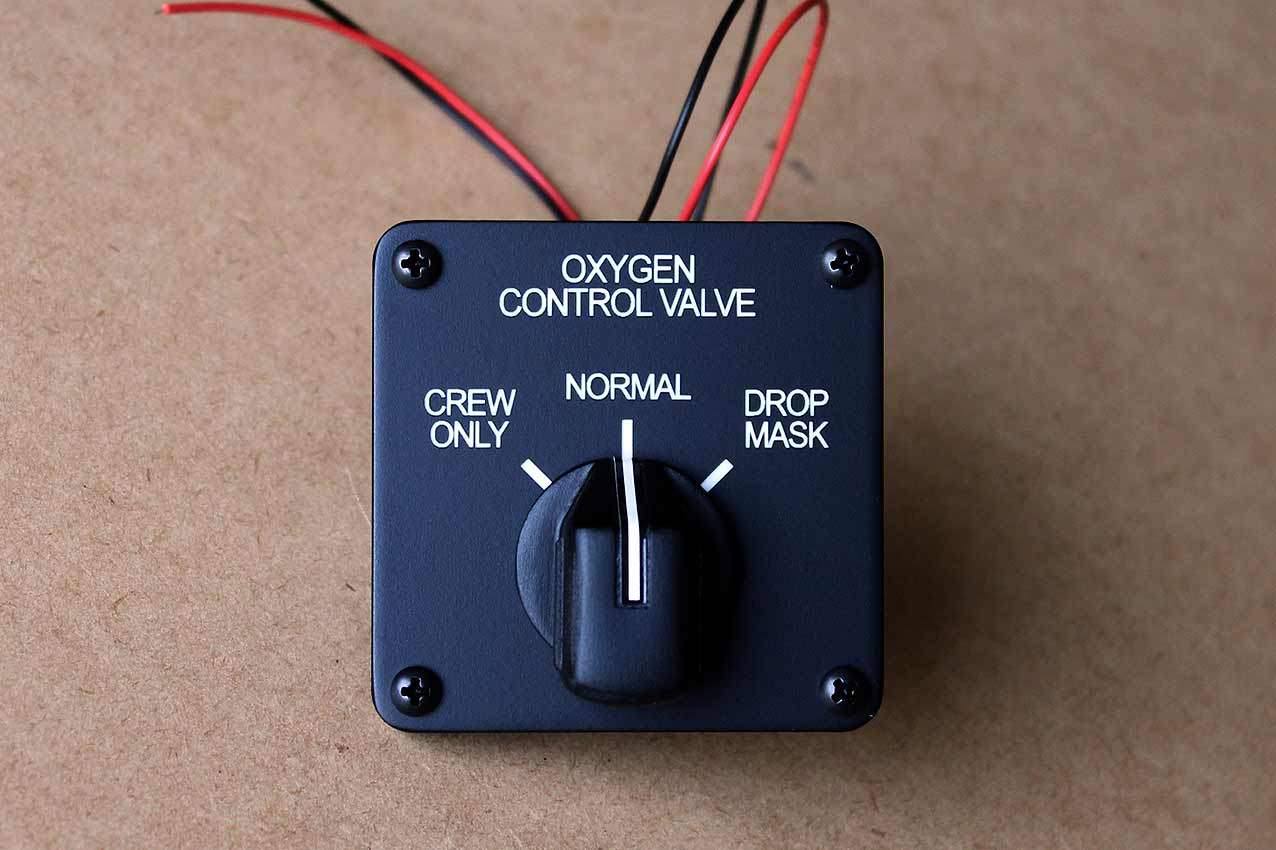

Oxygen Control Panel

Dimensions: 60mm (wide) x 60mm (high)

Backlit Panel with parts - US$92-00

When supplied as a fully-assembled unit, this fully-backlit panel will include the rotary switch, the knob, and all of the black mounting screws.

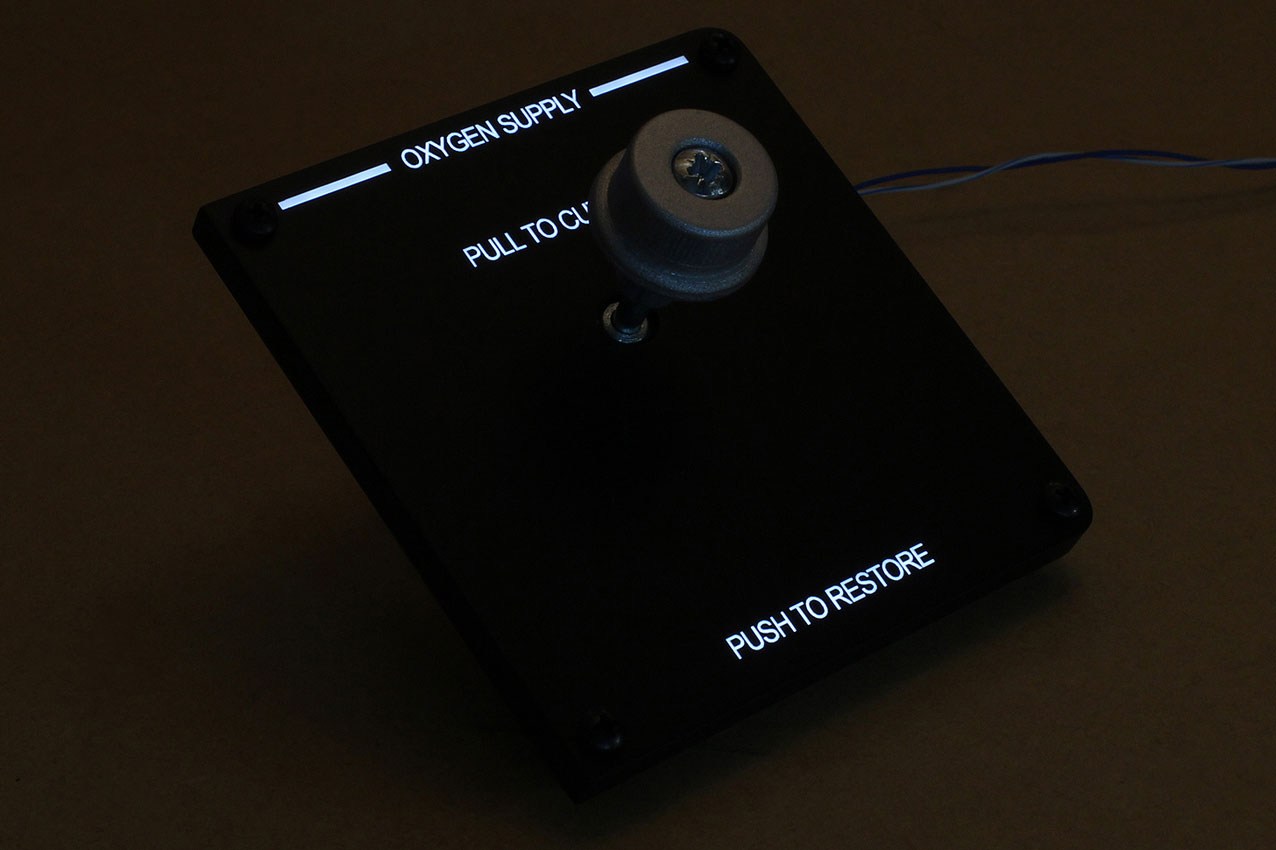

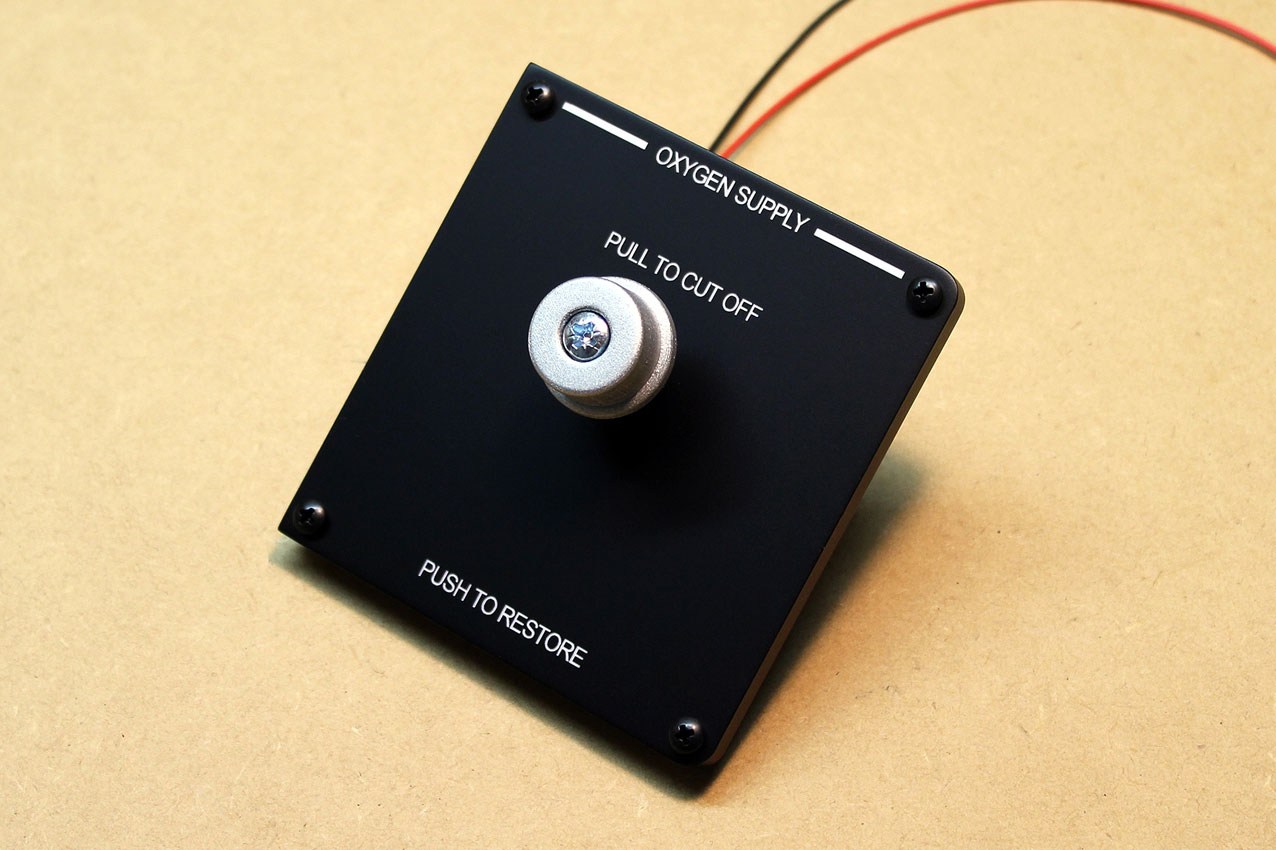

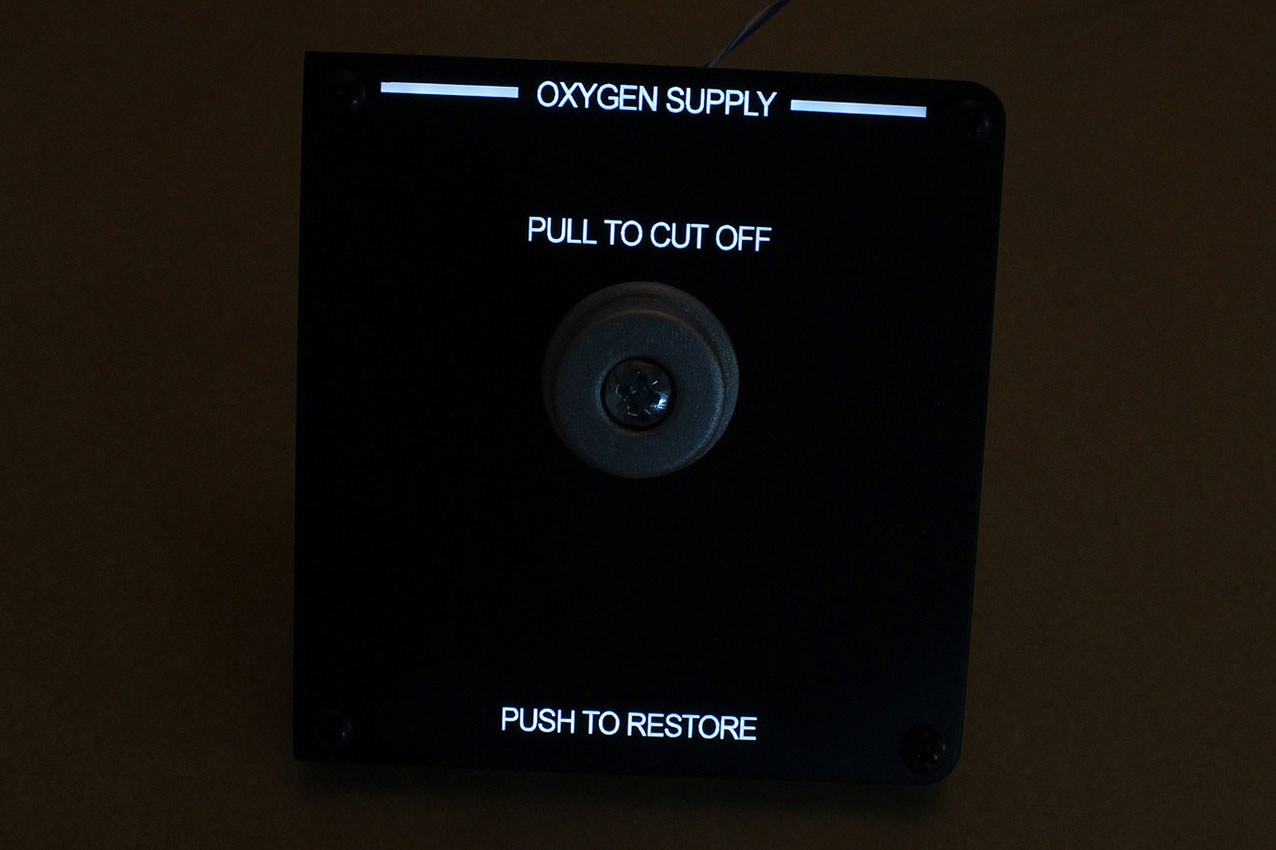

Oxygen Supply Panel

Backlit Panel with parts - US$92-00

Dimensions: 86mm (wide) x 90mm (high)

When supplied as a fully-assembled unit, this fully-backlit panel will include a high-quality pull on/push off switch, a knob, and all of the black mounting screws.

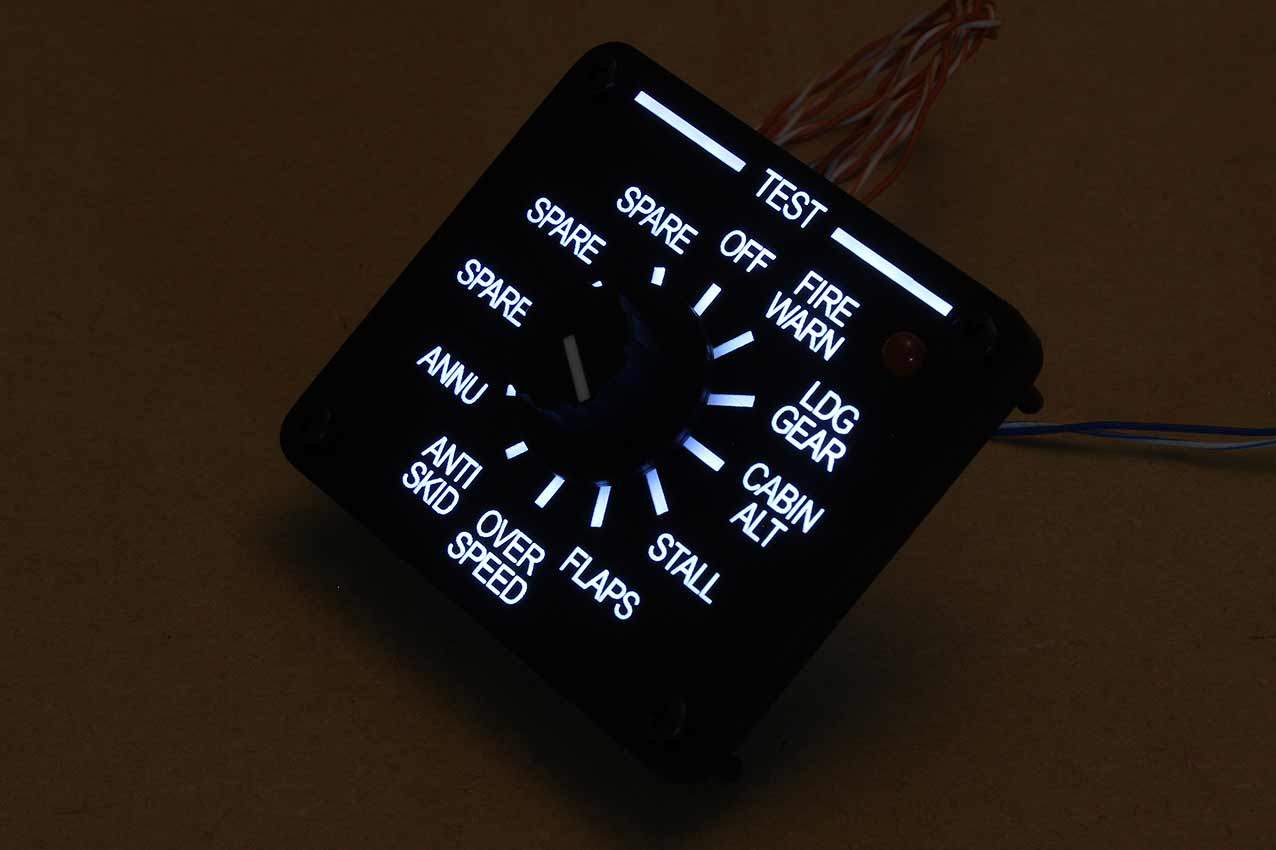

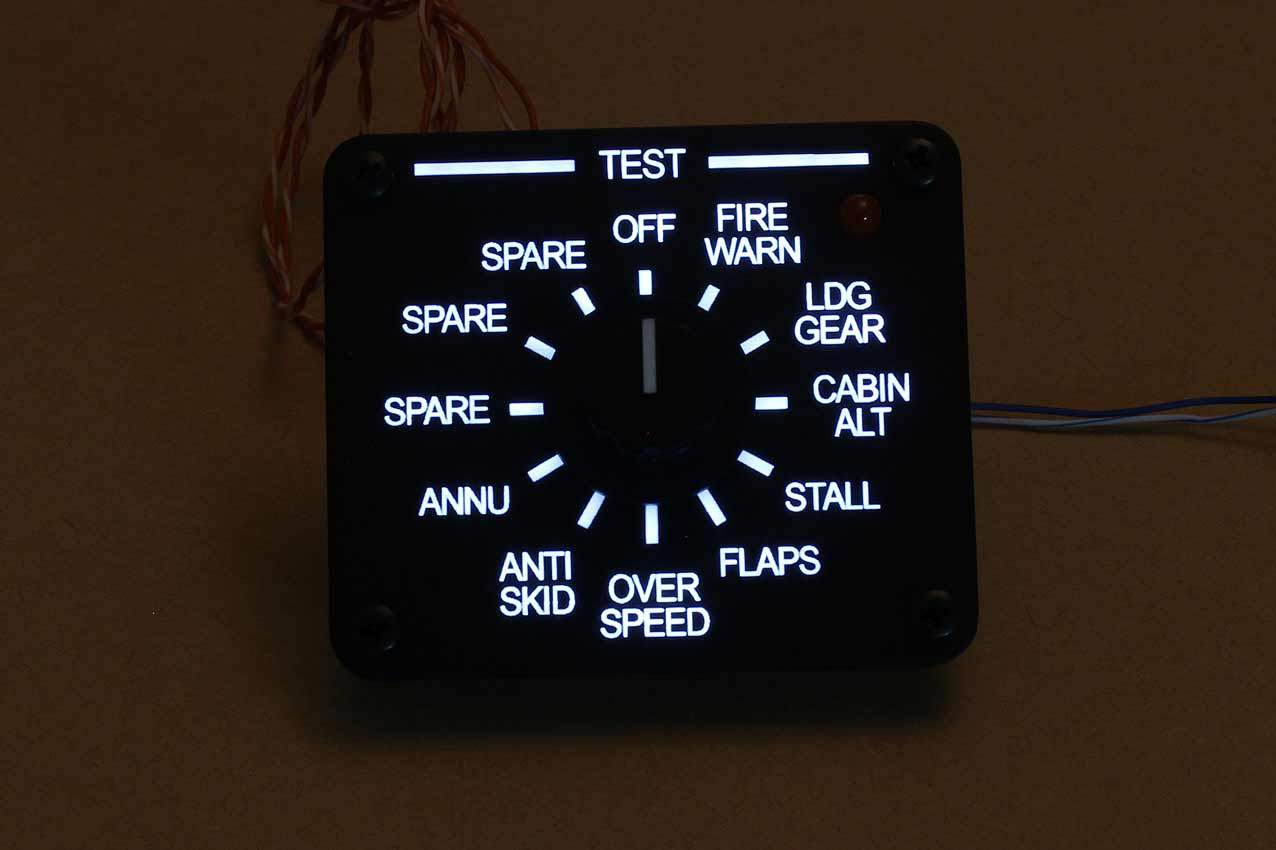

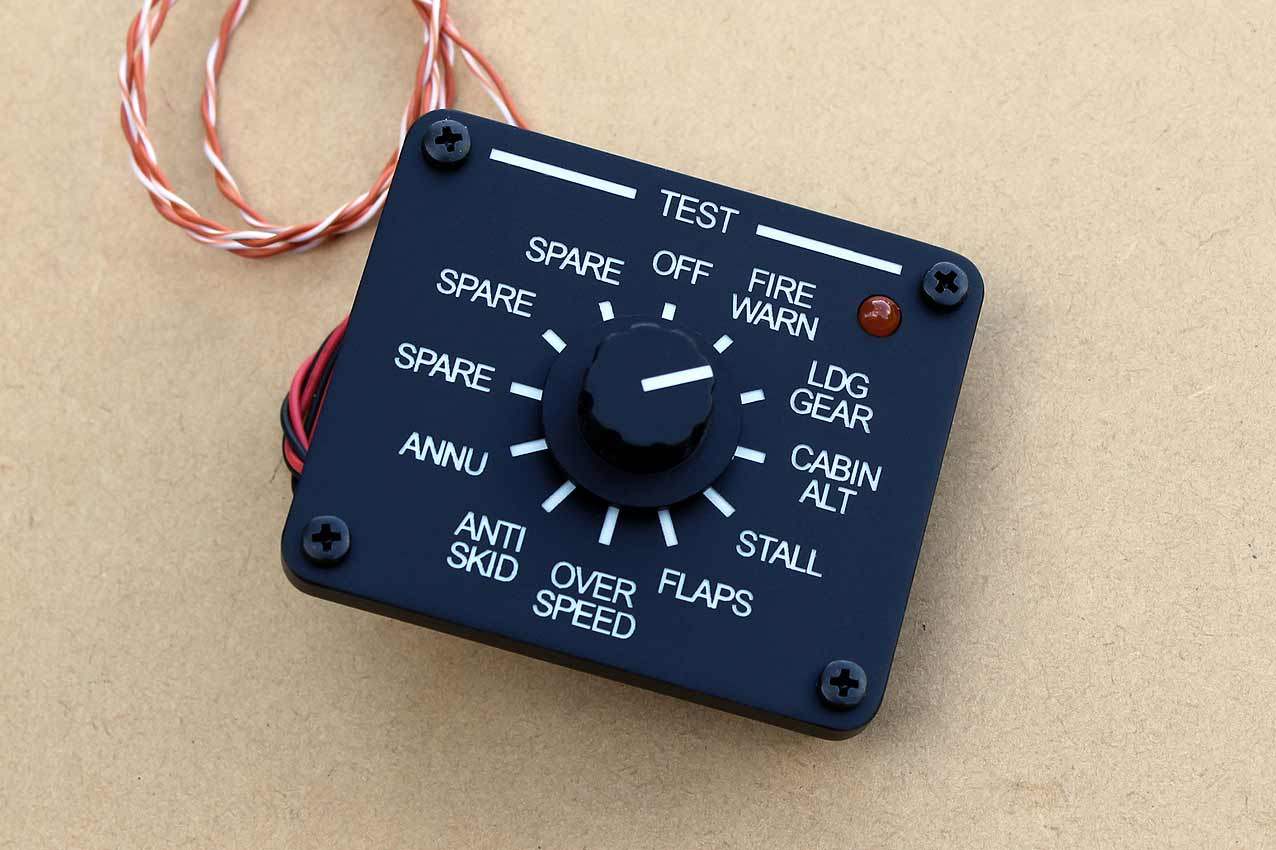

Test Switch Panel

Dimensions: 70mm (wide) x 60mm (high)

Backlit Panel with parts - US$113-00

When supplied as a fully-assembled unit, this fully-backlit panel will include the rotary switch, the engraved knob, an indicator LED, and all of the black mounting screws.

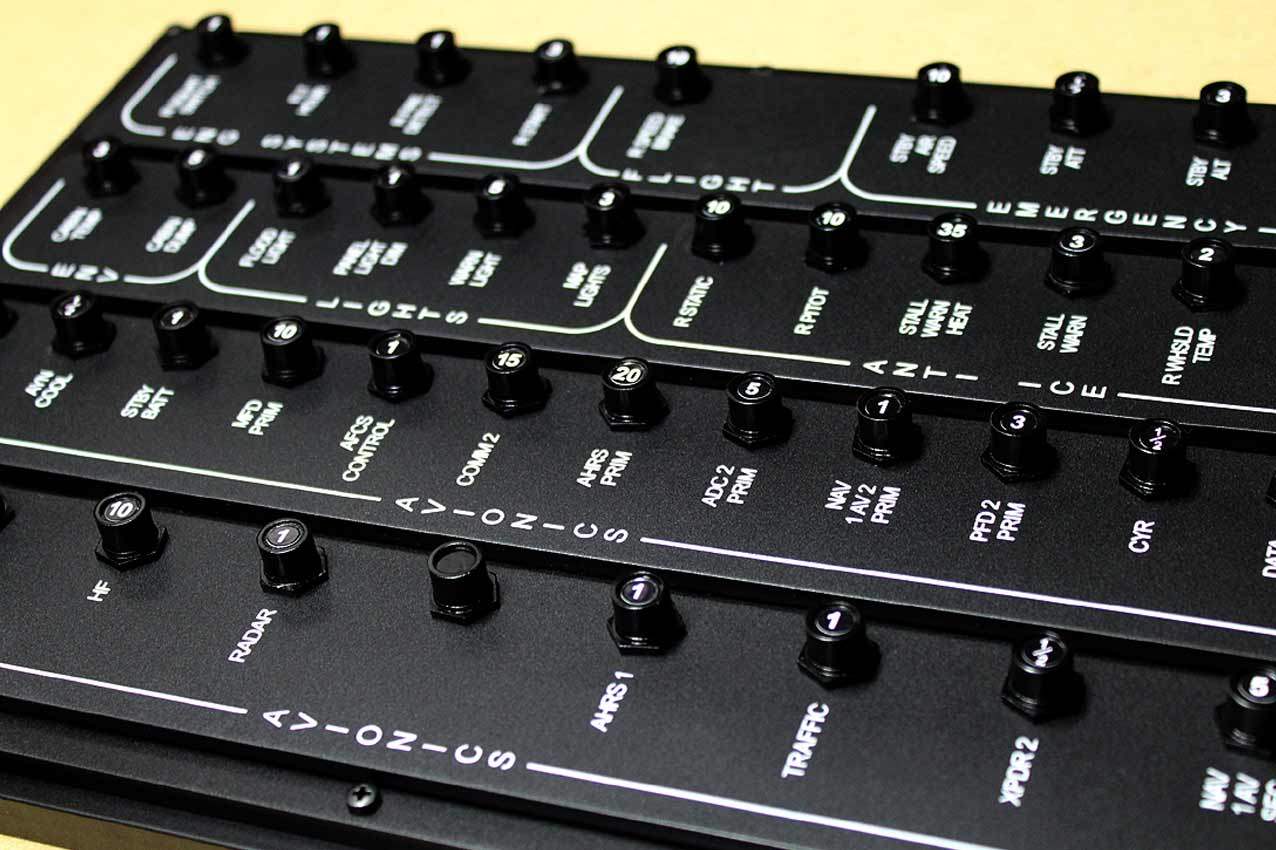

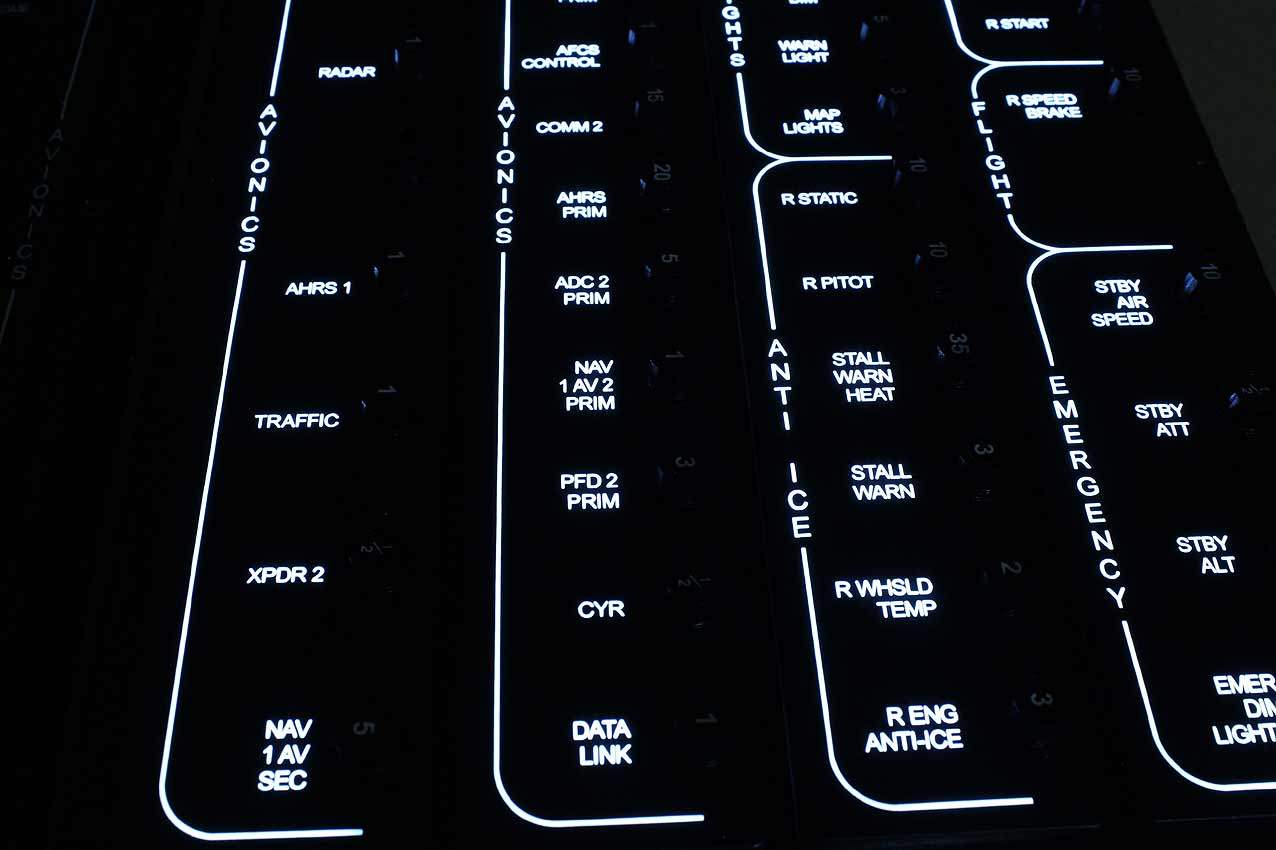

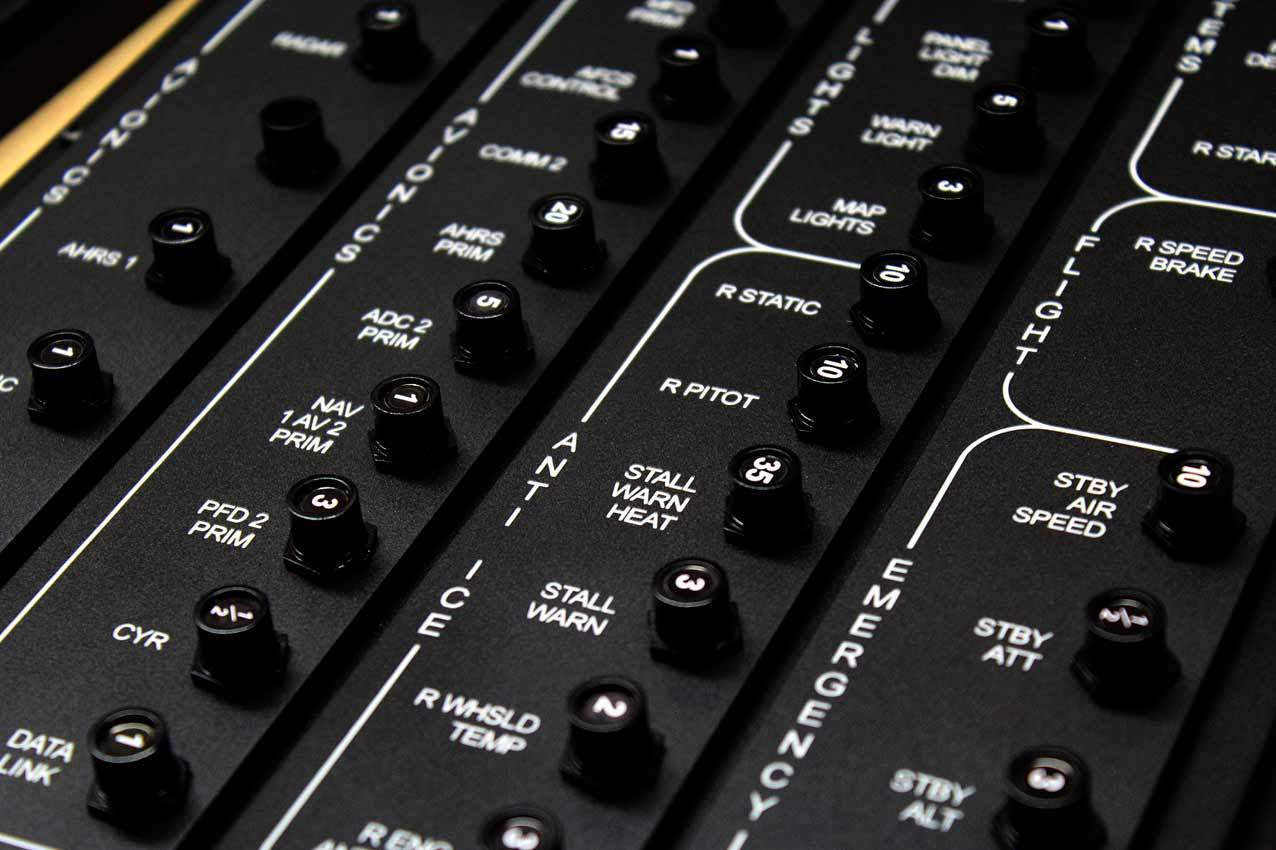

Circuit Breaker Panels

Dimensions: 233mm (wide) x 328mm (high)

Backlit Panel with parts - US$298-00

When supplied as fully-assembled units, these fully-backlit panels will include all of the dummy circuit breakers (with vinyl decals), and all of the black mounting screws.

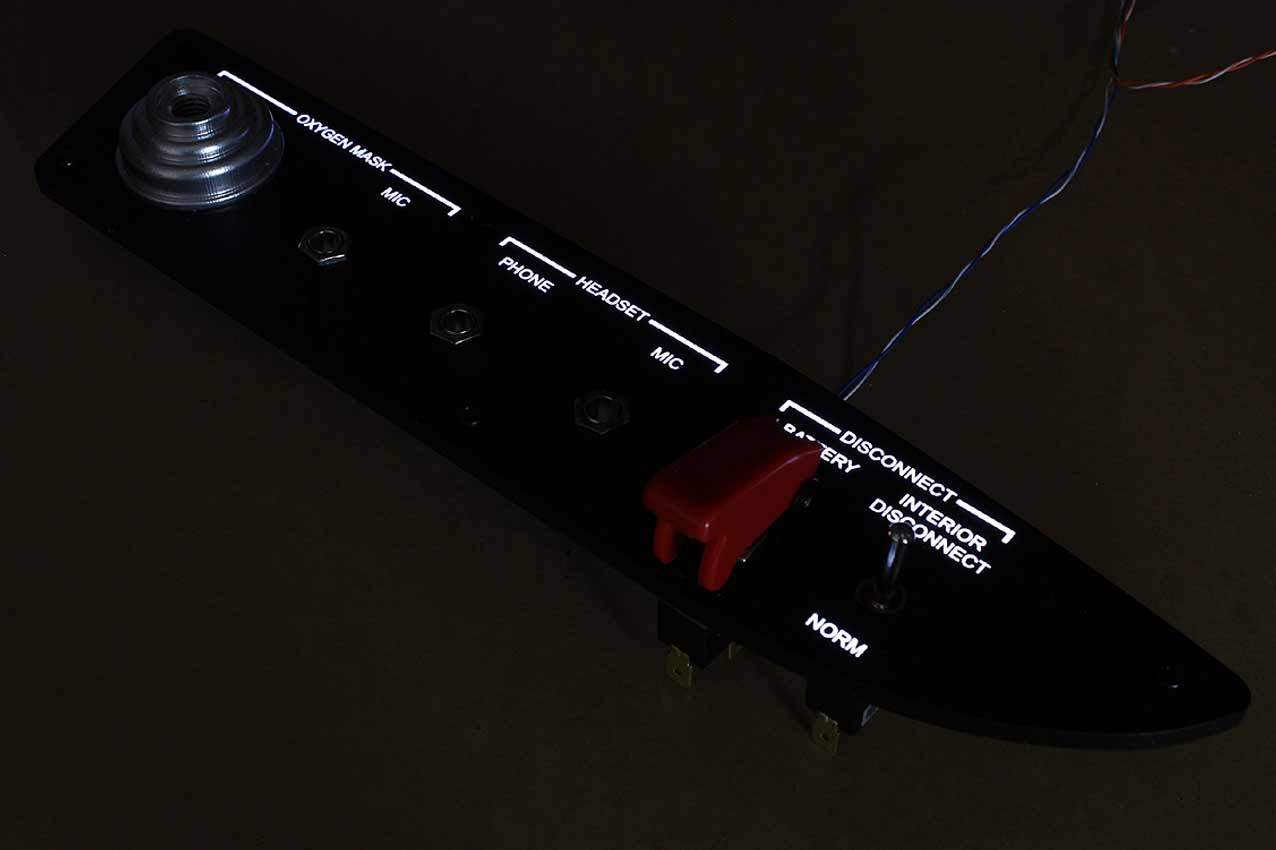

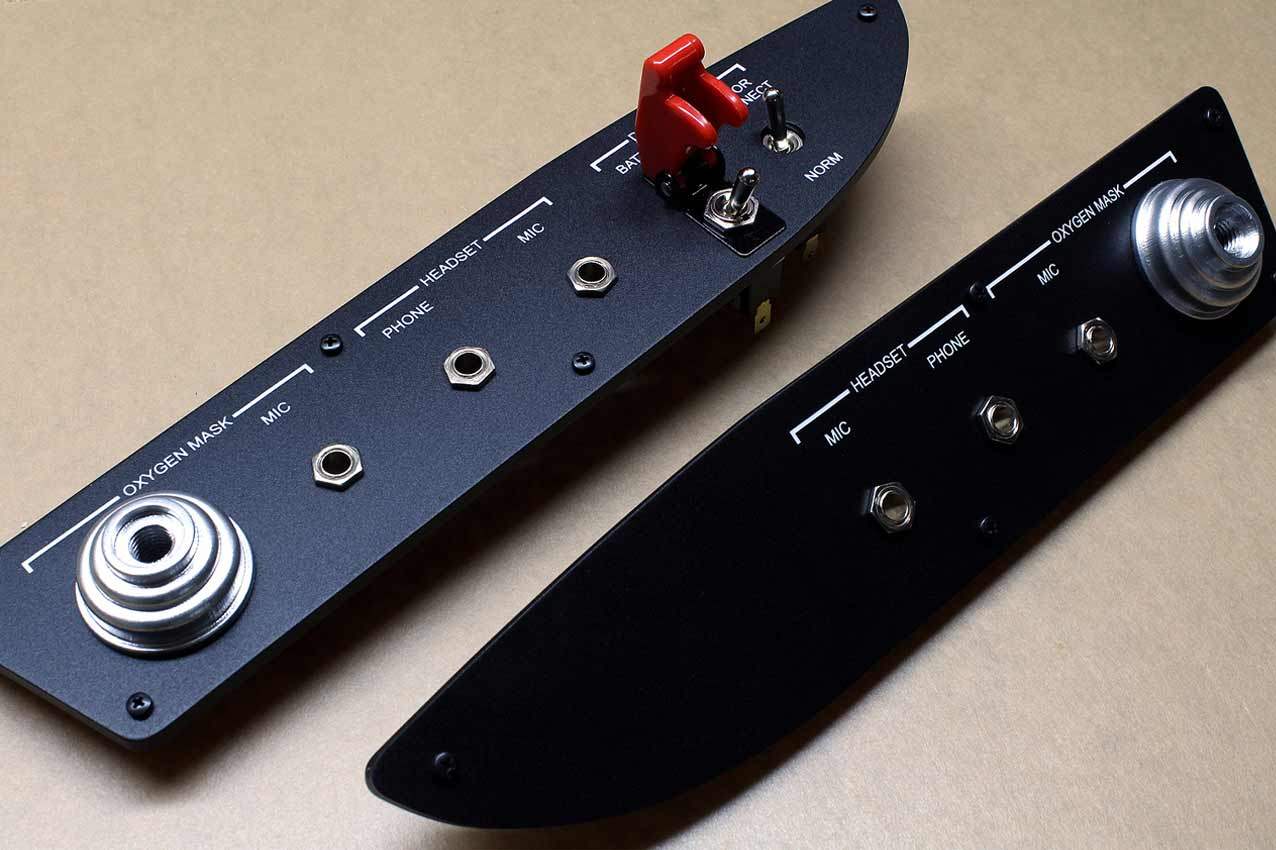

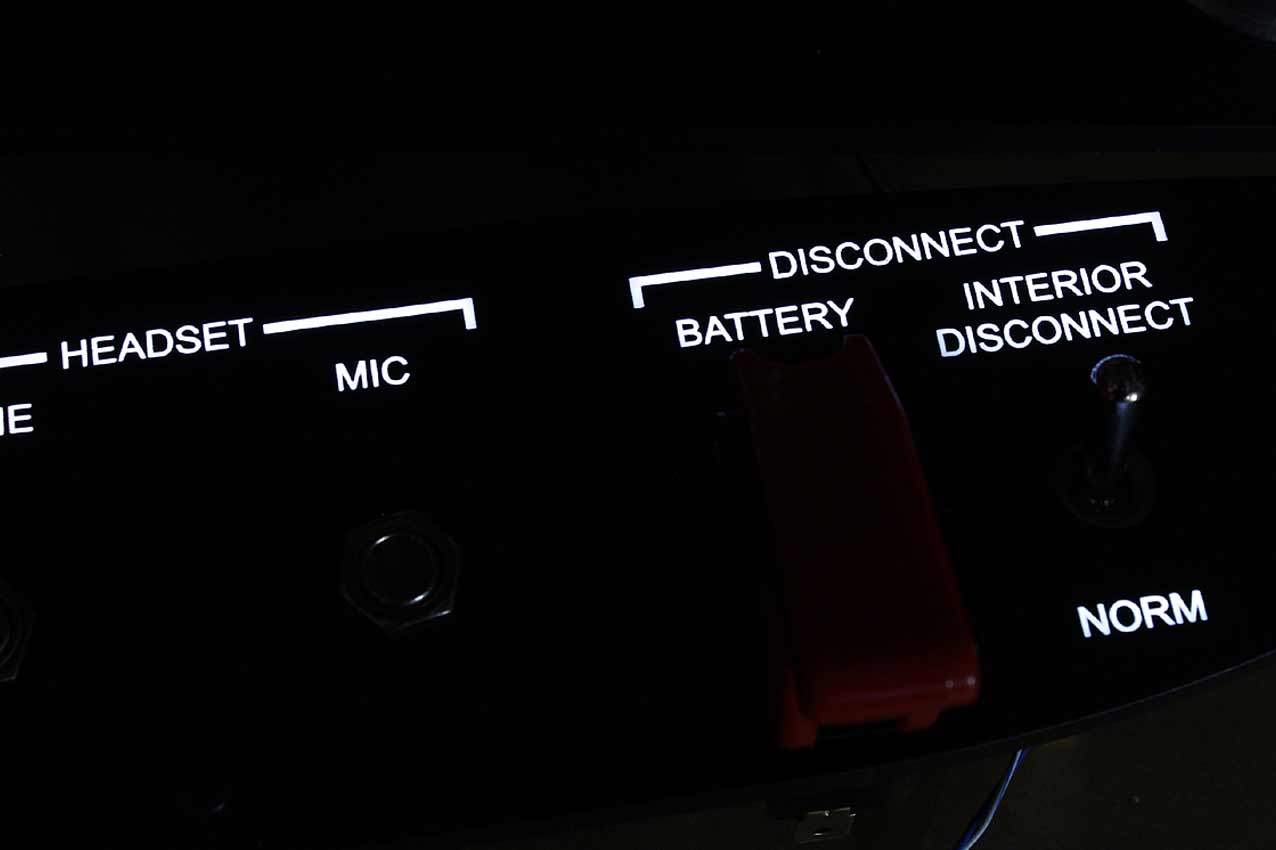

Main Oxygen Panel Set

Individual Panel Dimensions: 319.67mm (wide) x 65.75mm (high)

Set of Two Panels - US$ 351-00

When supplied as fully-assembled units, these fully-backlit panels will include the headphone sockets, the toggle switches, the red missile cover, the dummy mask connectors, and all of the black mounting screws.

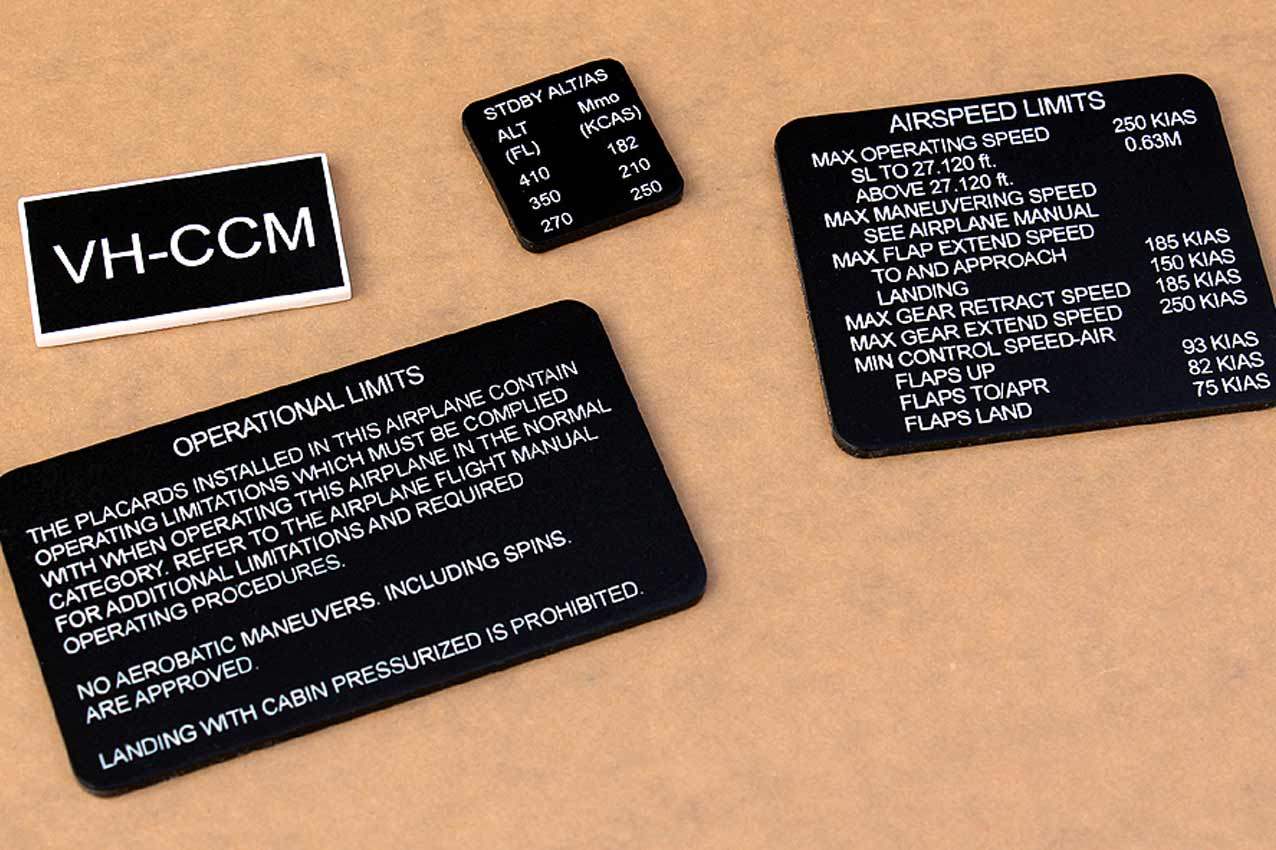

Placards

Dimensions: 70mm (wide) x 60mm (high)

Citation IAS Placard (No Backlighting) - US$30-00

Engraved on 3mm acrylic

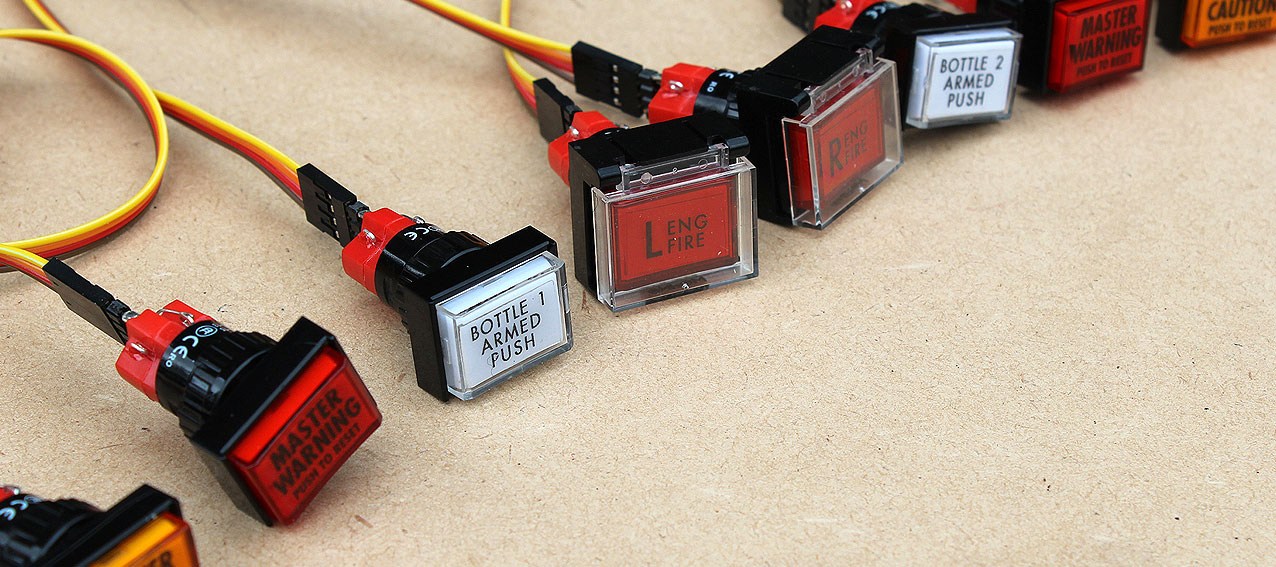

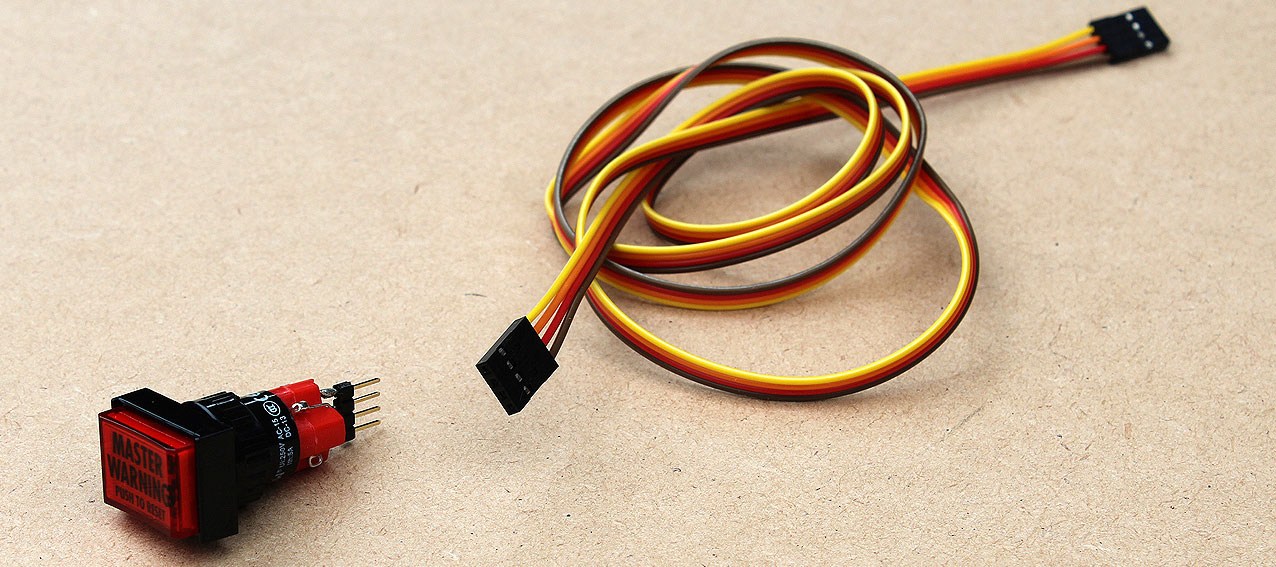

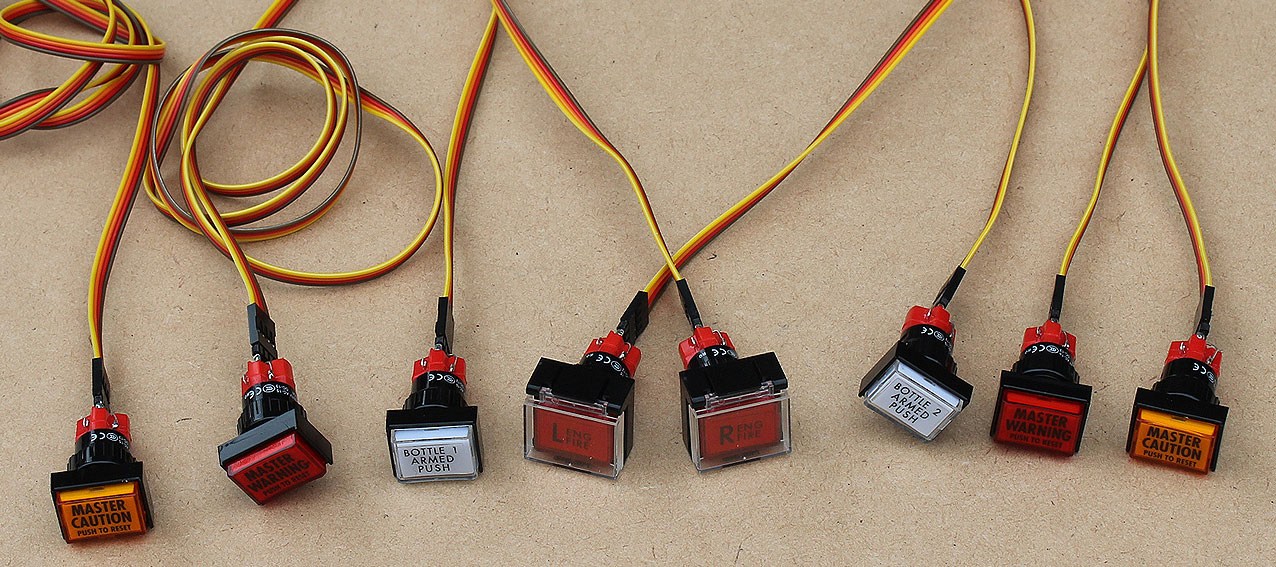

Full Set of Glareshield Pushbuttons

Individual Pushbutton Dimensions: 24mm (wide) x 18mm (high)

8 x Illuminated Pushbuttons with Wires + 2 Protective Guard Covers - US$214-00

These illuminated pushbuttons are supplied with fitted lengths of 300mm wires, and two protective switch guards (for the ENG FIRE pushuttons).
