TBM-850/900/930 Products

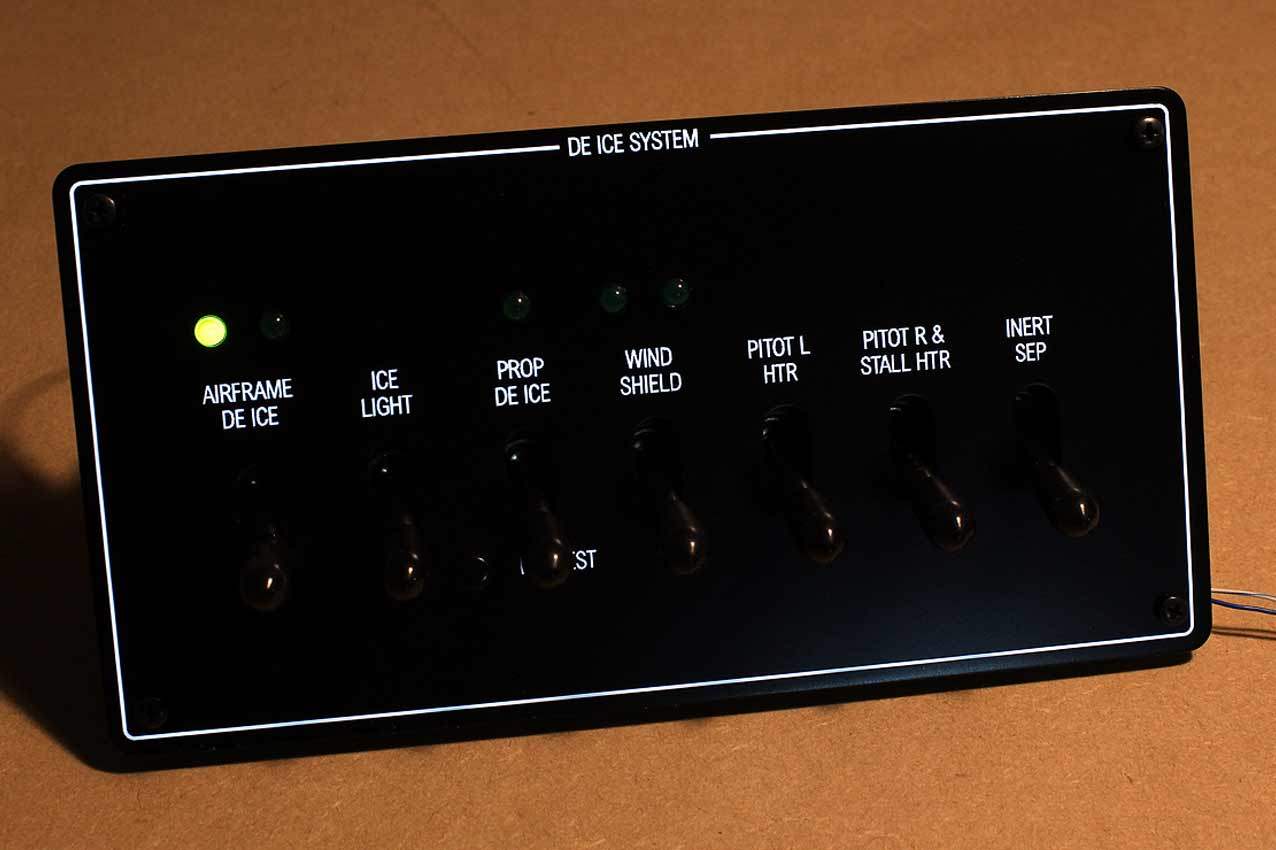

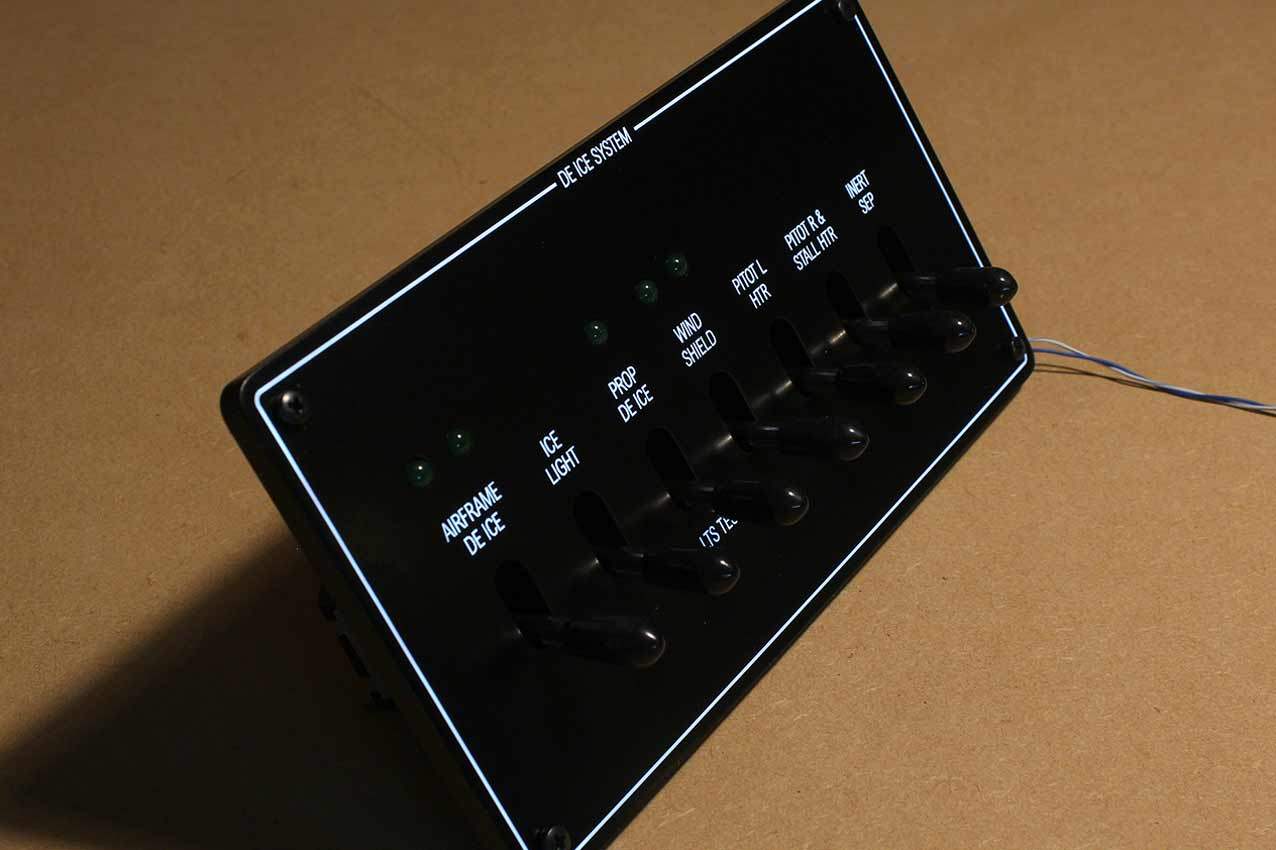

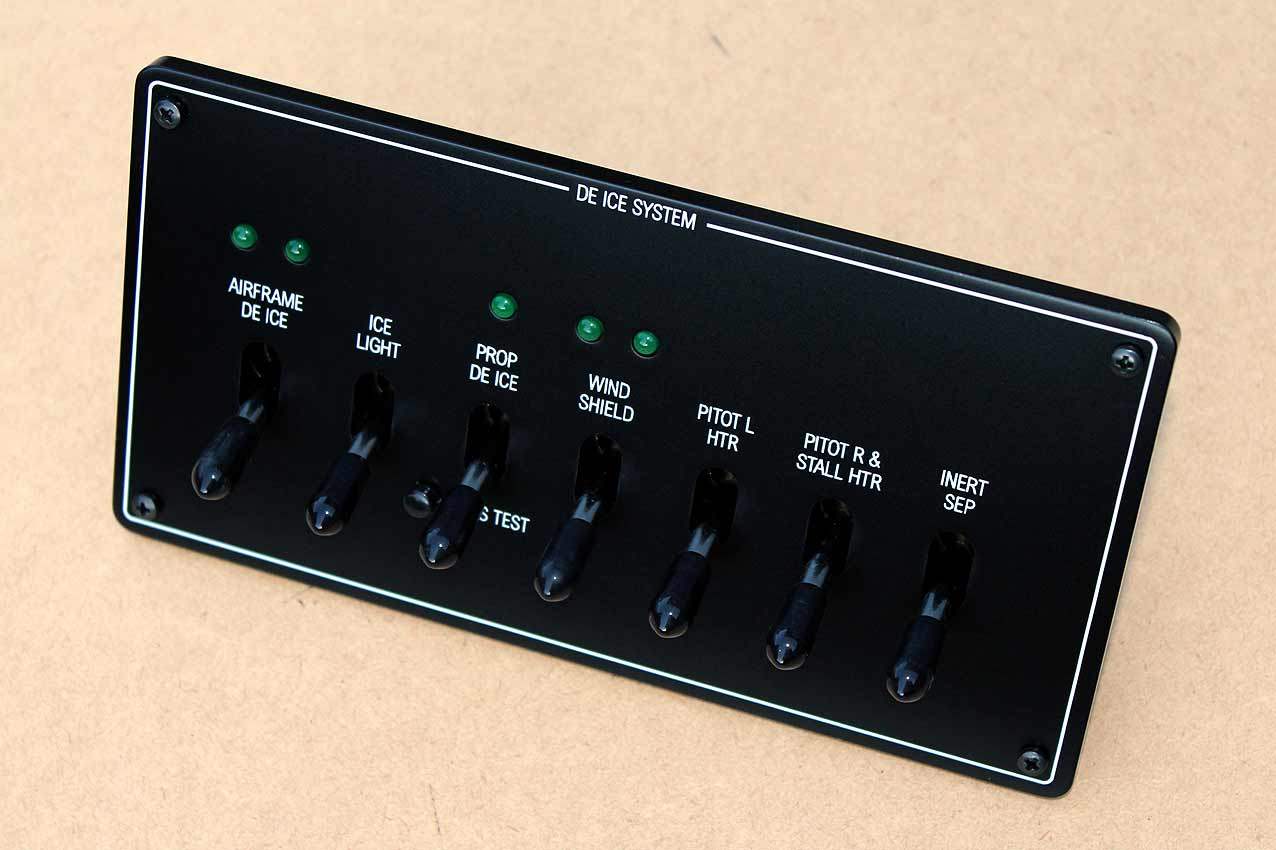

TBM-900 De-Icing Panel

Dimensions: 196.85mm (wide) x 101.60mm (high)

Backlit Panel complete with parts as shown – US$247-00

Backlit Panel with fitted LED circuit board only (no parts) - US$116-00

When supplied as a fully-assembled unit, this fully-backlit panel will include the long-arm toggle switches, the vinyl switch caps, the momentary pushbutton, the green indicator LEDs, and all of the black mounting screws.  Please note that there is no controller included with this panel. This is not a plug and play item; no wiring or interface is supplied.

To download the files for the panel shape cutout and dimensions, click here.

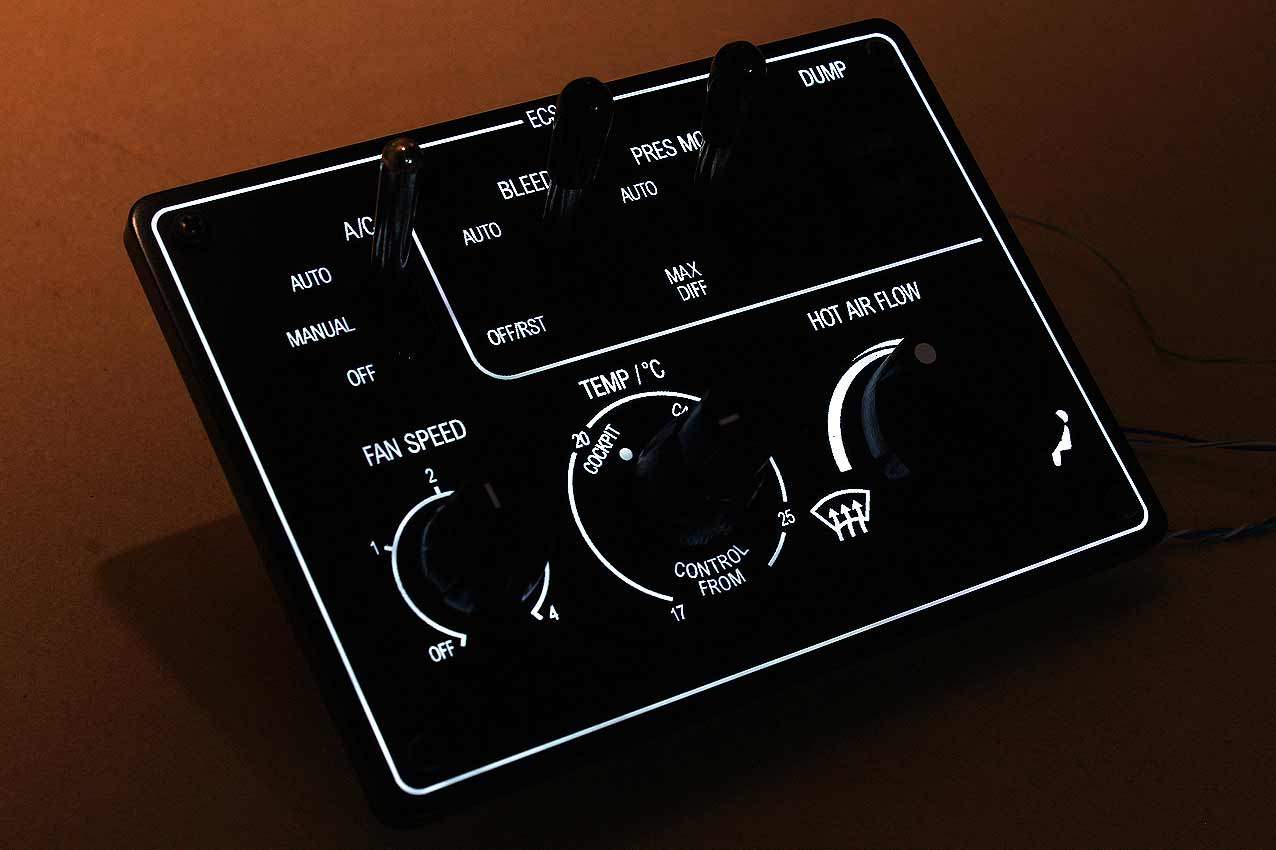

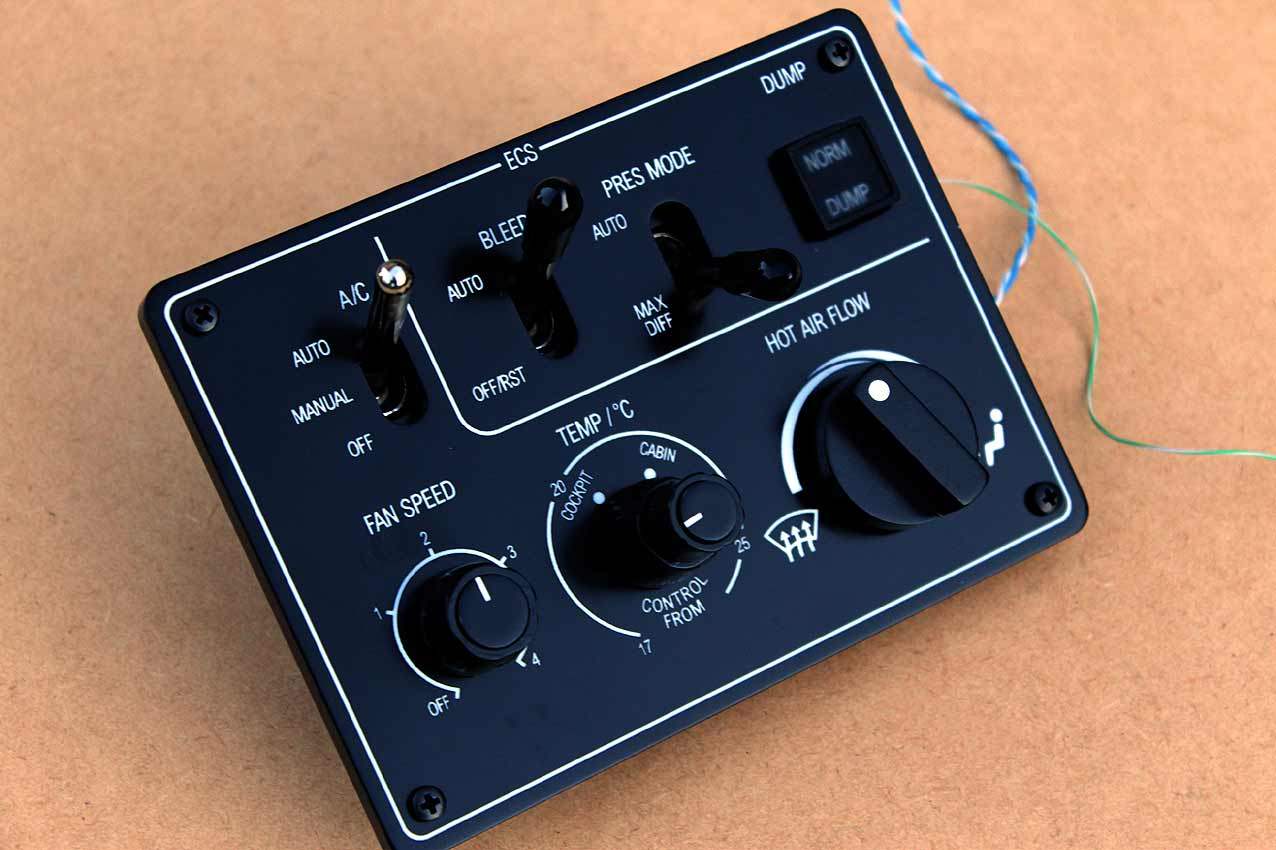

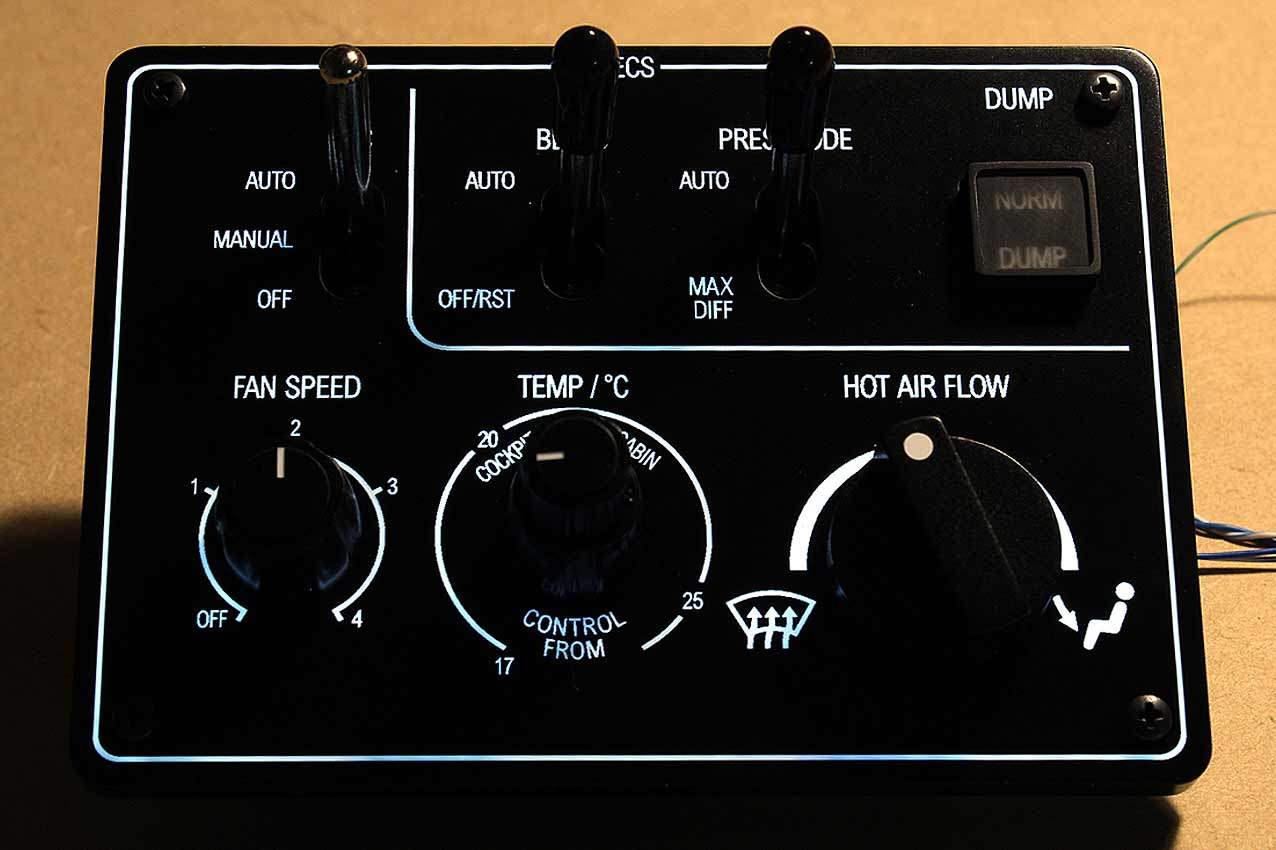

TBM-900 ECS Panel

Dimensions: 139.70mm (wide) x 101.60mm (high)

Backlit Panel complete with parts as shown – US$326-00

Backlit Panel with fitted LED circuit board only (no parts) - US$152-00

When supplied as a fully-assembled unit, this fully-backlit panel will include the long-arm toggle switches, the vinyl switch caps, the replica Korry button (with LEDs, PCB, and connector wires), the engraved knobs, and all of the black mounting screws.  Please note that there is no controller included with this panel. This is not a plug and play item; no wiring or interface is supplied.

To download the files for the panel shape cutout and dimensions, click here.

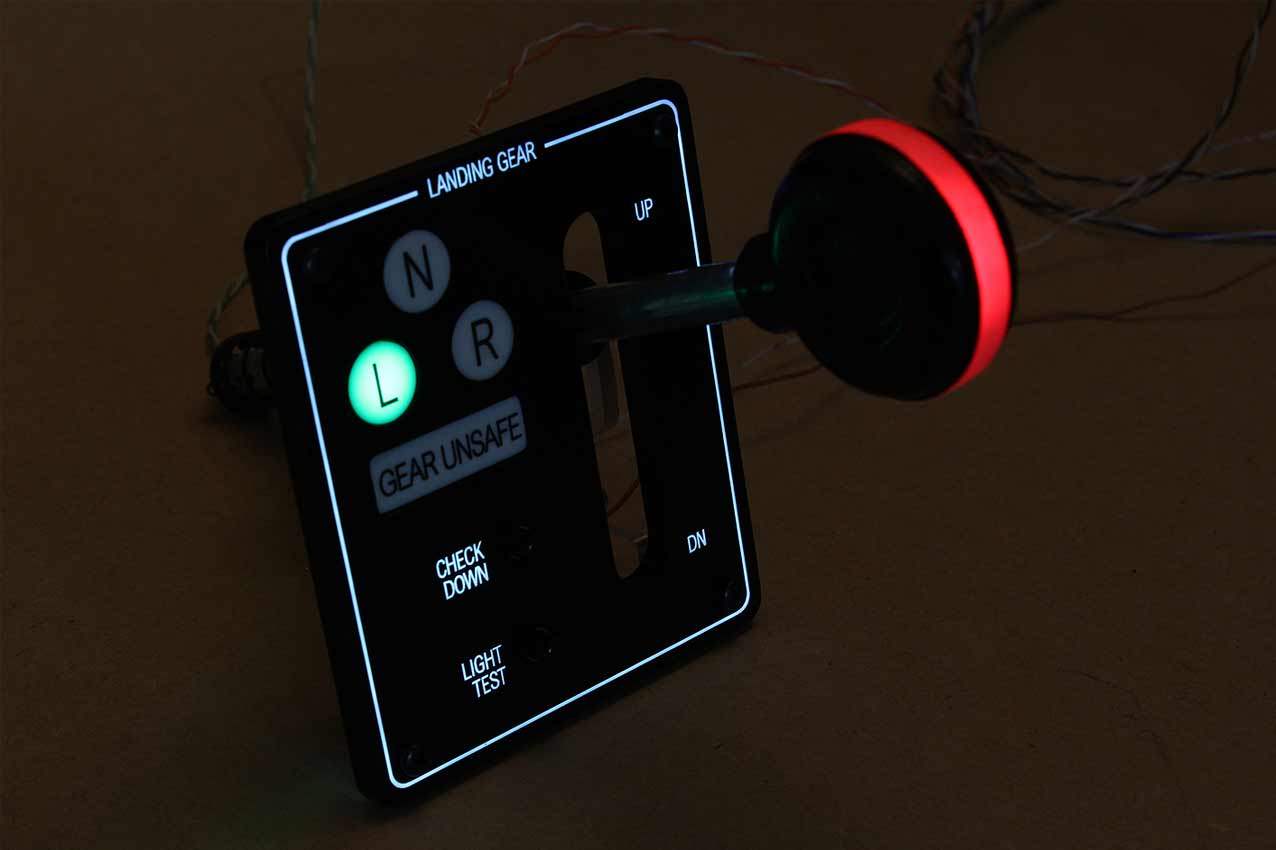

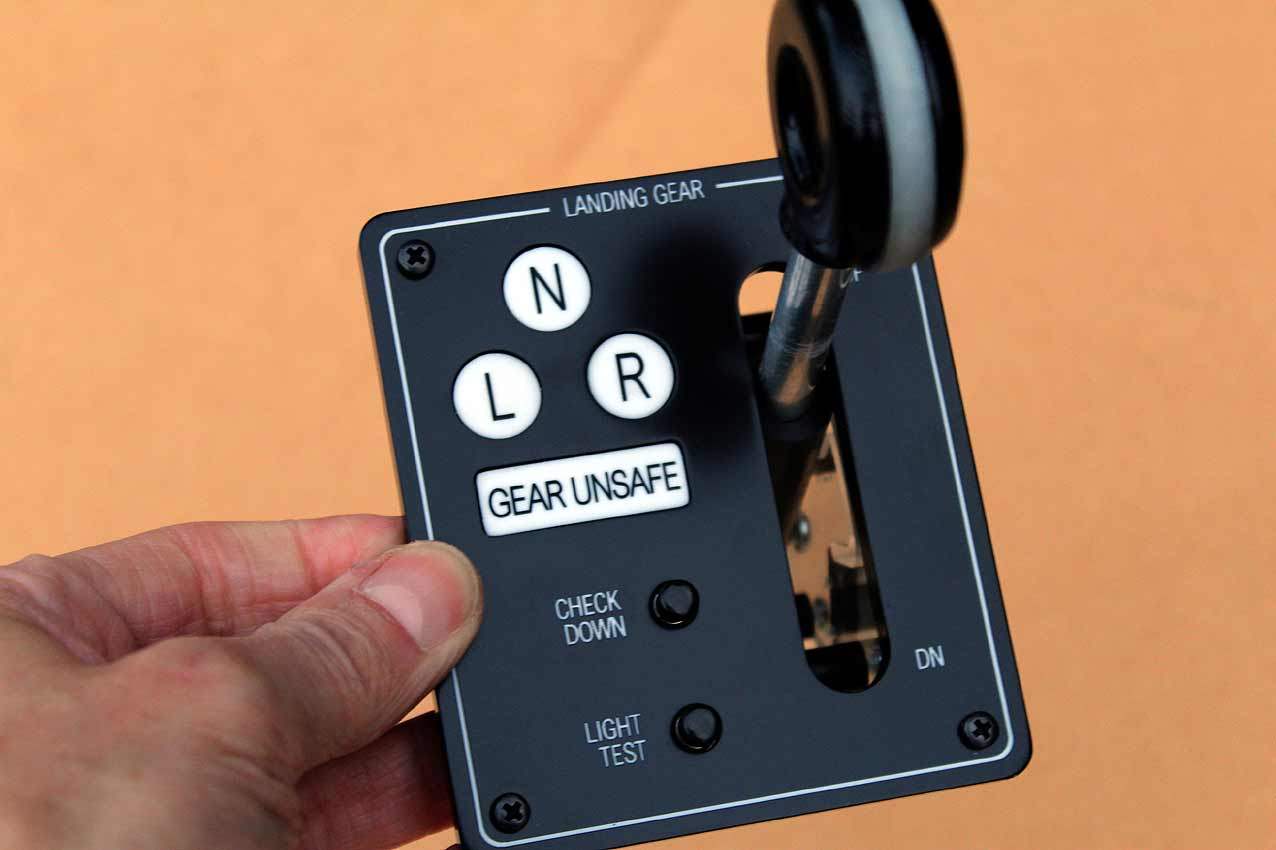

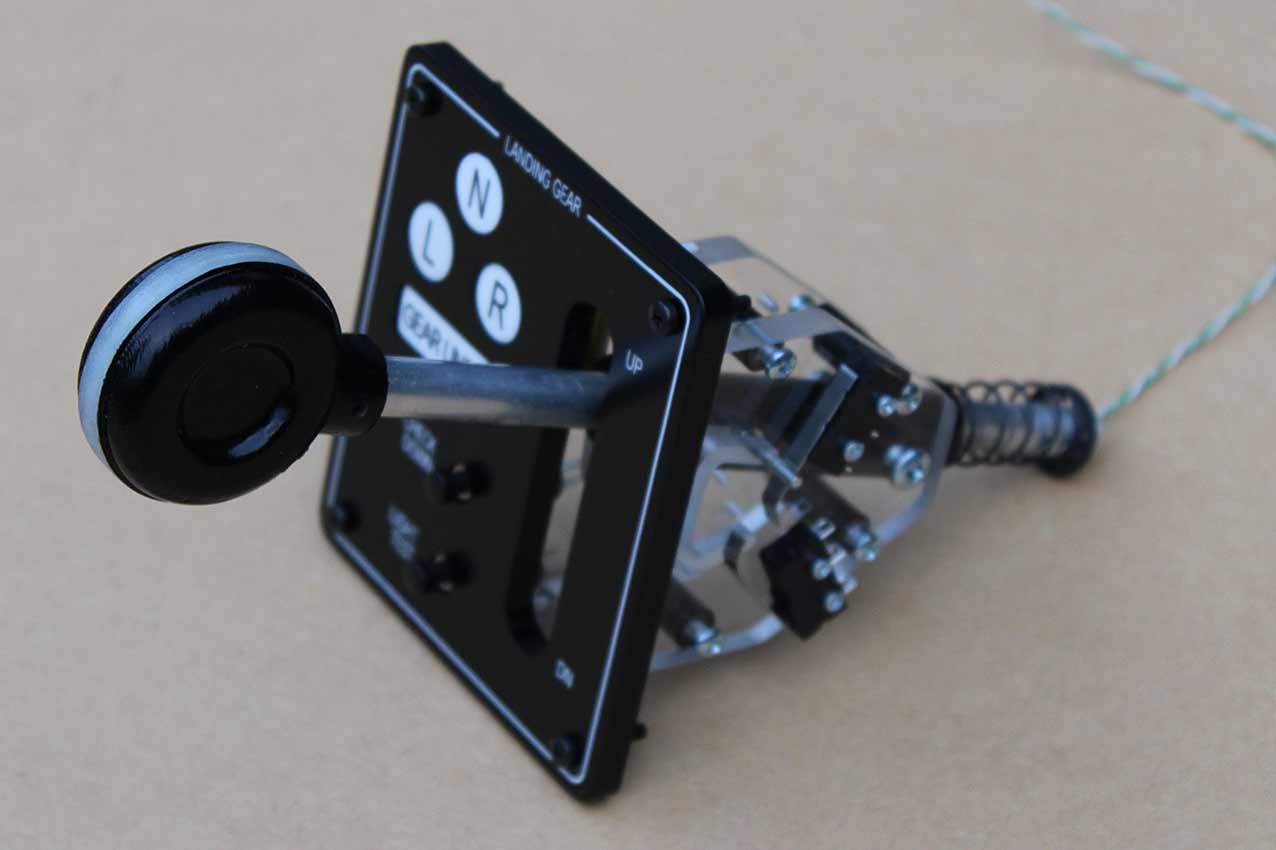

TBM-900 Gear Panel

Dimensions: 88.90mm (wide) x 101.60mm (high)

Backlit Panel complete with parts as shown – US$315-00

When supplied as a fully-assembled unit, this fully-backlit panel will include the pushbuttons,the engraved indicators (with embedded LEDs, PCB, and connector wires),  as well as all of the black mounting screws. The gear lever is spring-loaded and you must pull the knob out before it can be moved from its current position; when it gets to the new position, it springs back into place. A red LED is embedded in the  gear knob to allow for illumination during gear transit, and a pair of connection wires are also included.  Please note that there is no controller included with this panel. This is not a plug and play item; no wiring or interface is supplied.

To download the files for the panel shape cutout and dimensions, click here.

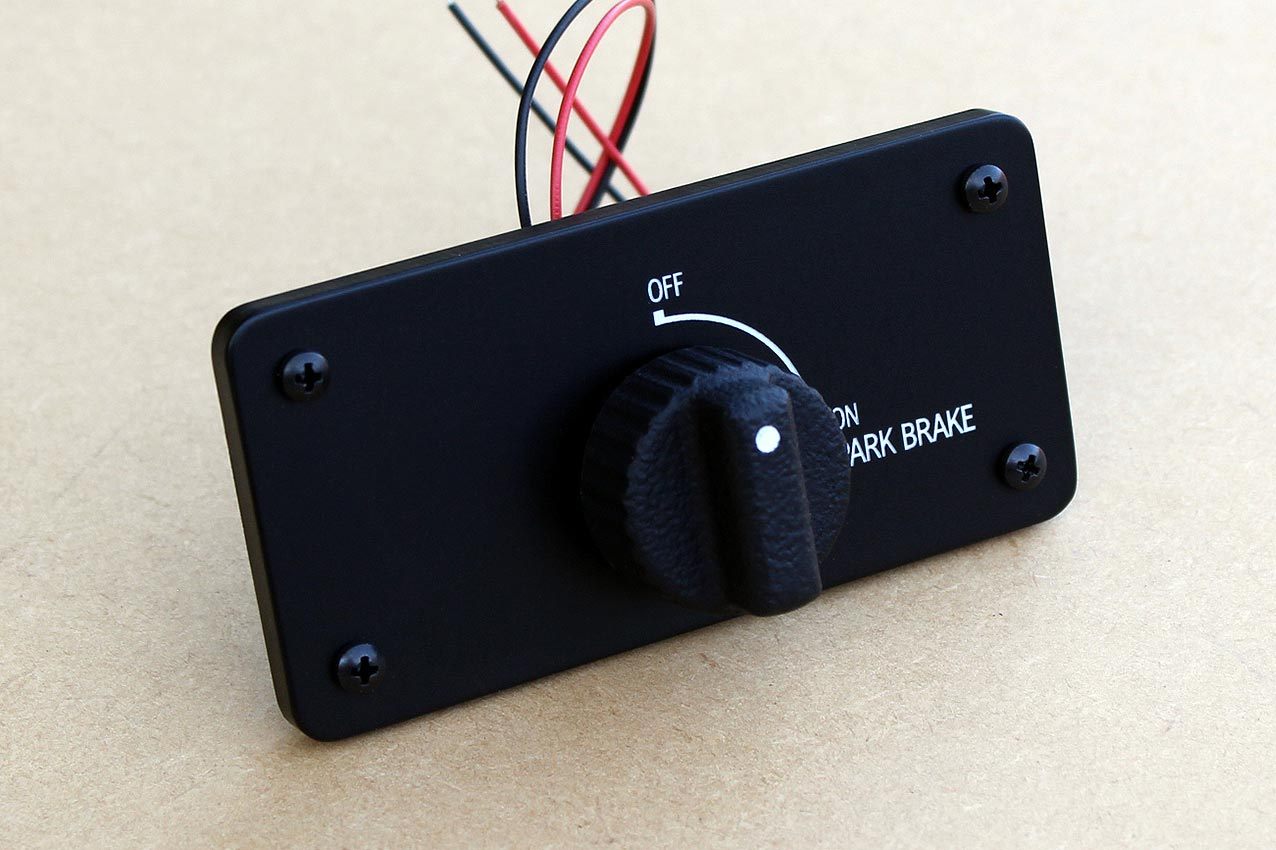

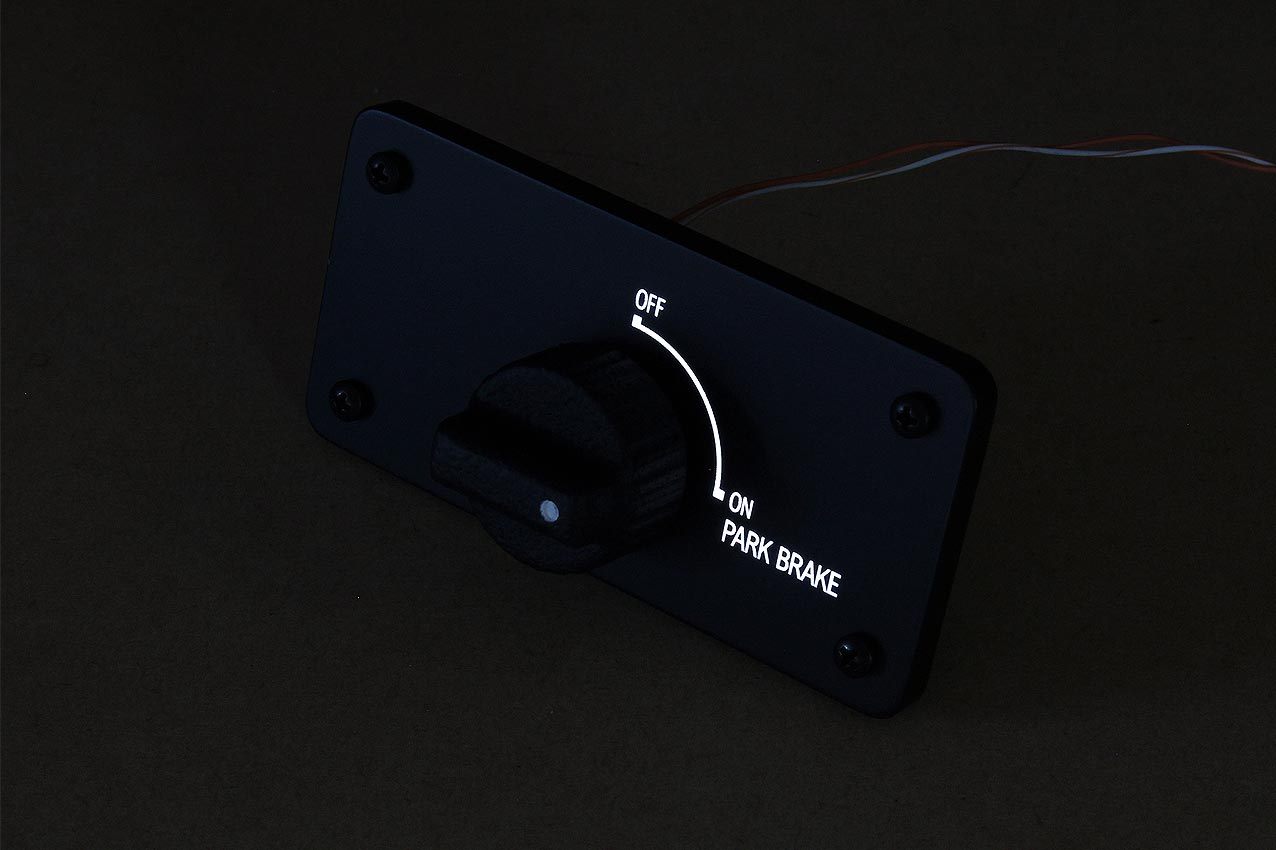

TBM-900 Park Brake Panel

Dimensions: 101.60mm (wide) x 50mm (high)

Backlit Panel complete with parts as shown – US$78-00

When supplied as a fully-assembled unit, this fully-backlit panel will include the 90 degree rotary switch, the engraved knob, and all of the black mounting screws.

To download the files for the panel shape cutout and dimensions, click here.

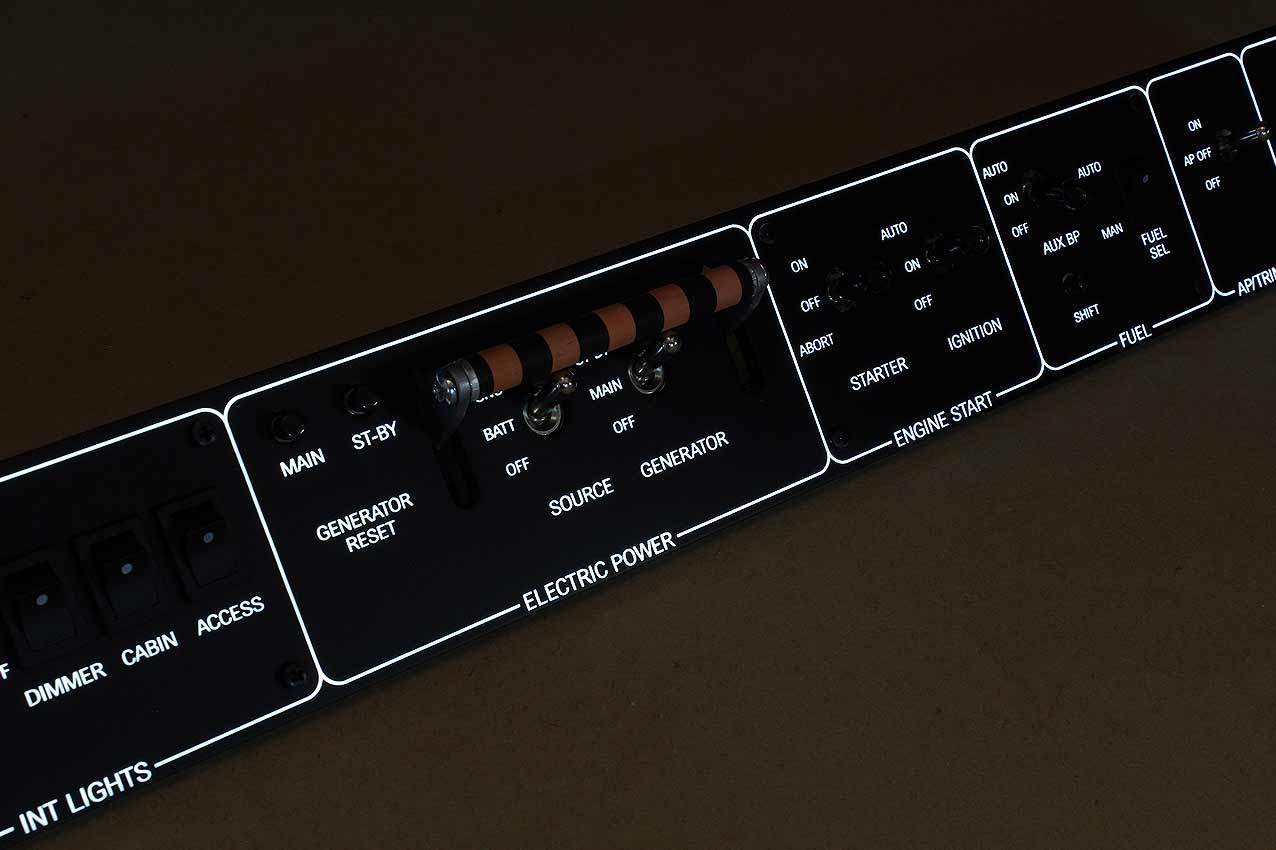

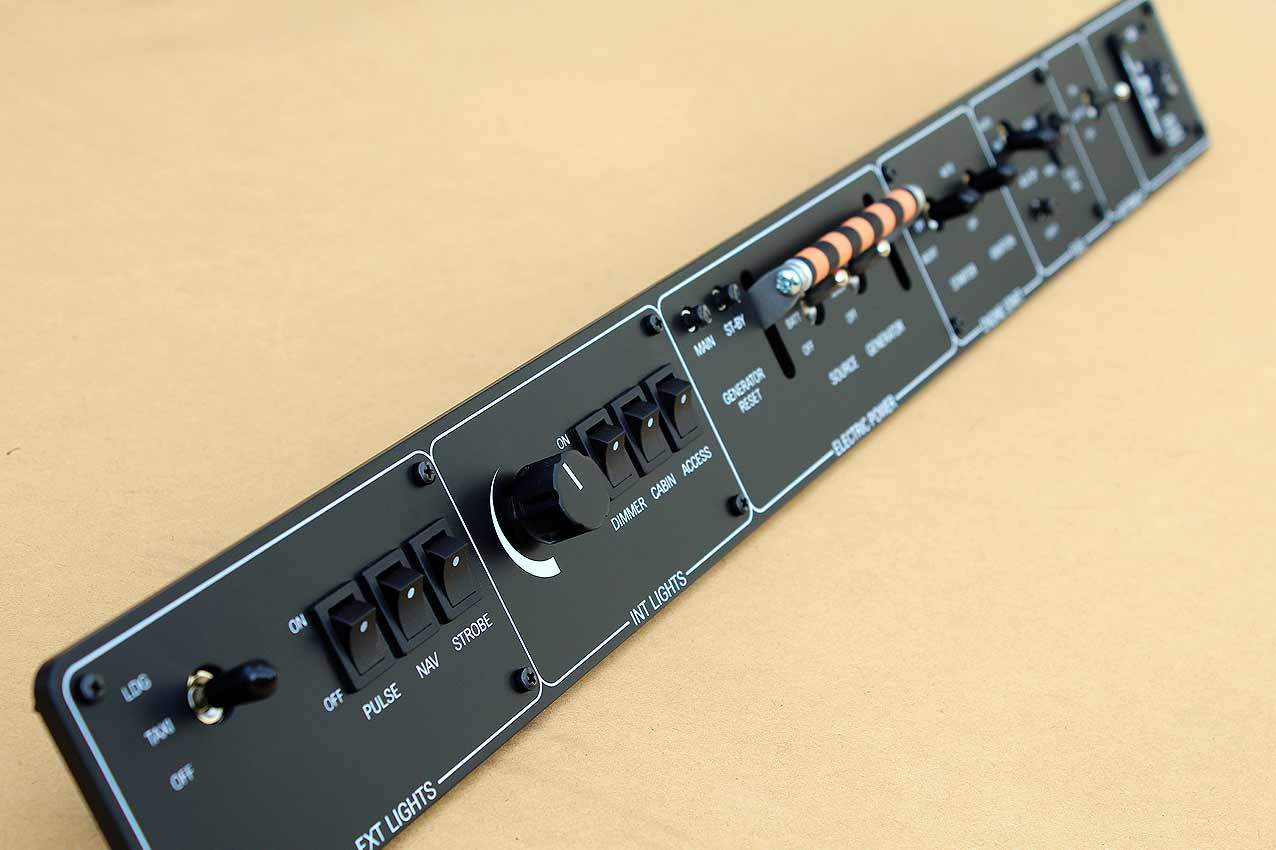

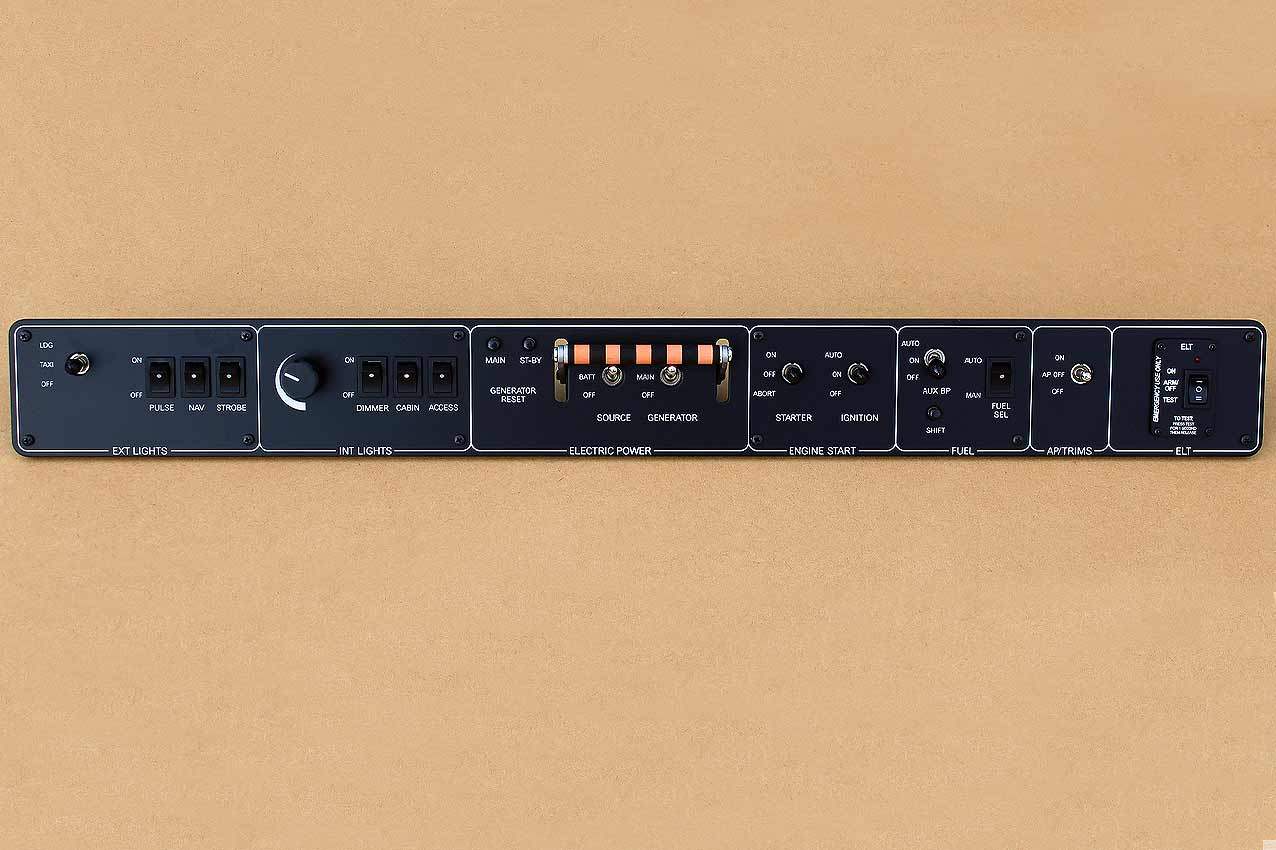

TBM-900 Overhead Panel

Dimensions: 647mm (wide) x 71mm (high)

Backlit Panel complete with parts as shown – US$499-00

Backlit Panel with fitted LED circuit board only (no parts) - US$348-00

If purchased complete with parts, this panel will be shipped as a fully-assembled unit. Please note that there is no controller included with this panel. This is not a plug and play item; no wiring or interface is supplied.



When supplied as a fully-assembled unit, this fully-backlit panel will include all of the switches, the engaved knob, the pushbuttons, the crash bar with vinyl decal, the Dummy ELT unit with LED, and all of the black mounting screws.

To download the files for the panel shape cutout and dimensions, click here.

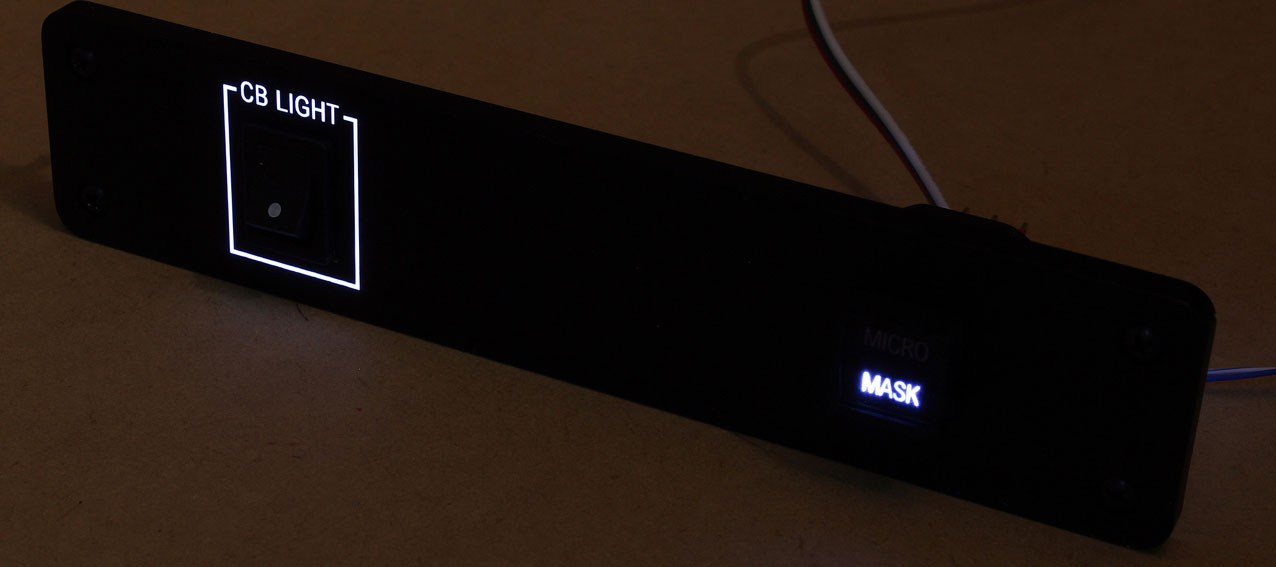

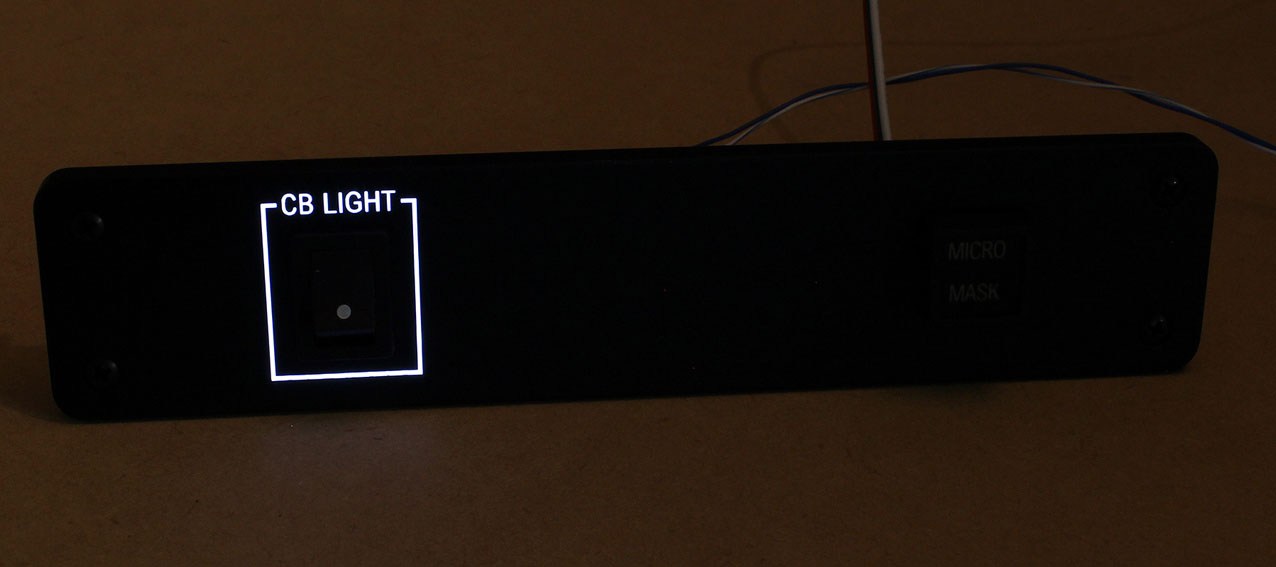

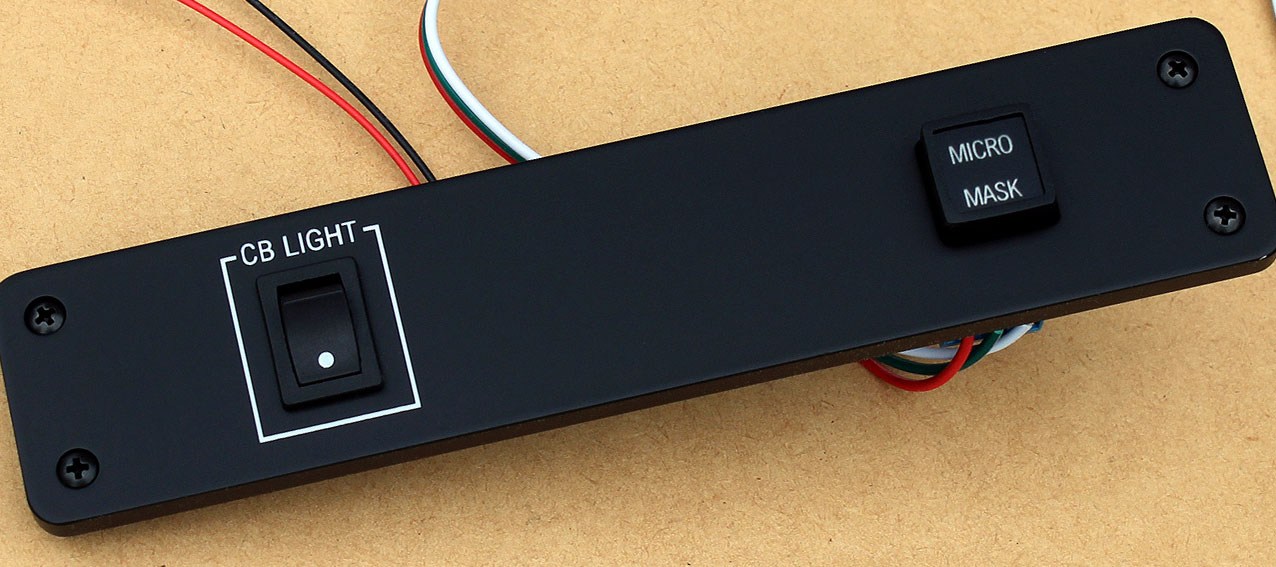

TBM-900 CB Lighting Panel

Dimensions: 186mm (wide) x 40mm (high)

Backlit Panel complete with parts as shown – US$129-00

Backlit Panel with fitted LED circuit board only (no parts) - US$63-00

This panel will be shipped as a fully-assembled unit, as shown in the photos above. Please note that there is no controller included with this panel. This is not a plug and play item; no interface is supplied.


This fully-backlit panel includes a replica Korry switch, a wire connector for the 12V backlighting, a rocker switch, as well as the black oxide mounting screws.


The hole cutout is suitable for mounting a real Korry 389 switch, so please let us know if you do not require the replica Korry switch, and we will deduct this from the price.

To download the files for the panel shape cutout and dimensions, click here.

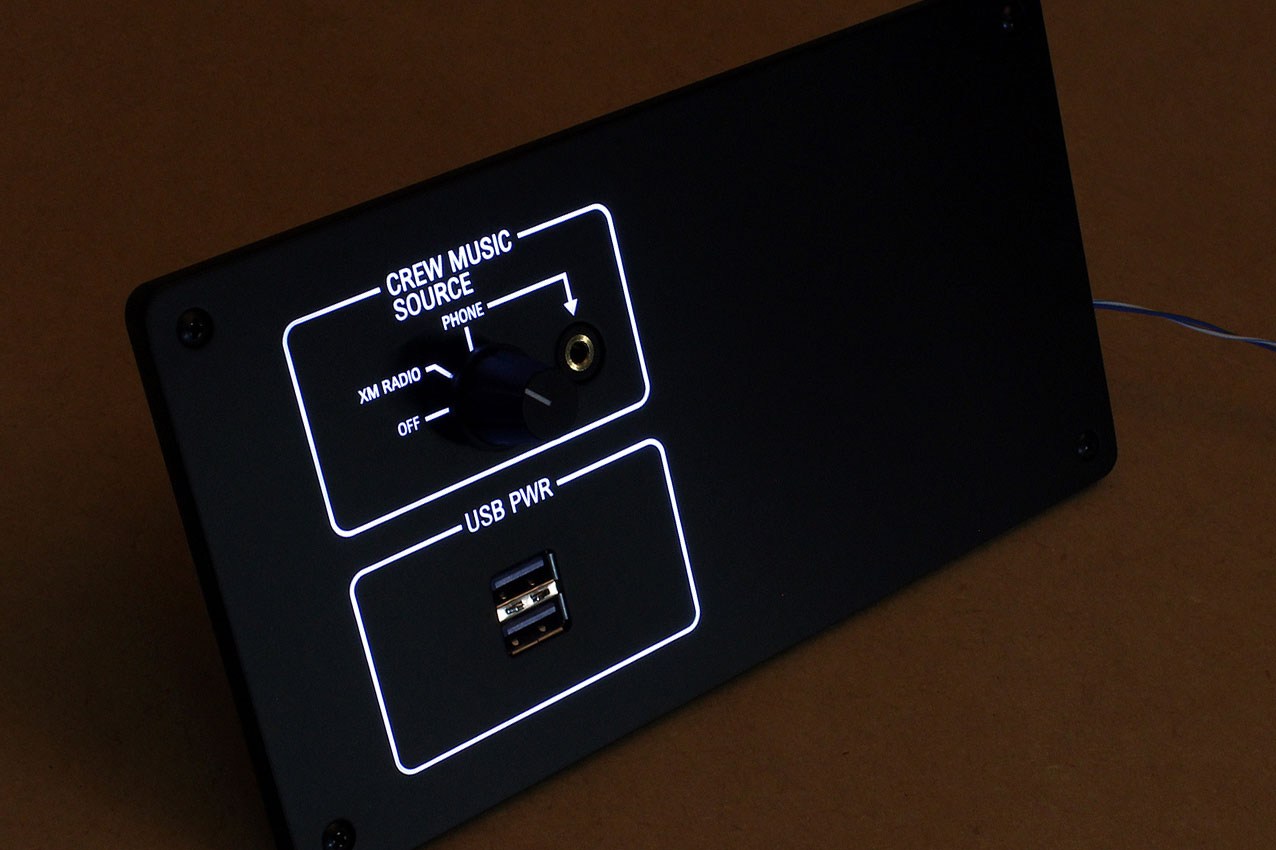

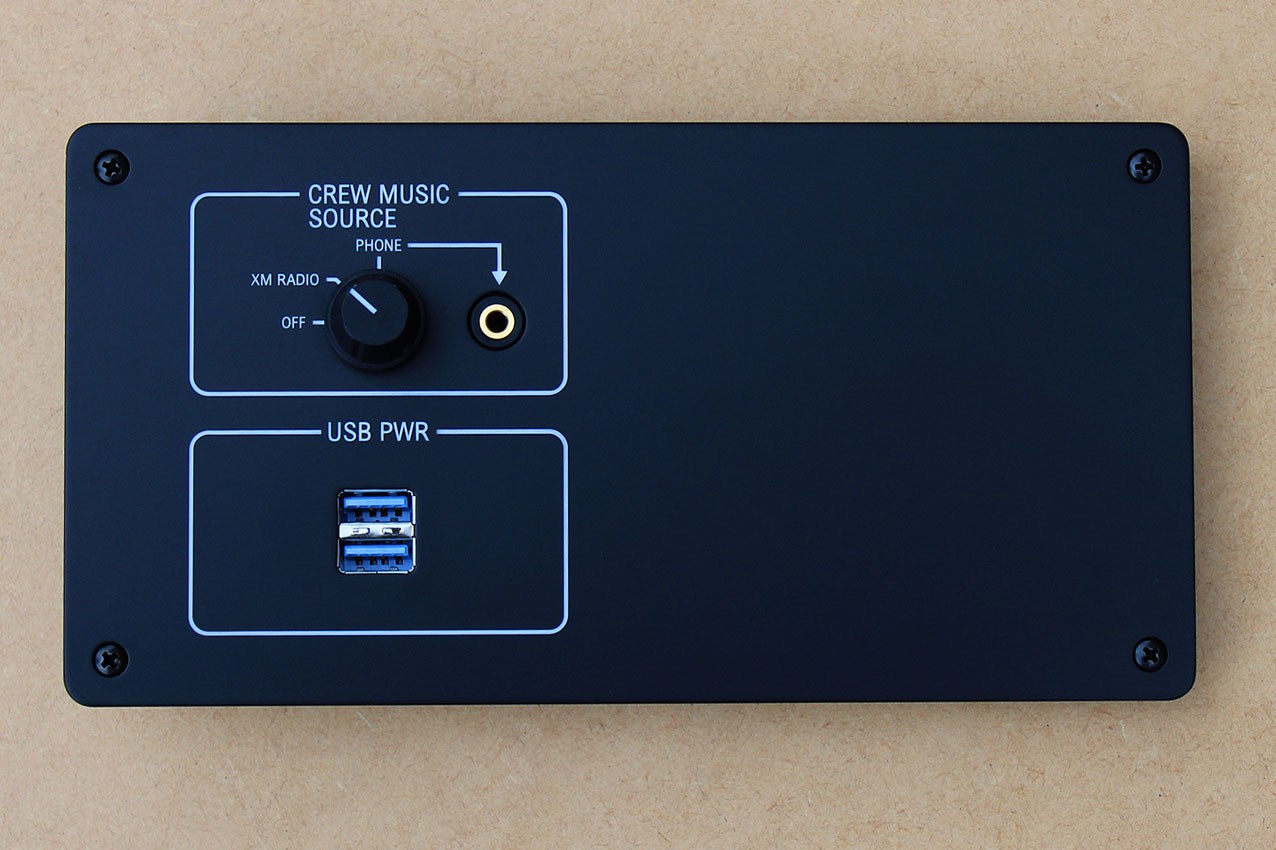

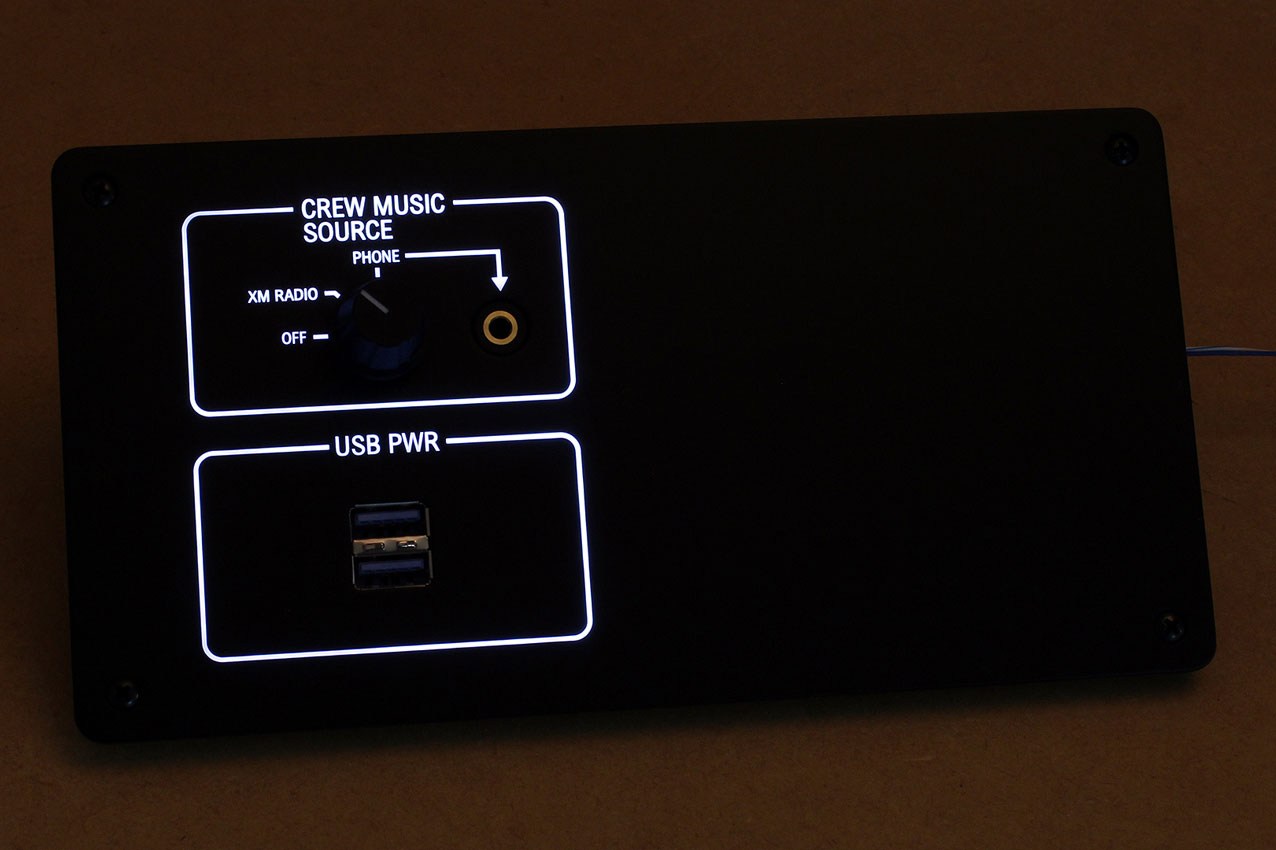

TBM-900 Crew Music Panel

Dimensions: 196.85mm (wide) x 101.60mm (high)

Backlit Panel complete with parts as shown – US$160-00

Backlit Panel with fitted LED circuit board only (no parts) - US$97-00

This panel will be shipped as a fully-assembled unit, as shown in the photos above. Please note that there is no controller included with this panel. This is not a plug and play item; no interface is supplied.


This fully-backlit panel includes a rotary switch with an engraved knob fitted, a phone socket, a USB connector, a wire connector for the 12V backlighting, as well as the black oxide mounting screws.


Please also note that the USB Connector is essentially a dummy item, as there is no connector board supplied.

To download the files for the panel shape cutout and dimensions, click here.

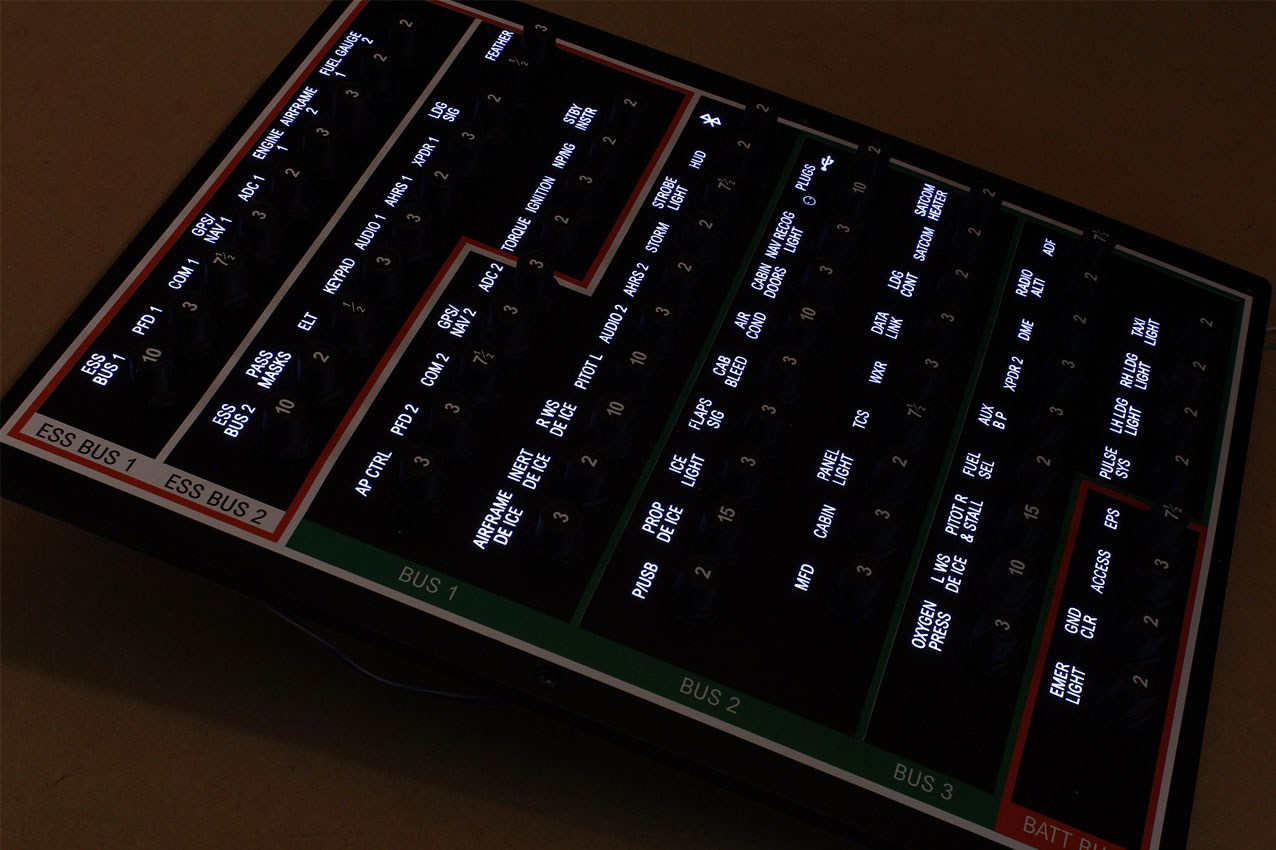

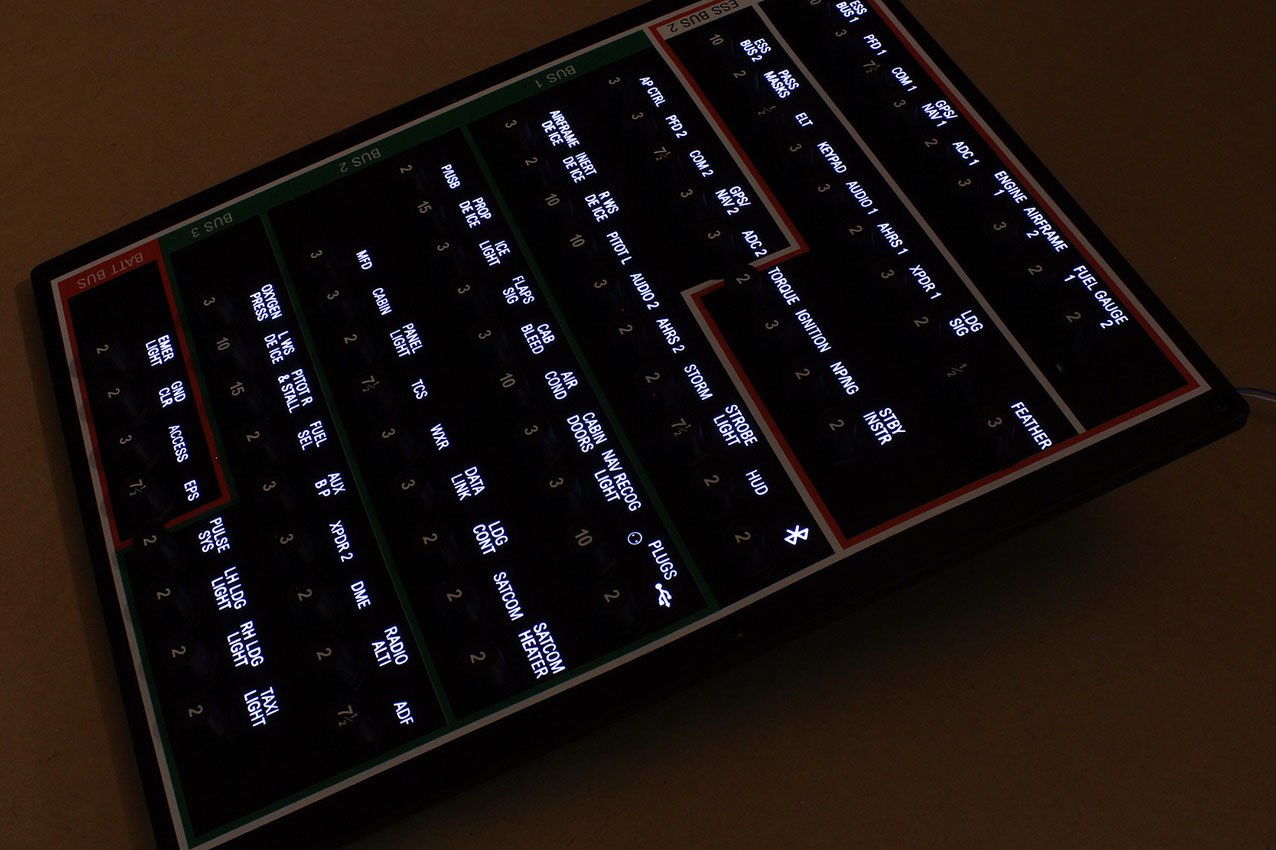

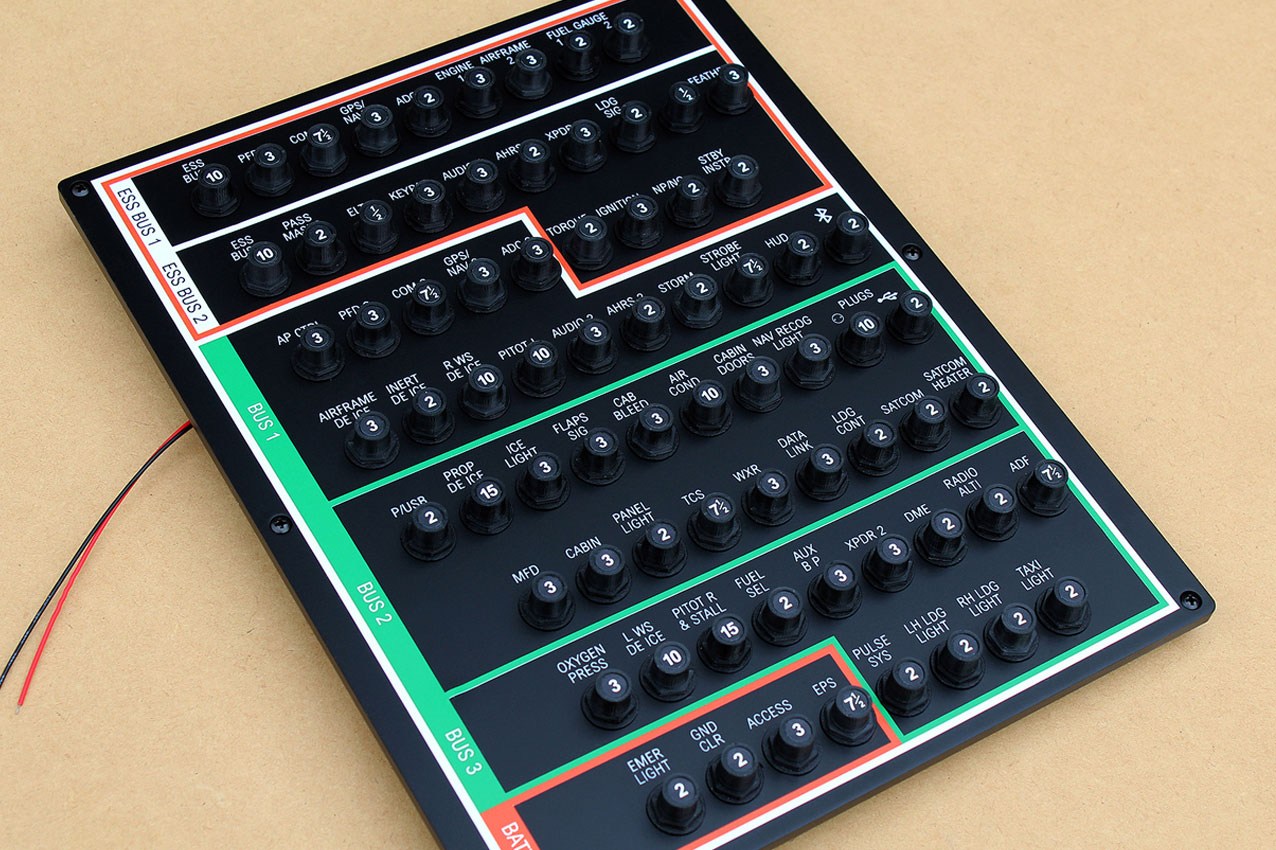

TBM-900 Main Circuit Breaker Panel - Lower Section

Dimensions: 224.50mm (wide) x 286mm (high)

Backlit Panel complete with parts as shown – US$382-00

Backlit Panel with fitted LED circuit board and vinyl decals (no parts) - US$216-00

This panel will be shipped as a fully-assembled unit, as shown in the photos above. Please note that there is no controller included with this panel. This is not a plug and play item; no interface is supplied.


This backlit panel includes all of the dummy circuit breakers with vinyl amperages, a wire connector for the 12V backlighting, the coloured vinyl decals, as well as the black oxide mounting screws.


This panel has been designed so that real circuit breakers can be fitted if required. If you wish to purchase this panel without the dummy circuit breakers, please contact us and we can deduct the cost of these from the panel. For the hole sizes and spacings between each circuit breaker, please see the ZIP file contained in the link below.

To download the files for the panel shape cutout and dimensions, click here.

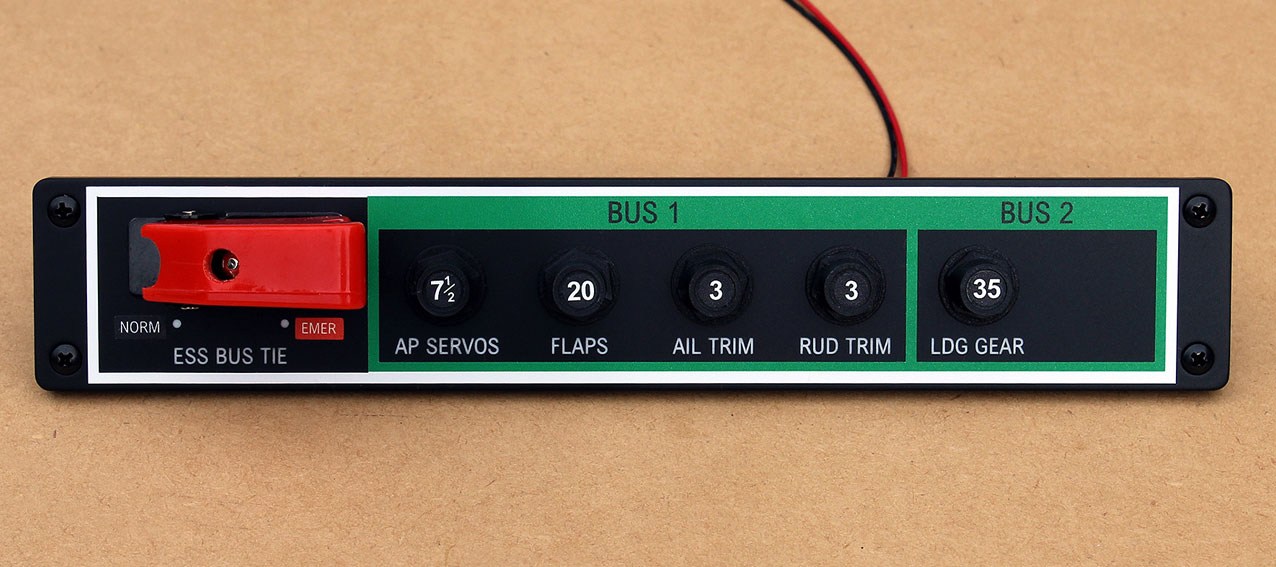

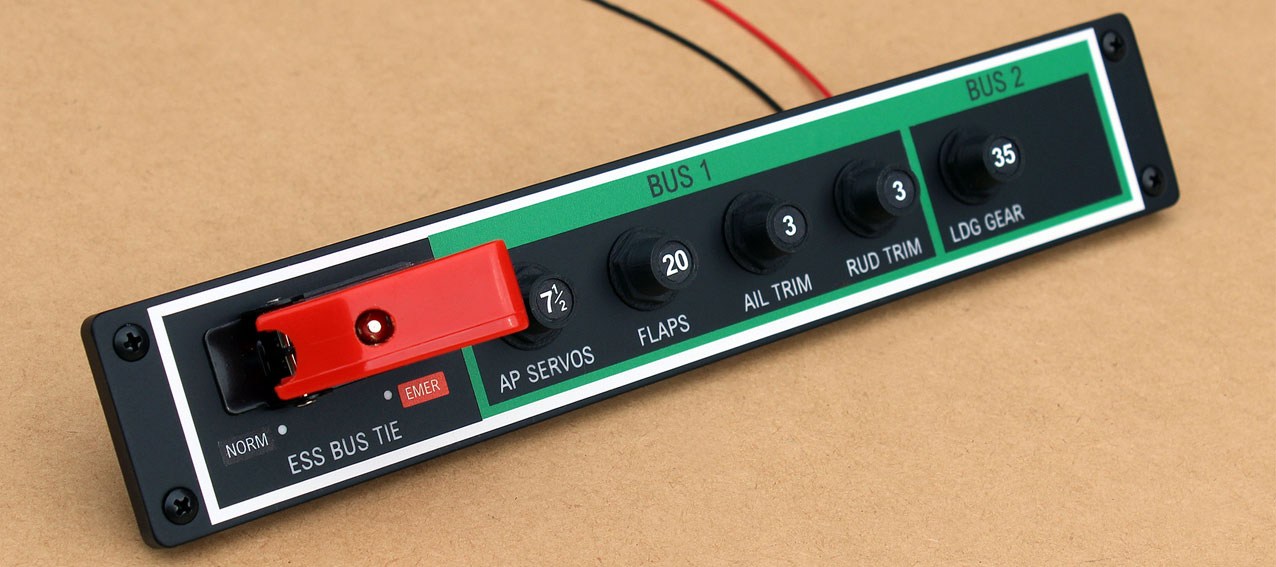

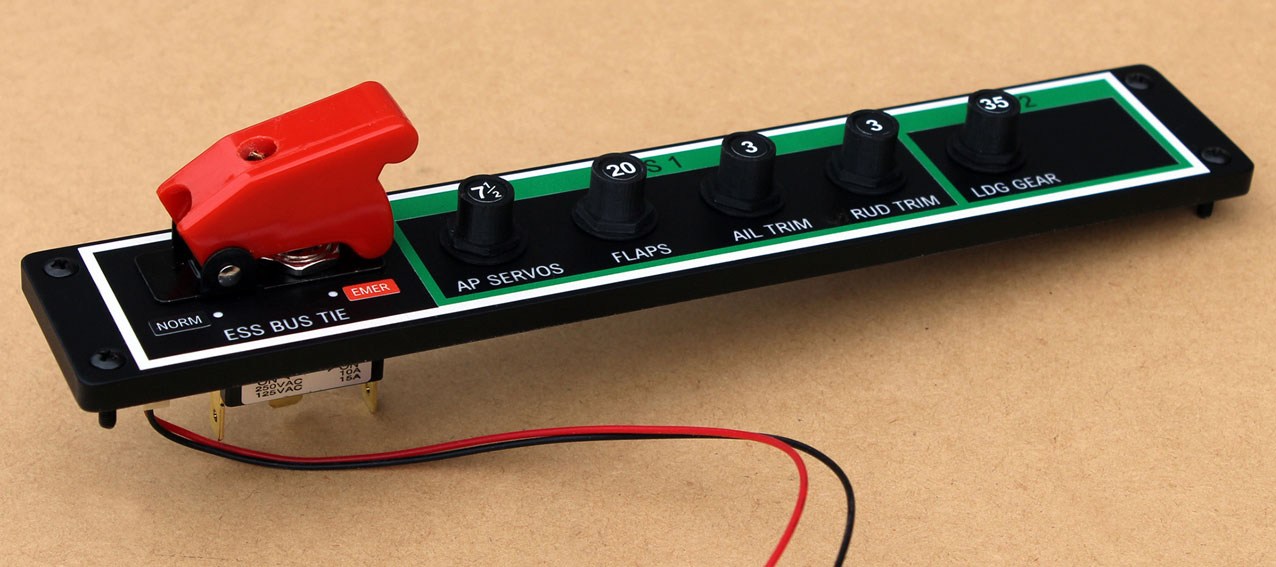

TBM-900 Main Circuit Breaker Panel - Upper Section

Dimensions: 224.50mm (wide) x 40mm (high)

Backlit Panel complete with parts as shown – US$152-00

Backlit Panel with fitted LED circuit board and vinyl decals (no parts) - US$76-00

This panel will be shipped as a fully-assembled unit, as shown in the photos above. Please note that there is no controller included with this panel. This is not a plug and play item; no interface is supplied.


This backlit panel includes the dummy circuit breakers with vinyl amperages, a toggle switch with cover, a wire connector for the 12V backlighting, the coloured vinyl decals, as well as the black oxide mounting screws.


This panel has been designed so that real circuit breakers can be fitted if required. If you wish to purchase this panel without the dummy circuit breakers, please contact us and we can deduct the cost of these from the panel. For the hole sizes and spacings between each circuit breaker, please see the ZIP file contained in the link below.

To download the files for the panel shape cutout and dimensions, click here.

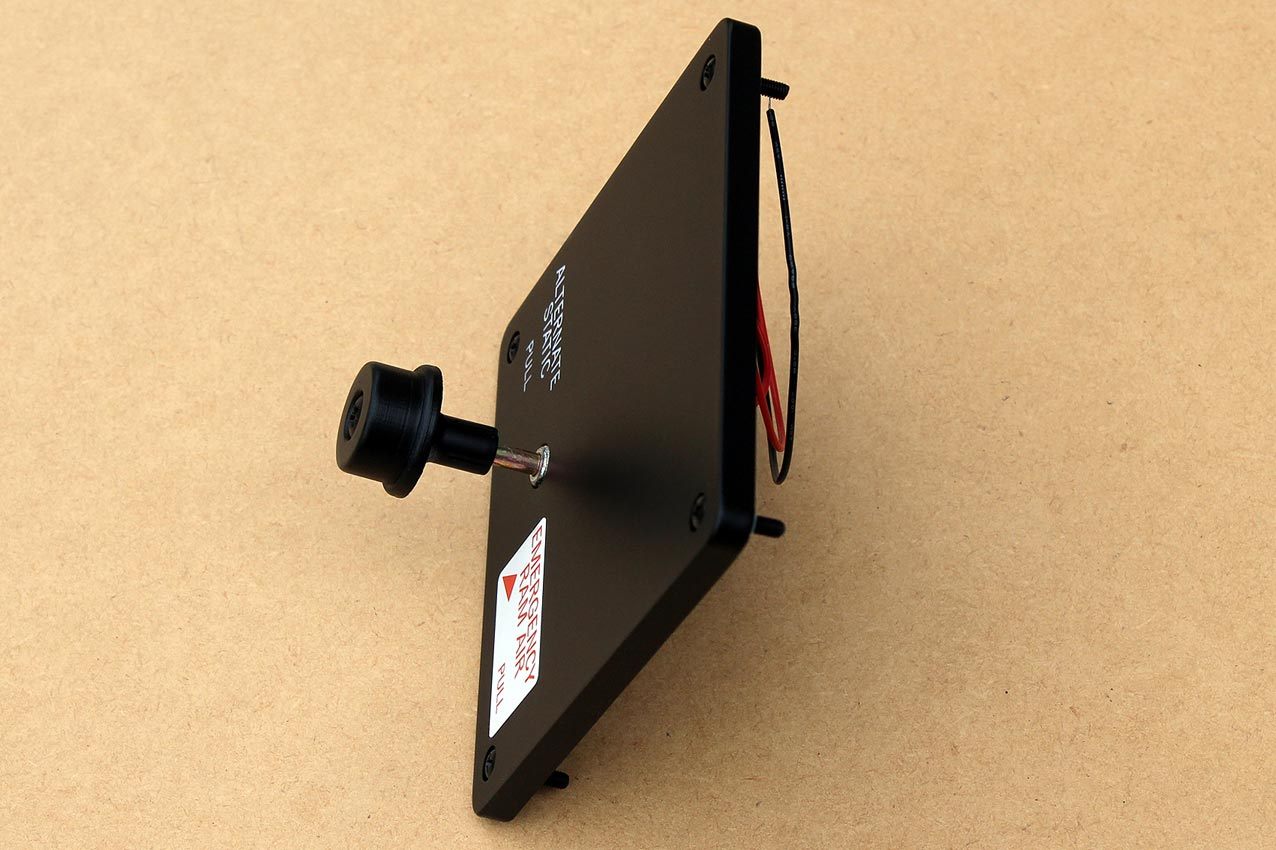

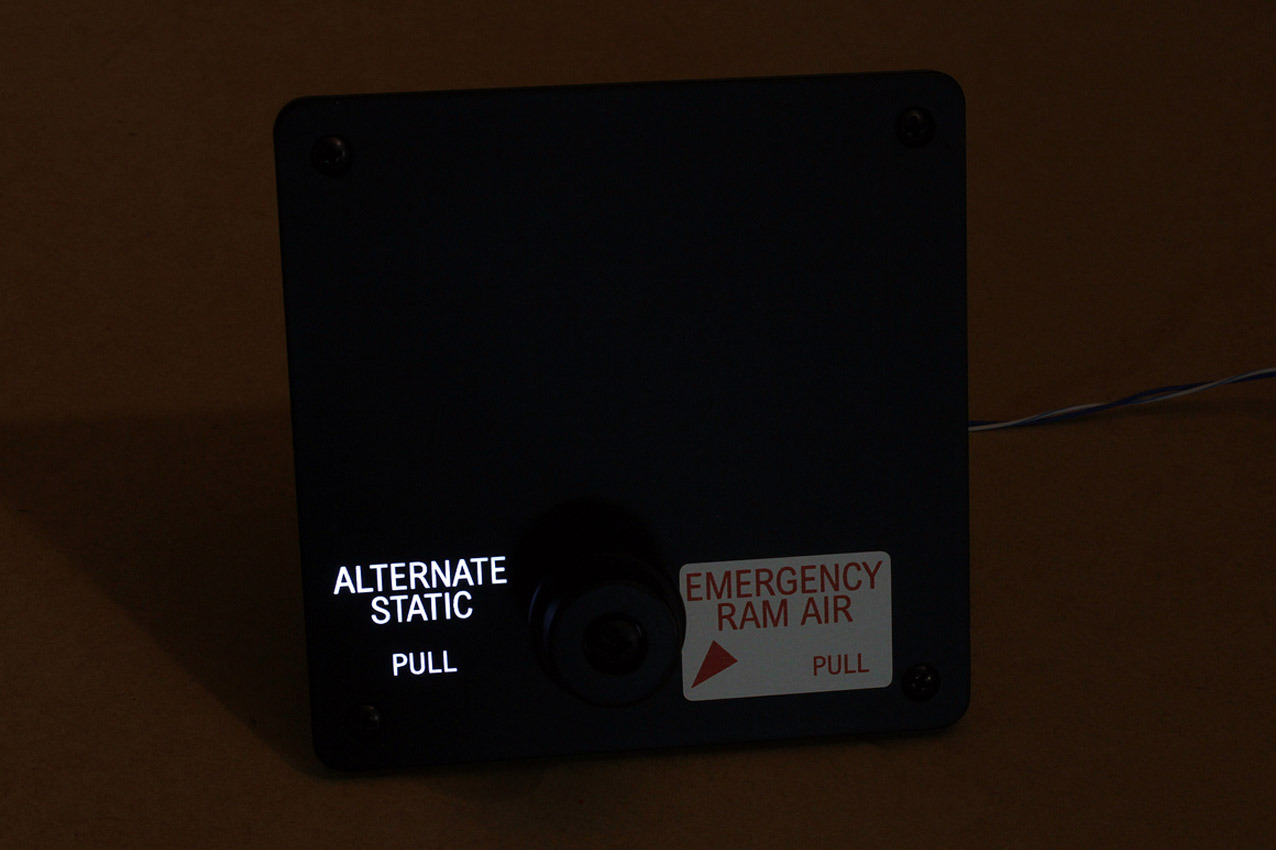

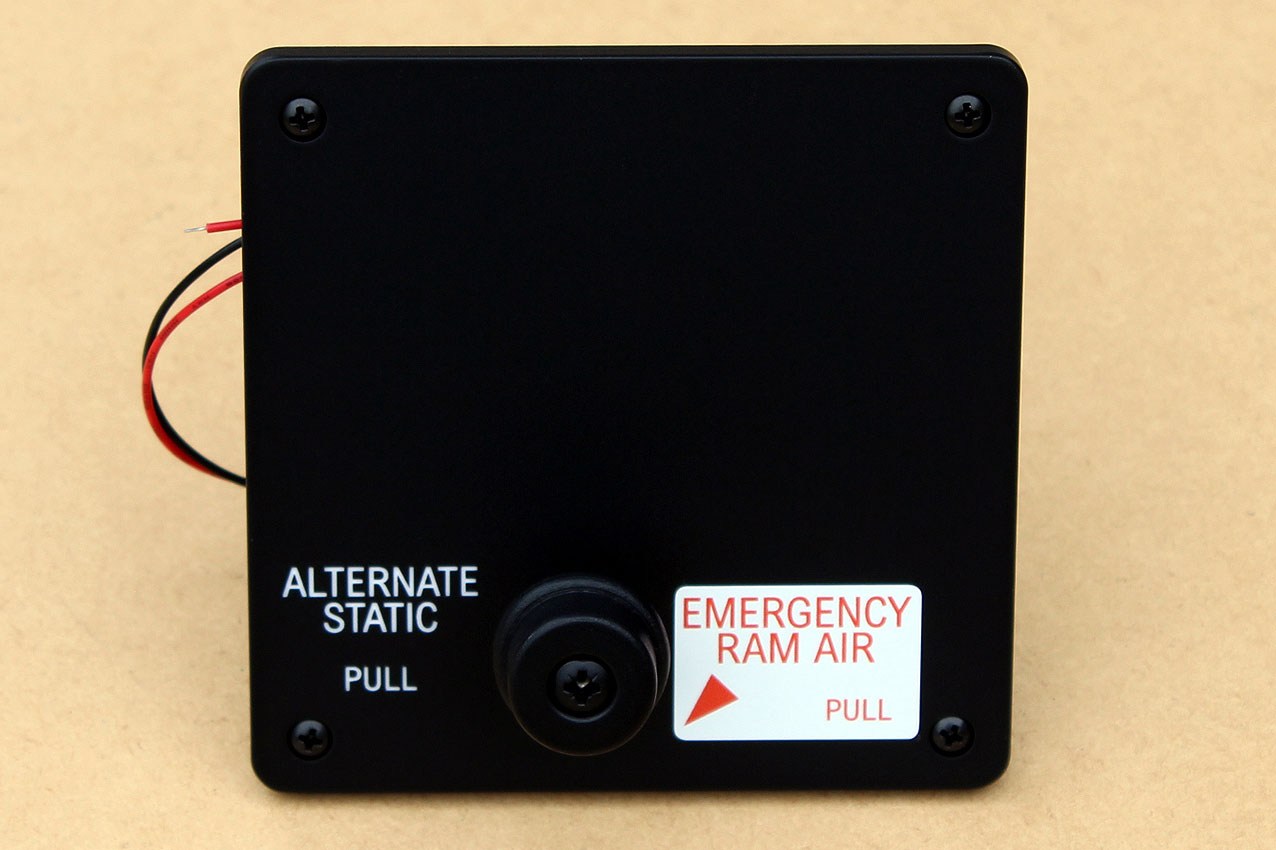

TBM-900 Static Source Selector Panel

Dimensions: 101.60mm (wide) x 101.60mm (high)

Backlit Panel complete with parts as shown – US$102-00

This panel will be shipped as a fully-assembled unit, as shown in the photos above. Please note that there is no controller included with this panel. This is not a plug and play item; no interface is supplied.


This fully-backlit panel includes a high quality push/pull switch with knob fitted, a vinyl decal, a wire connector for the 12V backlighting, as well as the black oxide mounting screws.

To download the files for the panel shape cutout and dimensions, click here.

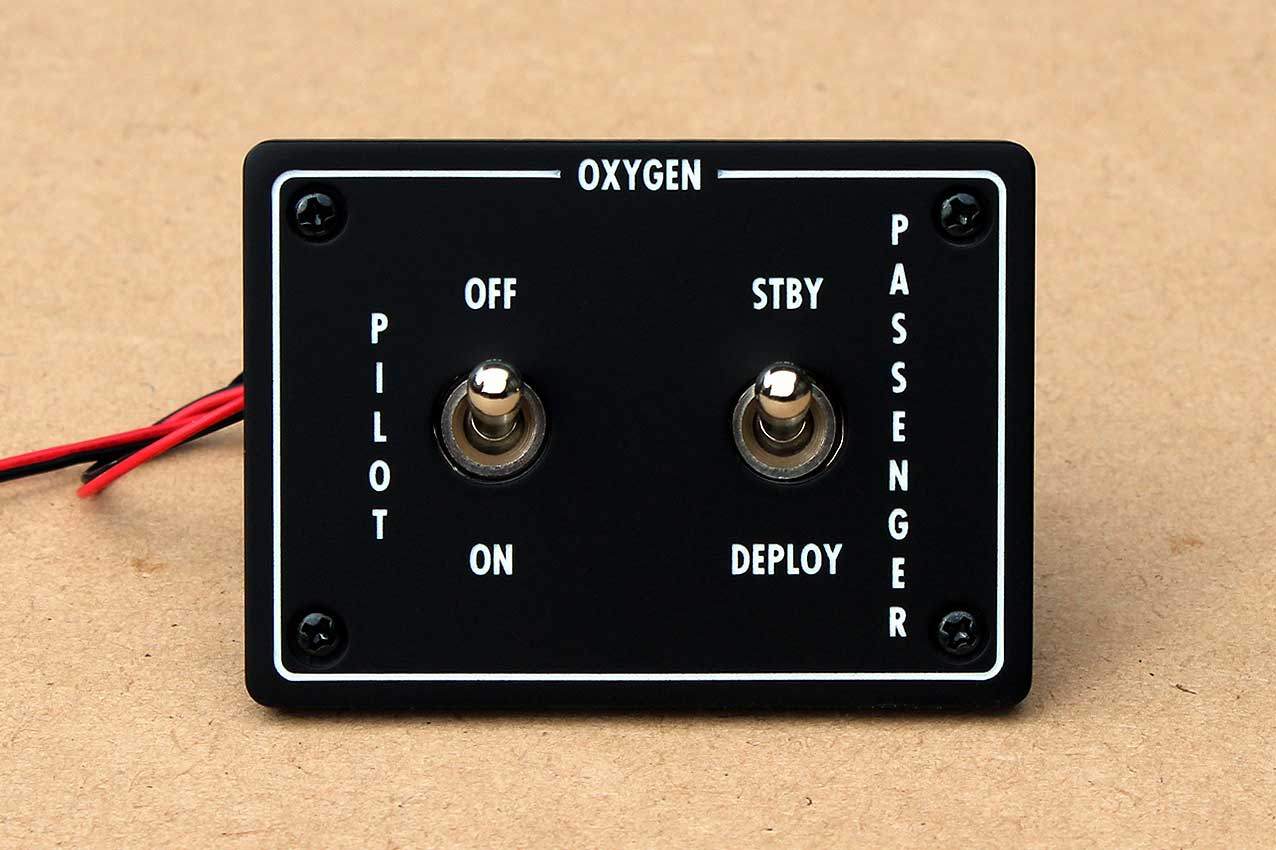

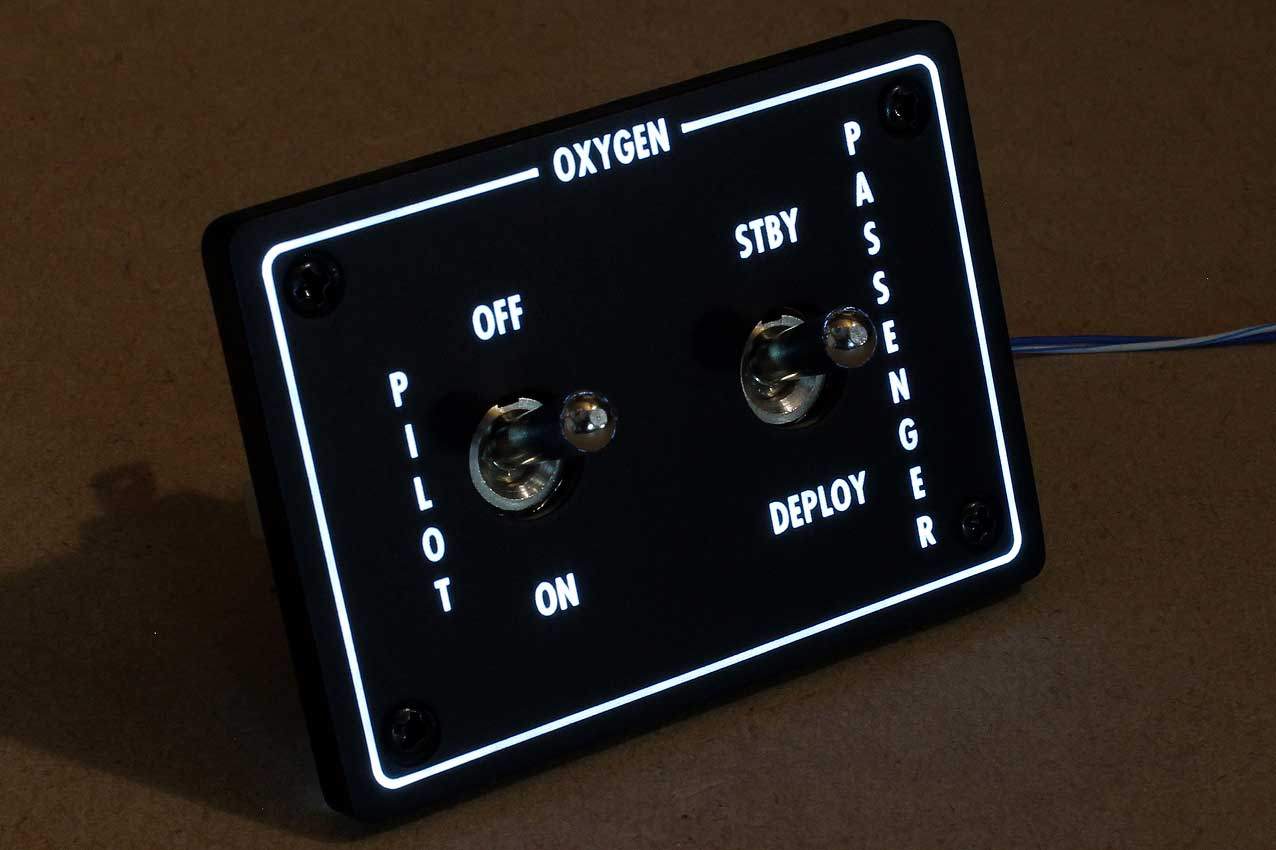

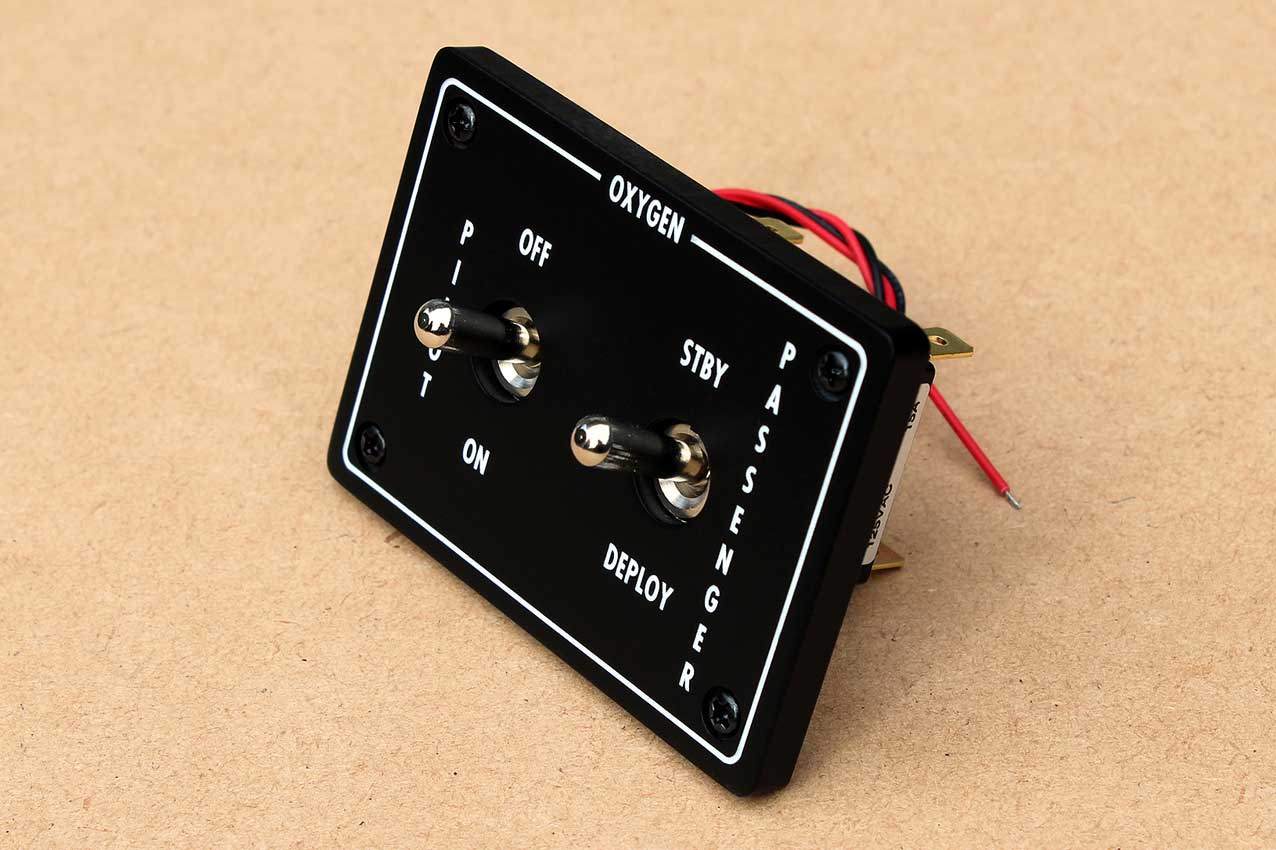

TBM-900 Oxygen Switch Panel

Dimensions: 80mm (wide) x 57.60mm (high)

Backlit Panel complete with parts as shown – US$96-00

This panel will be shipped as a fully-assembled unit. Please note that there is no controller included with this panel. This is not a plug and play item; no wiring or interface is supplied.


This fully-backlit panel includes the two switches, the black mounting screws, and a wire connector for the backlighting.

To download the files for the panel shape cutout and dimensions, click here.

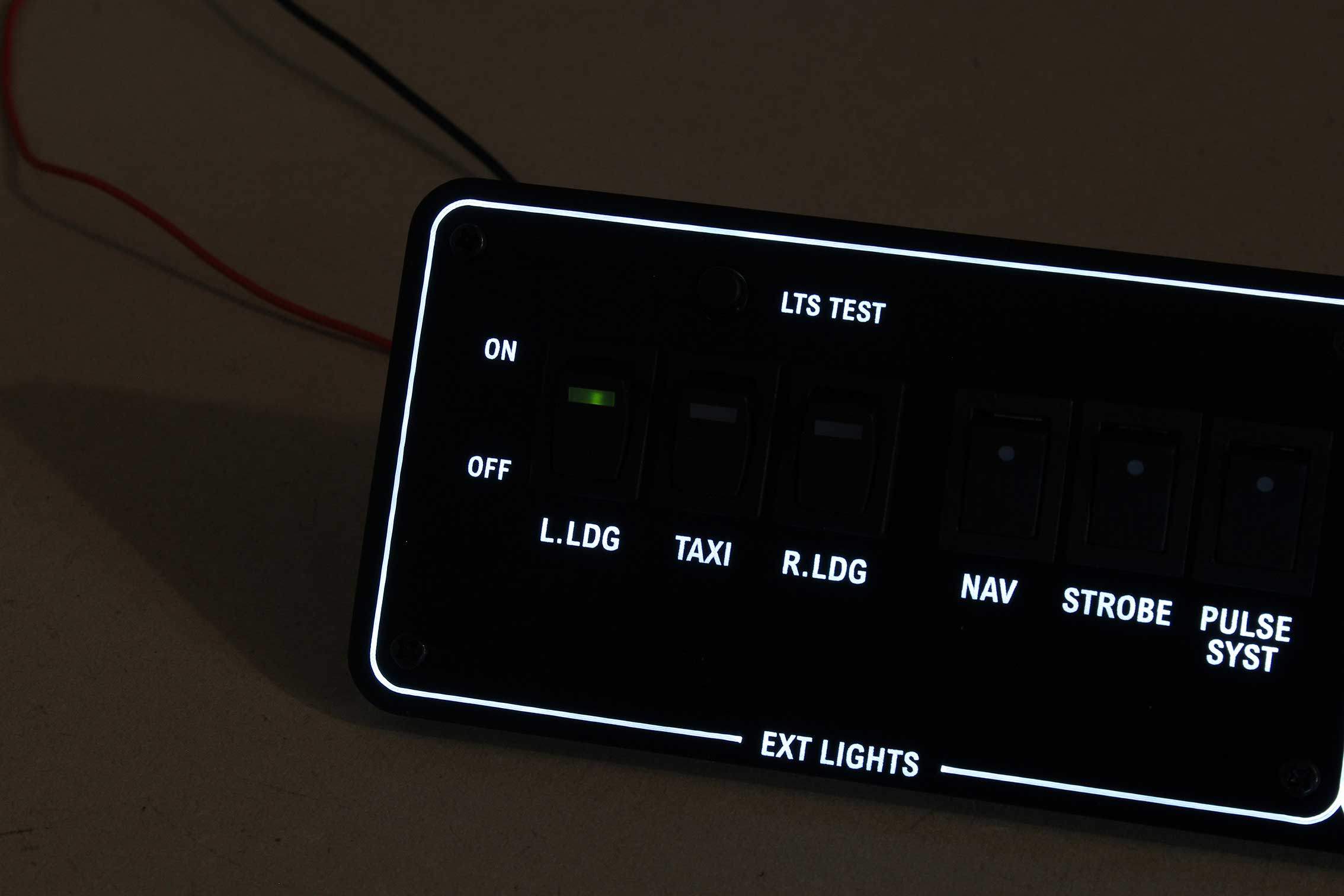

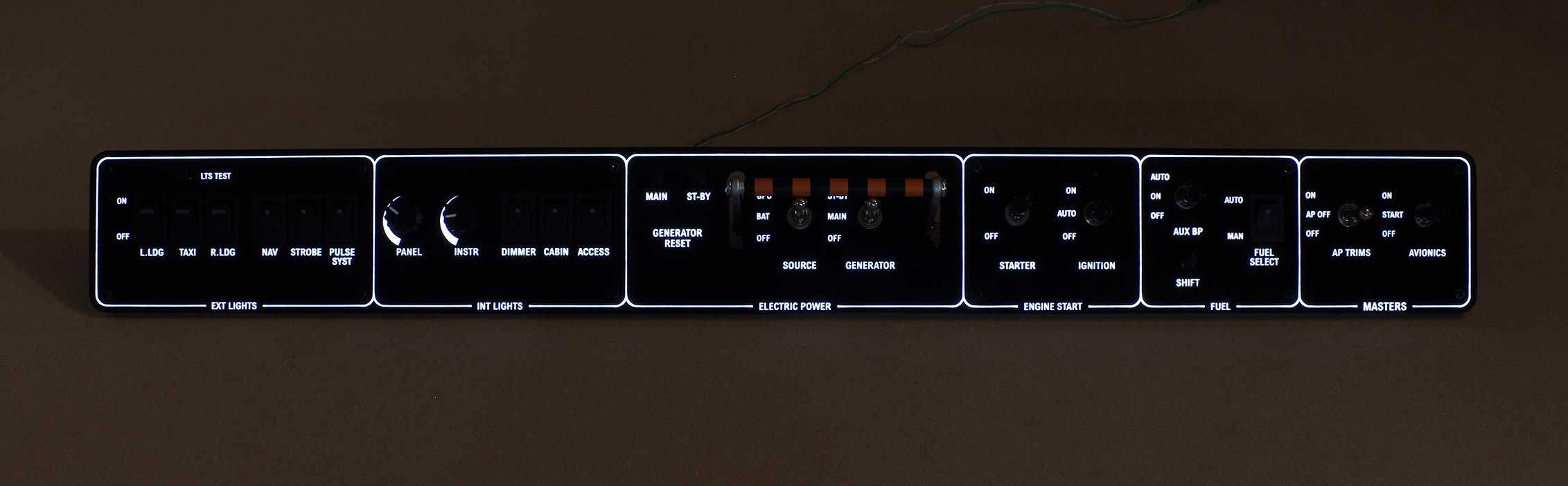

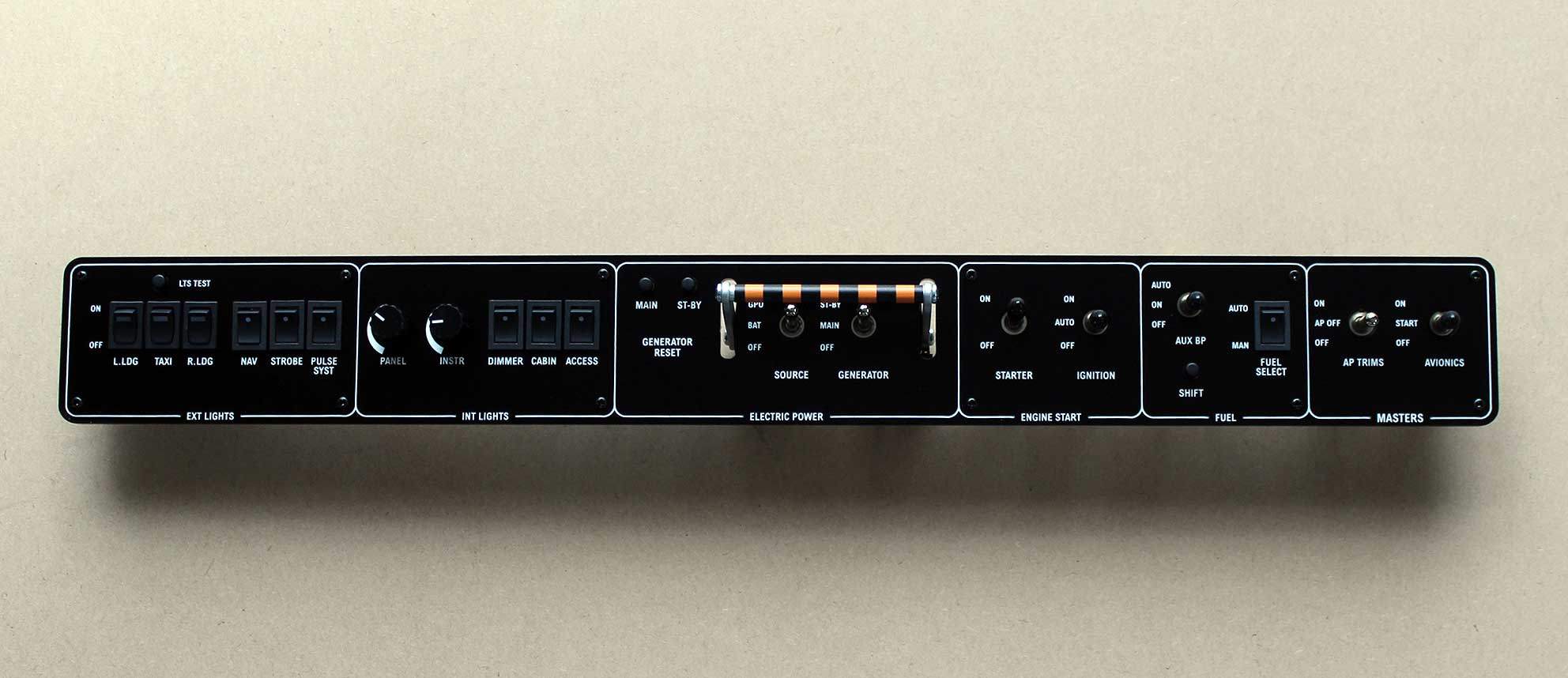

TBM-850 Overhead Panel

Dimensions: 604.3mm (wide) x 71mm (high)

Backlit Panel complete with parts as shown – US$505-00

Backlit Panel with fitted LED circuit board (no parts) - US$349-00

If purchased complete with parts, this panel will be shipped as a fully-assembled unit. Please note that there is no controller included with this panel. This is not a plug and play item; no wiring or interface is supplied. As with all of our other panels, this panel can be supplied with either cool-white or warm white LEDs. If locking-lever switches are required, please let us know.



This fully-backlit, fully-assembled panel will contain all of the rocker switches (including three that are illuminated), the gang-bar plus decal, two potentiometers with engraved knobs, the pushbuttons, the toggle switches, and all of the black mounting screws. Due to the size of this panel, there are three individual circuit boards for the 12V backlighting, and the three wire connectors for these will also be included.

To download the files for the panel shape cutout and dimensions, click here.

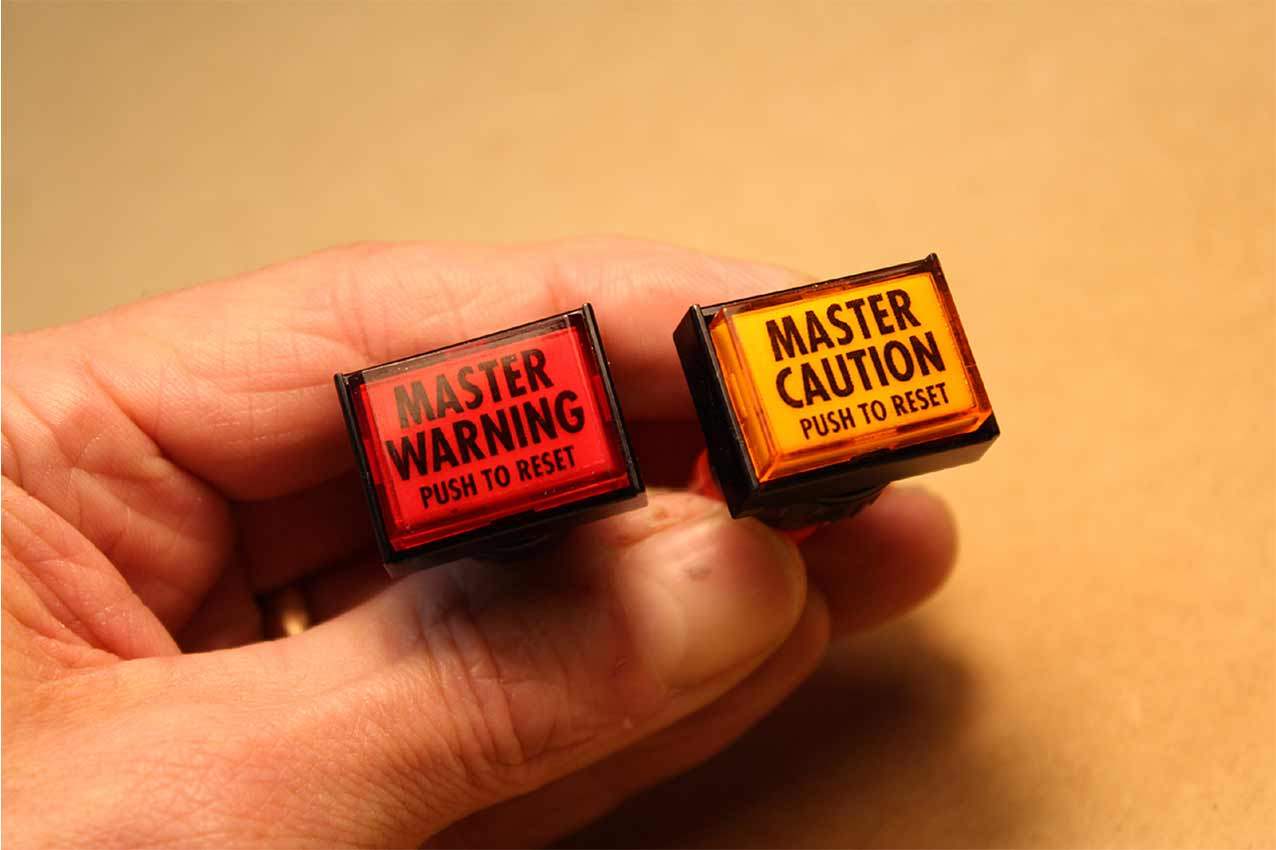

Caution Warning Buttons

Individual Pushbutton Dimensions: 24mm (wide) x 18mm (high)

1 x Master Caution/1 x Master Warning Button – US$40-00

To download the files for the panel shape cutout and dimensions, click here.
