Controllers/Avionics

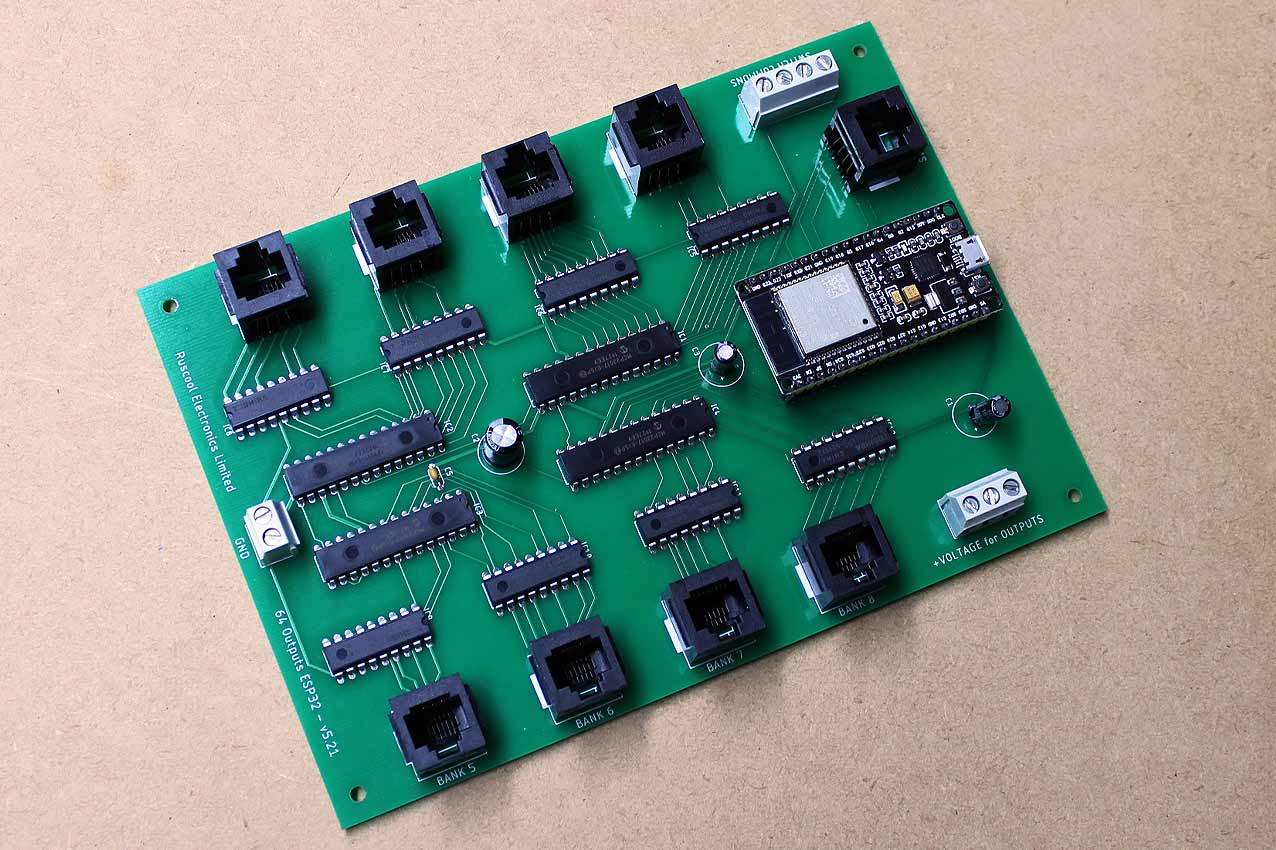

This USB-connected board has 64 outputs which respond to Flight Simulator FSUIPC values.  Each output can control LEDs, lamps, relays, solenoids, etc and is connected to the relevant hardware via RJ45 sockets and cables (not supplied).  The board is arranged in blocks of 8 utilising readily available RJ45 plugs and cables.  The board also has eight inputs that can be used as warning resets or other functions.

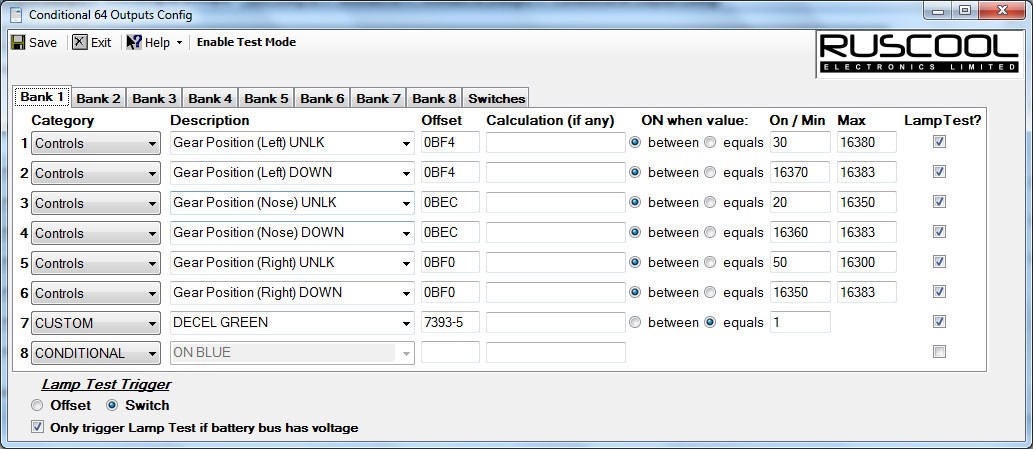

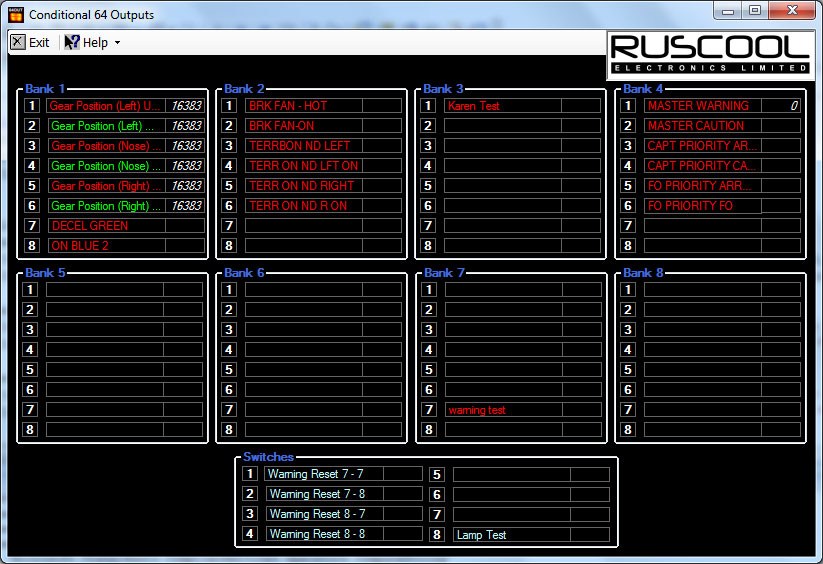

A comprehensive but simple to use configuration program allows an output to be controlled from virtually any FSUIPC offset value. This includes conditional and warning options to cater for various functions.
