King Air B350 Products

If purchased complete with parts, this panel will be shipped as a fully-assembled unit. Please note that there is no controller included with this panel. This is not a plug and play item; no wiring or interface is supplied.

When supplied as a fully-assembled unit, this fully-backlit panel will include all of the switches, the hinged gang-plate, the LEDs, striped decal, black mounting screws, a pull on/push off switch, and the Parking Brake knob.

To download the files for the panel shape and MIP cutout, click here.

If purchased complete with parts, this panel will be shipped as a fully-assembled unit. Please note that there is no controller included with this panel. This is not a plug and play item; no wiring or interface is supplied.

When supplied as a fully-assembled unit, this fully-backlit panel will include all of the switches, the pushbuttons, a dummy circuit breaker, black mounting screws, wired replica Korry button, as well as the landing gear lever complete with embedded LED and wiring for illumination.  The gear lever is spring loaded and you must pull the knob out before it can be moved from its current position; when it gets to the new position, it springs back into place. A red LED is embedded in the  gear knob to allow for illumination during gear transit, and a pair of connection wires are also included.

To download the files for the panel shape and MIP cutout, click here.

If purchased complete with parts, this panel will be shipped as a fully-assembled unit. Please note that there is no controller included with this panel. This is not a plug and play item; no wiring or interface is supplied.

When supplied as a fully-assembled unit, this fully-backlit panel will include all of the switches, the pushbutton, black mounting screws, and the engraved knobs.

To download the files for the panel shape and MIP cutout, click here.

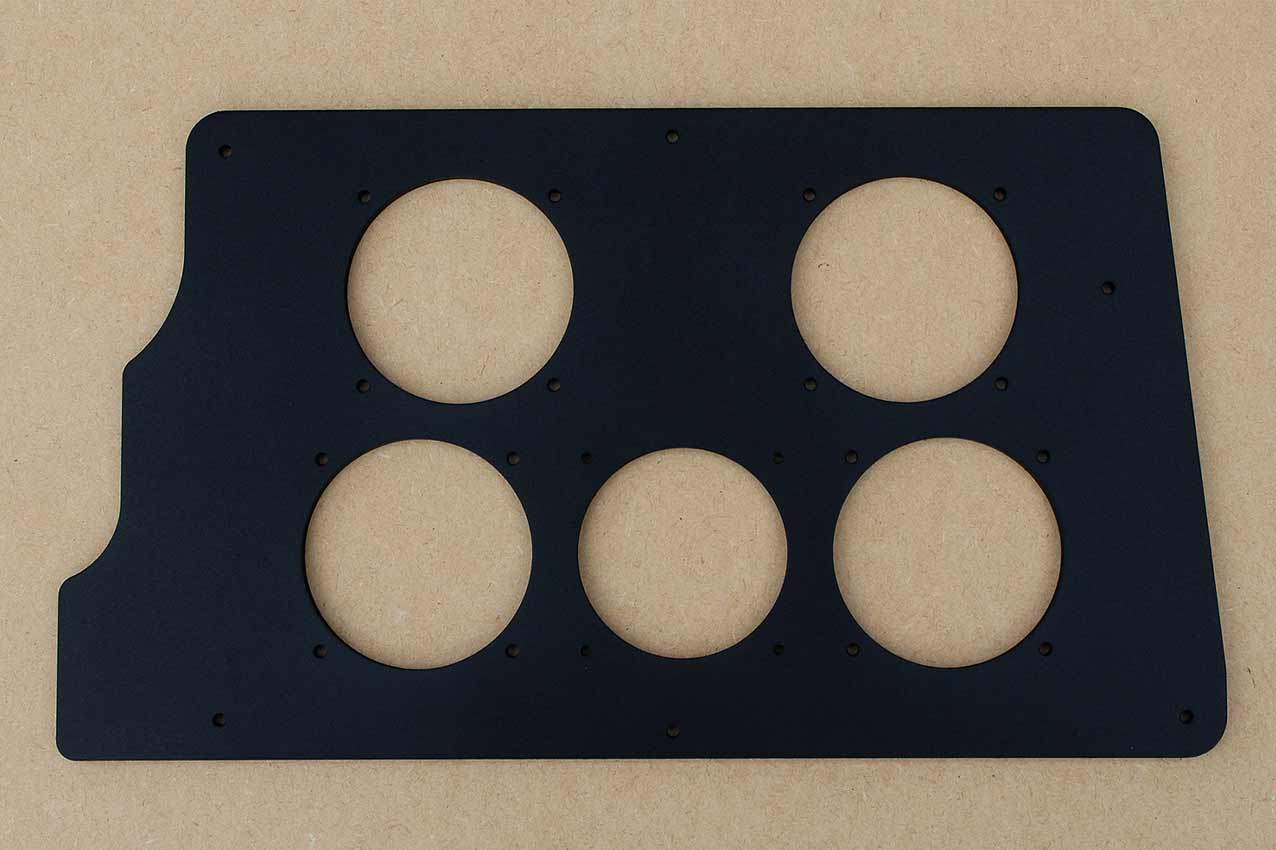

If you purchase the panel only version of this panel, the holes are suitable for use with the GSA-057 gauges from Flight Illusion. The black mounting screws are included.

To download the files for the panel shape and MIP cutout, click here.

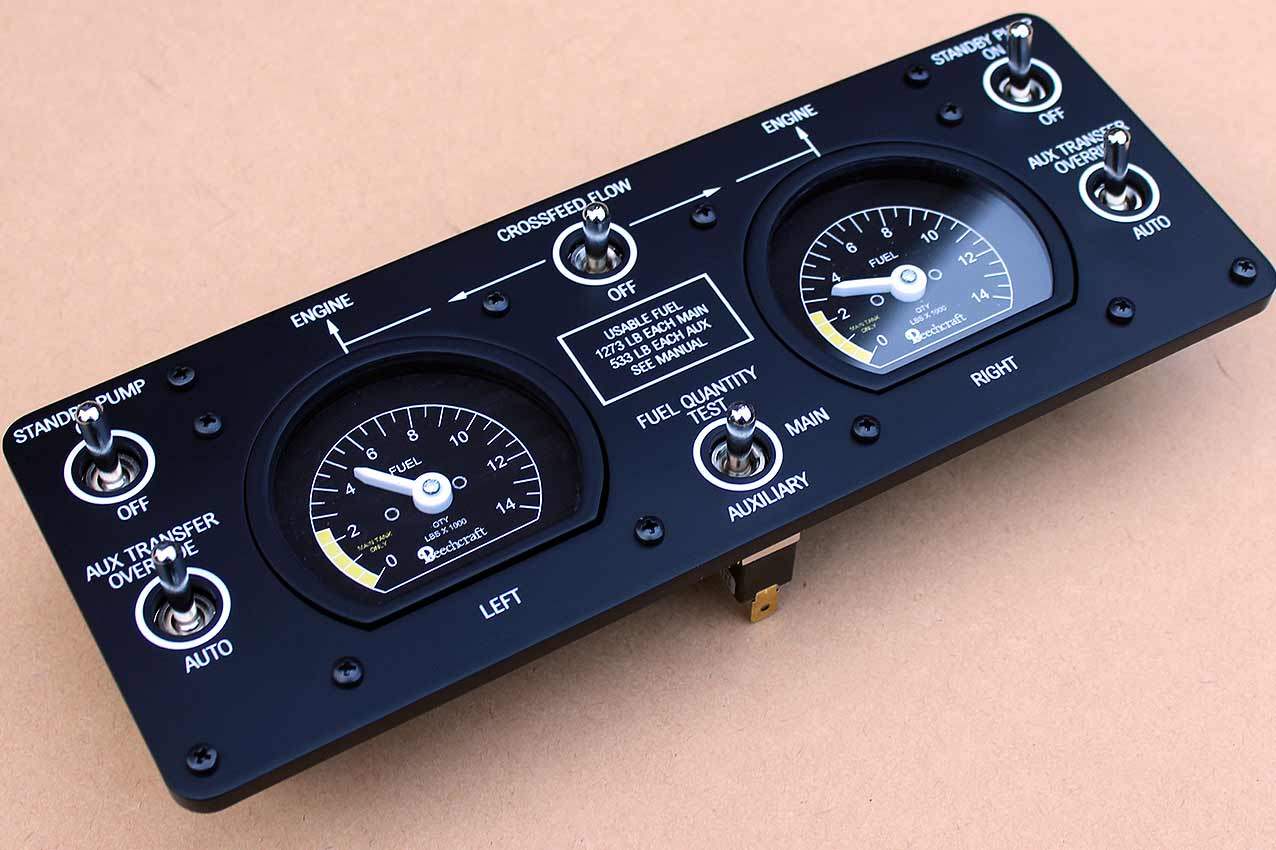

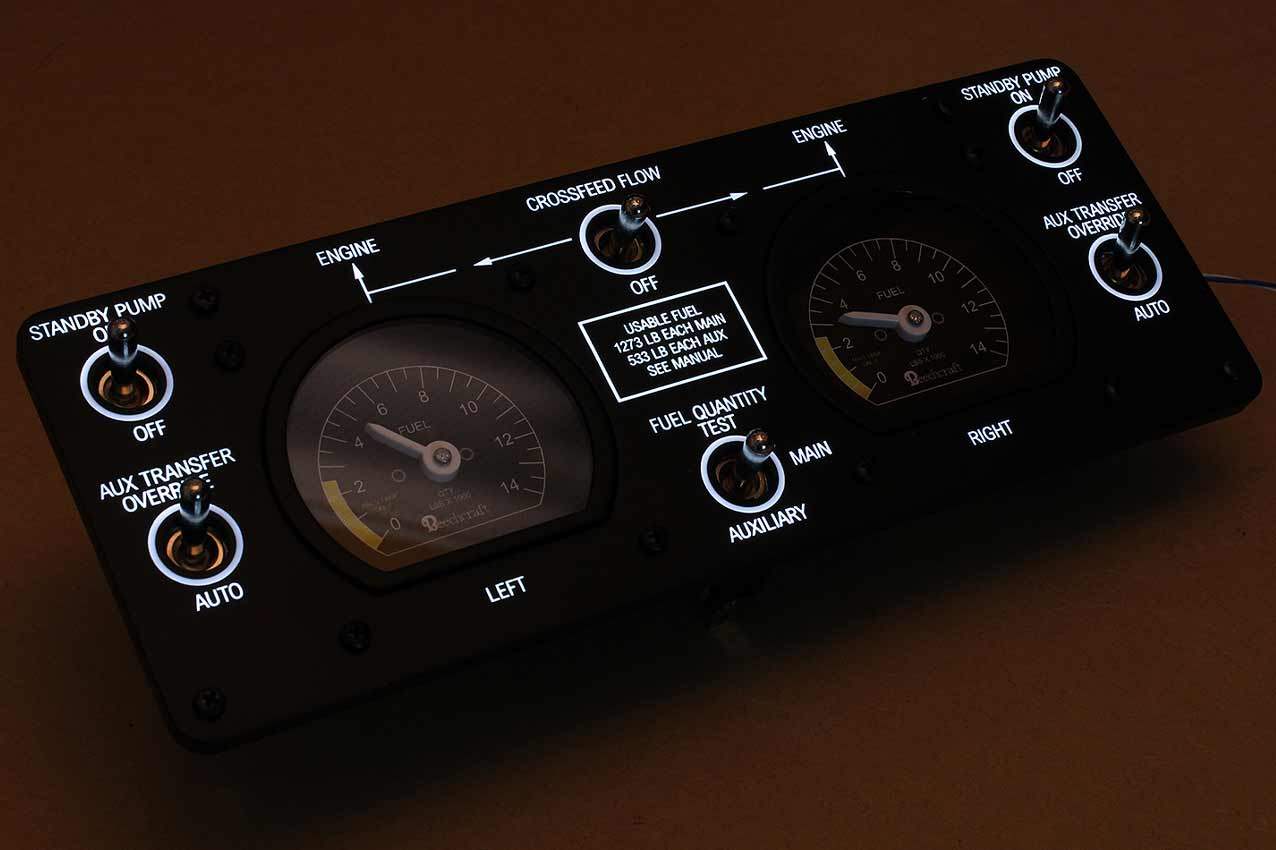

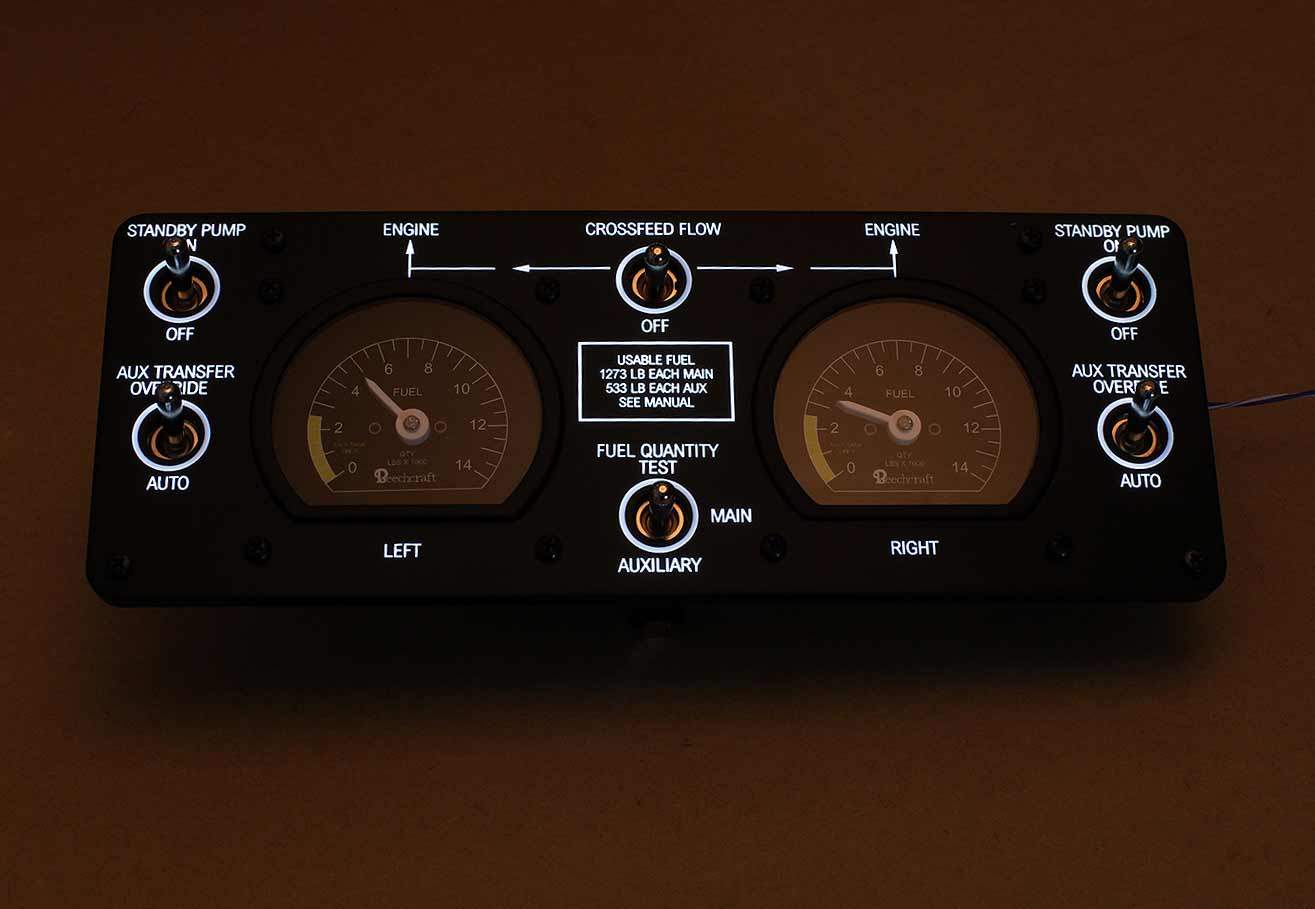

The holes for the fuel gauges are based on the GSA-061 gauges from Flight Illusion.  Although the fuel gauges are not included, we can supply dummy gauges upon request.  Our dummy gauges are priced at US$35-00 each.

When supplied as a fully-assembled unit, this fully-backlit panel will include all of the switches, the black mounting screws, and the viny switch cap.  Please note that there is no controller included with this panel. This is not a plug and play item; no wiring or interface is supplied.

To download the files for the panel shape and MIP cutout, click here.

The holes for the fuel gauges are based on the GSA-061 gauges from Flight Illusion.  Although the fuel gauges are not included, we can supply dummy gauges upon request.

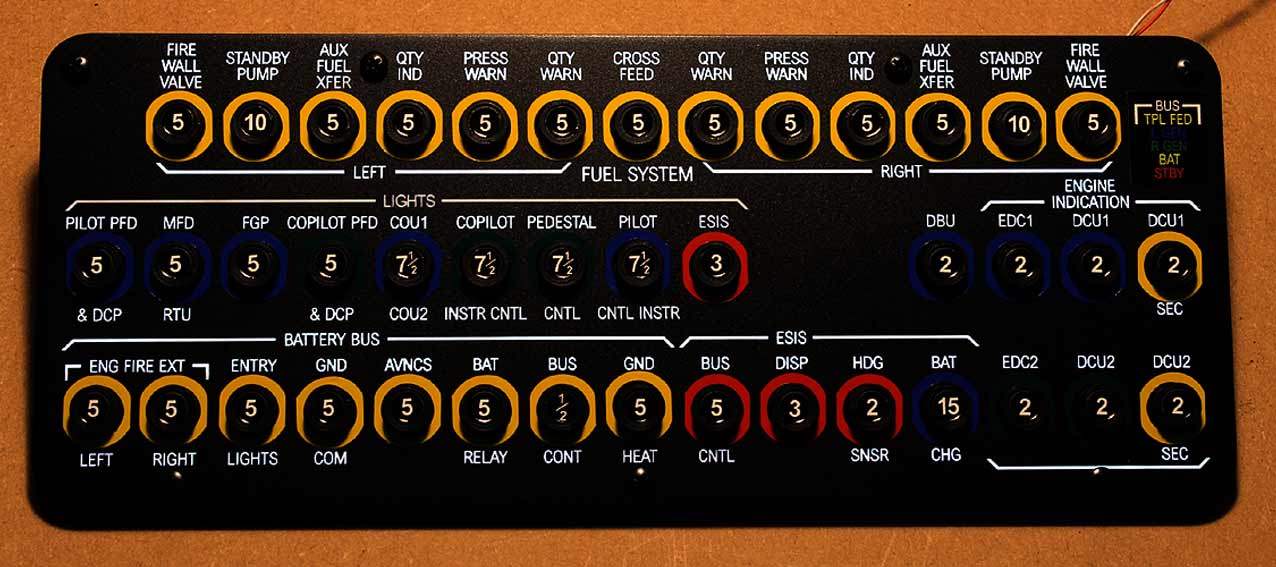

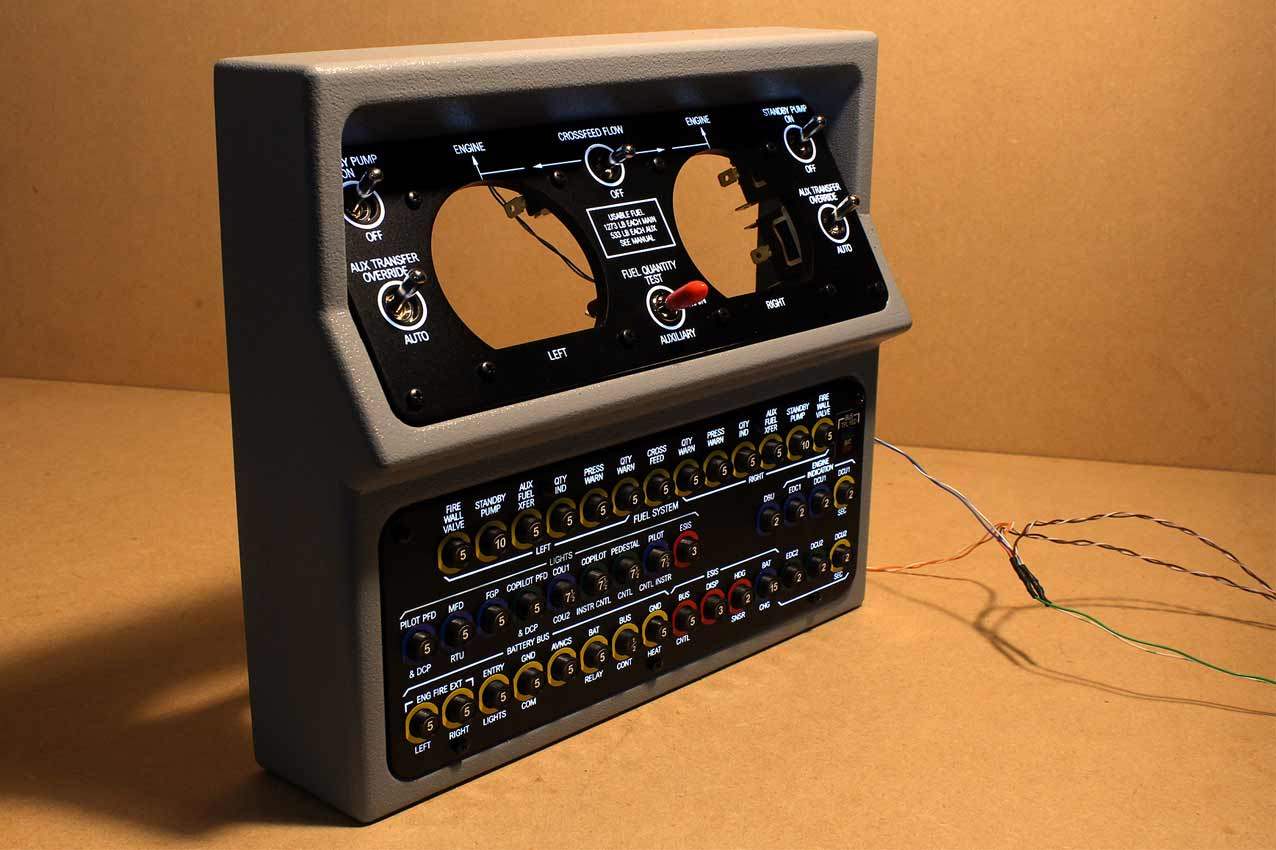

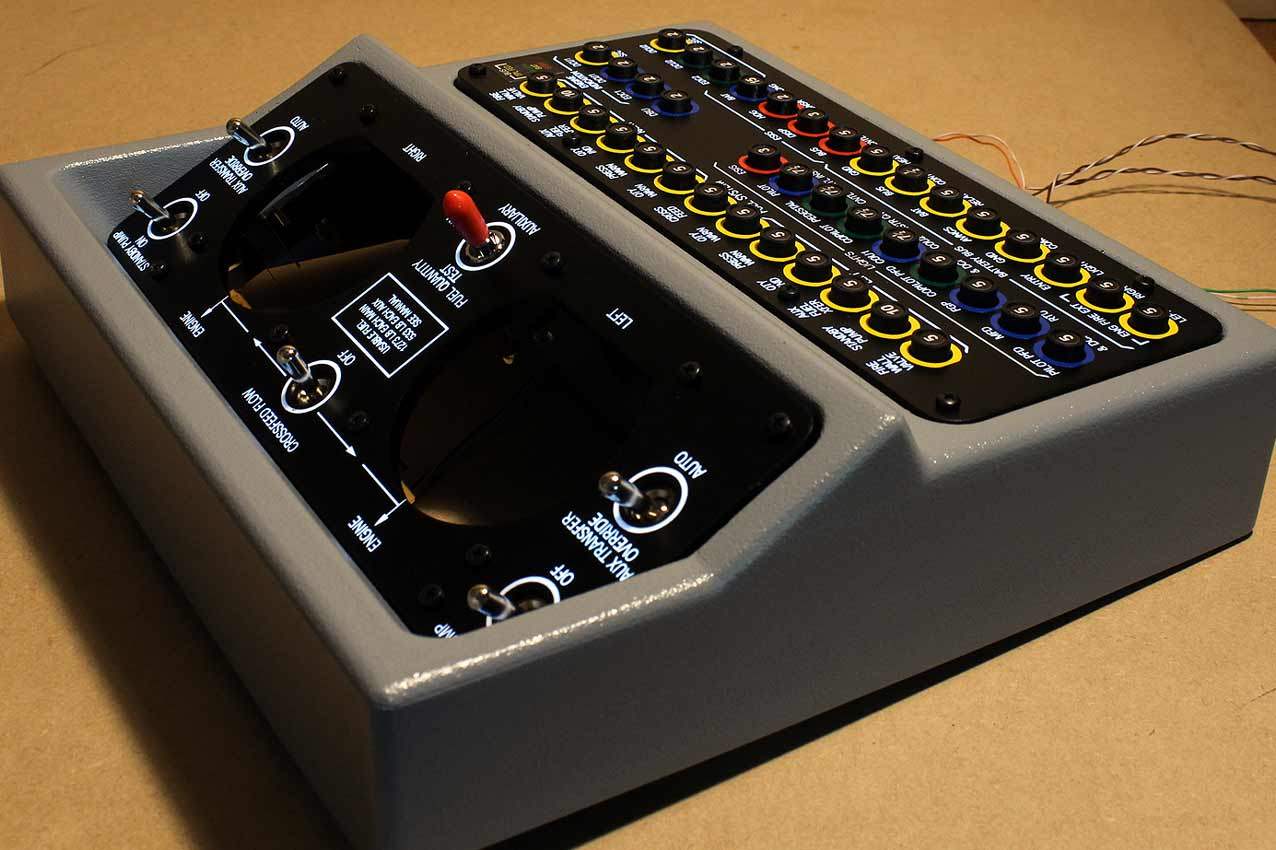

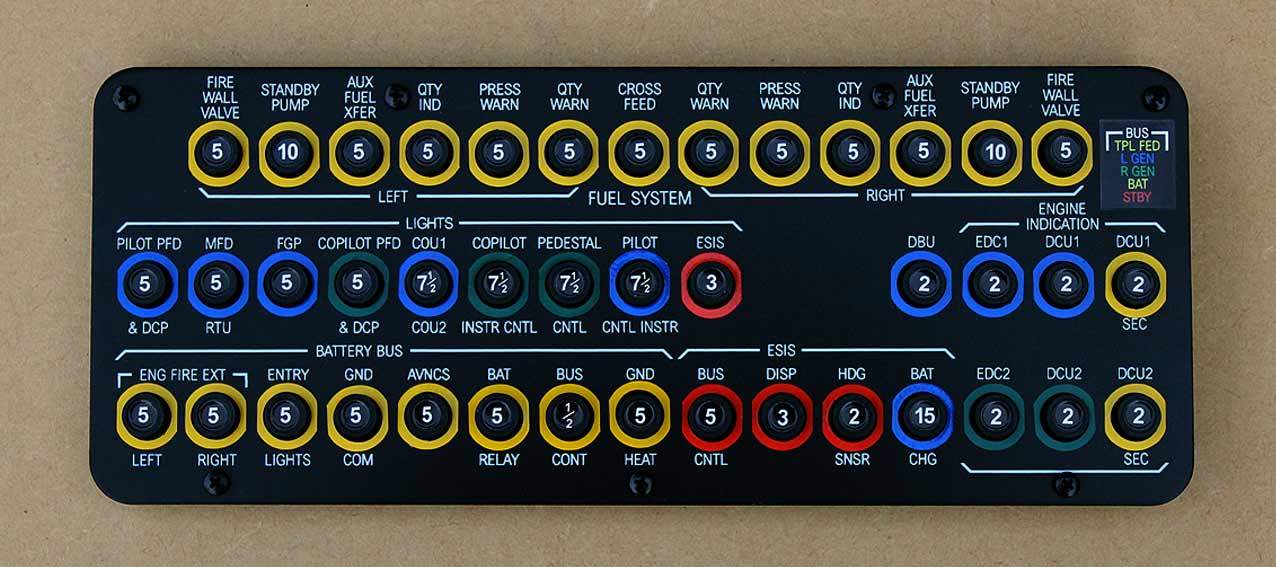

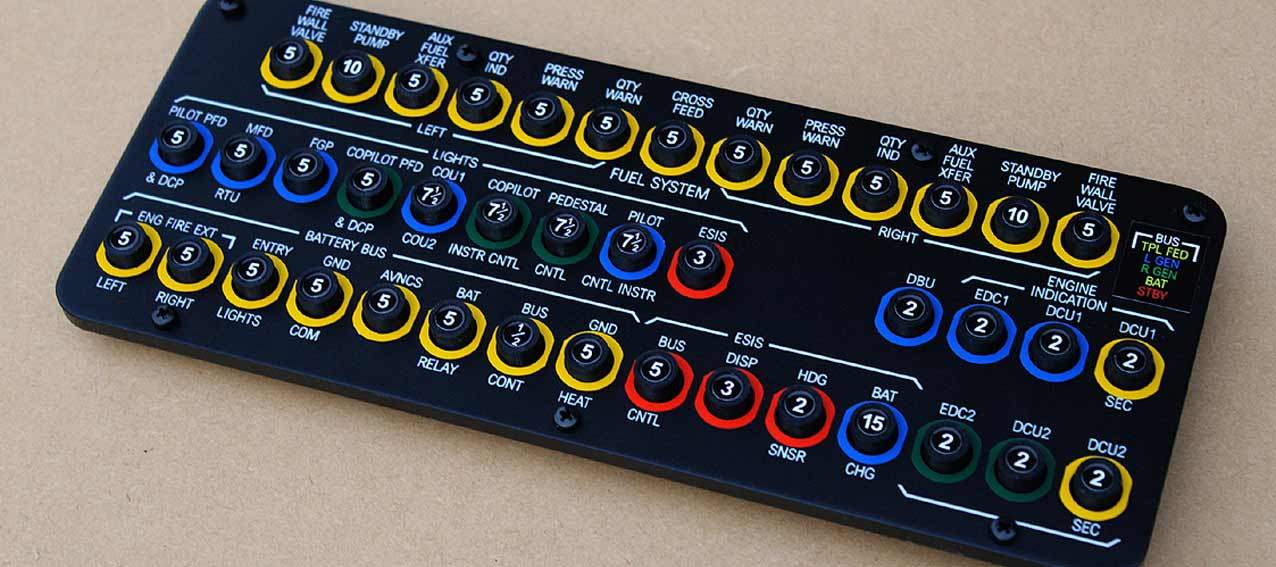

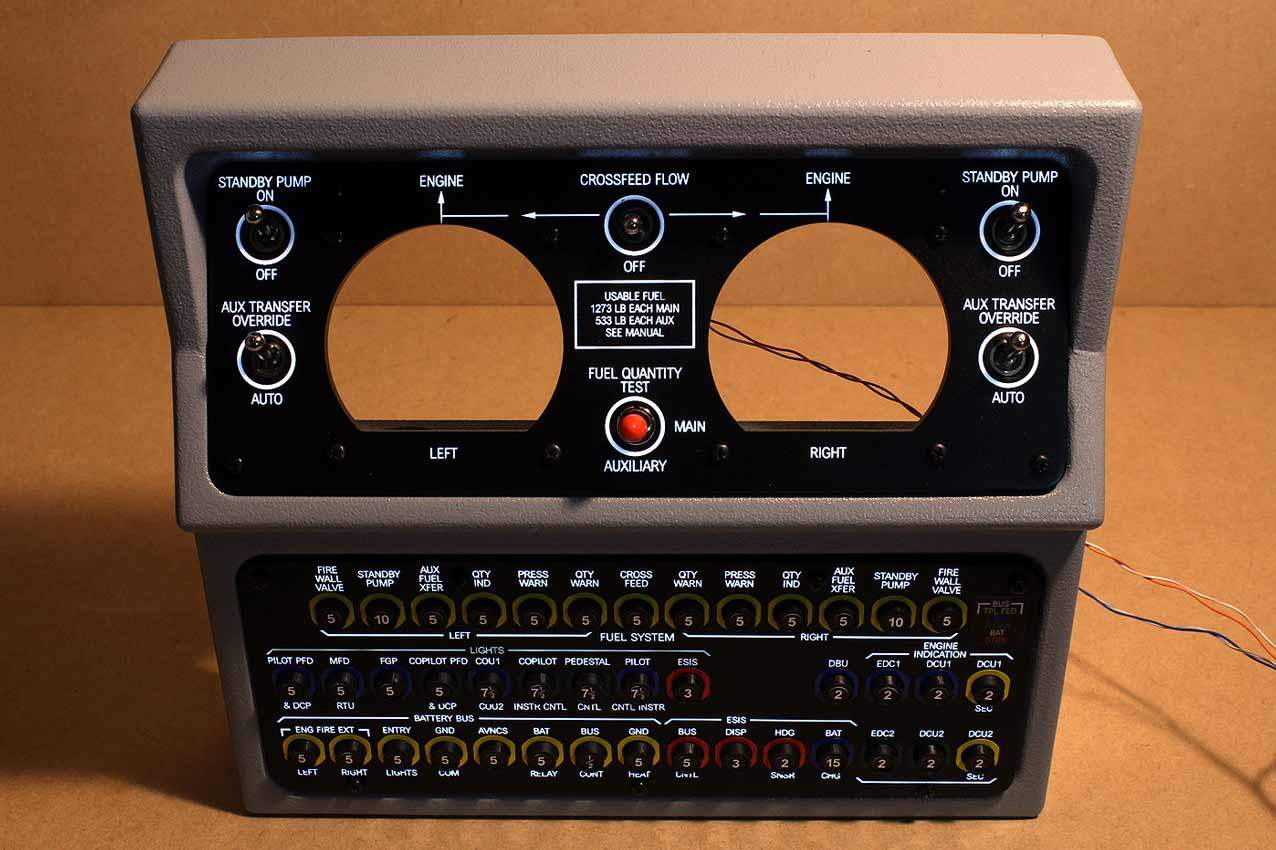

This module is supplied fully-assembled with both backlit panels, all decals, a full set of dummy circuit breakers, mounting screws, and all the switches.

When supplied as a fully-assembled unit, this module includes both the B350 Fuel Panel and B350 Fuel Circuit Breaker Panel as described above.  Please note that there is no controller included with this panel. This is not a plug and play item; no wiring or interface is supplied.

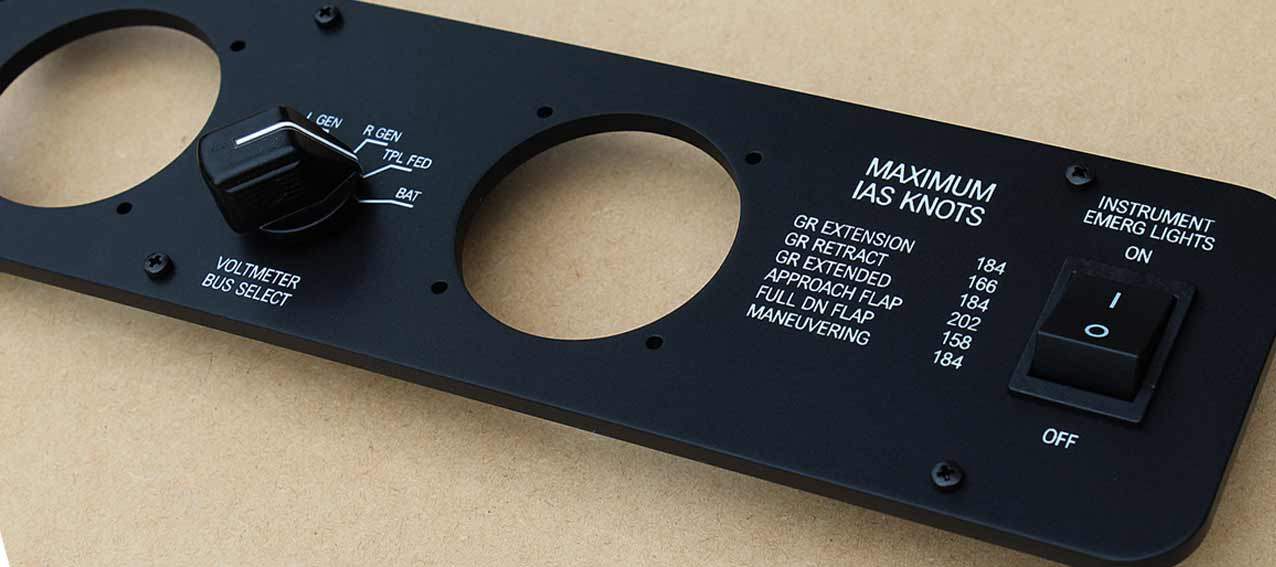

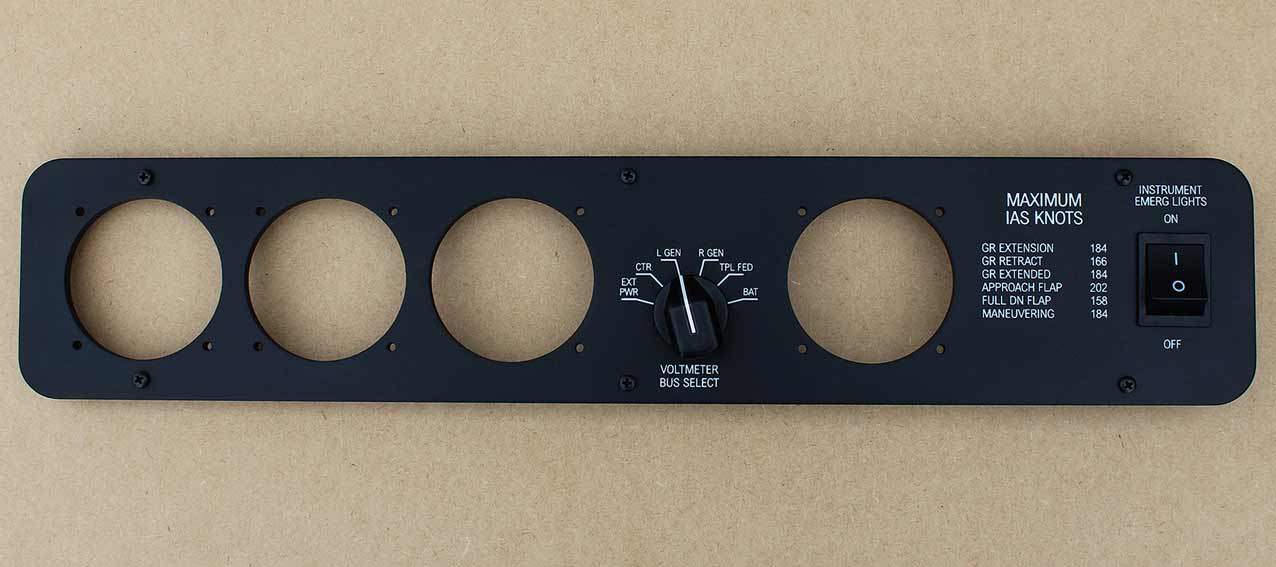

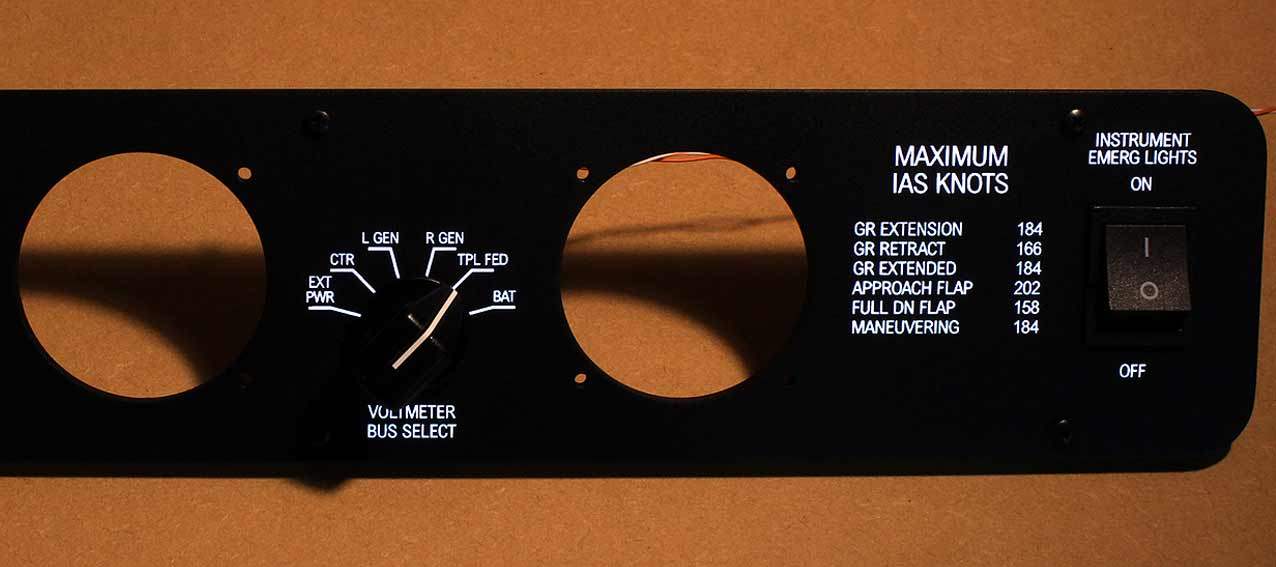

If you purchase the panel only version of this fully-backlit panel, the holes are suitable for use with the GSA-057 gauges from Flight Illusion.

The rocker switch, rotary switch and knob, and all of the black mounting screws are included (and fitted) on the complete panel.  Please note that there is no controller included with this panel. This is not a plug and play item; no wiring or interface is supplied.

To download the files for the panel shape and MIP cutout, click here.

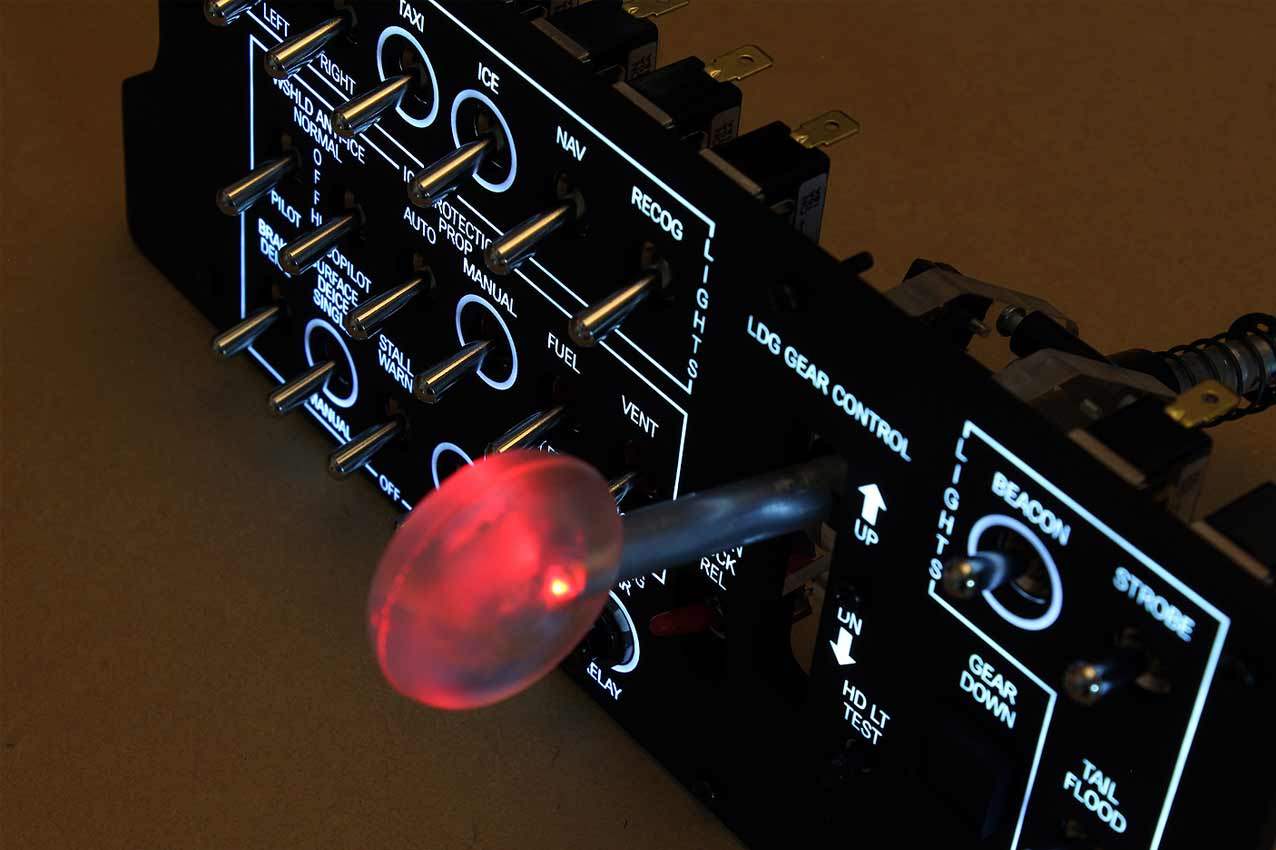

When supplied as a fully-assembled unit, this fully-backlit panel will include all of the toggle switches, the rocker switch, the rotary switch with knob, all of the potentiometers, the indicator LED, and the engraved DIM knob.  Please note that there is no controller included with this panel. This is not a plug and play item; no wiring or interface is supplied.

To download the files for the panel shape and MIP cutout, click here.

When supplied as a fully-assembled unit, this fully-backlit panel will include all of the dummy circuit breakers and decals.

To download the files for the panel shape and MIP cutout, click here.

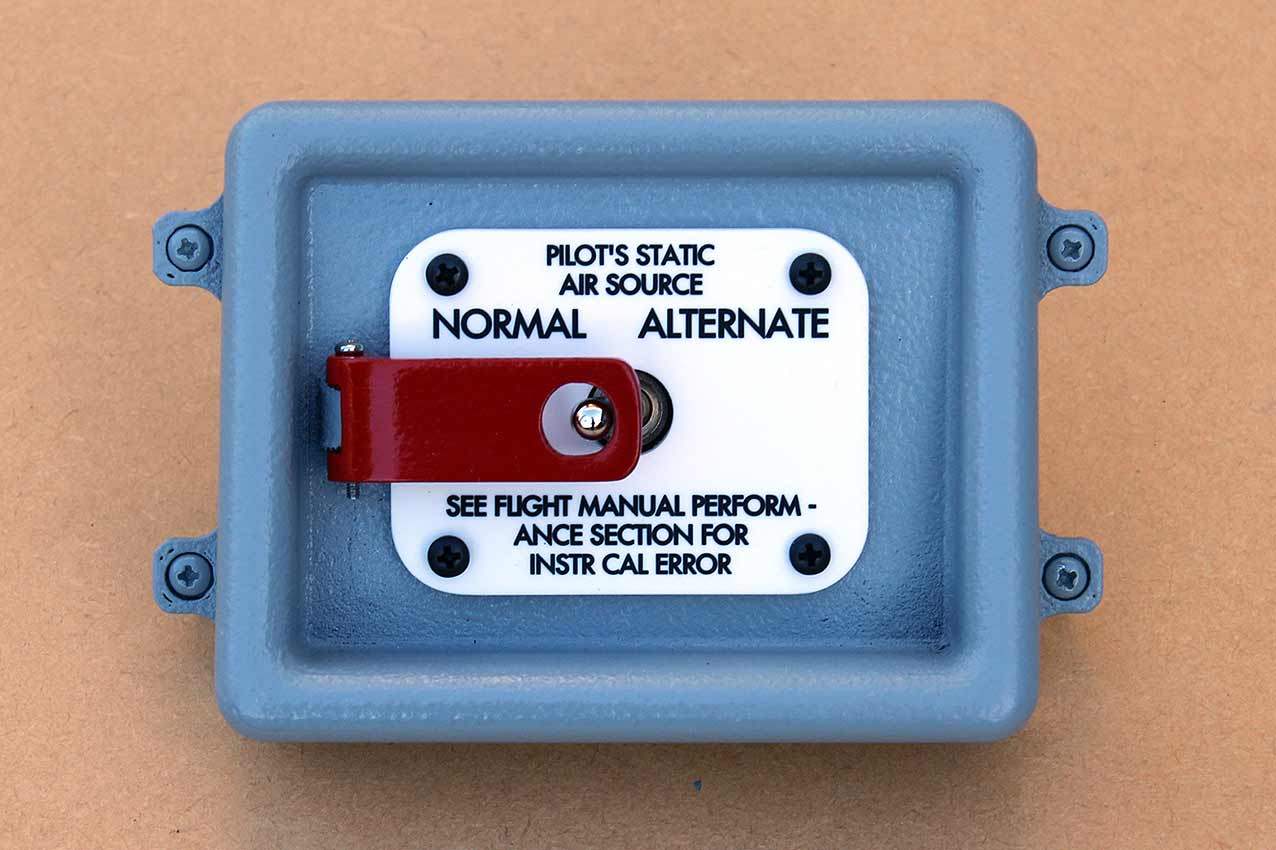

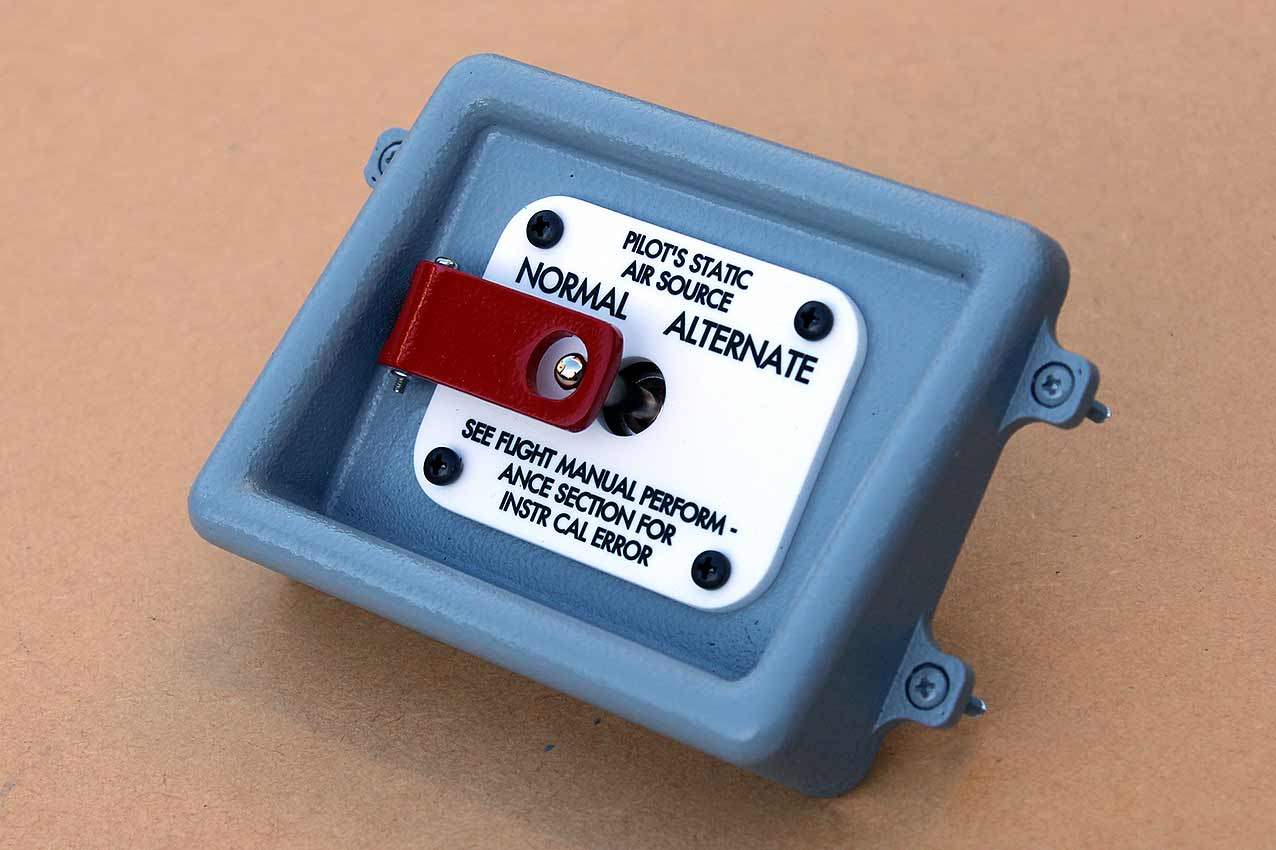

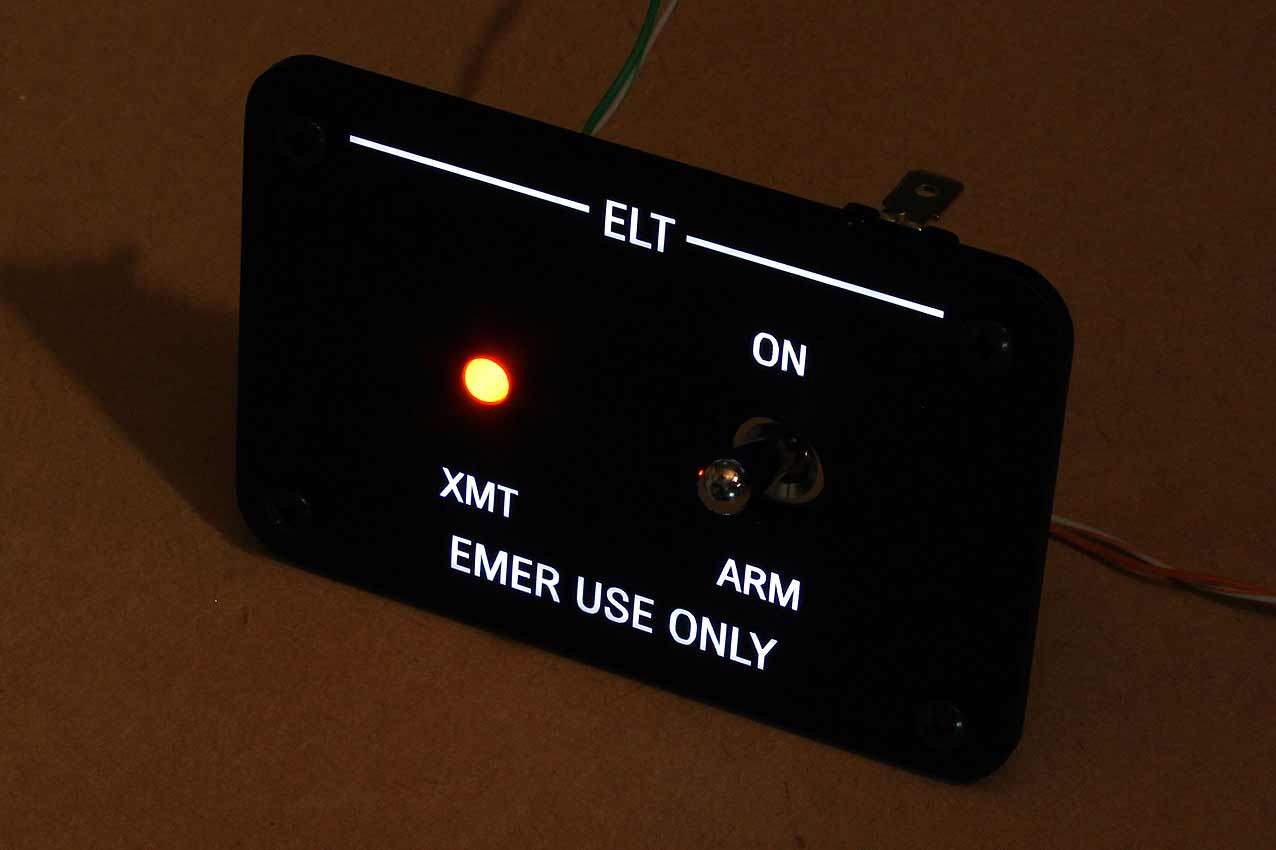

This fully-assembled unit contains the toggle switch, the engraved placard, and the switch gate.  Please note that there is no controller included with this panel. This is not a plug and play item; no wiring or interface is supplied.

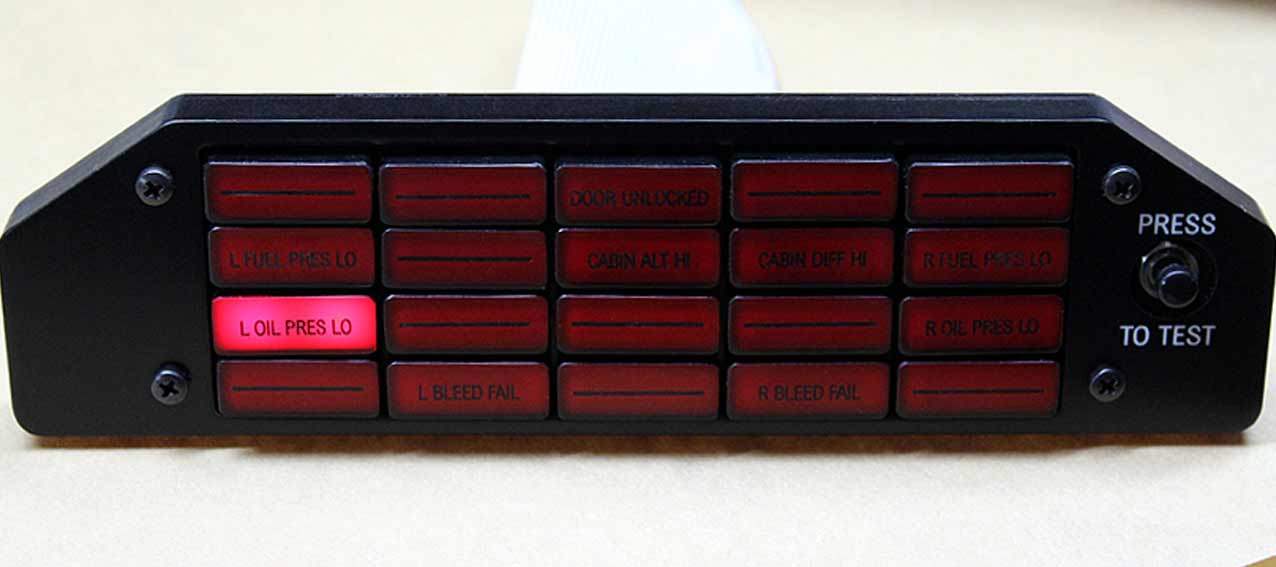

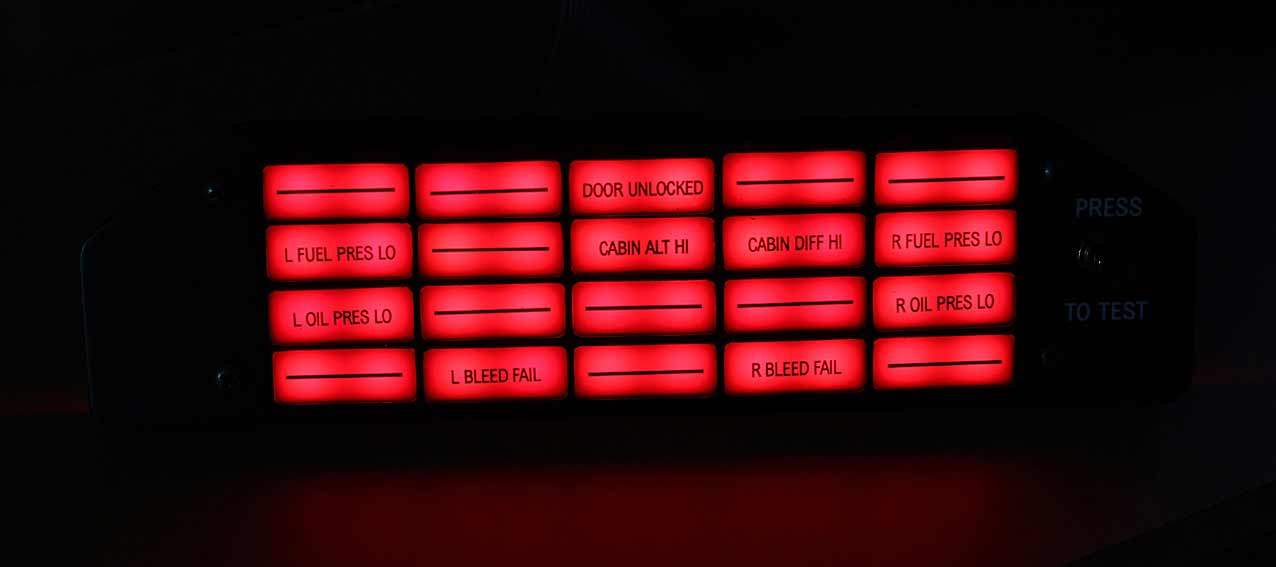

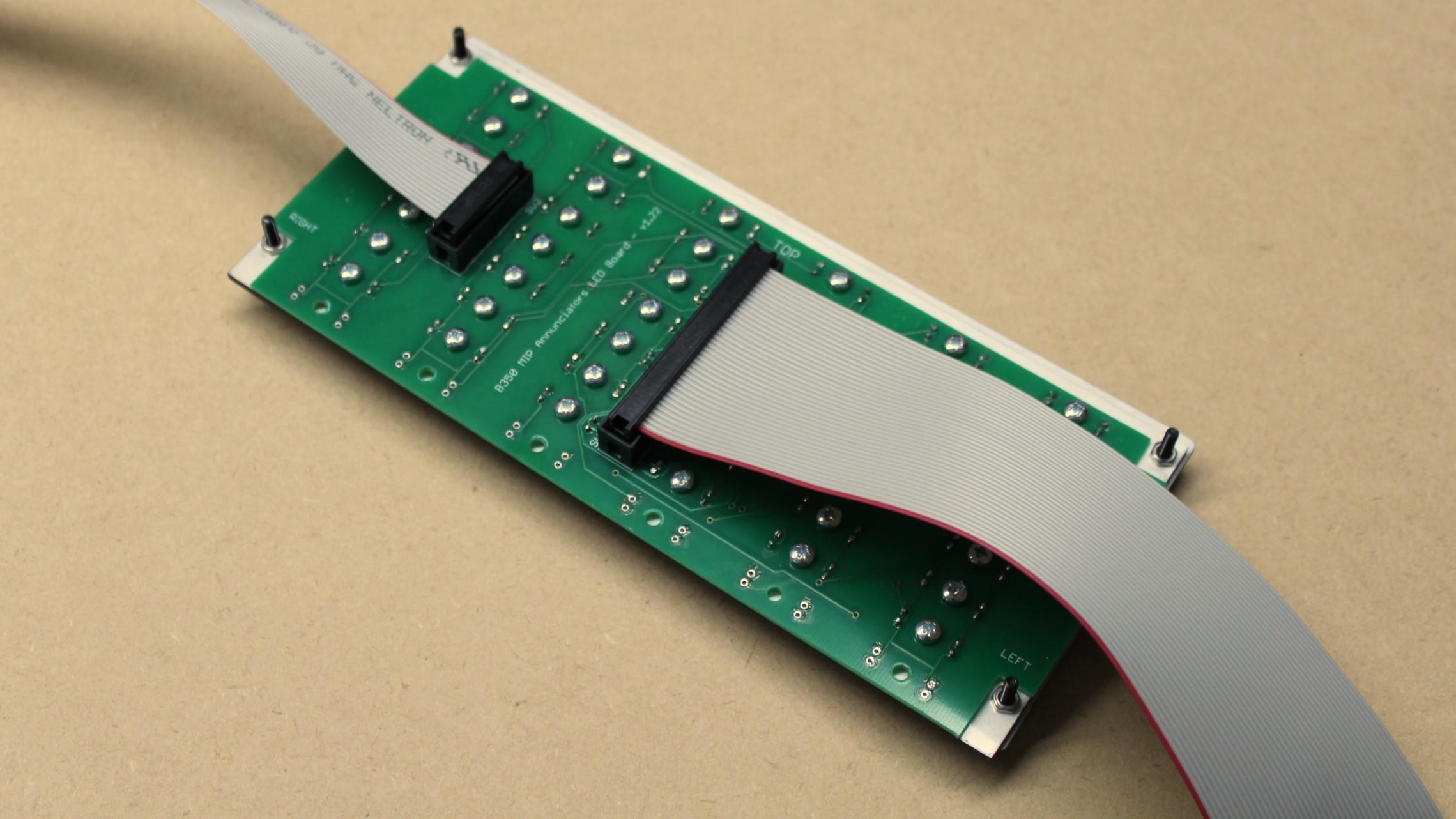

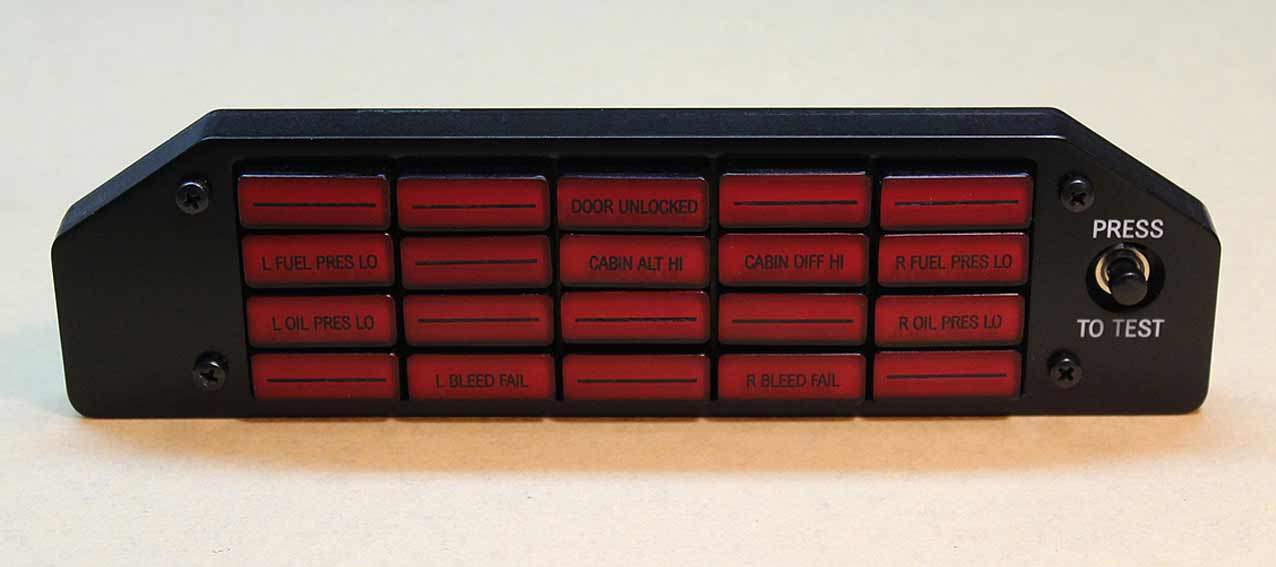

Our Glareshield Annunciator Panel is shipped complete with a fully-populated LED circuit board, although there is no interface board supplied. There is a multi-Pin header on the rear of the LED circuit board to allow you to connect this to your own connector/controller board(s) or you can purchase one of our annunciator controller boards here.

The annunciator panel is supplied with our standard legends and the appropriately coloured LEDs, although these can be customised if necessary.

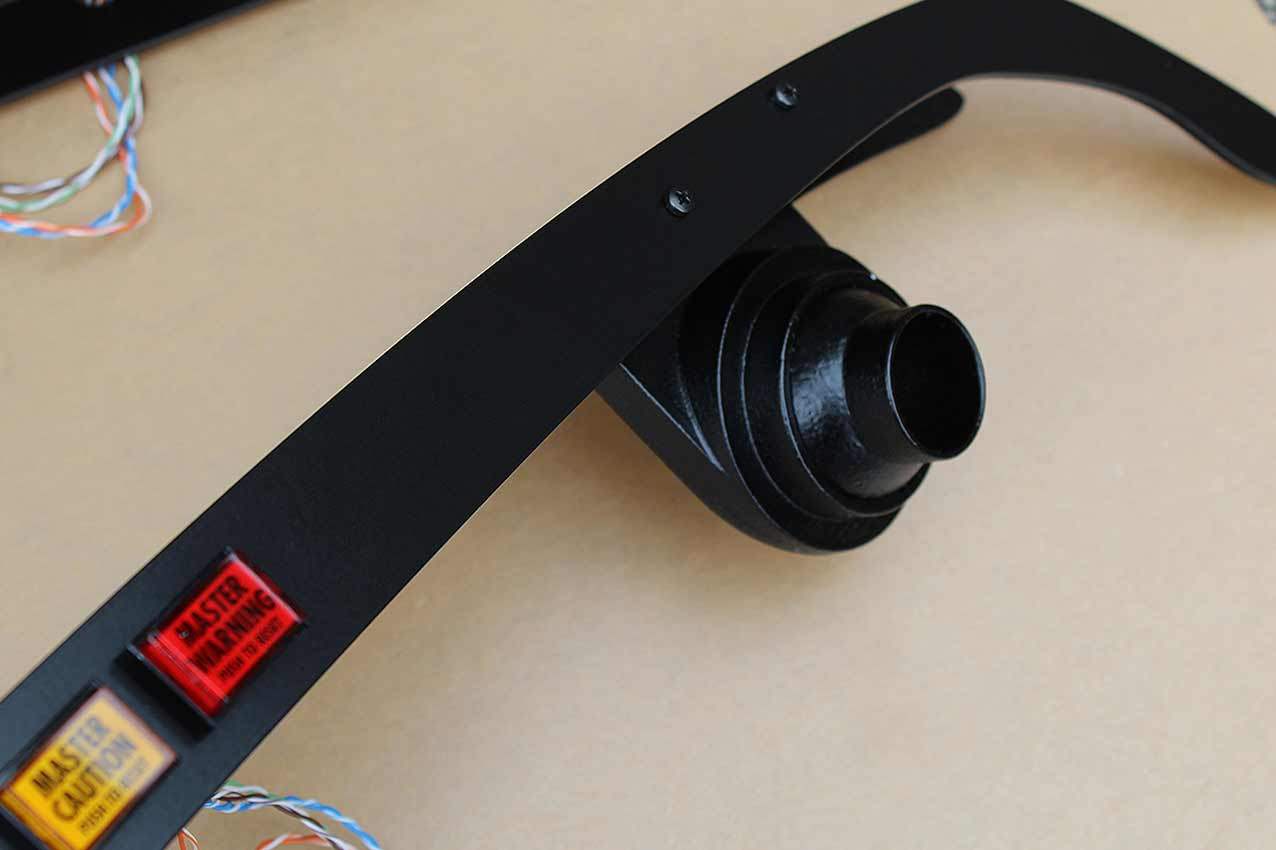

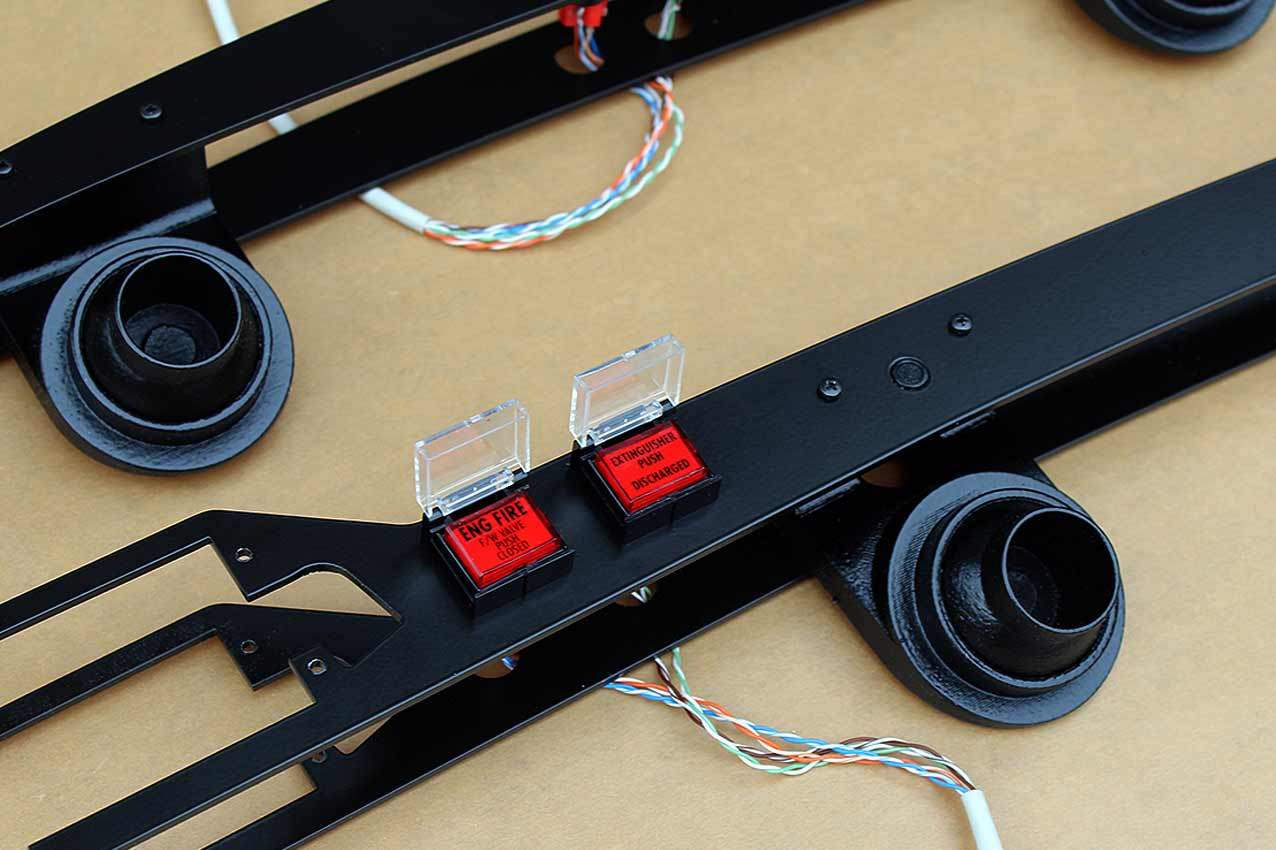

This is constructed from 3mm, powder-coated aluminum and is supplied with our standard Glareshield Annunciator Panel (no controller PCB), an autopilot mounting section (for either our PL21 or 710 unit), all of the Master Caution/Warning pushbuttons, the Fire pushbuttons and guards, as well as the Dummy Air Vents. The unit is shipped in two parts and requires some assembly by the customer.  The glareshield section has been designed for use with a simulator that has been built using our King Air Construction Plans.

Please note that there is no wiring included.

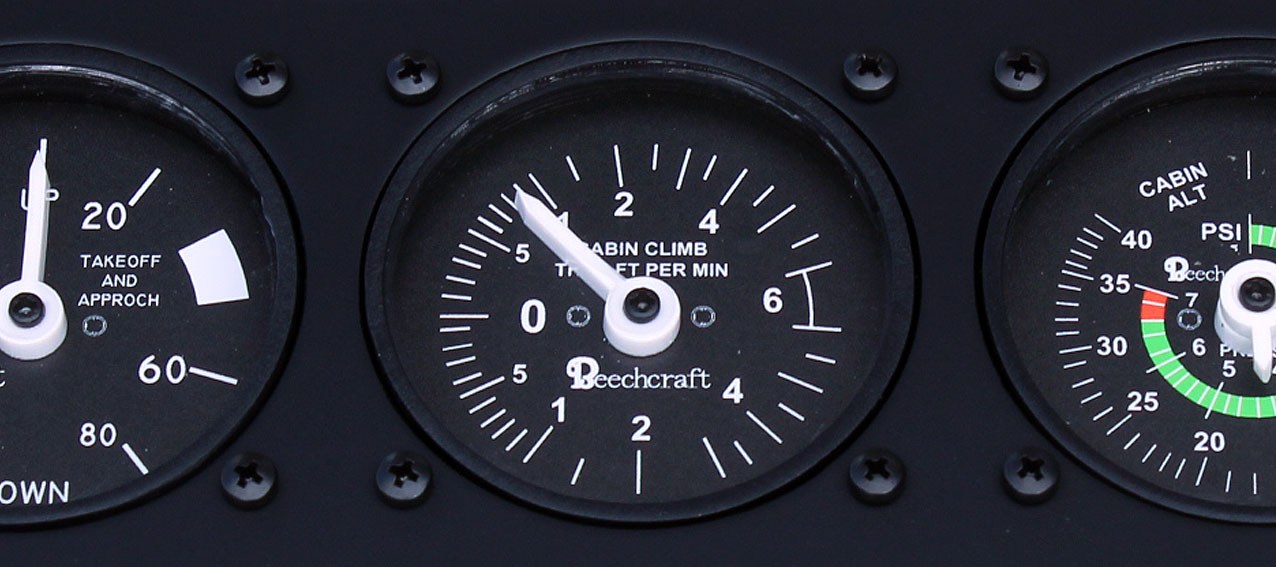

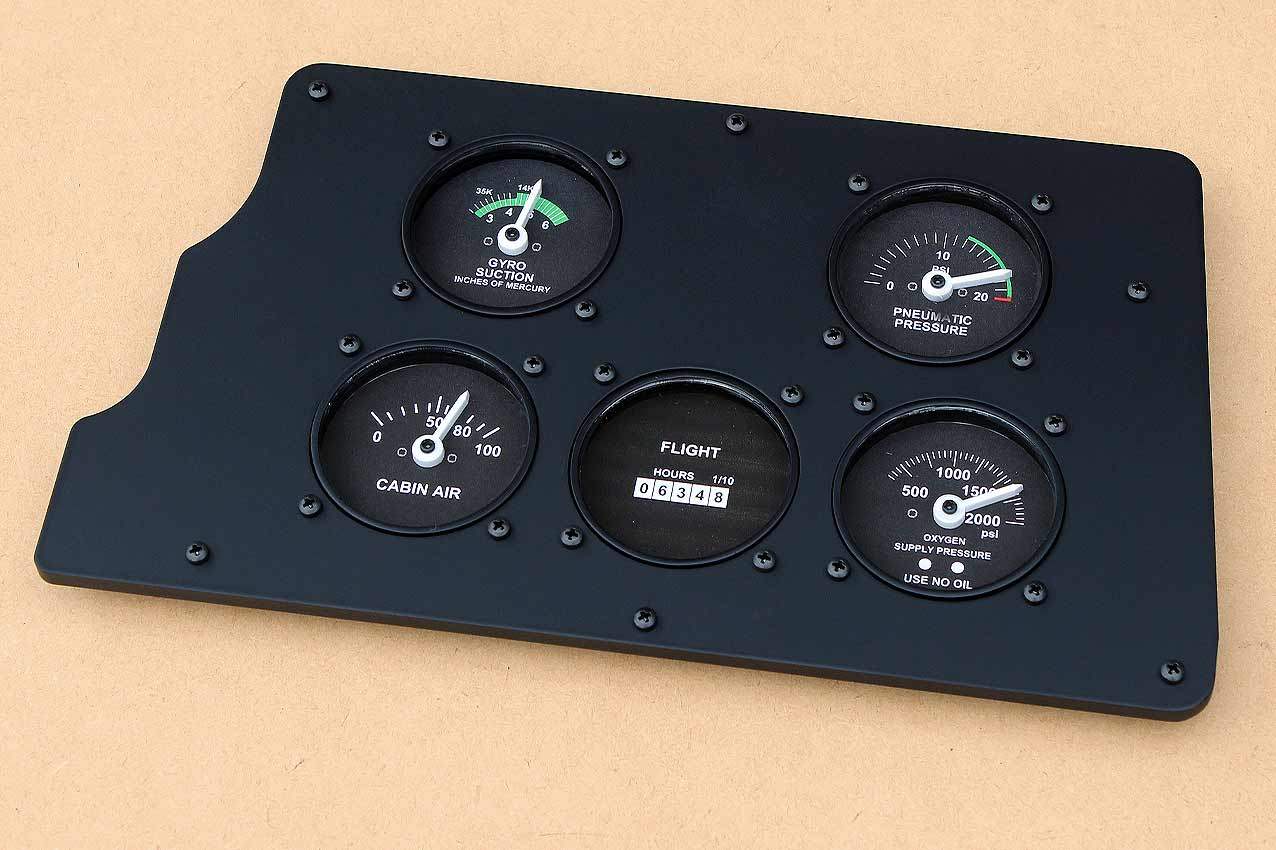

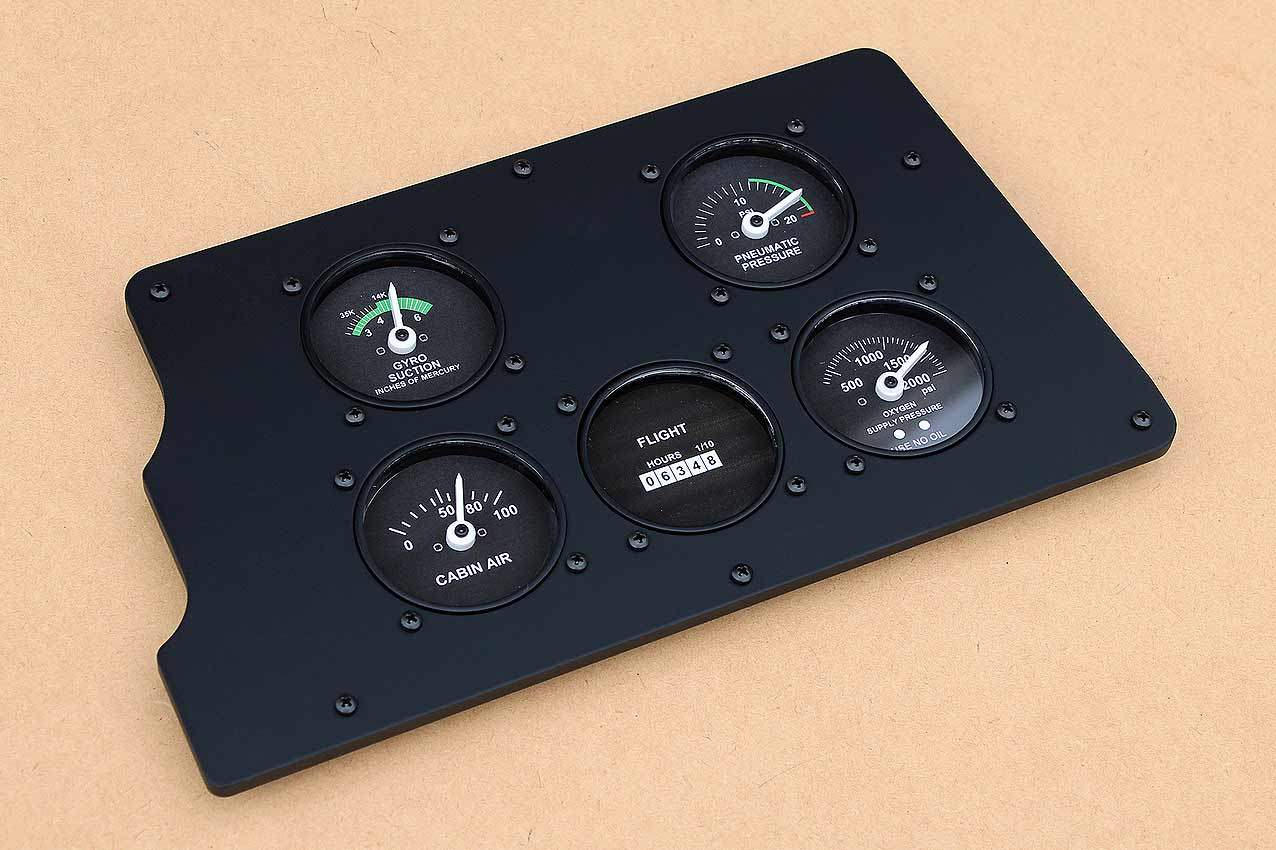

This panel is supplied with a set of our dummy gauges (not shown). The mounting holes for the gauges are suitable for use with either our standard dummy gauges or with the GSA-057 gauges from Flight Illusion.

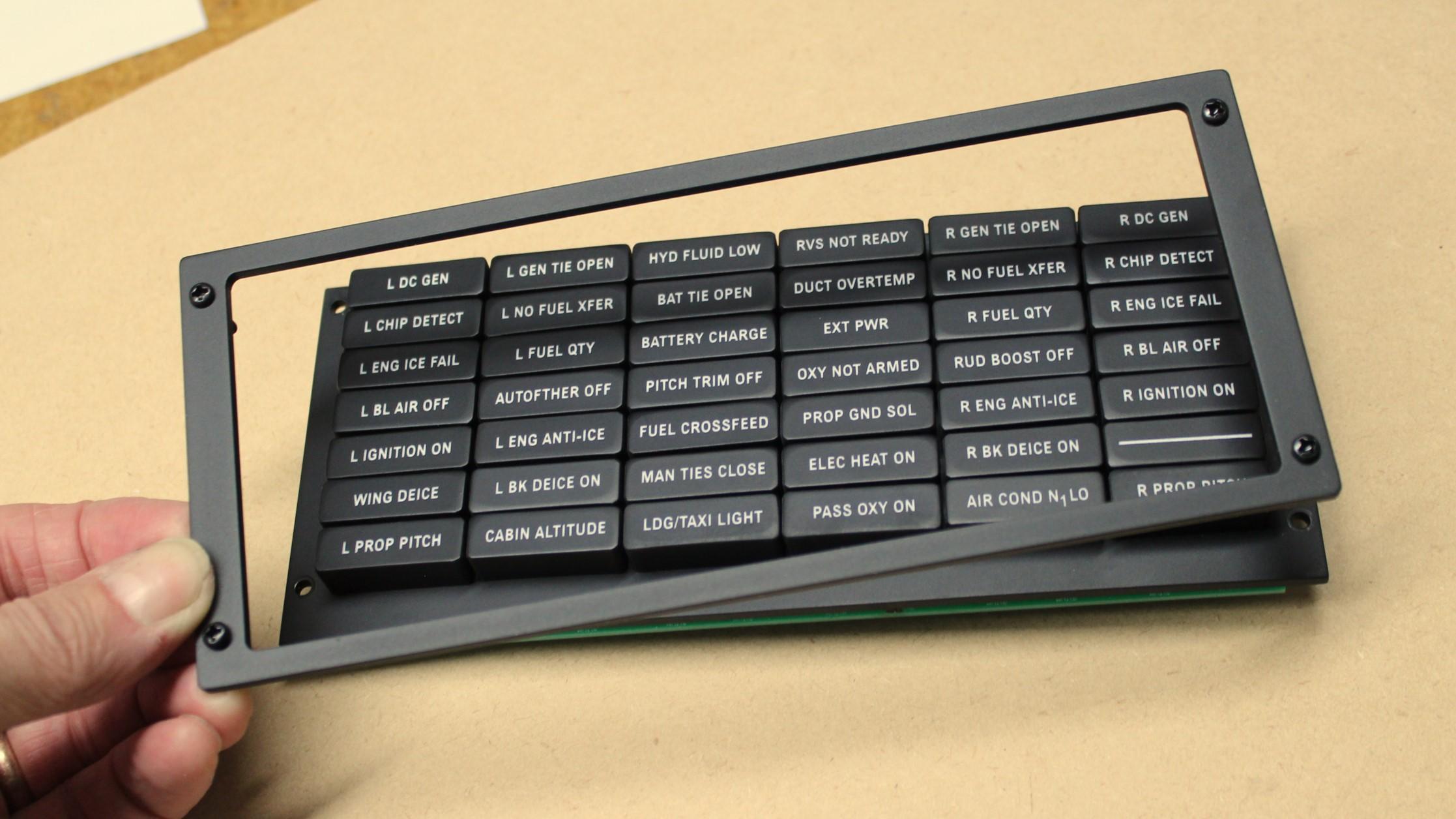

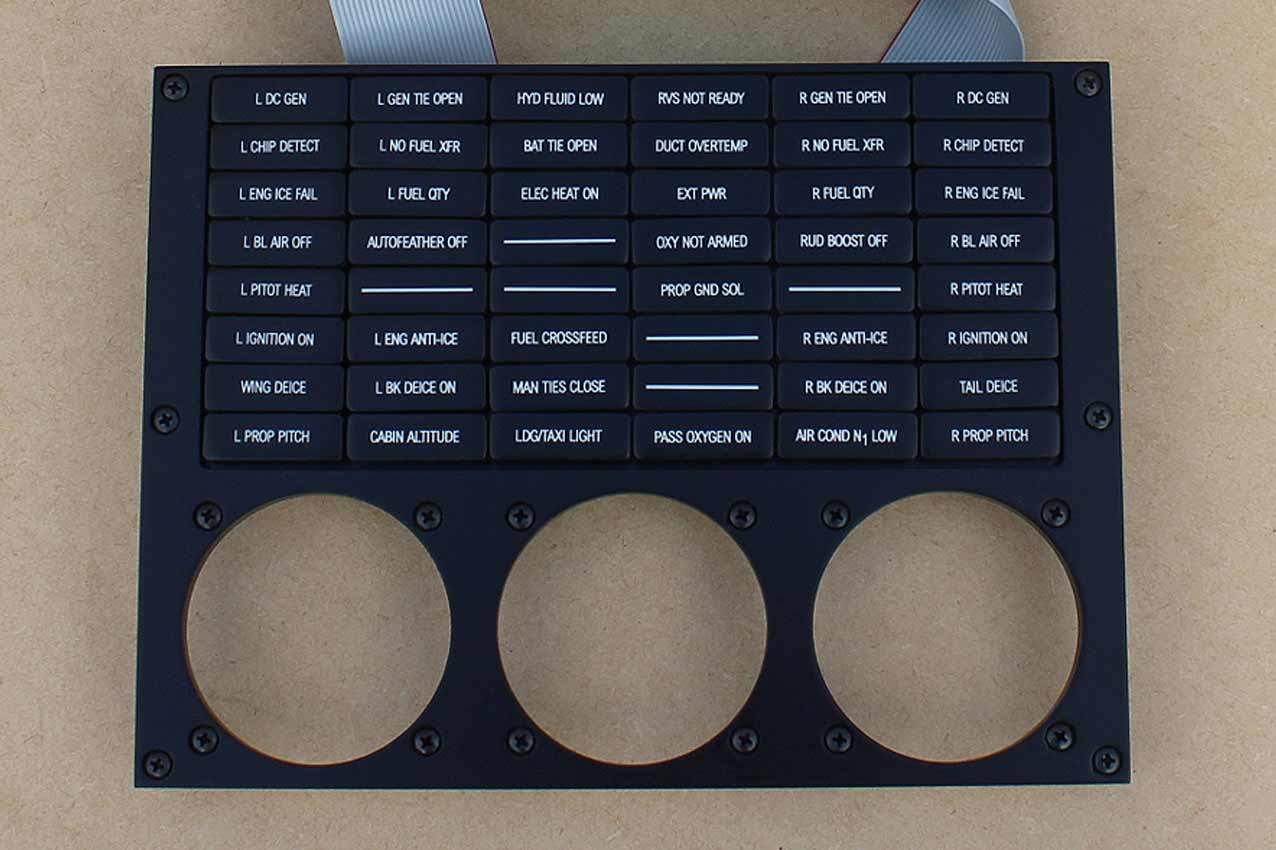

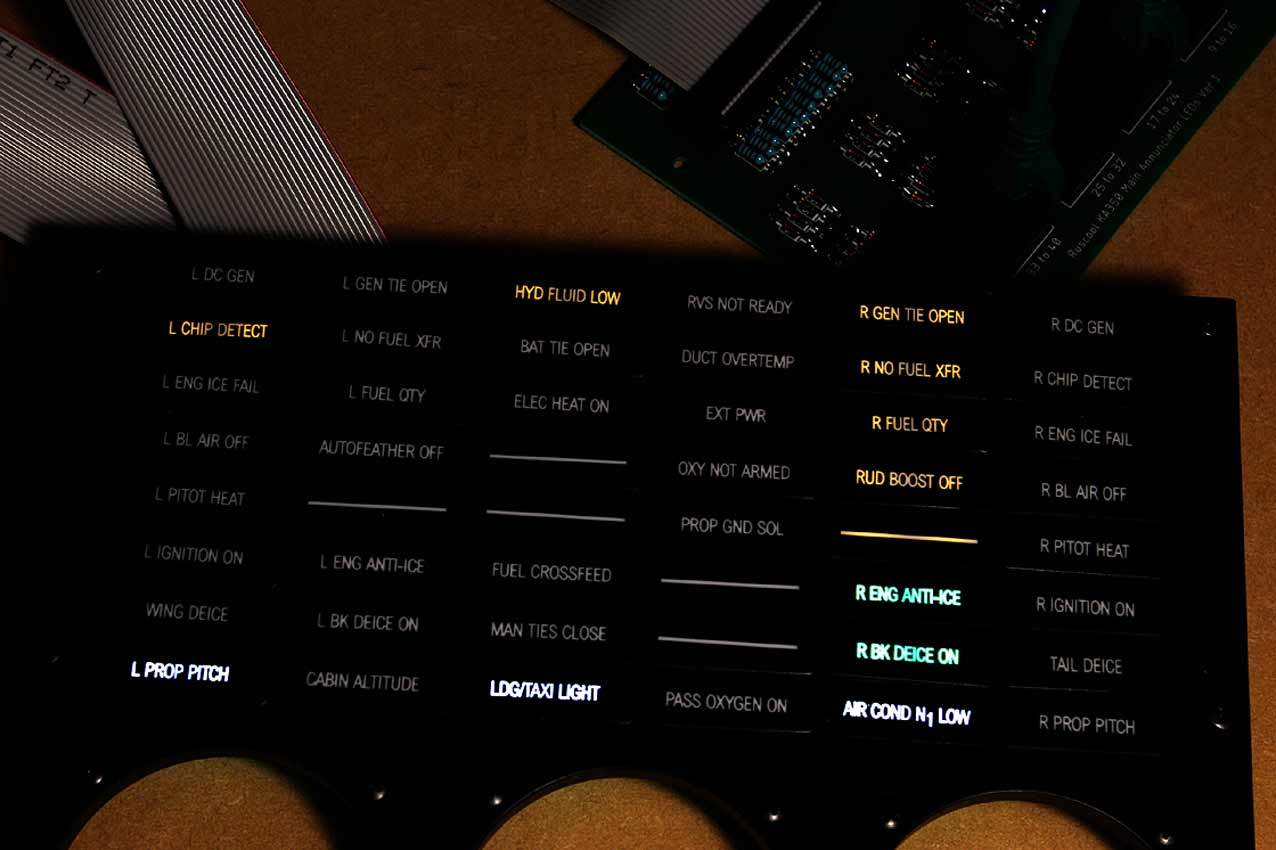

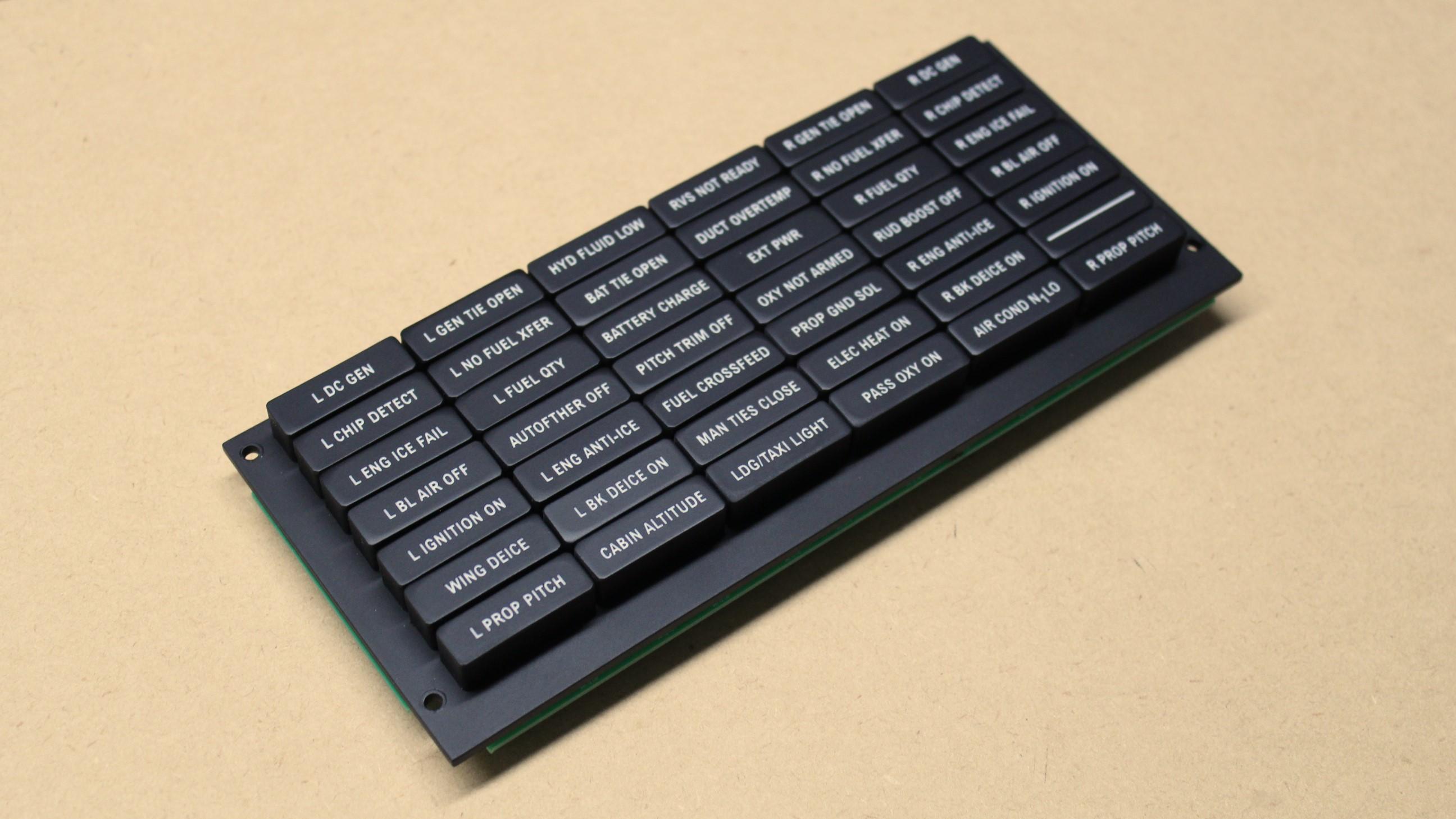

Our Main Annunciator Panel is shipped complete with a fully-populated LED circuit board, although there is no interface board supplied. There is a multi-Pin header on the rear of the LED circuit board to allow you to connect this to your own connector/controller board(s) or you can purchase one of our annunciator controller boards here.

The annunciator panel is supplied with our standard legends and the appropriately coloured LEDs, although these can be customised if necessary.

This fully-assembled, fully-backlit unit is supplied as shown in the above photographs. There is a 26-way box header on the rear circuit board to allow the unit to be interfaced with.    Please note that there is no controller included with this panel. This is not a plug and play item; no wiring or interface is supplied.

This fully-assembled, fully-backlit unit is supplied as shown in the above photographs (controller shown is for display purposes only). There is a 40-way box header on the rear circuit board to allow the unit to be interfaced with.    Please note that there is no controller included with this panel. This is not a plug and play item; no wiring or interface is supplied.

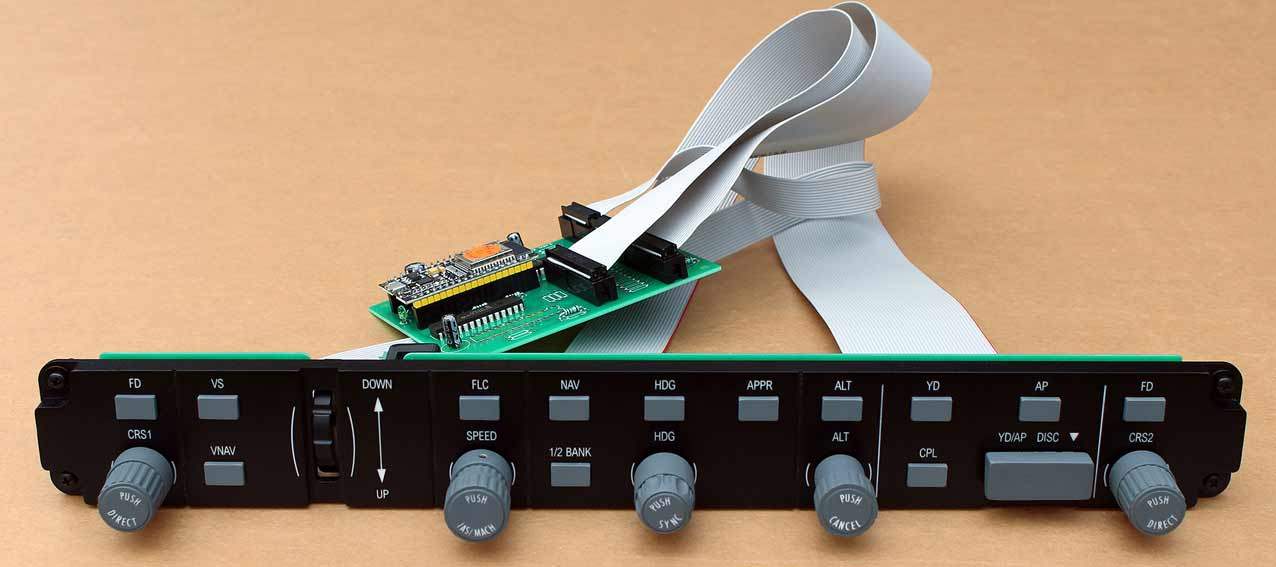

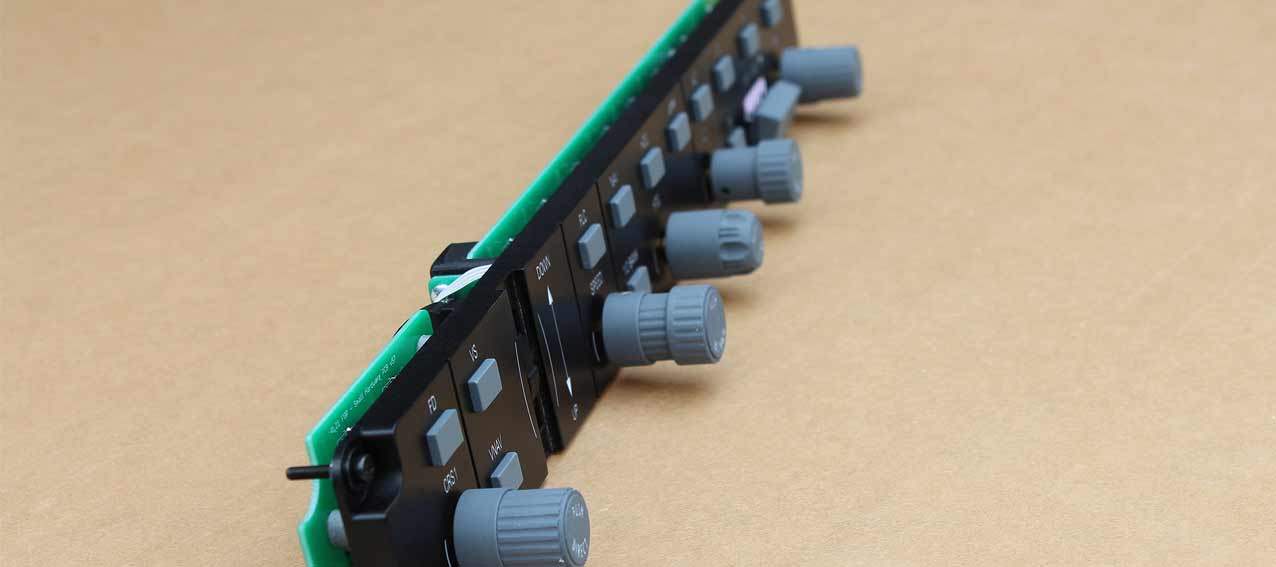

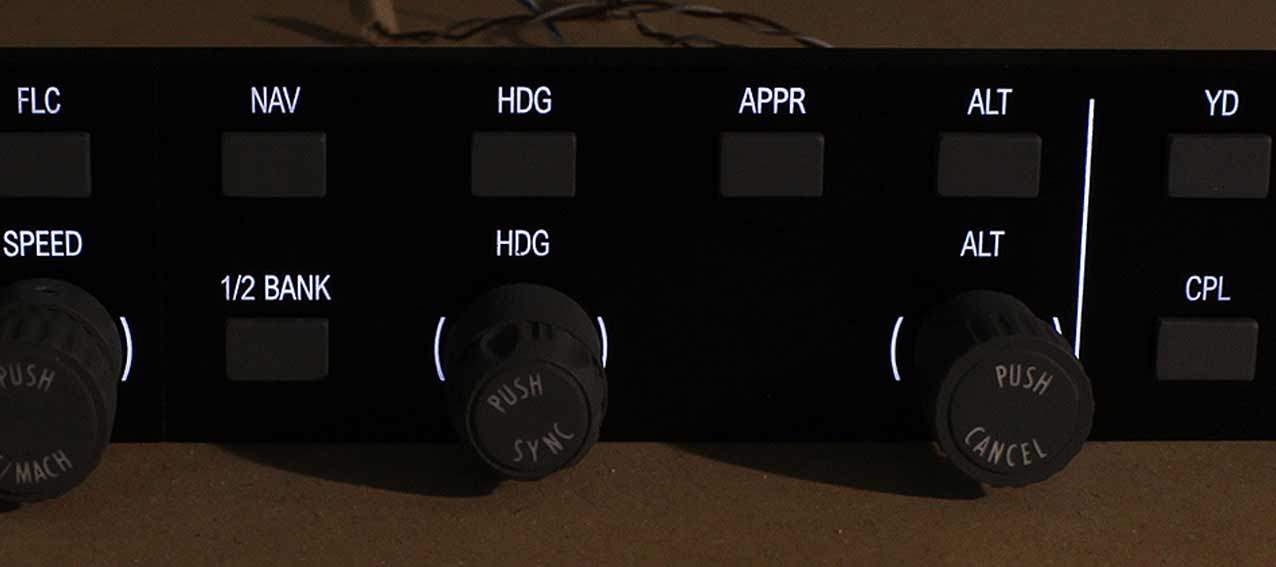

The Ruscool PL-21 Autopilot panel is fully-backlit and is supplied fully-assembled. It is shipped complete with a controller board for communicating via USB to a Simulator.

A small software program is included that can be used to send commands from the panel to a compatible simulator that has a registered version of FSUIPC.  Two different software programs are available, one version uses standard Autopilot offsets and the other uses events, custom macros or lua scripts.  There is also the option of direct communication with the Arduino controller so the purchaser can write their own software to control the simulator, with full details provided.

To download the documentation, click on the appropriate link.  Offset version or Custom version

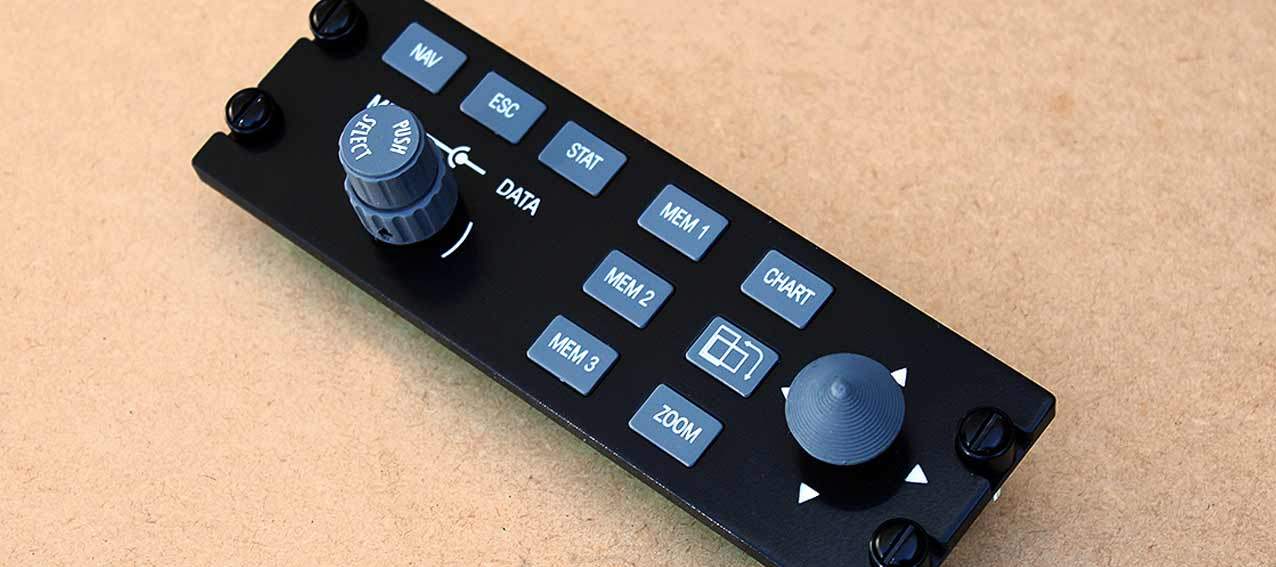

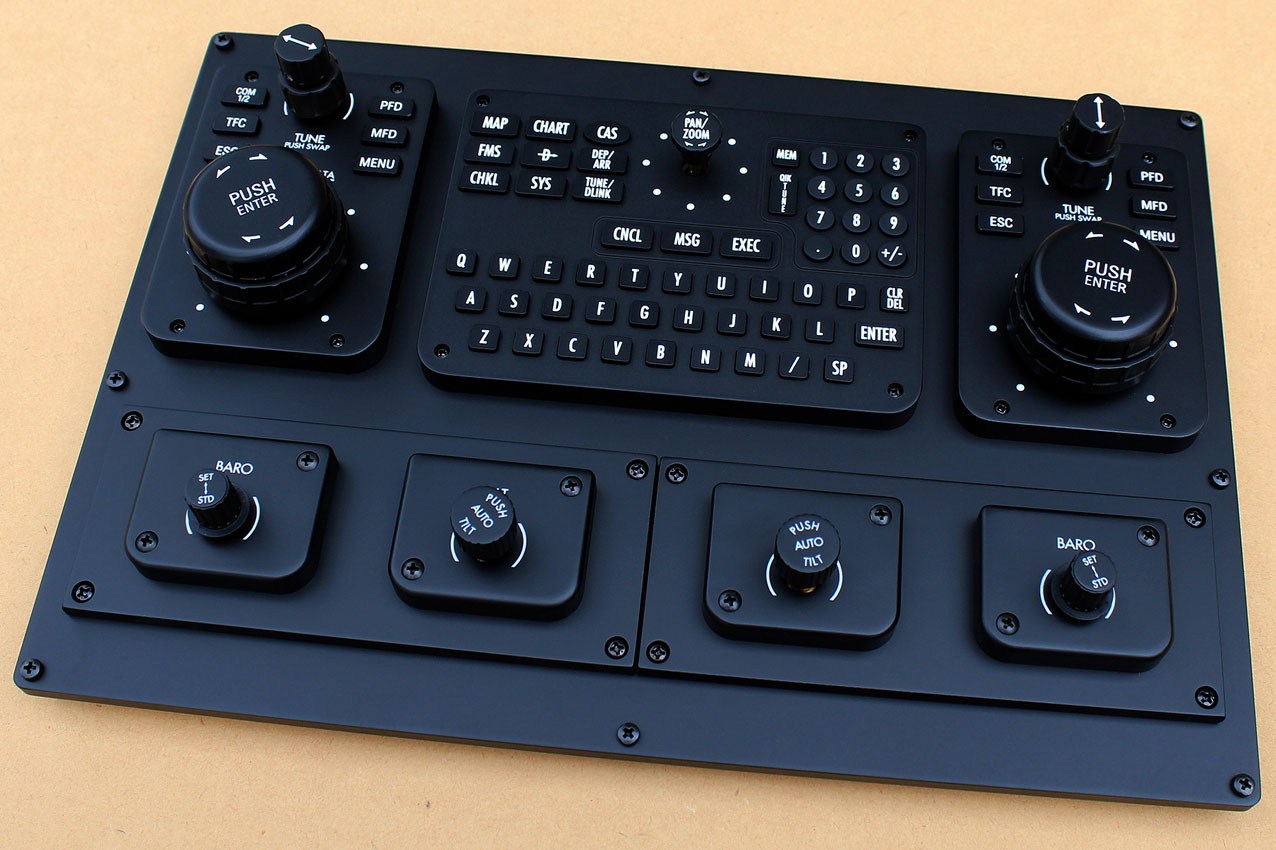

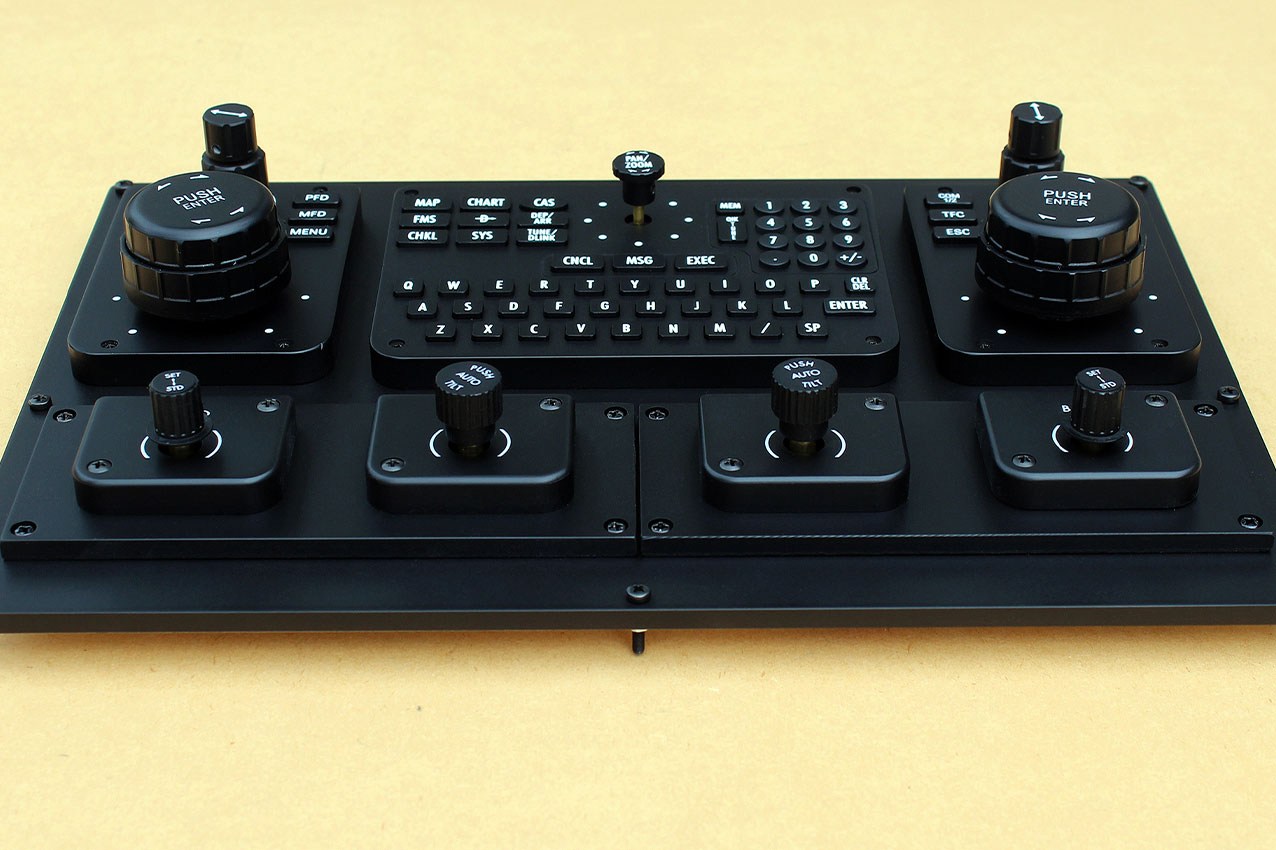

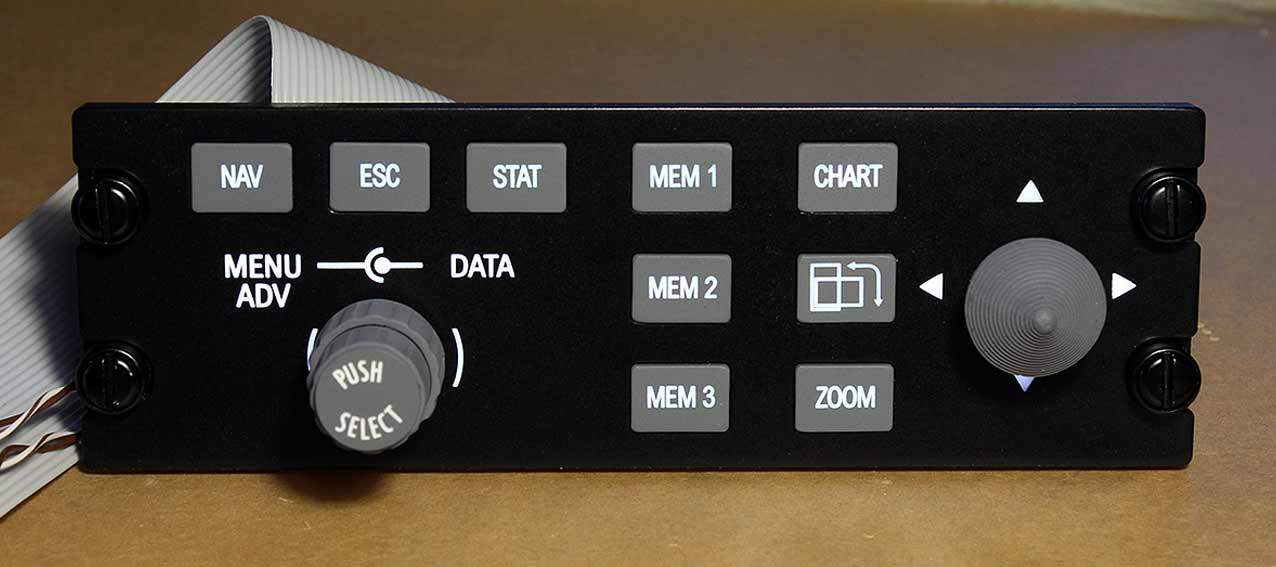

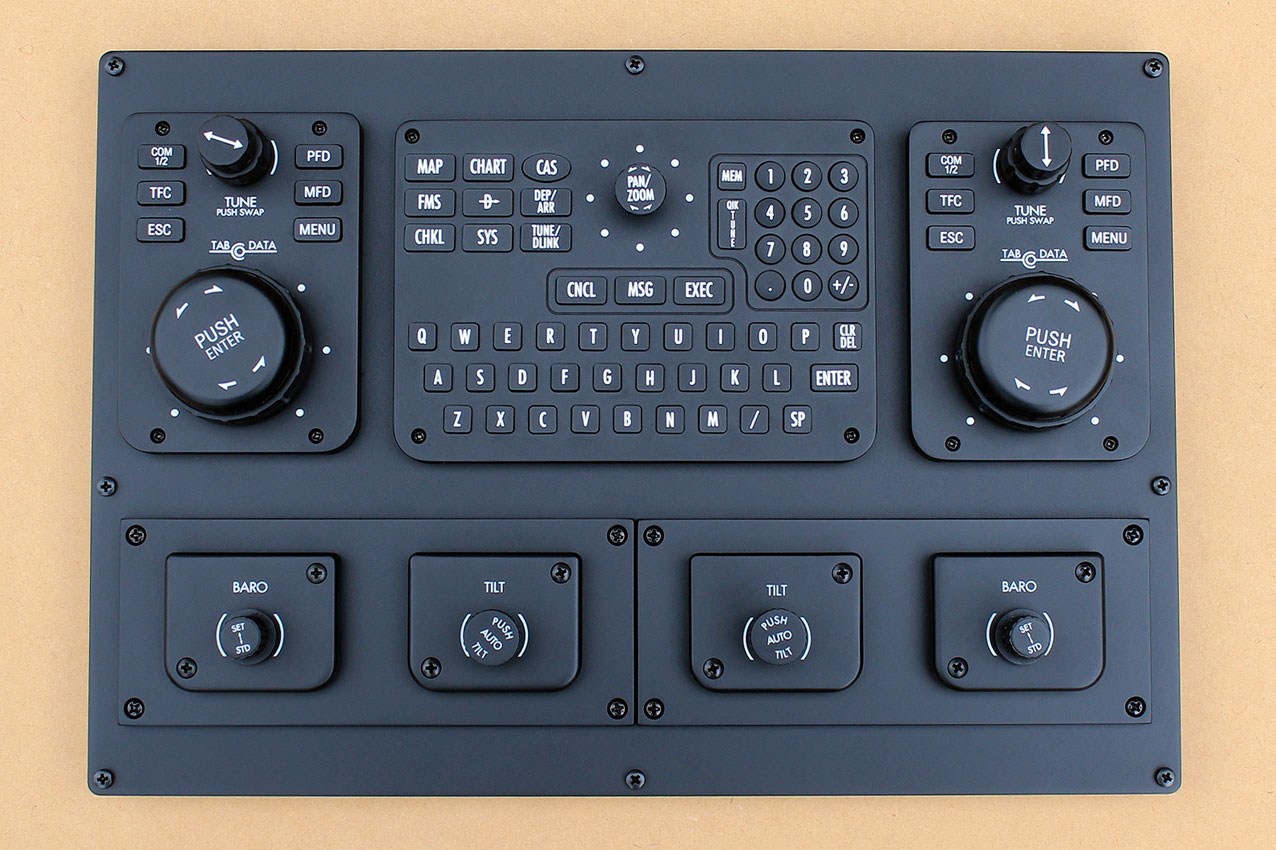

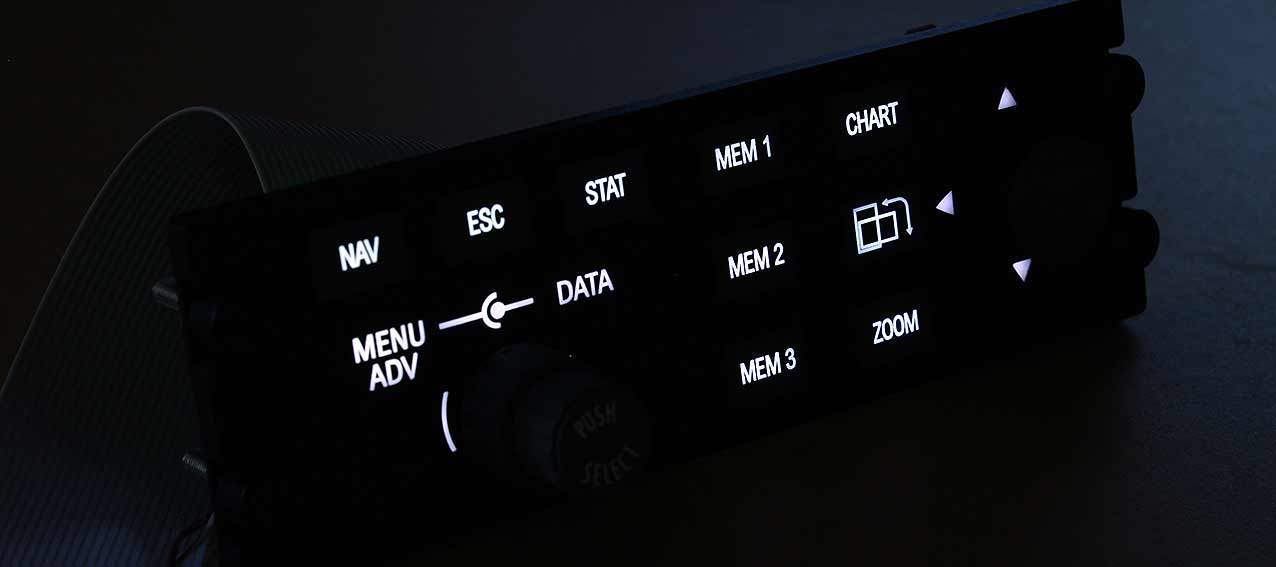

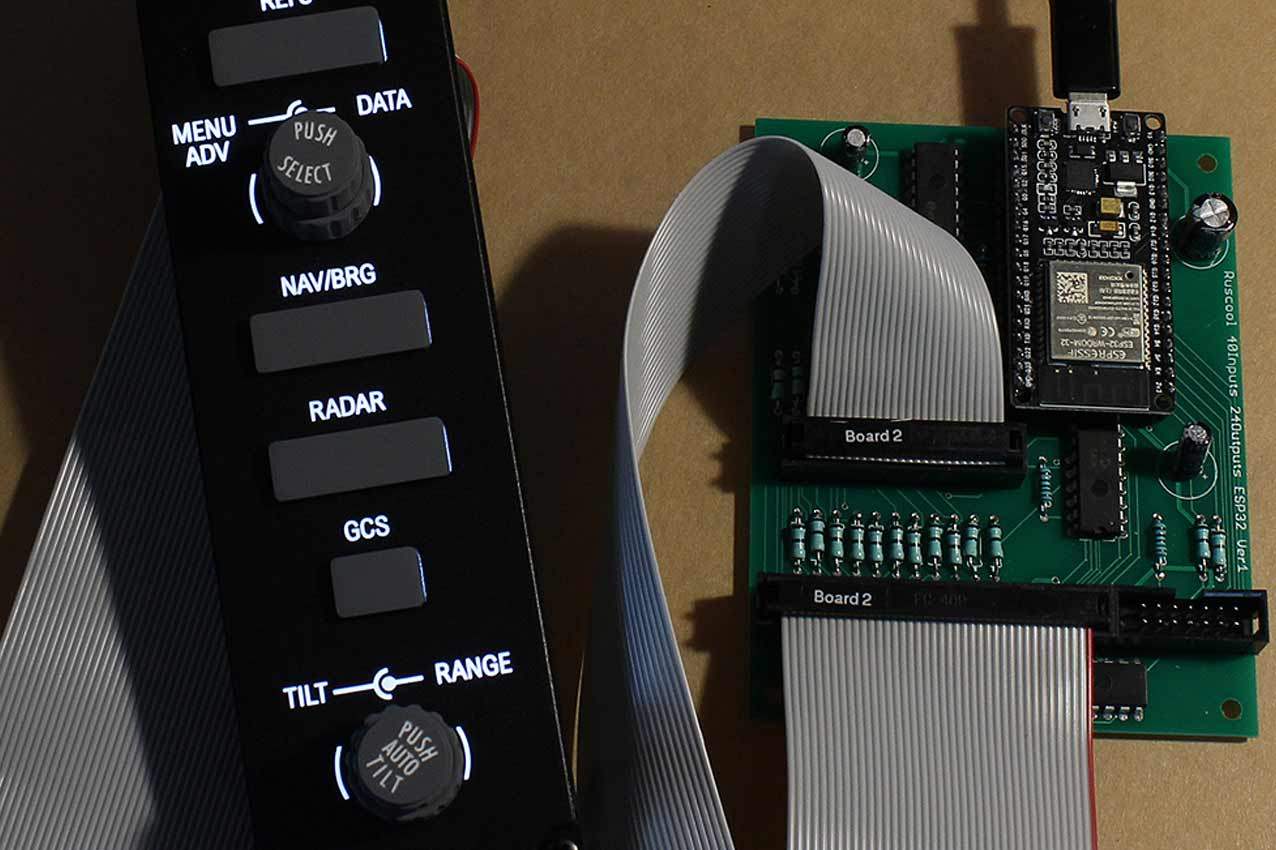

The PL-F Pedestal Assembly has been designed to imitate the Pro Line Fusion Console Controls and includes two Cursor Control Panels (CCP), a Multi-Function Keypad Panel (MKP), two BARO Single Knob Panels, and two TILT Single Knob Panels (SKP).
This assembly is sold as an entire module, and includes two controllers (one that's dedicated to the MKP, and another one that handles the CCPs and SKPs). All of the ribbon cables, wires, and connectors are supplied. The entire panel will be shipped as a fully-assembled module, and will be supplied as shown in the above photos.
It is important to note that whilst we supply the interfacing software (and configuration software) that allows our panels to be communicated with, we do not supply or sell the actual flight simulator software that is used in the flight model.
Please also note that the cursor knobs on the two CCPs only move in four compass directions, not eight as per the real unit.

The interfacing software uses FSUIPC macros to communicate with the flight simulator.  This requires a registered version of FSUIPC, and you can create the macros as appropriate to interface the buttons and encoders.  We can also provide the serial port connection details and expected output commands if you would like to create your own software.

Click here to download the software documentation.

To download the files for the panel shape and MIP cutout, click here.

If purchased complete with parts, this panel will be shipped as a fully-assembled unit. Please note that there is no controller included with this panel. This is not a plug and play item; no wiring or interface is supplied.

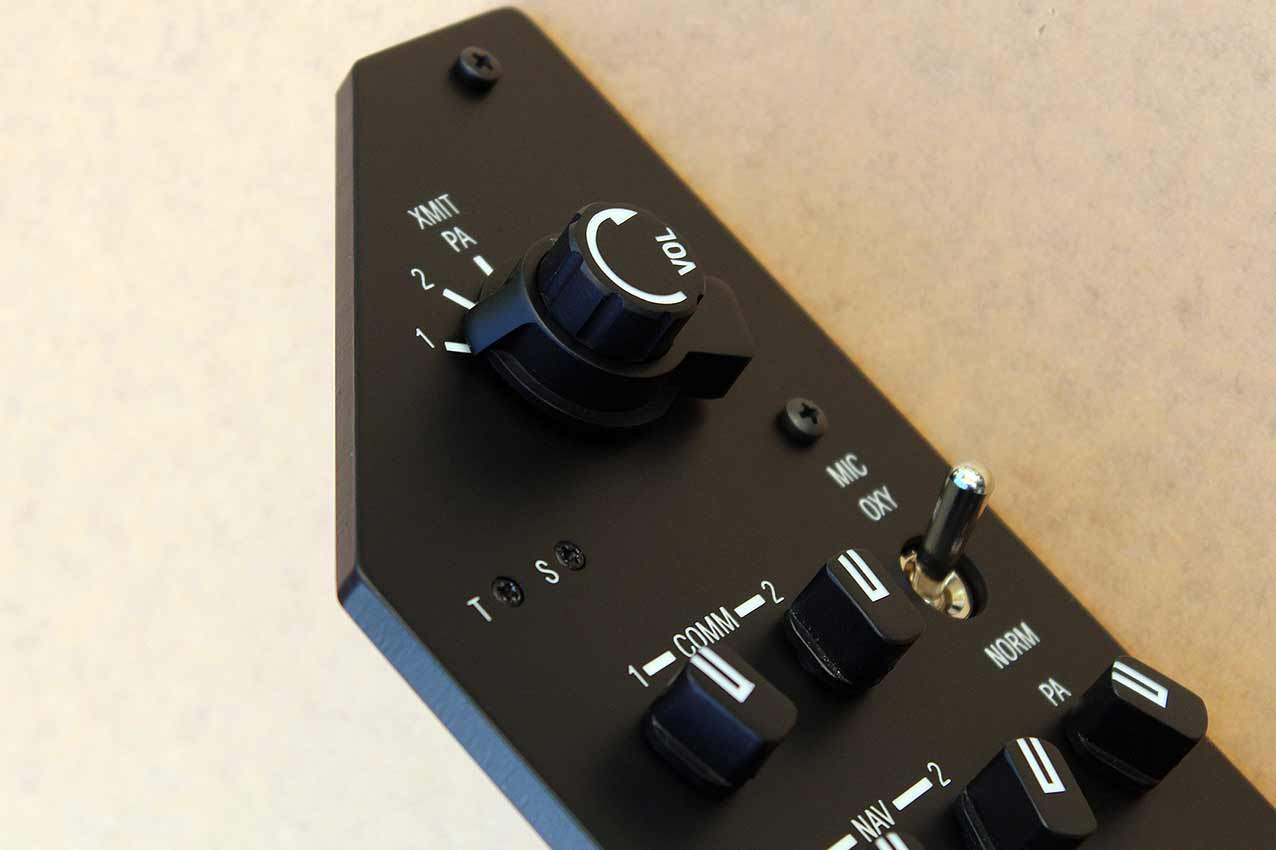

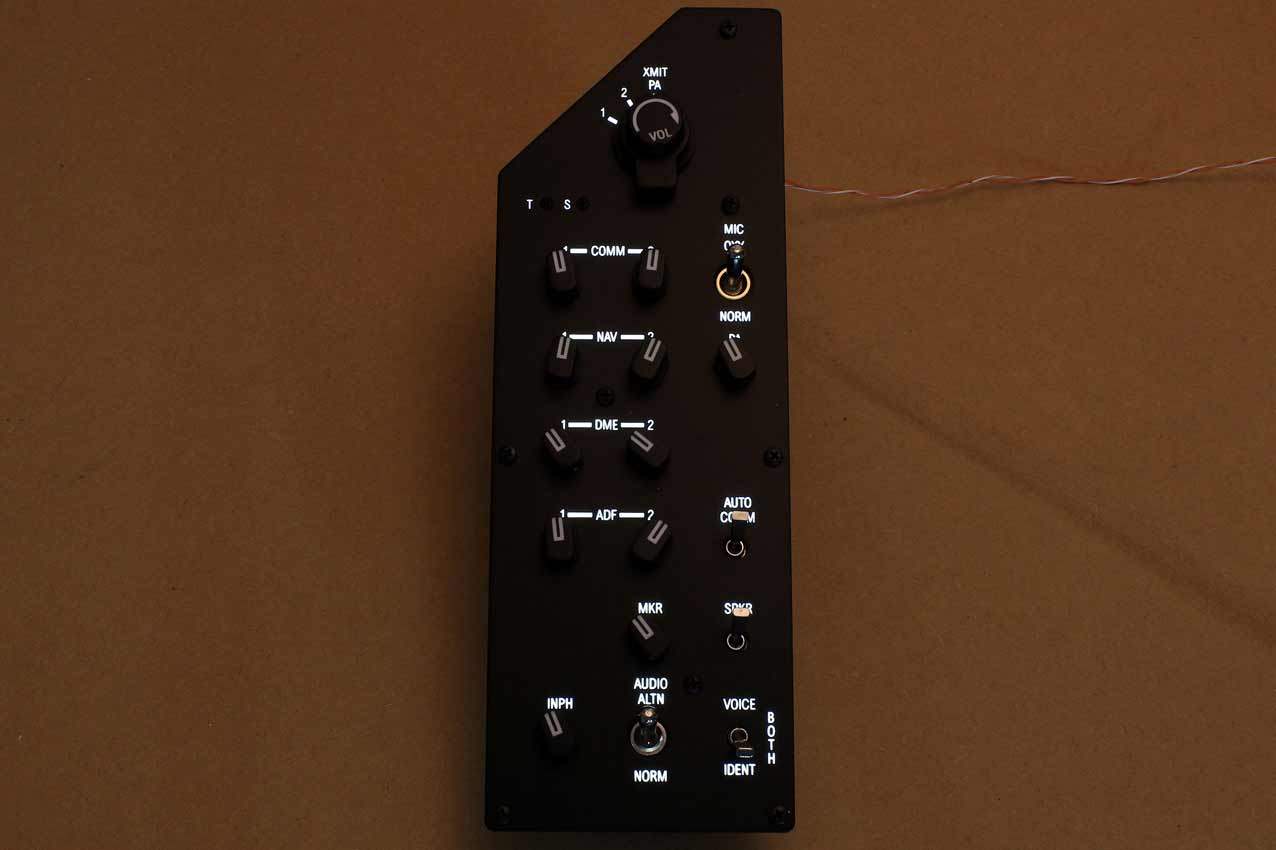

When supplied as a fully-assembled unit, this fully-backlit panel will include the toggle switches, two encoders, the knobs, a dummy microphone, a dummy gauge, a vinyl 'Warning' decal, two wire connectors for the 12V backlighting (one for each panel), and all of the black oxide mounting screws.

If purchased complete with parts, this panel will be shipped as a fully-assembled unit. Please note that there is no controller included with this panel. This is not a plug and play item; no wiring or interface is supplied.

This fully-backlit panel will be shipped fully assembled - as it appears in the above photos - and will include all of the switches, the engraved knobs, the rotary switch, the 90 degree rotary switches, a wire connector for the 12V backlighting, and all of the black oxide mounting screws. Please note that the uppermost volume knob is a rotary switch only; there is no associated pot.

If purchased complete with parts, this panel will be shipped as a fully-assembled unit. Please note that there is no controller included with this panel. This is not a plug and play item; no wiring or interface is supplied.

This fully-backlit panel will be shipped fully assembled - as it appears in the above photos - and will include all of the switches, the engraved knobs, the rotary switch, the 90 degree rotary switches, a wire connector for the 12V backlighting, and all of the black oxide mounting screws. Please note that the uppermost volume knob is a rotary switch only; there is no associated pot.

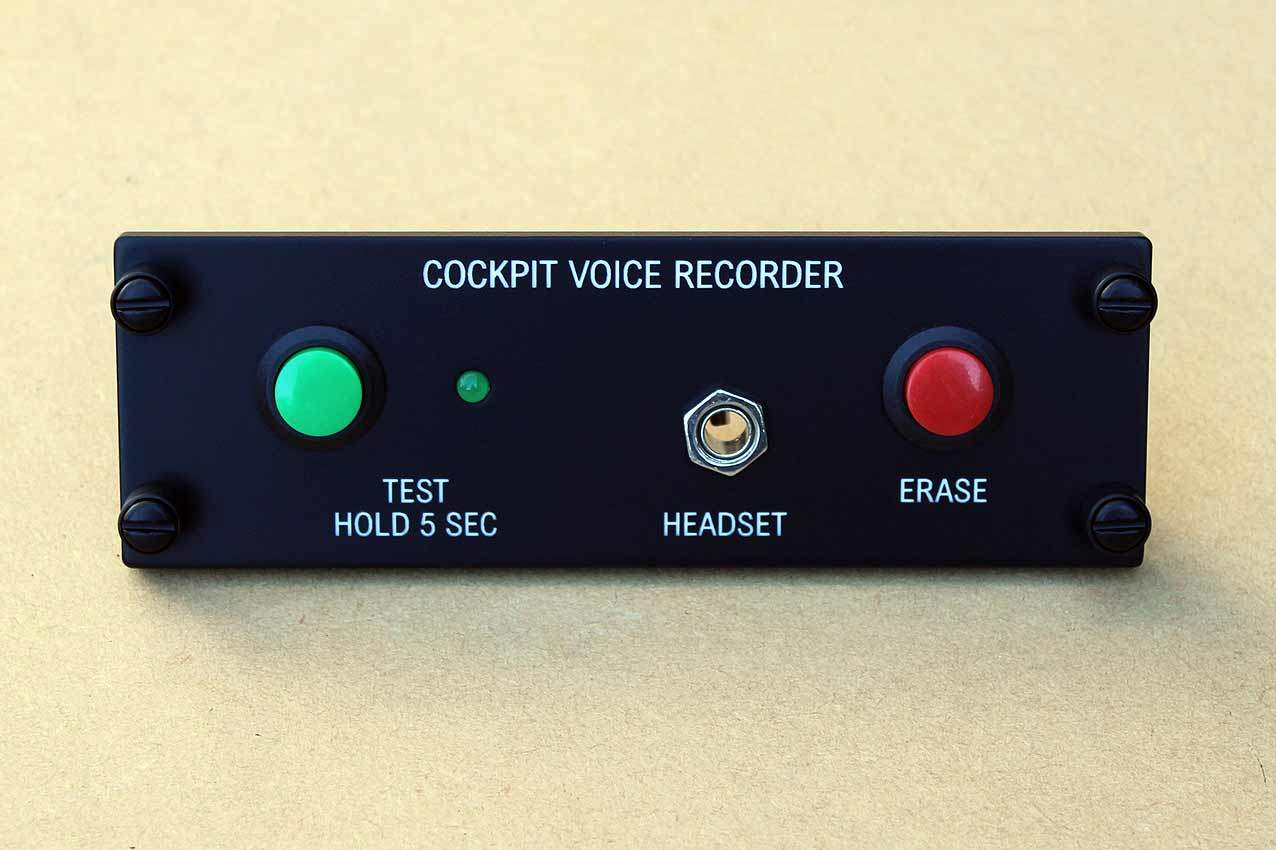

If purchased complete with parts, this panel will be shipped as a fully-assembled unit. Please note that there is no controller included with this panel. This is not a plug and play item; no wiring or interface is supplied.

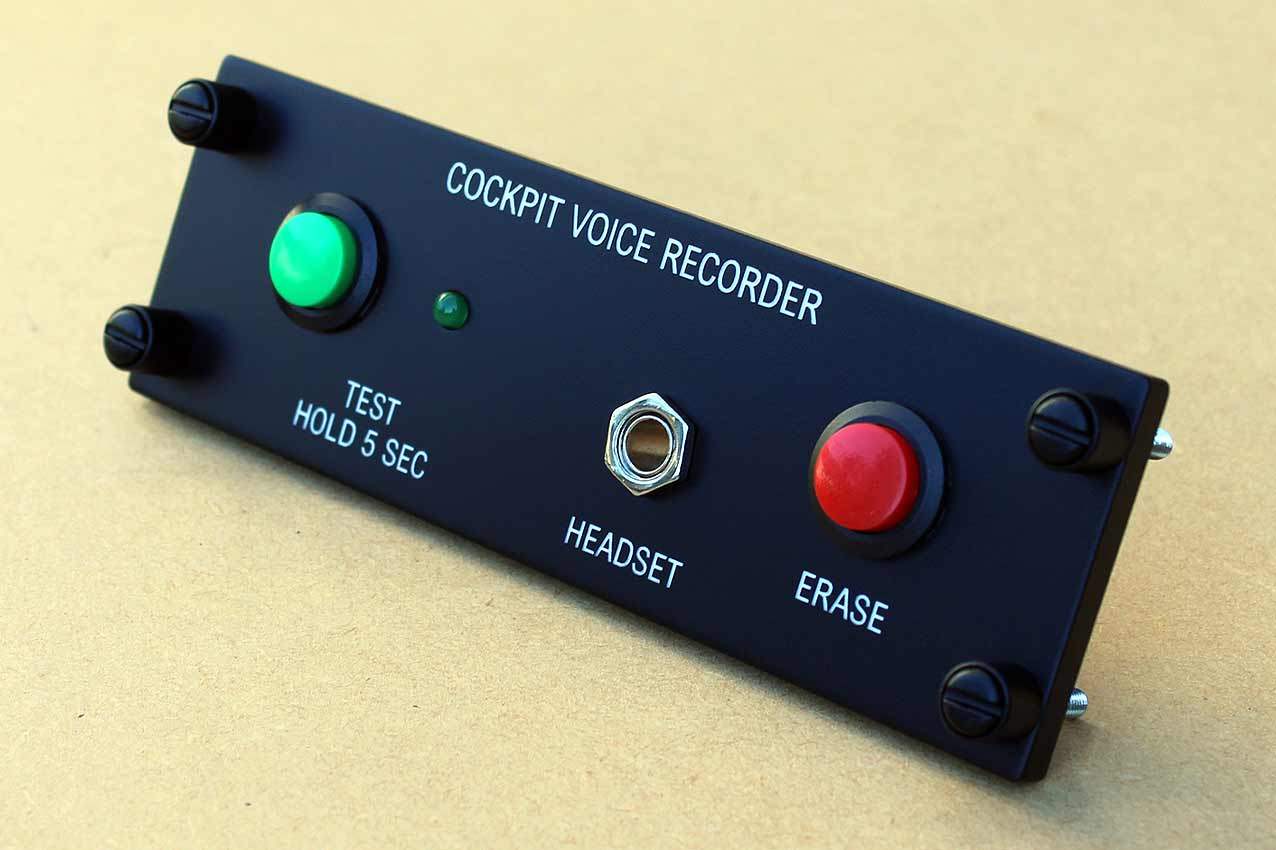

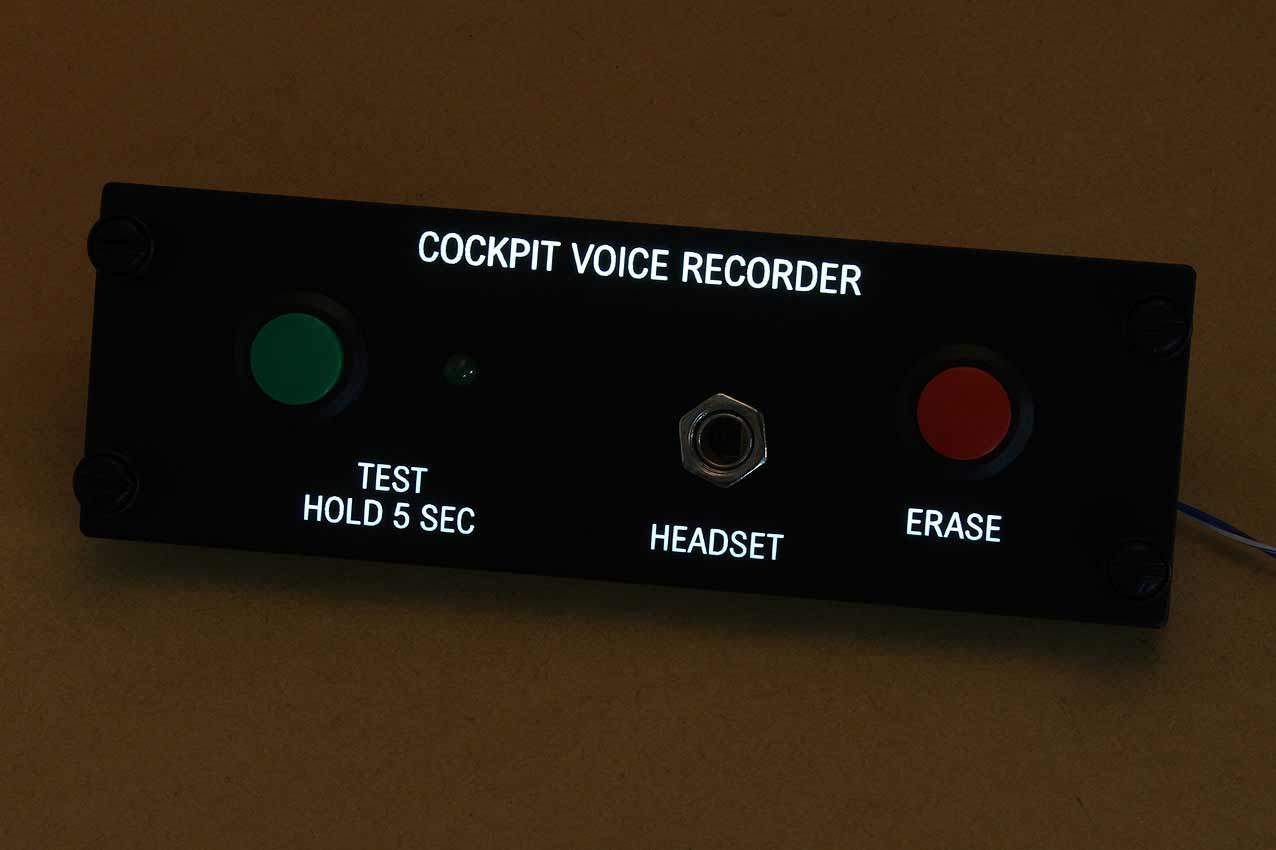

This fully-backlit panel will be shipped fully assembled - as it appears in the above photos - and will include the red and green pushbuttons, the 5mm green LED,  a pair of connector wires for the LED, a wire connector for the 12V backlighting, a stereo phone socket, and four dummy Dzus fasteners.

If purchased complete with parts, this panel will be shipped as a fully-assembled unit. Please note that there is no controller included with this panel. This is not a plug and play item; no wiring or interface is supplied.

This fully-backlit panel will be shipped fully assembled - as it appears in the above photos - and will include the toggle switch, the 5mm amber LED, a pair of connector wires for the LED, a wire connector for the 12V backlighting, and the black oxide mounting screws.

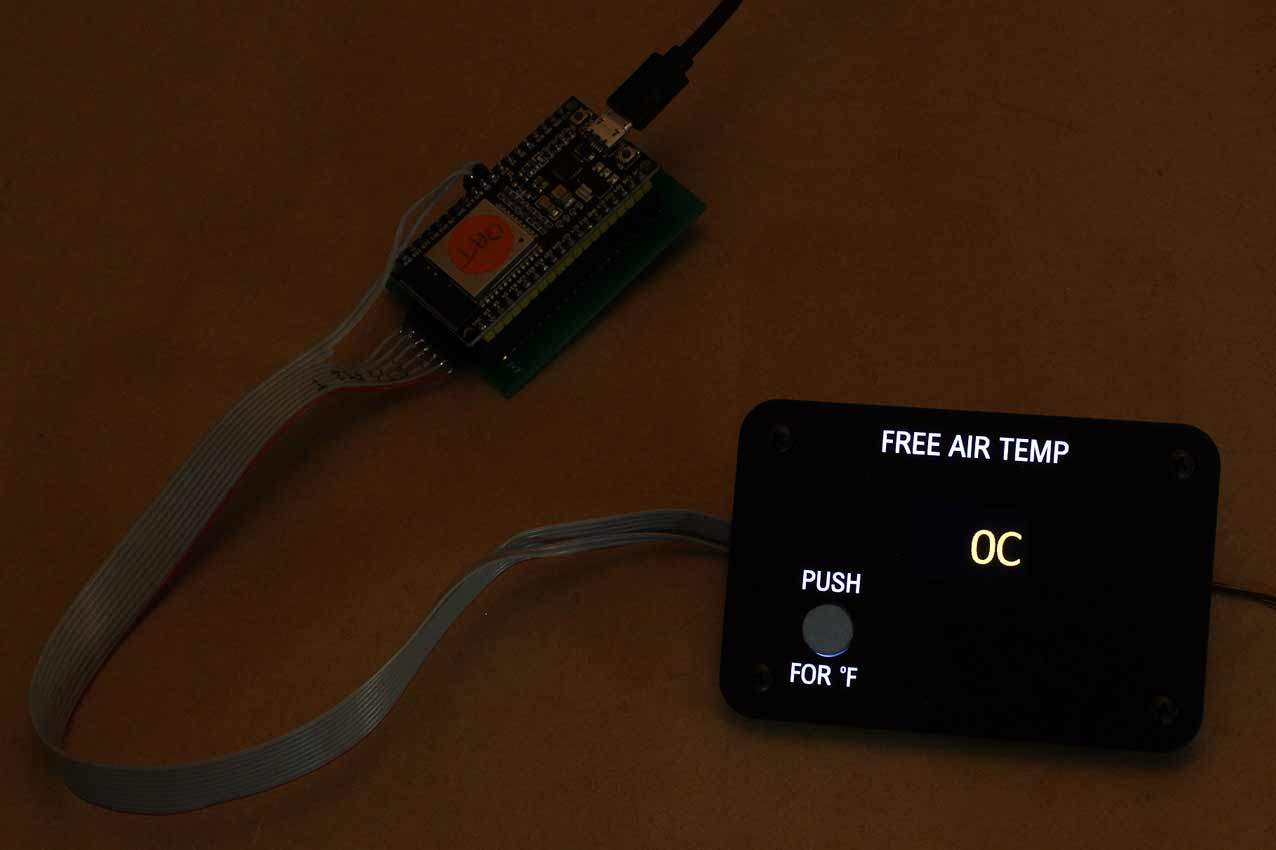

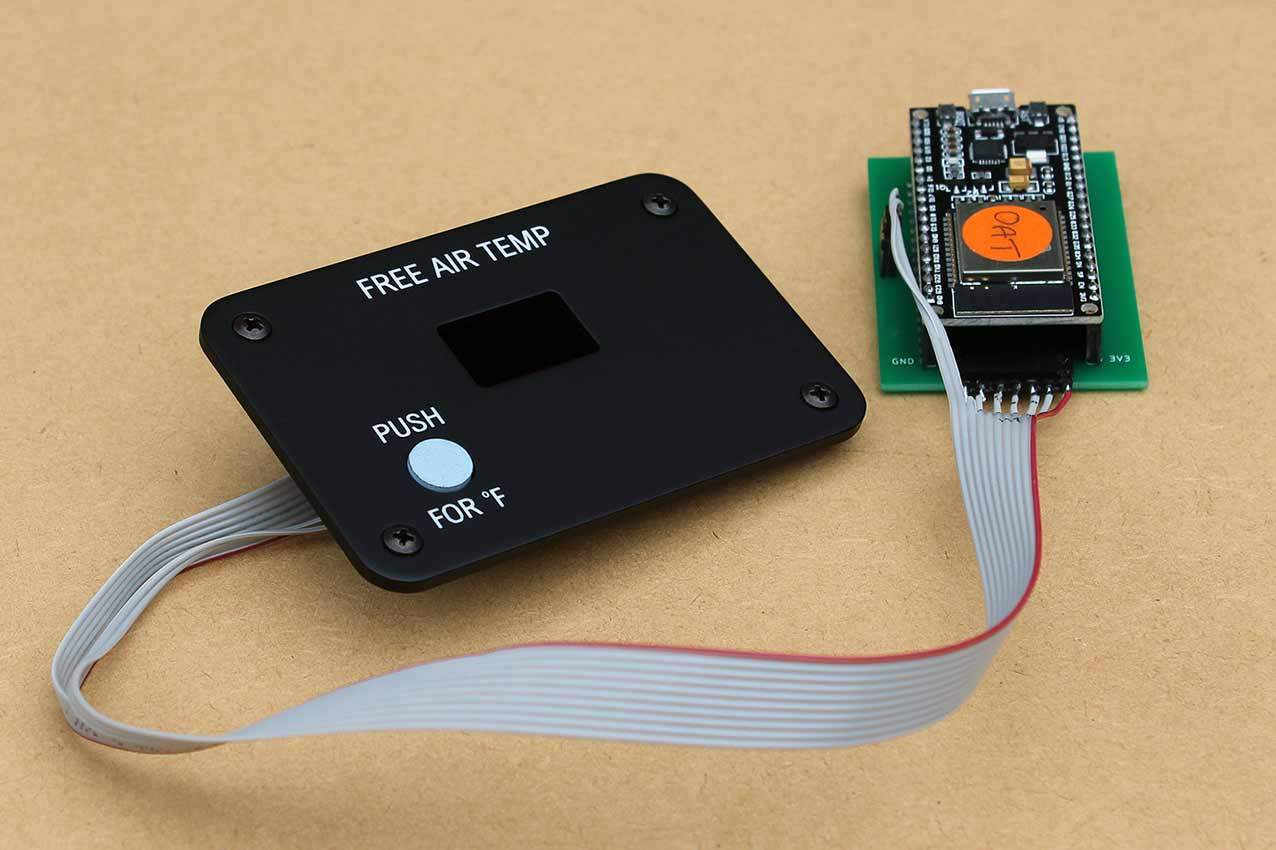

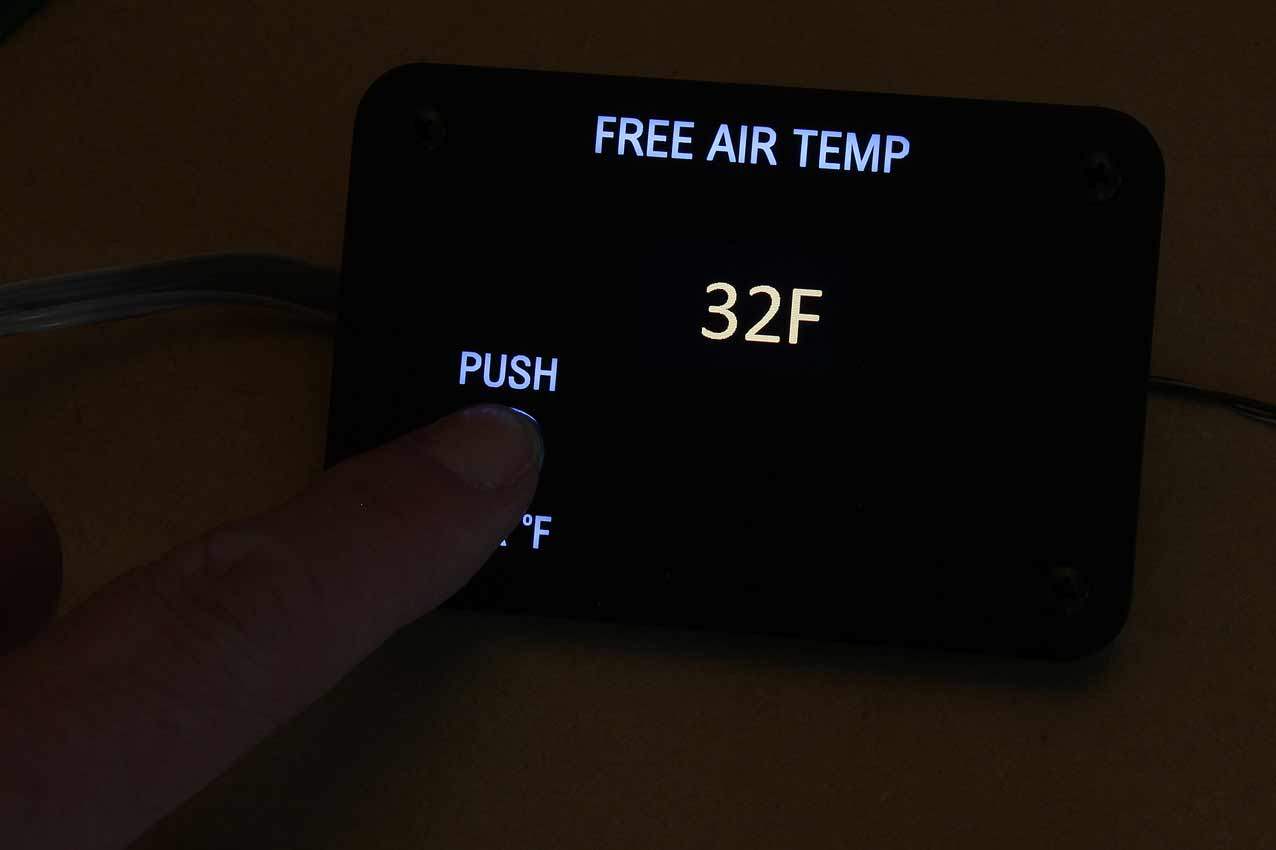

This fully-backlit panel will be shipped fully assembled - as it appears in the above photos - and will include the LCD screen, the pushbutton, a wire connector for the 12V backlighting, and all of the black oxide mounting screws. The ESP controller is also included, and we will supply you with some software that will perform the necessary calculation from celsius to farenheit whilst the pushbutton is depressed.

If purchased complete with parts, this panel will be shipped as a fully-assembled unit. Please note that there is no controller included with this panel. This is not a plug and play item; no wiring or interface is supplied.

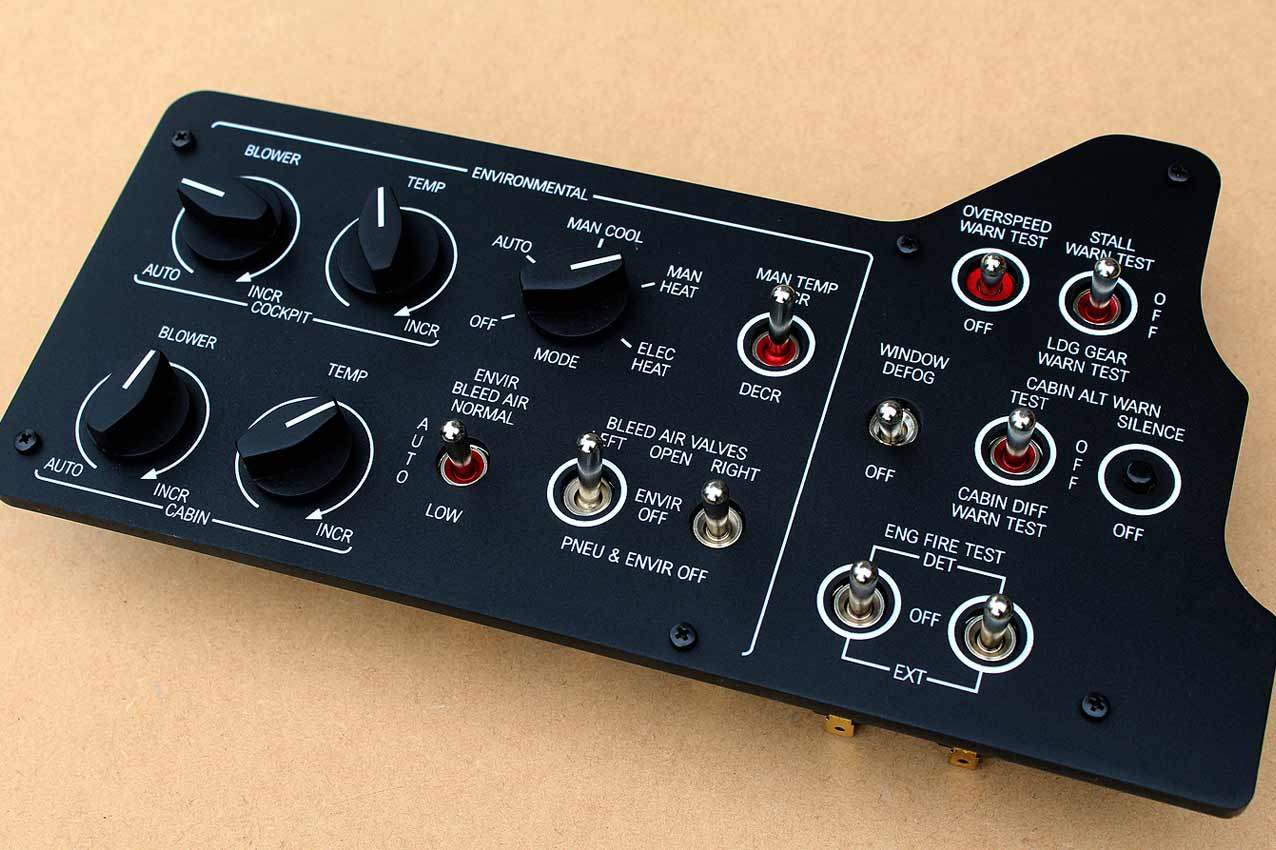

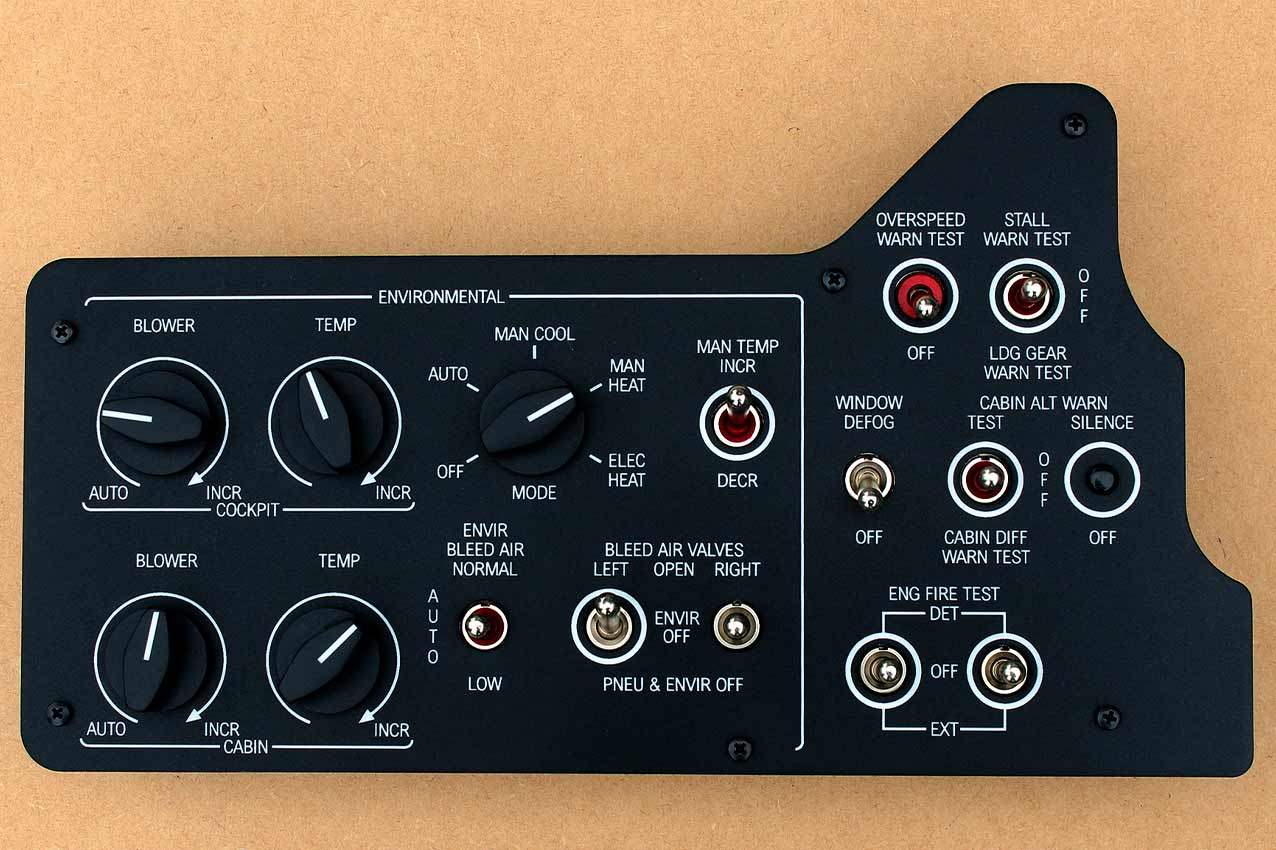

This fully-backlit panel includes two replica Korry switches, all of the various toggle switches, a wire connector for the 12V backlighting, and all of the black oxide mounting screws. The hole cutouts are suitable for mounting real Korry 389 switches, so please let us know if you do not require the replica Korry switches, and we will deduct these from the price.

If purchased complete with parts, this panel will be shipped as a fully-assembled unit. Please note that there is no controller included with this panel. This is not a plug and play item; no wiring or interface is supplied.

This fully-backlit panel includes four replica Korry switches, a wire connector for the 12V backlighting, all of the various toggle switches, as well as the black oxide mounting screws. The hole cutouts are suitable for mounting real Korry 389 switches, so please let us know if you do not require the replica Korry switches, and we will deduct these from the price.

If purchased complete with parts, this panel will be shipped as a fully-assembled unit. Please note that there is no controller included with this panel. This is not a plug and play item; no wiring or interface is supplied.

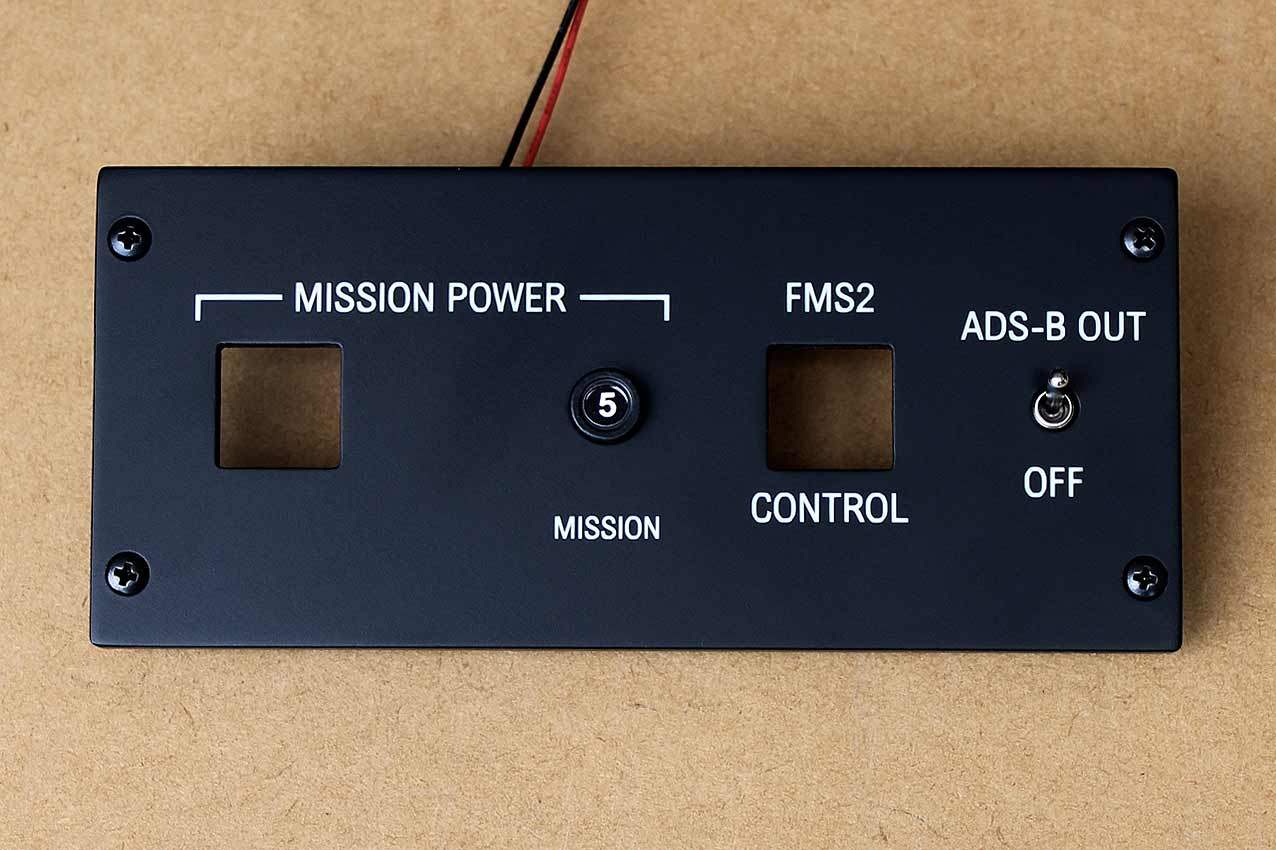

This fully-backlit panel will be shipped fully assembled, and will include the pushbutton, a replica Korry switch, four replica Dzus fasteners, a wire connector for the 12V backlighting, and the two black oxide screws. The Korry cutout is suitable for mounting a real Korry 389 switch, so please let us know if you do not require the replica Korry switch, and we will deduct these from the price.

If purchased complete with parts, this panel will be shipped as a fully-assembled unit. Please note that there is no controller included with this panel. This is not a plug and play item; no wiring or interface is supplied.

This fully-backlit panel includes two replica Korry switches, the miniature toggle switch, a dummy circuit breaker, a wire connector for the 12V backlighting, and all of the black oxide mounting screws. The hole cutouts are suitable for mounting real Korry 389 switches, so please let us know if you do not require the replica Korry switches, and we will deduct these from the price.

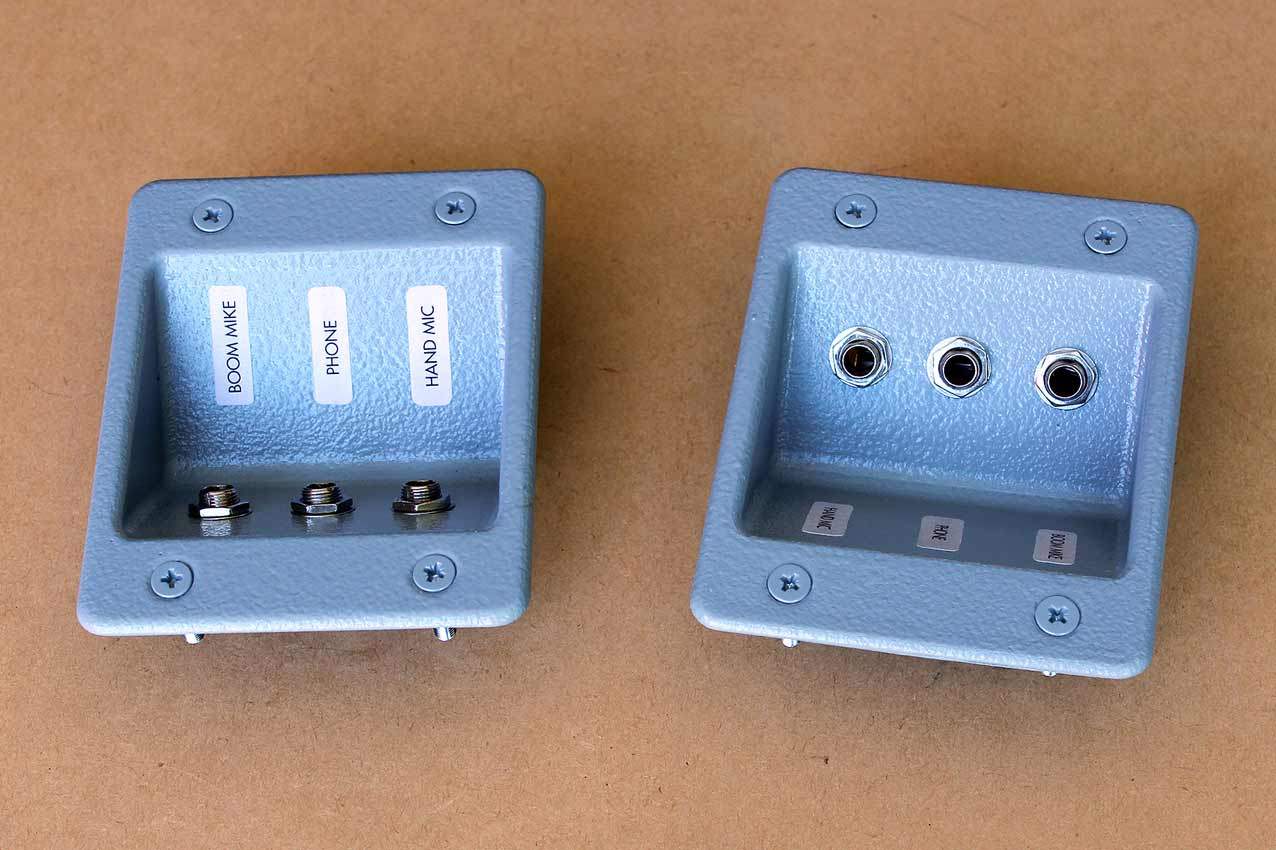

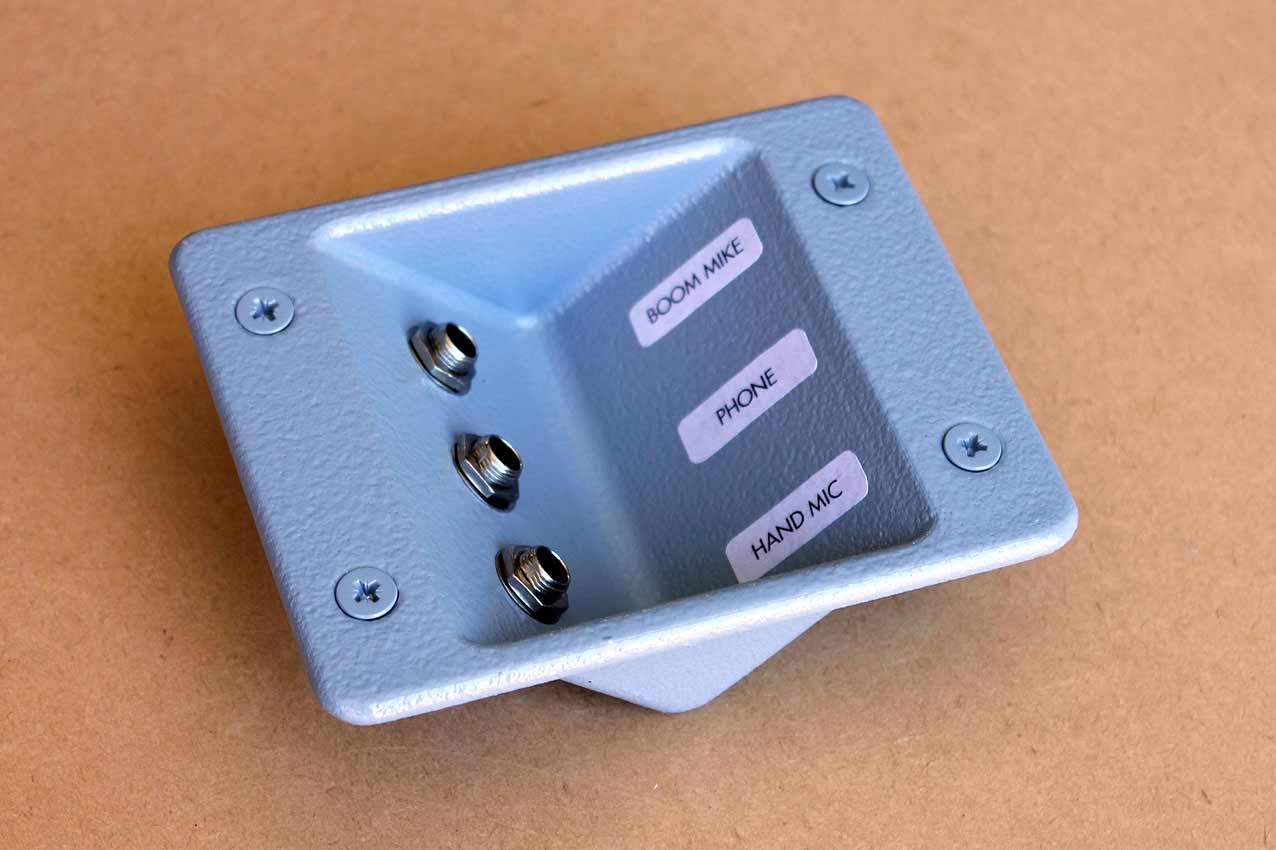

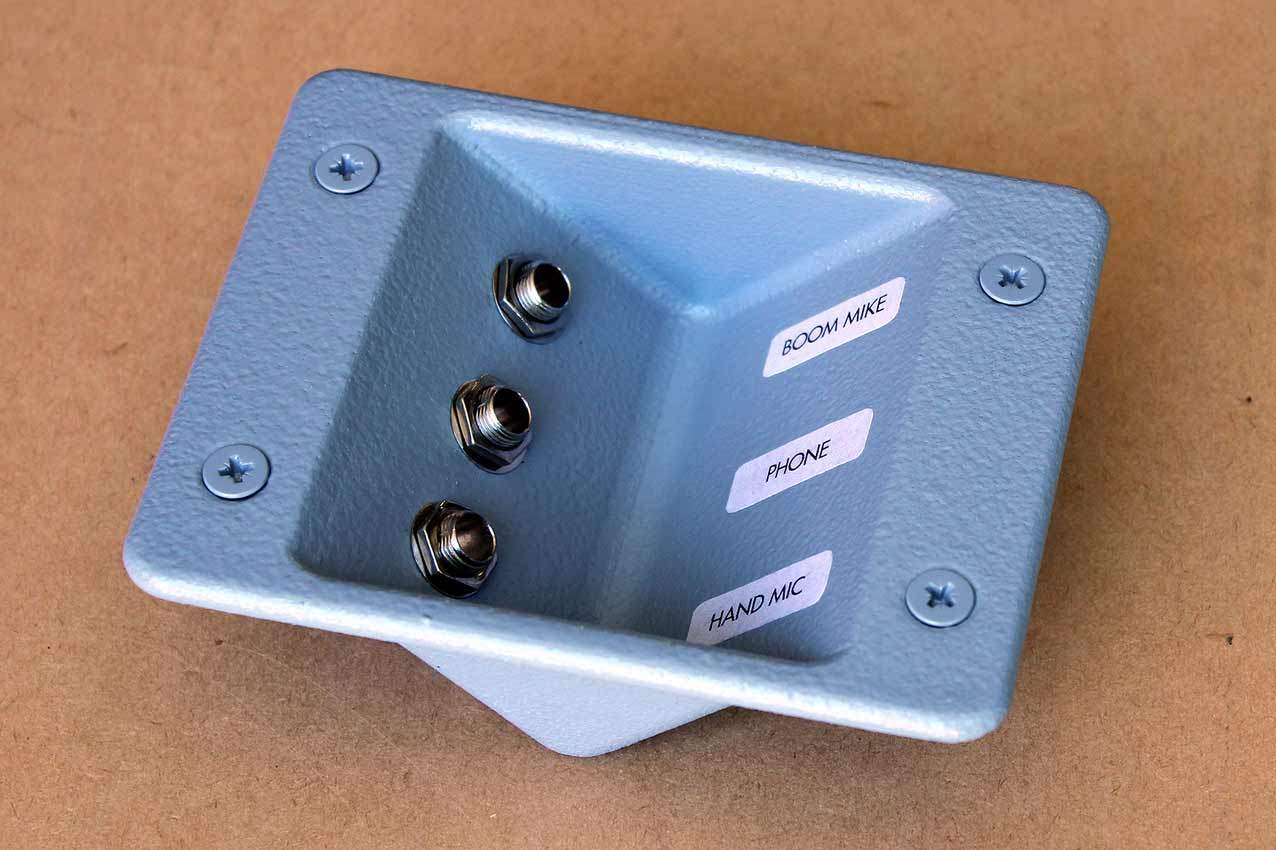

This part will be shipped fully assembled - as it appears in the above photos - and will include the three stereo sockets, the mounting screws and nuts, and the three vinyl decals.

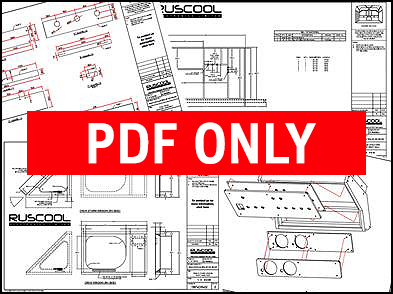

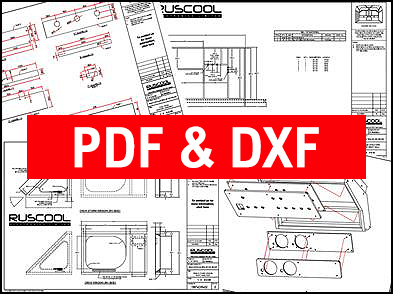

These plans are supplied via email and currently contain five separate multi-page documents which detail the construction of the following items: Fuselage Structure, Fuselage Flooring, Fuel Panel, Crew Windows, and Overhead.

All dimensions are in millimetres and the drawings are based on a Super King Air B200.
The main advantage of building with these plans, of course, is that all of our King Air panels and accessories are based around these measurements.
